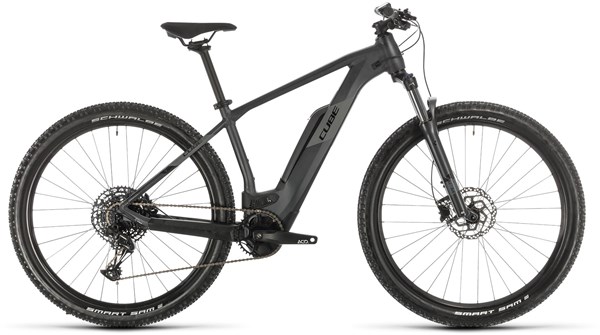

Cube Reaction Hybrid Pro 500 2020 - Electric Mountain Bike

We've years of experience building Bosch-powered mountain bike hybrids – and we put all of that knowledge to good use in the brand-new Reaction Hybrid frame. Designed around the needs of Bosch's superb fourth-generation drive system, we built a frame that's sleeker, better handling and easier to live with than ever – and, with our Size Split system and a trapeze frame option on some models, we've the perfect size and fit for every rider. Housing the Bosch battery securely in its gravity cast down tube, our engineers also routed all cables internally to keep them out of harm's way and keep gear shifts clean and precise with minimal maintenance. The 1.5in head tube and Agile Ride Geometry delivers impeccably precise steering, there's an integrated kickstand mount and we even ensured that there's routing for a stealth dropper post upgrade, so your Reaction Hybrid will stay with you as your riding skills develop. It's everything that you need, and nothing that you don't.
Our designers always start with a clear goal in mind. In the case of the Reaction Hybrid Pro, it was a simple one: build a Bosch e-bike that will help its rider get more out of the trails they ride. To that end, they went back to the drawing board for 2020 and came up with a brand-new frame design that's sleeker, stiffer and more versatile than ever, incorporating Bosch's fourth-generation CX motor. Integrated cable routing complements the clean lines and reduces maintenance, whilst compatibility with CUBE accessories and a remote dropper post makes upgrading and accessorising a cinch. The seamlessly integrated Bosch drive unit and battery, controlled via a Purion handlebar-mounted interface, quietly and efficiently gets on with the job of boosting your pedal power for easier climbs, faster routes and expanded horizons. You can even charge the battery without removing it from the frame. Sram's superb SX Eagle 12-speed transmission provides an awesome gear range, while Shimano's smooth, powerful MT200 hydraulic disc brakes ensure you can control your speed whatever the weather or trail conditions. Extra-wide, grippy Schwalbe Smart Sam tyres offer ample grip and cushioning and our Natural Fit Sequence saddle ensures you'll stay comfortable on even the longest rides. Best of all, our Size Split system – and the option of a trapeze frame – means that there's a Reaction Hybrid Pro to suit every rider. Which means that there's nothing stopping you from getting more out of your riding...
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Aluminium Superlite, Gravity Casting, Agile Ride Geometry, 1.5 Headtube, Internal Cable Routing, Semi-Integrated Battery, Kickstand/Fender/Carrier Mounting Points |
| Fork | SR Suntour XCM34 Coil, Tapered, 15x110mm, 100mm, Lockout |
| Headset | FSA Orbit Z 1.5B ZS, Top Zero-Stack 1 1/2" (OD 56mm), Bottom Zero-Stack 1 1/2" (OD 56mm) |
| Stem | CUBE Performance Stem, 31.8mm |
| Bars | CUBE Rise Trail Bar, 700mm |
| Front Brake | Shimano BR-MT200, Hydr. Disc Brake (180mm) |
| Rear Brake | Shimano BR-MT200, Hydr. Disc Brake (180mm) |
| Rear Mech | Sram SX Eagle™, 12-Speed |
| Shifters | Sram SX Eagle™ Trigger, Single Click |
| Speed | 12 |
| Rims | CUBE EX30, 32H, Disc, Tubeless Ready |
| Front Hub | Shimano HB-MT400-B, 15mm, Boost, Centerlock |
| Rear Hub | Shimano FH-TX505, QR, Centerlock |
| Front Tyre | Schwalbe Smart Sam, Active, 2.60 |
| Rear Tyre | Schwalbe Smart Sam, Active, 2.60 |
| Seat Post | CUBE Performance Post, 30.9mm |
| Saddle | Natural Fit Sequence |
| Chainset | ACID E-Crank, 38T, 175mm |
| Chain | Sram SX Eagle™ |
| Cassette | Sram PG-1210 Eagle™, 11-50T |
| Pedals | CUBE PP MTB |
| Weight | 22.9kg |
| Battery Size (WH) | 500wh |
| Motor | Bosch Drive Unit Performance CX Generation 4 (75Nm) Cruise (250Watt) |
| User Interface | Bosch Purion |
![]()
Cube Reaction Hybrid 2021 Size Chart
|
Size |
Height (cm) |
Height (in) |
|
S - 15" |
160 - 170 |
5'5" - 5'7" |
|
M - 17" |
168 - 175 |
5'6" - 5'9" |
|
L - 19" |
175 - 185 |
5'9" - 6'1" |
|
XL - 21" |
185 - 190 |
6'1" - 6'3" |
|
XXL - 23" |
190 - 196 |
6'3" - 6'5' |
What size frame do I need if I am between sizes? - read here
Cube Reaction Hybrid 2021 Geometry Chart
|
|
S - 15" |
M- 17" |
L-19" |
XL-21" |
XXL-23" |
|
SEAT TUBE |
375 |
405 |
450 |
495 |
545 |
|
SEAT TUBE CENTER-CENTER |
316 |
347 |
393 |
439 |
490 |
|
TOP TUBE HORIZONTAL |
580 |
580 |
600 |
620 |
640 |
|
SEAT TUBE ANGLE |
74 |
74 |
74 |
74 |
74 |
|
HEAD TUBE ANGLE |
67 |
68 |
69 |
69 |
69 |
|
CHAIN STAYS |
460 |
460 |
460 |
460 |
460 |
|
HEAD TUBE |
110 |
115 |
120 |
131 |
146 |
|
WHEELBASE |
1097 |
1141 |
1150 |
1170 |
1191 |
|
STANDOVER HEIGHT |
743 |
765 |
799 |
832 |
870 |
|
REACH |
406 |
403 |
420 |
437 |
452 |
|
STACK |
618 |
628 |
638 |
648 |
662 |
|
WHEELSIZE |
29 |
29 |
29 |
29 |
29 |
|
BB-HEIGHT TO HUB |
-65 |
-65 |
-65 |
-65 |
-65 |
