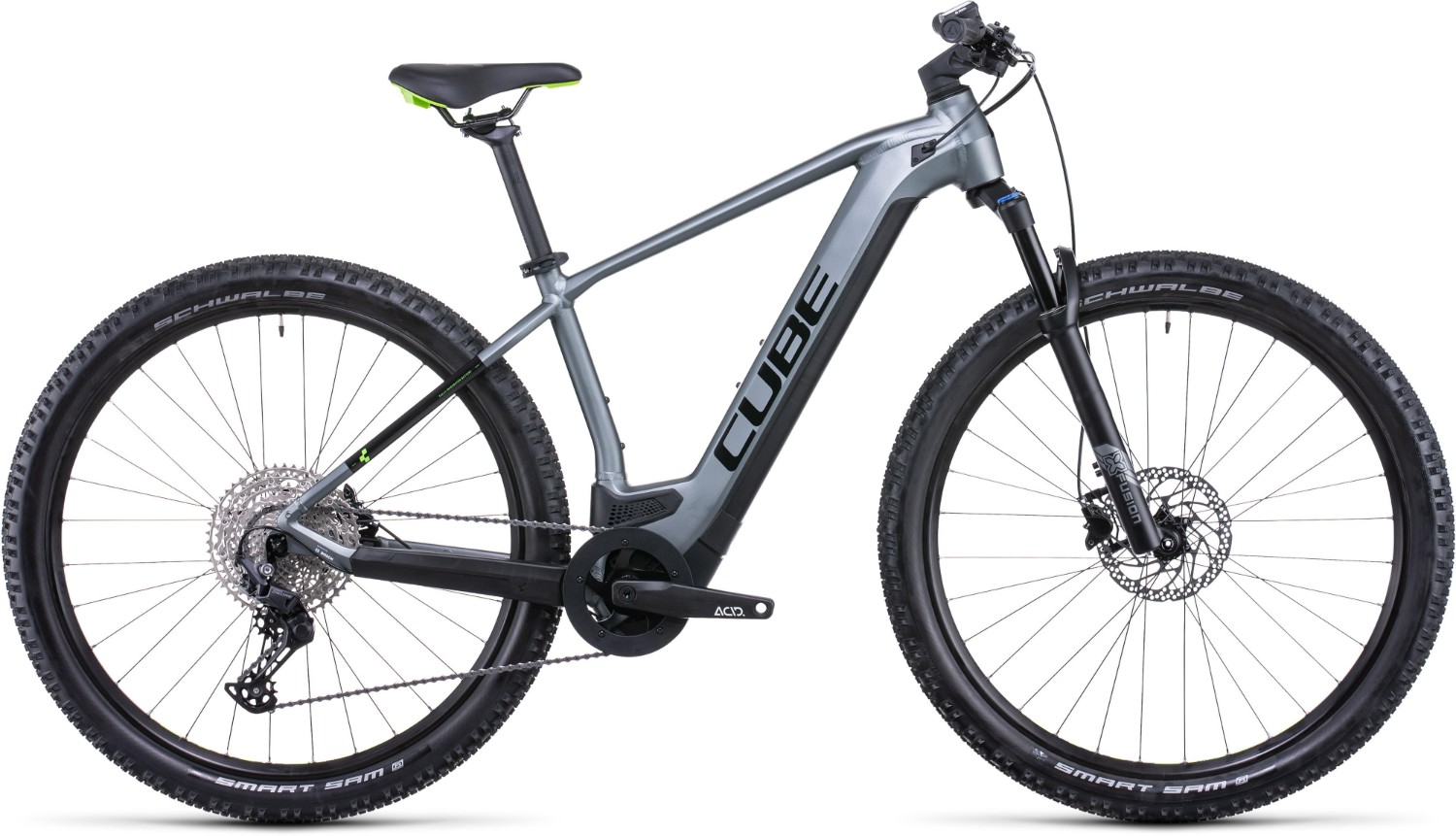

Cube Reaction Hybrid Pro 500 2022 - Electric Mountain Bike
Want to get more out of the places you ride? The Cube Reaction Hybrid Pro's fourth-generation Bosch CX motor, Purion controller and high-capacity PowerTube battery give you the power you need to explore. Combined with Shimano's legendarily reliable Deore 1x11 transmission, it's your ticket to riding further, higher and more often than before. The X-Fusion air fork features a lockout, easy adjustability and Boost front axle for plush bump-swallowing performance. And grippy 2.6in Schwalbe tyres with powerful Shimano hydraulic disc brakes ensure you're always in full control.
Key Features:
- Alloy frame with fully integrated battery and cables
- Comfortable cycling position for a more enjoyable ride
- X-Fusion suspension fork smooths the bumps on the trail
- Hydraulic disc brakes for confident all-weather stopping power
- Shimano 1x11 speed drivetrain for easy gear shifting
- Colours: Flashgrey/Green
- Sizes: S, M, L, XL, XXL
- The Cube Reaction Hybrid Pro 500 is available with 0% APR finance
Drive Information:
- Motor: Bosch CX 4th Gen Cruise – 85Nm max torque
- Battery: 500Wh PowerTube integrated
- User Interface: Purion
All Tredz bikes are:
- Fully built & ready to ride
- Fully checked & tested by Cytech qualified mechanics
- Available with 0% APR finance on any basket over £99
- UK price match guarantee
- 365 day no hassle returns
- Free delivery in the UK Mainland on a date that suits you
In the box with every Tredz bike is:
- Free Tredz 9 key trail tool
- Free Tredz pedal spanner
- Free basic pedals
- Tredz drawstring kit bag
- 16 point quality control check sheet
- Basic bike setup instructions
- Free Cycle Plan insurance voucher
Occasionally, without notice, manufacturers change product design and/or specifications.
Frame | Aluminium Superlite, Gravity Casting, Agile Ride Geometry, 1.5 Headtube, Internal Cable Routing, Full Integrated Battery, Kickstand/Fender/Carrier Mounting Points |
Fork | X-Fusion MIG32 Air, Tapered, 15x110mm, 100mm, Lockout |
Headset | 27.5: ACROS AZX-1032, BlockLock 120°, Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm) // 29: ACROS AZX-1030, Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm) |
Stem | CUBE Performance Stem E-MTB, 31.8mm |
Bars | CUBE Rise Trail Bar, 720mm |
Front Brake | Shimano BR-MT200, Hydr. Disc Brake (180/180) |
Rear Brake | Shimano BR-MT200, Hydr. Disc Brake (180/180) |
Rear Mech | Shimano Deore RD-M5100-SGS, 11-Speed |
Shifters | Shimano Deore SL-M5100, Rapidfire-Plus |
Speed | 11 |
Rims | CUBE EX30, 32H, Disc, Tubeless Ready |
Front Hub | Shimano HB-MT400-B, 15mm, Boost, Centerlock |
Rear Hub | Shimano FH-TX505, QR, Centerlock |
Front Tyre | Schwalbe Smart Sam, Active, 2.6 |
Rear Tyre | Schwalbe Smart Sam, Active, 2.6 |
Seat Post | CUBE Performance Post, 30.9mm |
Saddle | Natural Fit Sequence |
Chainset | ACID E-Crank, 175mm, 38T |
Chain | KMC X11 |
Cassette | Shimano Deore CS-M5100, 11-51T |
Pedals | CUBE PP MTB |
Weight | 23.3KG |
Battery Size (WH) | Bosch PowerTube 500 |
Motor | Bosch Drive Unit Performance CX Generation 4 (85Nm) Cruise (250Watt) |
User Interface | Bosch Purion |
Cube Reaction Hybrid Size Chart
Size |
Height (cm) |
Height (in) |
S - 15" |
160 - 170 |
5'5" - 5'7" |
M - 17" |
168 - 175 |
5'6" - 5'9" |
L - 19" |
175 - 185 |
5'9" - 6'1" |
XL - 21" |
185 - 190 |
6'1" - 6'3" |
XXL - 23" |
190 - 196 |
6'3" - 6'5' |
What size frame do I need if I am between sizes? - read here
Cube Reaction Hybrid Geometry Chart
|
S - 15" |
M- 17" |
L-19" |
XL-21" |
XXL-23" |
SEAT TUBE |
375 |
405 |
450 |
495 |
545 |
SEAT TUBE CENTER-CENTER |
316 |
347 |
393 |
439 |
490 |
TOP TUBE HORIZONTAL |
580 |
580 |
600 |
620 |
640 |
SEAT TUBE ANGLE |
74 |
74 |
74 |
74 |
74 |
HEAD TUBE ANGLE |
67 |
68 |
69 |
69 |
69 |
CHAIN STAYS |
460 |
460 |
460 |
460 |
460 |
HEAD TUBE |
110 |
115 |
120 |
131 |
146 |
WHEELBASE |
1097 |
1141 |
1150 |
1170 |
1191 |
STANDOVER HEIGHT |
743 |
765 |
799 |
832 |
870 |
REACH |
406 |
403 |
420 |
437 |
452 |
STACK |
618 |
628 |
638 |
648 |
662 |
WHEELSIZE |
29 |
29 |
29 |
29 |
29 |
BB-HEIGHT TO HUB |
-65 |
-65 |
-65 |
-65 |
-65 |
