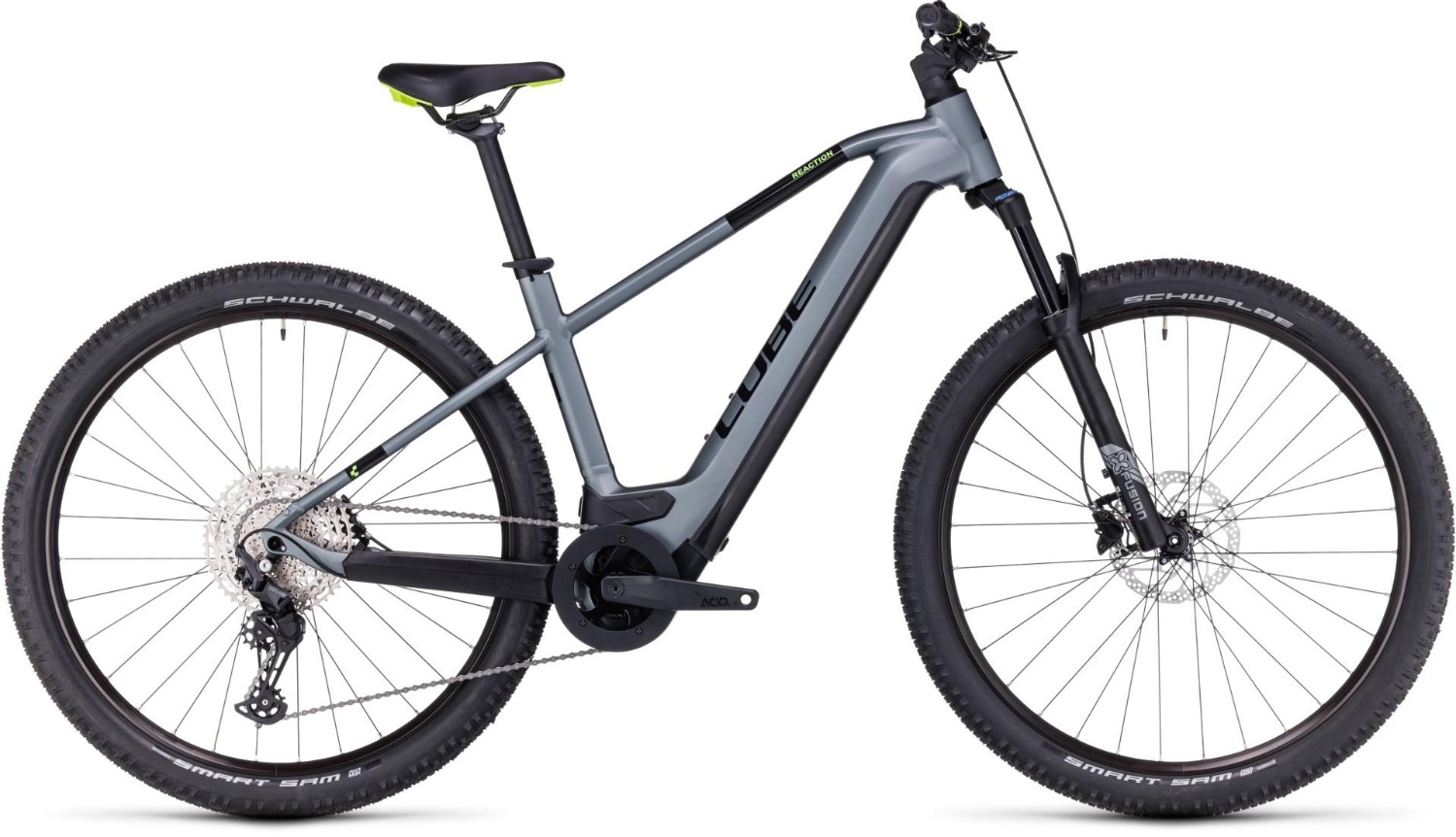

Cube Reaction Hybrid Pro 625 2023 - Electric Mountain Bike

Occasionally, without notice, manufacturers change product design and/or specifications.
Frame | Aluminium Superlite, Gravity Casting, Agile Ride Geometry, 1.5 Headtube, Boost 148, Full Integrated Battery, Advanced Internal Cable Routing, Kickstand/Fender/Carrier Mounting Points |
Fork | X-Fusion MIG32 Air, Tapered, 15x110mm, 120mm, Lockout (EE: 100mm) |
Headset | ACROS AZF-1035, ICR (Integrated Cable Routing), BlockLock 120°, Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm) |
Stem | CUBE Performance Stem E-MTB, 31.8mm |
Bars | CUBE Rise Trail Bar Pro, 740mm |
Front Brake | Shimano BR-MT200, Hydr. Disc Brake (180/180) |
Rear Brake | Shimano BR-MT200, Hydr. Disc Brake (180/180) |
Rear Mech | Shimano Deore RD-M5100-SGS, 11-Speed |
Shifters | Shimano Deore SL-M5100-IR, Direct Attach, Rapidfire-Plus |
Speed | 11 |
Rims | Rodi Tryp 30, 32H, Disc, Tubeless Ready |
Front Hub | Shimano HB-MT400-B, 15mm, Boost, Centerlock |
Rear Hub | Shimano FH-MT400-B, 12mm, Boost, Centerlock |
Front Tyre | Schwalbe Smart Sam, Active, 2.6 |
Rear Tyre | Schwalbe Smart Sam, Active, 2.6 |
Seat Post | CUBE Performance Post, 30.9mm |
Saddle | Natural Fit Sequence |
Chainset | ACID E-Crank, 38T, 175mm |
Chain | KMC X11 |
Cassette | Shimano Deore CS-M5100, 11-51T |
Pedals | ACID PP MTB |
Weight | 23.8 |
Battery Size (WH) | Bosch PowerTube 625 |
Motor | Bosch Drive Unit Performance CX Generation 4 (85Nm) Cruise (250Watt), Smart System |
User Interface | Bosch LED |
Cube Reaction Hybrid Size Chart
Size |
Height (cm) |
Height (in) |
S - 15" |
160 - 170 |
5'5" - 5'7" |
M - 17" |
168 - 175 |
5'6" - 5'9" |
L - 19" |
175 - 185 |
5'9" - 6'1" |
XL - 21" |
185 - 190 |
6'1" - 6'3" |
XXL - 23" |
190 - 196 |
6'3" - 6'5' |
What size frame do I need if I am between sizes? - read here
Cube Reaction Hybrid Geometry Chart
|
S - 15" |
M- 17" |
L-19" |
XL-21" |
XXL-23" |
SEAT TUBE |
375 |
405 |
450 |
495 |
545 |
SEAT TUBE CENTER-CENTER |
316 |
347 |
393 |
439 |
490 |
TOP TUBE HORIZONTAL |
580 |
580 |
600 |
620 |
640 |
SEAT TUBE ANGLE |
74 |
74 |
74 |
74 |
74 |
HEAD TUBE ANGLE |
67 |
68 |
69 |
69 |
69 |
CHAIN STAYS |
460 |
460 |
460 |
460 |
460 |
HEAD TUBE |
110 |
115 |
120 |
131 |
146 |
WHEELBASE |
1097 |
1141 |
1150 |
1170 |
1191 |
STANDOVER HEIGHT |
743 |
765 |
799 |
832 |
870 |
REACH |
406 |
403 |
420 |
437 |
452 |
STACK |
618 |
628 |
638 |
648 |
662 |
WHEELSIZE |
29 |
29 |
29 |
29 |
29 |
BB-HEIGHT TO HUB |
-65 |
-65 |
-65 |
-65 |
-65 |
