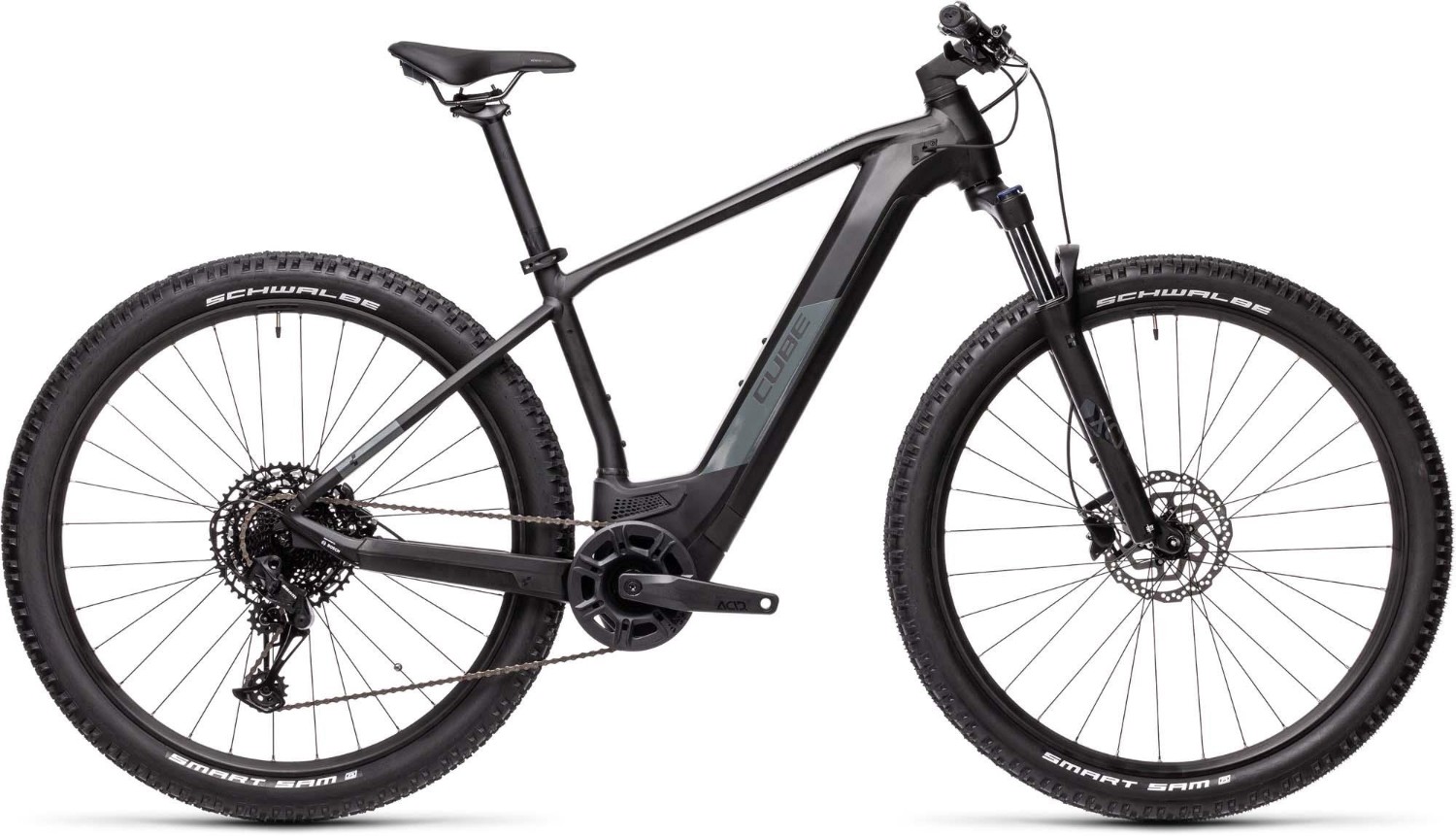

Cube Reaction Hybrid Pro 625 29" 2021 - Electric Mountain Bike
Our designers always start with a clear goal in mind. In the case of the Reaction Hybrid Pro, it was a simple one: build a Bosch e-bike that will help its rider get more out of the trails they ride. To that end, they went back to the drawing board for 2020 and came up with a brand-new frame design that's sleeker, stiffer and more versatile than ever, incorporating Bosch's fourth-generation CX motor. Integrated cable routing complements the clean lines and reduces maintenance, whilst compatibility with CUBE accessories and a remote dropper post makes upgrading and accessorising a cinch.
The seamlessly integrated Bosch drive unit and battery, controlled via a Purion handlebar-mounted interface, quietly and efficiently gets on with the job of boosting your pedal power for easier climbs, faster routes and expanded horizons. You can even charge the battery without removing it from the frame. Sram's superb SX Eagle 12-speed transmission provides an awesome gear range, while Shimano's smooth, powerful MT200 hydraulic disc brakes ensure you can control your speed whatever the weather or trail conditions. Extra-wide, grippy Schwalbe Smart Sam tyres offer ample grip and cushioning and our Natural Fit Sequence saddle ensures you'll stay comfortable on even the longest rides.
Best of all, our Size Split system – and the option of a trapeze frame – means that there's a Reaction Hybrid Pro to suit every rider. Which means that there's nothing stopping you from getting more out of your riding...
Occasionally, without notice, manufacturers change product design and/or specifications.
Frame | Aluminium Superlite, Gravity Casting, Agile Ride Geometry, 1.5 Headtube, Boost 148, Internal Cable Routing, Full Integrated Battery |
Fork | SR Suntour XCM34 Coil, Tapered, 15×110mm, 120mm, Lockout |
Headset | FSA Orbit Z 1.5B ZS, Top Zero-Stack 1 1/2” |
Stem | CUBE Performance Stem, 31.8mm |
Bars | CUBE Rise Trail Bar, 700mm |
Front Brake | Shimano BR-MT200, Hydr. Disc Brake 180mm |
Rear Brake | Shimano BR-MT200, Hydr. Disc Brake 180mm |
Rear Mech | SRAM SX Eagle 12-speed |
Shifters | Sram SX Eagle Trigger, Single Click |
Speed | 12 |
Rims | CUBE EX30, 32H, Disc, Tubeless Ready |
Front Hub | Shimano HB-MT400-B, 15mm, Boost, Centerlock |
Rear Hub | Shimano FH-MT400-B, 12mm , Boost, Centerlock |
Front Tyre | Schwalbe Smart Sam, Active, 2.60 |
Rear Tyre | Schwalbe Smart Sam, Active, 2.60 |
Seat Post | CUBE Performance Post, 30.9mm |
Saddle | Natural Fit Sequence |
Chainset | ACID E-Crank, 38T, 175mm |
Chain | SRAM SX Eagle |
Cassette | Sram PG-1210 Eagle™, 11-50T |
Pedals | CUBE PP MTB |
Weight | 23.2 kg |
Battery Size (WH) | Bosch PowerTube 625 |
Motor | Bosch Drive Unit Performance CX Generation 4 (85Nm) Cruise (250Watt) |
User Interface | Bosch Purion |
Cube Reaction Hybrid 2021 Size Chart
Size |
Height (cm) |
Height (in) |
S - 15" |
160 - 170 |
5'5" - 5'7" |
M - 17" |
168 - 175 |
5'6" - 5'9" |
L - 19" |
175 - 185 |
5'9" - 6'1" |
XL - 21" |
185 - 190 |
6'1" - 6'3" |
XXL - 23" |
190 - 196 |
6'3" - 6'5' |
What size frame do I need if I am between sizes? - read here
Cube Reaction Hybrid 2021 Geometry Chart
|
S - 15" |
M- 17" |
L-19" |
XL-21" |
XXL-23" |
SEAT TUBE |
375 |
405 |
450 |
495 |
545 |
SEAT TUBE CENTER-CENTER |
316 |
347 |
393 |
439 |
490 |
TOP TUBE HORIZONTAL |
580 |
580 |
600 |
620 |
640 |
SEAT TUBE ANGLE |
74 |
74 |
74 |
74 |
74 |
HEAD TUBE ANGLE |
67 |
68 |
69 |
69 |
69 |
CHAIN STAYS |
460 |
460 |
460 |
460 |
460 |
HEAD TUBE |
110 |
115 |
120 |
131 |
146 |
WHEELBASE |
1097 |
1141 |
1150 |
1170 |
1191 |
STANDOVER HEIGHT |
743 |
765 |
799 |
832 |
870 |
REACH |
406 |
403 |
420 |
437 |
452 |
STACK |
618 |
628 |
638 |
648 |
662 |
WHEELSIZE |
29 |
29 |
29 |
29 |
29 |
BB-HEIGHT TO HUB |
-65 |
-65 |
-65 |
-65 |
-65 |
