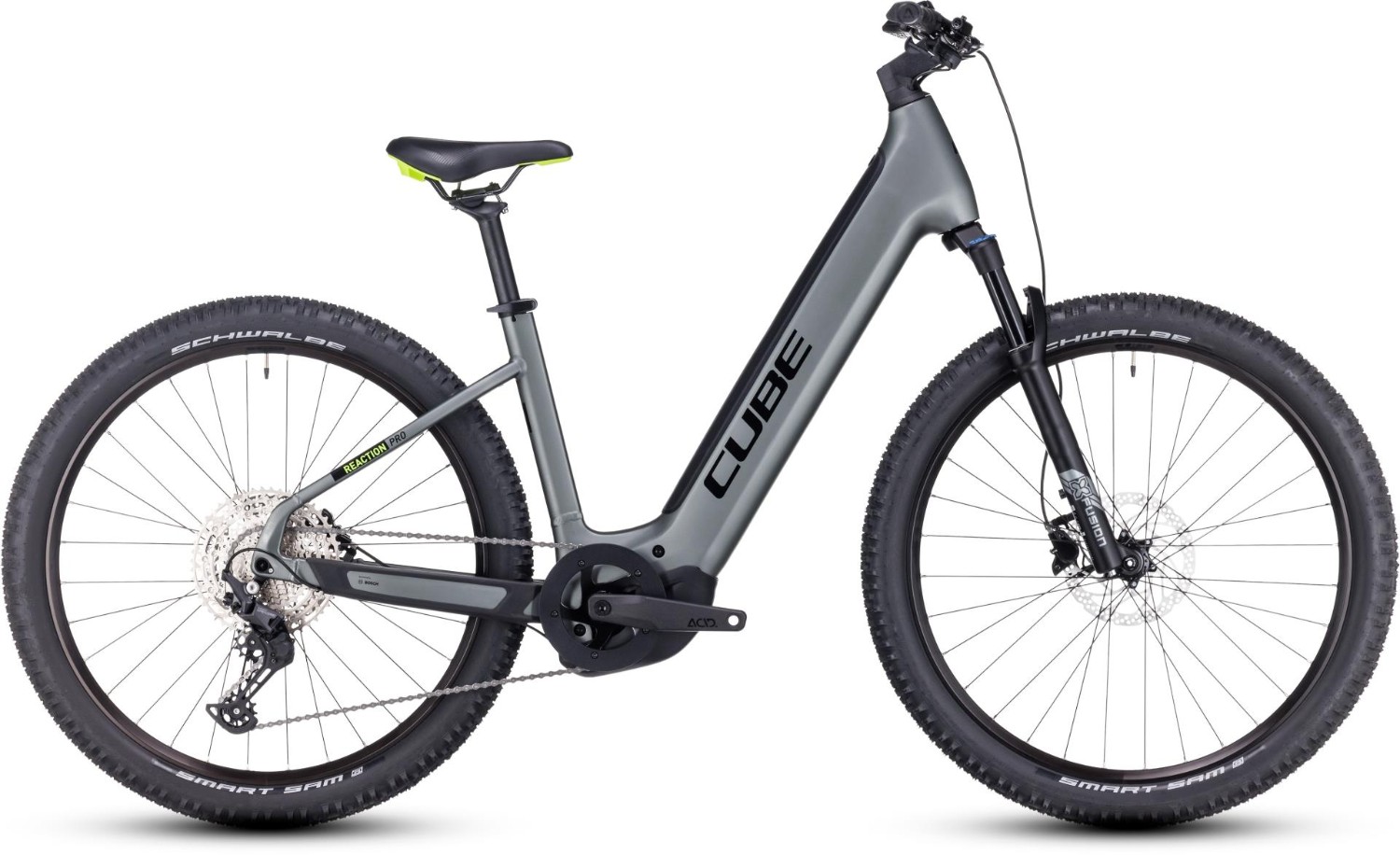

Cube Reaction Hybrid Pro 750 Easy Entry 2023 - Electric Mountain Bike
The Cube Reaction Hybrid Pro 750 Easy Entry hybrid is the epitome of attention to detail. Its meticulously designed frame seamlessly integrates the high-capacity Bosch 750Wh battery and the powerful fourth-generation Bosch CX motor, delivering a punch of power that you'll notice instantly. Featuring Agile Ride Geometry for confidence-inspiring handling, it offers an Easy Entry frame option for added convenience. Internally routed cables and the option for a stealth dropper post upgrade reduce maintenance hassles, allowing you to focus on the ride.
Key Features:
- Frame: Aluminium superlite with gravity casting, agile ride geometry, integrated battery, and advanced internal cable routing.
- Fork: X-fusion mig32 air fork with lockout (120mm travel, 100mm for Easy Entry).
- Drivetrain: Shimano Deore 1x11 gears for reliability and versatility.
- Brakes: Shimano hydraulic disc brakes ensure precise control.
- Wheels: Rodi Tryp 30 rims and wide, grippy 2.6in Schwalbe tires.
- Available with 0% APR finance.
Drive Information:
- Motor: Bosch Drive Unit Performance CX Generation 4 with 85Nm torque.
- Battery: Bosch PowerTube 750Wh capacity.
- User Interface: Bosch LED display for intuitive control.
The Cube Reaction Hybrid Pro 750 Easy Entry is your ticket to ride further, higher, and more frequently. With its robust Bosch motor, dependable components, and comfortable design, it will take you on unforgettable journeys with ease. Whether you choose the Easy Entry frame or any other size, you'll enjoy uncompromised battery capacity and performance. Experience the joy of e-biking at its finest and elevate your riding adventures today.
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Aluminium Superlite, Gravity Casting, Agile Ride Geometry, 1.5 Headtube, Boost 148, Full Integrated Battery, Advanced Internal Cable Routing, Kickstand/Fender/Carrier Mounting Points |
| Fork | X-Fusion MIG32 Air, Tapered, 15x110mm, 120mm, Lockout (EE: 100mm) |
| Headset | ACROS AZF-1035, ICR (Integrated Cable Routing), BlockLock 120°, Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm) |
| Stem | CUBE Performance Stem E-MTB, 31.8mm |
| Bars | CUBE Rise Trail Bar Pro, 740mm |
| Front Brake | Shimano BR-MT200, Hydr. Disc Brake (180/180) |
| Rear Brake | Shimano BR-MT200, Hydr. Disc Brake (180/180) |
| Rear Mech | Shimano Deore RD-M5100-SGS, 11-Speed |
| Shifters | Shimano Deore SL-M5100-IR, Direct Attach, Rapidfire-Plus |
| Speed | 11 |
| Rims | Rodi Tryp 30, 32H, Disc, Tubeless Ready |
| Front Hub | Shimano HB-MT400-B, 15mm, Boost, Centerlock |
| Rear Hub | Shimano FH-MT400-B, 12mm, Boost, Centerlock |
| Front Tyre | Schwalbe Smart Sam, Active, 2.6 |
| Rear Tyre | Schwalbe Smart Sam, Active, 2.6 |
| Seat Post | CUBE Performance Post, 30.9mm |
| Saddle | Natural Fit Sequence |
| Chainset | ACID E-Crank, 38T, 175mm |
| Chain | KMC X11 |
| Cassette | Shimano Deore CS-M5100, 11-51T |
| Pedals | ACID PP MTB |
| Battery Size (WH) | Bosch PowerTube 750 |
| Motor | Bosch Drive Unit Performance CX Generation 4 (85Nm) Cruise (250Watt), Smart System |
| User Interface | Bosch LED |
Cube Reaction Hybrid Size Chart
|
Size |
Height (cm) |
Height (in) |
|
S - 15" |
160 - 170 |
5'5" - 5'7" |
|
M - 17" |
168 - 175 |
5'6" - 5'9" |
|
L - 19" |
175 - 185 |
5'9" - 6'1" |
|
XL - 21" |
185 - 190 |
6'1" - 6'3" |
|
XXL - 23" |
190 - 196 |
6'3" - 6'5' |
What size frame do I need if I am between sizes? - read here
Cube Reaction Hybrid Geometry Chart
|
|
S - 15" |
M- 17" |
L-19" |
XL-21" |
XXL-23" |
|
SEAT TUBE |
375 |
405 |
450 |
495 |
545 |
|
SEAT TUBE CENTER-CENTER |
316 |
347 |
393 |
439 |
490 |
|
TOP TUBE HORIZONTAL |
580 |
580 |
600 |
620 |
640 |
|
SEAT TUBE ANGLE |
74 |
74 |
74 |
74 |
74 |
|
HEAD TUBE ANGLE |
67 |
68 |
69 |
69 |
69 |
|
CHAIN STAYS |
460 |
460 |
460 |
460 |
460 |
|
HEAD TUBE |
110 |
115 |
120 |
131 |
146 |
|
WHEELBASE |
1097 |
1141 |
1150 |
1170 |
1191 |
|
STANDOVER HEIGHT |
743 |
765 |
799 |
832 |
870 |
|
REACH |
406 |
403 |
420 |
437 |
452 |
|
STACK |
618 |
628 |
638 |
648 |
662 |
|
WHEELSIZE |
29 |
29 |
29 |
29 |
29 |
|
BB-HEIGHT TO HUB |
-65 |
-65 |
-65 |
-65 |
-65 |
