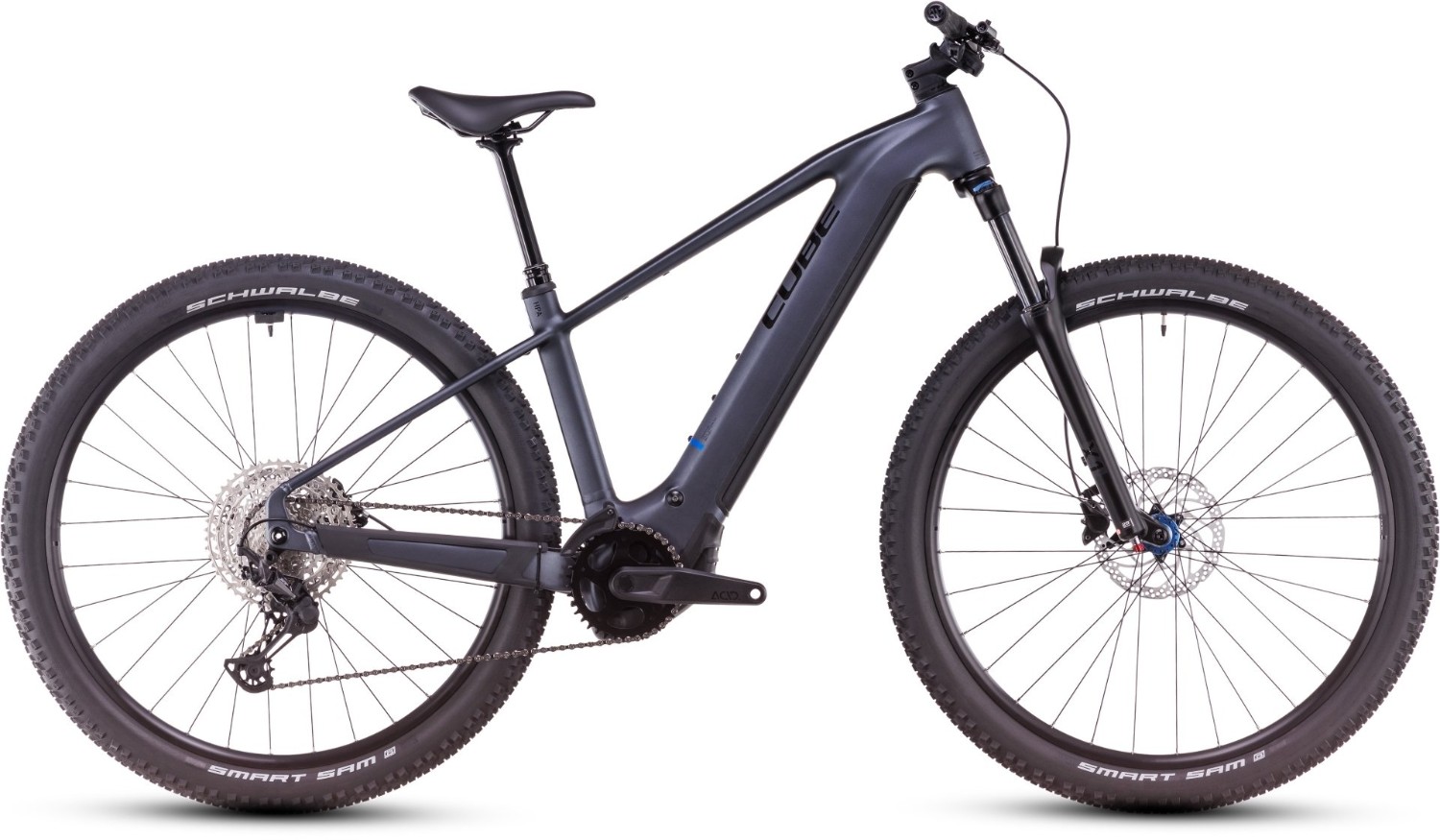

Cube Reaction Hybrid Pro 800 2025 - Electric Mountain Bike
The Cube Reaction Hybrid Pro 800 is designed to take on everything from daily commutes to rugged off-road adventures, providing smooth handling and ample power for riders seeking flexibility and performance.
Key Features:
- Frame: Aluminium Superlite with Gravity Casting, Boost 148; sleek & robust
- Front Suspension: SR Suntour X1-32 LO-R Air fork with 120mm travel
- Drivetrain: Shimano XT 12-speed for efficient, precise shifting
- Brakes: Shimano BR-MT200 hydraulic disc brakes, 180mm rotors
- Wheels: 29” Cube EX30 tubeless-ready with Schwalbe Smart Sam tyres
- Standout Feature: Integrated 800Wh PowerTube battery; PowerMore ready
- Finance Option: Available with 0% APR finance
Drive Information:
- Motor: Bosch Performance Line CX with 85Nm torque
- Battery: Bosch PowerTube 800Wh for extended range
- User Interface: Bosch Smart System display with remote control
With its carefully engineered aluminium Superlite frame, the Reaction Hybrid Pro 800 combines strength and sleekness for a clean aesthetic and enhanced handling. Its integrated battery and cable routing give it a refined appearance while also protecting key components. The frame is PowerMore-ready, so you can add an additional 250Wh of battery capacity for extra-long rides, making it ideal for adventures that go the distance.
The Reaction Hybrid Pro 800’s Shimano XT 12-speed drivetrain offers precise shifting across varied terrain, complemented by Shimano’s reliable MT200 hydraulic disc brakes for strong stopping power. Its SR Suntour X1-32 LO-R Air fork with 120mm of travel smooths out rough trails and absorbs shocks for a more comfortable ride. Paired with wide Schwalbe Smart Sam tyres on Cube’s durable tubeless-ready EX30 wheels, it ensures a stable and enjoyable experience on all types of paths.
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Aluminum Superlite, Gravity Casting Technology, Agile Ride Geometry, Boost 148, UDH™, Full Integrated Battery, Advanced Internal Cable Routing, Kickstand/Fender/Carrier Mounting Points, Integrated Seatclamp |
| Fork | SR Suntour X1-32 LO-R Air, Tapered, 15x110mm, 120mm (27,5: 100mm) |
| Headset | ACROS AZF-1034, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm) |
| Stem | CUBE Performance Stem E-MTB 35, FPI-Link |
| Bars | CUBE Rise Trail Bar 35 |
| Front Brake | Shimano BR-MT200, Hydr. Disc Brake (180) |
| Rear Brake | Shimano BR-MT200, Hydr. Disc Brake (180) |
| Rear Mech | Shimano XT RD-M8100-SGS, ShadowPlus, 12-Speed |
| Shifters | Shimano Deore SL-M6100-R, Rapidfire Plus |
| Speed | 12 |
| Rims | CUBE EX30, 32H, Disc, Tubeless Ready |
| Front Hub | Cube Engineered By Newmen, 15mm, Boost, Centerlock |
| Rear Hub | Cube Engineered By Newmen, 12mm, Boost, Centerlock |
| Front Tyre | Schwalbe Smart Sam, Active, 2.6 |
| Rear Tyre | Schwalbe Smart Sam, Active, 2.6 |
| Seat Post | CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm |
| Saddle | ACID Sequence Pro 160 |
| Chainset | ACID MTB Hybrid Pro, 38T |
| Cassette | Shimano Deore CS-M6100, 10-51T |
| Pedals | ACID PP MTB |
| Battery Size (WH) | Bosch PowerTube 800 |
| Motor | Bosch Drive Unit Performance Line CX, Smart System |
Cube Reaction Hybrid 2025 Size Chart
|
Size |
Height (cm) |
Height (in) |
|
S - 15" |
160 - 170 |
5'5" - 5'7" |
|
M - 17" |
168 - 175 |
5'6" - 5'9" |
|
L - 19" |
175 - 185 |
5'9" - 6'1" |
|
XL - 21" |
185 - 190 |
6'1" - 6'3" |
|
XXL - 23" |
190 - 196 |
6'3" - 6'5' |
What size frame do I need if I am between sizes? - read here
Cube Reaction Hybrid 2025 Geometry Chart
| Size | S | M | L | XL | XXL |
|---|---|---|---|---|---|
| Stack | 646 | 653 | 662 | 674 | 685 |
| Reach | 409 | 420 | 437 | 455 | 471 |
| Head Tube Length | 159 | 110 | 120 | 130 | 145 |
| Head Tube Angle | 67.5° | 67.5° | 67.5° | 67.5° | 67.5° |
| Bottom Bracket Height | 46 | 65 | 65 | 65 | 65 |
| Chainstay Length | 456 | 470 | 470 | 470 | 470 |
| Wheelbase | 1157 | 1176 | 1198 | 1218 | 1240 |
| Top Tube Length (horizontal) | 587 | 607 | 627 | 647 | 667 |
| Standover Height | 755 | 778 | 782 | 787 | 824 |
| Seat Tube Length | 370 | 405 | 450 | 495 | 545 |
| Seat Tube Angle | 74.5° | 74.0° | 74.0° | 74.0° | 74.0° |
All measurements are in mm unless otherwise stated.
The above table shows the standard geometry for the bicycle as shipped, other geometry configurations may be available with certain bikes. Please contact us via Live Chat to find out more.
