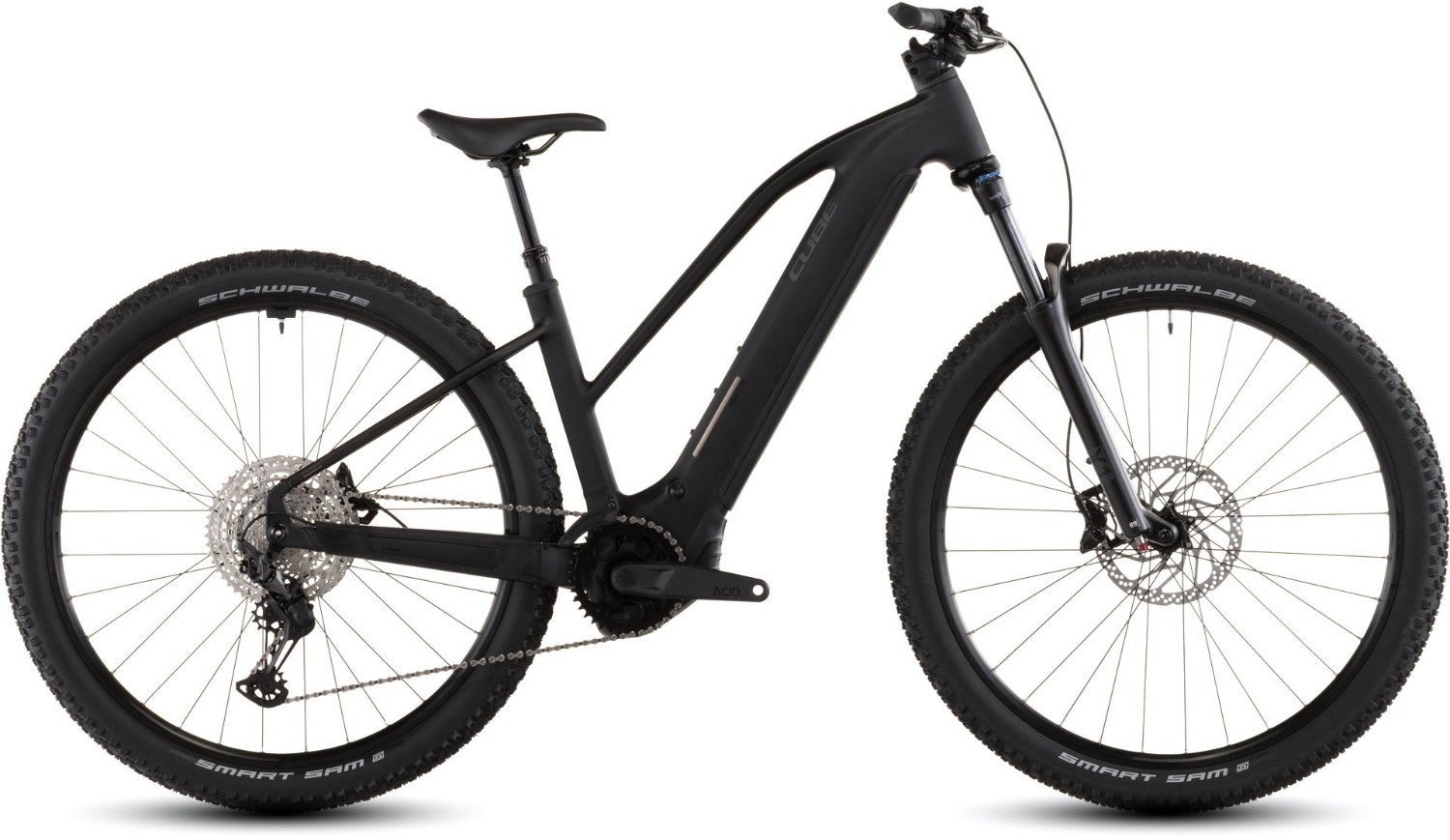

Cube Reaction Hybrid Pro 800 Trapeze 2026 - Electric Mountain Bike
The Reaction Hybrid Pro combines mountain bike versatility with Bosch-powered ease of use and clever CUBE design. Tackle any route, off-road or on, thanks to an 800Wh battery and smooth, powerful Bosch CX drive. Combined with Shimano's easy-to-use XT 12-speed gears, it's all you need to comfortably ride any hill. For coming back down the other side, we fitted powerful Shimano 4-piston hydraulic disc brakes and grippy Schwalbe 2.6in tyres. There's also an air-sprung fork with 120mm of travel (100mm for small frame sizes and for all Easy Entry models), and a remote dropper seatpost for extra comfort and control on rougher trails. It's got it all – the rest is up to you.
Frame description
Frame description
Its looks are familiar – perhaps even traditional. But don't be fooled – the Reaction Hybrid's design is cutting edge. With the 800Wh PowerTube battery neatly concealed and the Bosch CX drive housed securely, its svelte lines disguise lots of clever features. It's PowerMore-ready, making it easy to add up to 250Wh of extra battery capacity. The integrated seat clamp and cable routing complement the clean aesthetic. There's a pre-installed chain guide, and it's ready to accept ACID mudguards and a luggage carrier... plus, with X-Connect, adding a compatible ACID front light is as simple as plugging it into the headset. And, with Size Split, it's easy to find the perfect fit for every rider. We've thought of everything, so you can just ride.
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Aluminium Superlite, Gravity Casting Technology, Agile Ride Geometry, Boost148, Fully Integrated Battery, Advanced Internal Cable Routing, 1.5 Headtube, Kickstand/Fender/Carrier Mounting Points |
| Fork | SR Suntour X1-32 LO-R Air, Tapered, 15x110mm, 120mm (27.5: 100mm) |
| Headset | ACROS AZF-1034, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm), X-Connect Interface |
| Stem | CUBE Performance Stem E-MTB 35, FPI-Link |
| Bars | CUBE Rise Trail Bar 35 |
| Front Brake | Shimano BR-MT420, Hydr. Disc Brake (203) |
| Rear Brake | Shimano BR-MT420, Hydr. Disc Brake (203) |
| Rear Mech | Shimano XT RD-M8100-SGS, ShadowPlus, 12-Speed |
| Shifters | Shimano Deore SL-M6100-IR, Direct Attach |
| Speed | 12 |
| Rims | ACID SLX 30, 32/32 Spokes, 15x110mm/12x148mm, Tubeless Ready |
| Front Hub | ACID SLX 30, 32/32 Spokes, 15x110mm/12x148mm, Tubeless Ready |
| Rear Hub | ACID SLX 30, 32/32 Spokes, 15x110mm/12x148mm, Tubeless Ready |
| Front Tyre | Schwalbe Smart Sam, Active, 2.6 |
| Rear Tyre | Schwalbe Smart Sam, Active, 2.6 |
| Seat Post | CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm |
| Saddle | ACID Sequence 160 |
| Chainset | ACID MTB Hybrid Pro, 38T |
| Chain | KMC e12 |
| Cassette | Shimano Deore CS-M6100, 10-51T |
| Battery Size (WH) | Bosch PowerTube 800 |
| Motor | Bosch Drive Unit Performance Line CX max. 100Nm (BDU38) |
Cube Reaction Hybrid Size Chart
|
Size |
Height (cm) |
Height (in) |
|
S - 15" |
160 - 170 |
5'5" - 5'7" |
|
M - 17" |
168 - 175 |
5'6" - 5'9" |
|
L - 19" |
175 - 185 |
5'9" - 6'1" |
|
XL - 21" |
185 - 190 |
6'1" - 6'3" |
|
XXL - 23" |
190 - 196 |
6'3" - 6'5' |
