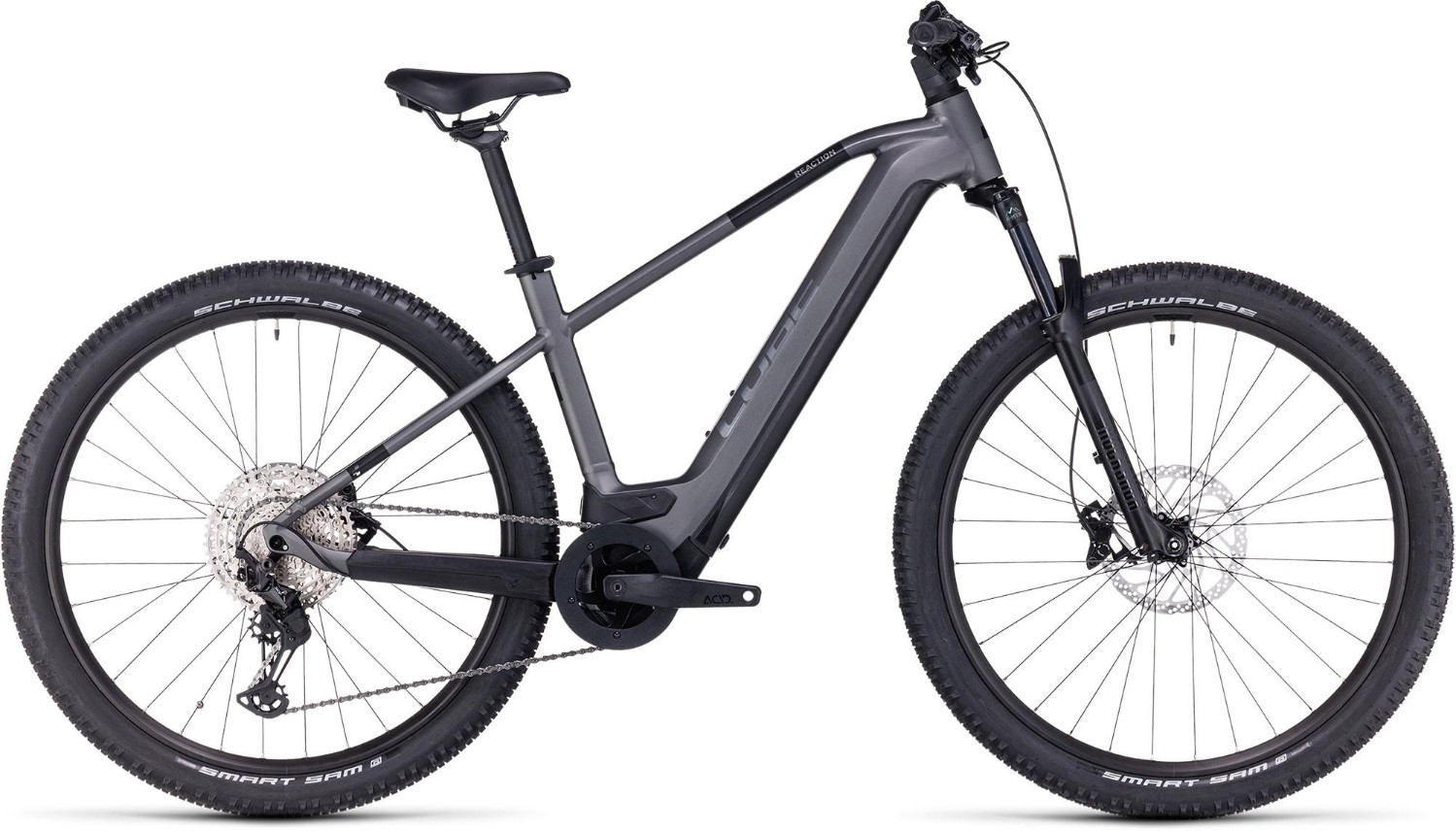

Cube Reaction Hybrid Race 750 2023 - Electric Mountain Bike
With its high-capacity Bosch PowerTube battery, fourth-generation Bosch CX power and the slick shifting and wide range of Shimano's 1x12 XT gears, the Cube Reaction Hybrid Race has what you need to broaden your horizons and take your riding to the next level. Powerful four-piston Shimano hydraulic disc brakes work with 2.6in Schwalbe tyres to deliver epic stopping power, while a RockShox Judy Silver air suspension fork delivers 100mm of easy-to-adjust, bump-smoothing travel. With a frame style and size to suit every rider, it's time to get inspired and ride more.
Key features:
- Aluminium Superlite frame
- RockShox Judy Silver TK Air forks with 120mm of bump soaking travel
- Shimano 1x12 gears give enough range to climb anything
- Shimano brakes offer all-weather stopping power
- Schwalbe Smart Sam tyres give enough traction for most conditions
- Sizes: M, L, XL, XXL
- Colours: Grey/Metal, Olive/Green
- The Cube Reaction Hybrid Race 750 is available with 0% APR finance
Drive Information:
- Motor: Bosch Drive Unit Performance CX Generation 4 (85Nm) Cruise (250Watt), Smart System
- Battery: Bosch PowerTube 750
- Interface: Bosch Kiox 300
It's all in the detail. So neat is the Reaction Hybrid's frame design, you'll barely notice the high-capacity Bosch battery – now up to 750Wh, even for smaller frame sizes – and powerful fourth-generation, Smart System-equipped Bosch CX motor. But you'll definitely notice the power. Agile Ride Geometry delivers confidence-inspiring handling, as you'd expect. There's an Easy Entry frame option, and a new S frame with 27.5in wheels, so everyone can find their ideal Reaction Hybrid. And, with internally routed cables including a stealth dropper post upgrade option, we've reduced the need for maintenance so that you can just enjoy the ride.
All Tredz bikes are:
- Fully built & ready to ride
- Fully checked & tested by Cytech qualified mechanics
- Available with 0% APR finance on any basket over £99
- UK price match promise
- 365 day no hassle returns
- Free delivery in the UK Mainland on a date that suits you
In the box with every Tredz bike is:
- Free Tredz 9 key trail tool
- Free Tredz pedal spanner
- Free basic pedals
- Tredz drawstring kit bag
- 16 point quality control check sheet
- Basic bike setup instructions
- Free Cycle Plan insurance voucher
Occasionally, without notice, manufacturers change product design and/or specifications.
Frame | Aluminium Superlite, Gravity Casting, Agile Ride Geometry, 1.5 Headtube, Boost 148, Full Integrated Battery, Advanced Internal Cable Routing, Kickstand/Fender/Carrier Mounting Points |
Fork | RockShox Judy Silver TK Air, Tapered, 15x110mm, eMTB Approved, 120mm, Lockout (EE: 100mm) |
Headset | ACROS AZF-1035, ICR (Integrated Cable Routing), BlockLock 120°, Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm) |
Stem | CUBE Performance Stem E-MTB, 31.8mm |
Bars | CUBE Rise Trail Bar Pro, 740mm |
Front Brake | Shimano BR-MT420, Hydr. Disc Brake (203/203) |
Rear Brake | Shimano BR-MT420, Hydr. Disc Brake (203/203) |
Rear Mech | Shimano XT RD-M8100-SGS, ShadowPlus, 12-Speed |
Shifters | Shimano Deore SL-M6100-IR, Direct Attach, Rapidfire-Plus |
Speed | 12 |
Rims | CUBE EX30, 32H, Disc, Tubeless Ready |
Front Hub | Shimano HB-MT400-B, 15mm, Boost, Centerlock |
Rear Hub | Shimano FH-MT410-B, 12mm, Boost, Centerlock |
Front Tyre | Schwalbe Smart Sam, Active, 2.6 |
Rear Tyre | Schwalbe Smart Sam, Active, 2.6 |
Seat Post | CUBE Performance Post, 30.9mm |
Saddle | Natural Fit Sequence |
Chainset | ACID E-Crank, 38T, 175mm |
Chain | Shimano CN-M6100 |
Cassette | Shimano Deore CS-M6100, 10-51T |
Pedals | ACID PP MTB |
Battery Size (WH) | Bosch PowerTube 750 |
Motor | Bosch Drive Unit Performance CX Generation 4 (85Nm) Cruise (250Watt), Smart System |
User Interface | Bosch Kiox 300 |
Cube Reaction Hybrid Size Chart
Size |
Height (cm) |
Height (in) |
S - 15" |
160 - 170 |
5'5" - 5'7" |
M - 17" |
168 - 175 |
5'6" - 5'9" |
L - 19" |
175 - 185 |
5'9" - 6'1" |
XL - 21" |
185 - 190 |
6'1" - 6'3" |
XXL - 23" |
190 - 196 |
6'3" - 6'5' |
What size frame do I need if I am between sizes? - read here
Cube Reaction Hybrid Geometry Chart
|
S - 15" |
M- 17" |
L-19" |
XL-21" |
XXL-23" |
SEAT TUBE |
375 |
405 |
450 |
495 |
545 |
SEAT TUBE CENTER-CENTER |
316 |
347 |
393 |
439 |
490 |
TOP TUBE HORIZONTAL |
580 |
580 |
600 |
620 |
640 |
SEAT TUBE ANGLE |
74 |
74 |
74 |
74 |
74 |
HEAD TUBE ANGLE |
67 |
68 |
69 |
69 |
69 |
CHAIN STAYS |
460 |
460 |
460 |
460 |
460 |
HEAD TUBE |
110 |
115 |
120 |
131 |
146 |
WHEELBASE |
1097 |
1141 |
1150 |
1170 |
1191 |
STANDOVER HEIGHT |
743 |
765 |
799 |
832 |
870 |
REACH |
406 |
403 |
420 |
437 |
452 |
STACK |
618 |
628 |
638 |
648 |
662 |
WHEELSIZE |
29 |
29 |
29 |
29 |
29 |
BB-HEIGHT TO HUB |
-65 |
-65 |
-65 |
-65 |
-65 |
