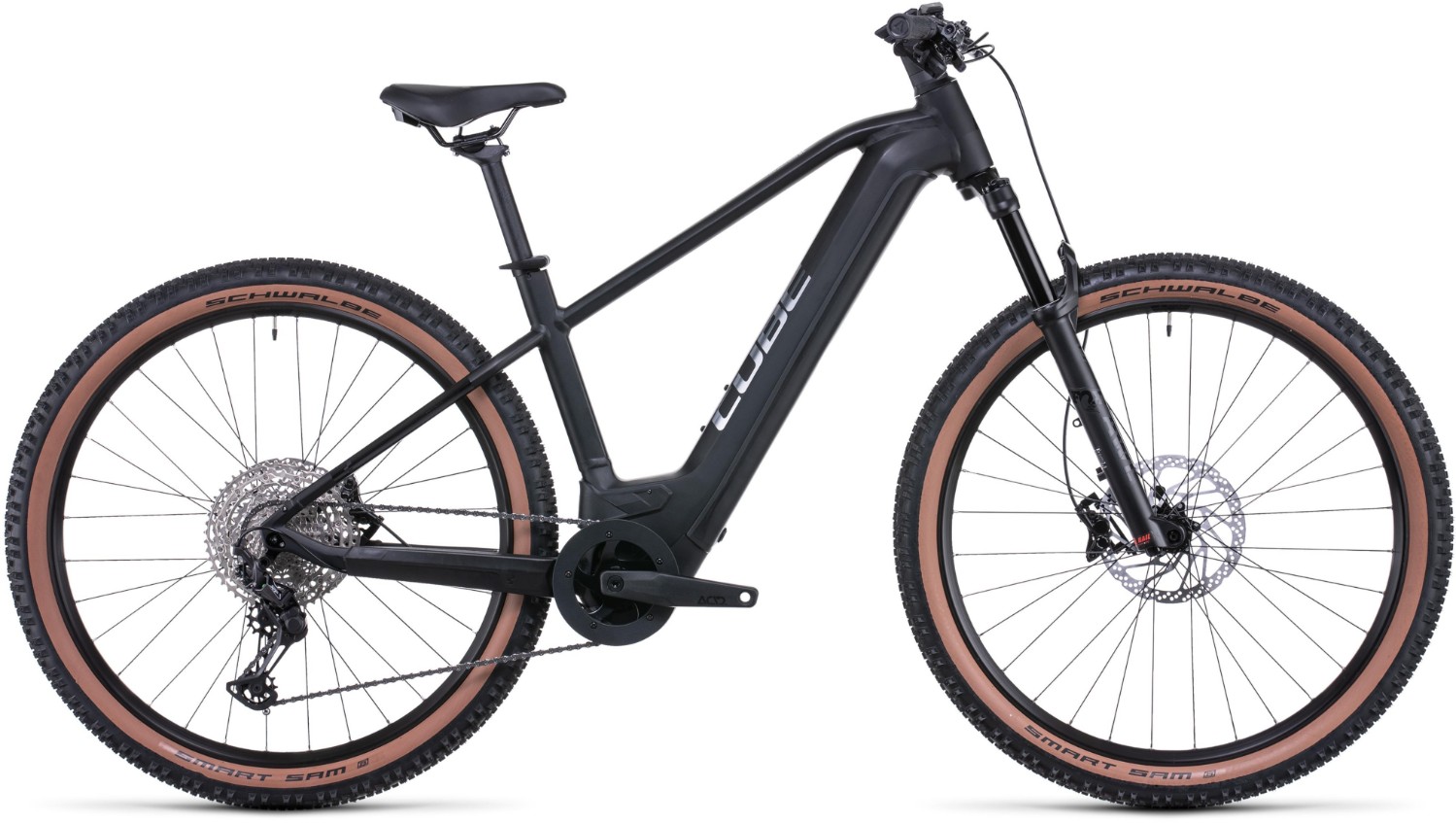

Cube Reaction Hybrid SL 29 2022 - Electric Mountain Bike
If there's somewhere you can't take the new Cube Reaction Hybrid Electric MTB, we haven't come across it yet. Blending the agility, easy handling and ruggedness of our Cube Reaction hardtail Mountain bikes with the power of the smooth, beautifully integrated fourth generation Bosch drive unit, it's a tough act to follow.
Key Features:
- Shimano brakes to bring you to a stop no matter the weather
- Shimano 1x12 drivetrain that gives precise and certain shifting when you need it most
- Large capacity 750wh Bosch PowerTube battery to keep you moving forward
- 4th Generation Bosch Drive Unit Performance CX motor will get you up the steepest of hills
- Sizes: M, L, XL, XXL
- Colours: Black/Metal, Polarsilver/Orange, Sagemetallic/Silver
- The Cube Reaction Hybrid SL 29 is available with 0% APR Finance.
The brand-new Cube Reaction Hybrid SL 750 29 redefines 29er hybrid mountain bikes, all over again. We started with a big-capacity 750Wh battery and Bosch's smooth fourth-generation CX drive unit. Then we added Fox's brand-new 34 AWL fork and powerful four-piston Shimano hydraulic disc brakes, for safe and assured handling and control no matter how rough the trail. And finished with Shimano's peerless XT 1x12-speed transmission, so you'll always be in the right gear. It's all you need for exploring above and beyond.
Our brand-new Reaction Hybrid frame starts with our Modular Battery System, fully enclosing the high-capacity 750Wh battery in the down tube. A 1.5in head tube ensures accurate steering, and a new double-chamber seat tube adds strength for better standover. Combined with our Agile Ride Geometry, it's your guarantee of safe, lively and intuitive handling. Fully integrated cable routing complements the frame's svelte looks and reduces maintenance - there's even provision for a dropper post upgrade. A Trapeze frame option provides the same performance benefits in a layout that some riders might prefer. And, of course, we used Bosch's proven fourth-generation drive unit for smooth pedal assistance, mile after mile.
All Tredz bikes are:
- Fully built & ready to ride
- Fully checked & tested by Cytech qualified mechanics
- Available with 0% APR finance on any basket over £99
- UK price match guarantee
- 365 day no hassle returns
- Free delivery in the UK Mainland on a date that suits you
In the box with every Tredz bike is:
- Free Tredz 9 key trail tool
- Free Tredz pedal spanner
- Free basic pedals
- Tredz drawstring kit bag
- 16 point quality control check sheet
- Basic bike setup instructions
- Free Cycle Plan insurance voucher (8 weeks)
Occasionally, without notice, manufacturers change product design and/or specifications.
Frame | Aluminium Superlite, Gravity Casting, Agile Ride Geometry, 1.5 Headtube, Boost 148, Full Integrated Battery, Advanced Internal Cable Routing, Kickstand/Fender/Carrier Mounting Points |
Fork | Fox 34 Float AWL, 2-Position Sweep-Adjust RAIL Damper, Tapered, 15x110mm, E-Bike Optimized, 120mm |
Headset | ACROS AZF-1034, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm) |
Stem | CUBE Performance Stem E-MTB, 31.8mm |
Bars | CUBE Rise Trail Bar, 720mm |
Front Brake | Shimano BR-MT420, Hydr. Disc Brake (203/203) |
Rear Brake | Shimano BR-MT420, Hydr. Disc Brake (203/203) |
Rear Mech | Shimano XT RD-M8100-SGS, ShadowPlus, 12-Speed |
Shifters | Shimano Deore SL-M6100-IR, Direct Attach, Rapidfire-Plus |
Speed | 12 |
Rims | CUBE EX30, 32H, Disc, Tubeless Ready |
Front Hub | Shimano HB-MT400-B, 15mm, Boost, Centerlock |
Rear Hub | Shimano FH-MT410-B, 12mm, Boost, Centerlock |
Front Tyre | Schwalbe Smart Sam, Active, Kevlar, 2.6 |
Rear Tyre | Schwalbe Smart Sam, Active, Kevlar, 2.6 |
Seat Post | CUBE Performance Post, 30.9mm |
Saddle | Natural Fit Sequence |
Chainset | ACID E-Crank, 175mm, 38T |
Chain | Shimano CN-M6100 |
Cassette | Shimano Deore CS-M6100, 10-51T |
Pedals | CUBE PP MTB |
Weight | 23.4kg |
Battery Size (WH) | Bosch PowerTube 750Wh |
Motor | Bosch Drive Unit Performance CX Generation 4 (85Nm) Cruise (250Watt) |
User Interface | Bosch Kiox 300 |
Cube Reaction Hybrid Size Chart
Size |
Height (cm) |
Height (in) |
S - 15" |
160 - 170 |
5'5" - 5'7" |
M - 17" |
168 - 175 |
5'6" - 5'9" |
L - 19" |
175 - 185 |
5'9" - 6'1" |
XL - 21" |
185 - 190 |
6'1" - 6'3" |
XXL - 23" |
190 - 196 |
6'3" - 6'5' |
What size frame do I need if I am between sizes? - read here
Cube Reaction Hybrid Geometry Chart
|
S - 15" |
M- 17" |
L-19" |
XL-21" |
XXL-23" |
SEAT TUBE |
375 |
405 |
450 |
495 |
545 |
SEAT TUBE CENTER-CENTER |
316 |
347 |
393 |
439 |
490 |
TOP TUBE HORIZONTAL |
580 |
580 |
600 |
620 |
640 |
SEAT TUBE ANGLE |
74 |
74 |
74 |
74 |
74 |
HEAD TUBE ANGLE |
67 |
68 |
69 |
69 |
69 |
CHAIN STAYS |
460 |
460 |
460 |
460 |
460 |
HEAD TUBE |
110 |
115 |
120 |
131 |
146 |
WHEELBASE |
1097 |
1141 |
1150 |
1170 |
1191 |
STANDOVER HEIGHT |
743 |
765 |
799 |
832 |
870 |
REACH |
406 |
403 |
420 |
437 |
452 |
STACK |
618 |
628 |
638 |
648 |
662 |
WHEELSIZE |
29 |
29 |
29 |
29 |
29 |
BB-HEIGHT TO HUB |
-65 |
-65 |
-65 |
-65 |
-65 |
