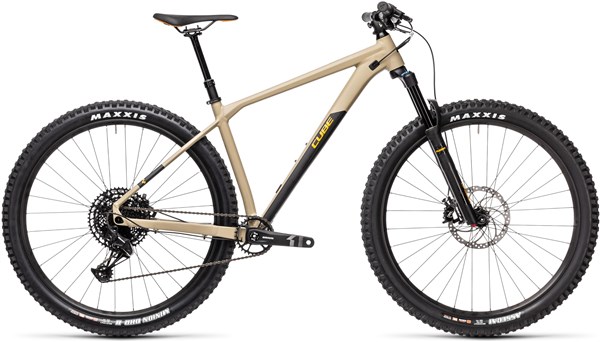

Cube Reaction TM Mountain Bike 2021 - Hardtail MTB
Occasionally, without notice, manufacturers change product design and/or specifications.
Frame | Aluminium Lite, Trail Motion Geometry, AMF, ARG, Internal Cable Routing, Easy Mount Kickstand Ready, Tapered Headtube, Press Fit BB, Fits up to 2.8" 27.5+ Tires |
Fork | X-Fusion RC32, Tapered, 15x110mm, 130mm |
Headset | VP Integrated, Top 1 1/8", Bottom 1 1/2" |
Stem | Newmen Evolution 318.4, 31.8mm |
Bars | Newmen Evolution 318.20, 760mm |
Front Brake | Magura MT Thirty, Front 4-Piston/Rear 2-Piston, Hydr. Disc Brake (180/180) |
Rear Brake | Magura MT Thirty, Front 4-Piston/Rear 2-Piston, Hydr. Disc Brake (180/180) |
Rear Mech | Sram SX Eagle™, 12-Speed |
Shifters | Sram SX Eagle™ Trigger |
Speed | 12 |
Rims | CUBE EX30, 32H, Disc, Tubeless Ready |
Front Hub | Shimano HB-MT400-B, 15mm, Boost, Centerlock |
Rear Hub | Shimano FH-MT400-B, 12mm, Boost, Centerlock |
Front Tyre | Maxxis Assegai, MaxxTerra/EXO+, Tubeless Ready, 2.5 WT |
Rear Tyre | Maxxis Minion DHR II, MaxxTerra/EXO+, Tubeless Ready, 2.4 WT |
Seat Post | CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 30.9mm (S: 120mm, M, L, XL: 130mm) |
Saddle | Natural Fit Venec Lite |
Chainset | Sram X1 1000 Eagle™ DUB 30T, Boost, 170mm |
Chain | Sram SX Eagle™ |
Cassette | Sram PG-1210 Eagle™, 11-50T |
Pedals | CUBE PP MTB |
Weight | 14 |
Cube Reaction Sizing & Geometry
Frame Size
14"
4'9"
5'5"
16"
5'5"
5'7"
17"
5'6"
5'9"
18"
5'7"
5'11"
19"
5'9"
6'1"
21"
6'1"
6'3"
23"
6'3"
6'5"
Read our bike size guide for more information on sizing.
Cube Reaction Race One / Pro Geometry
|
14” |
16” |
17” |
18” |
19” |
21” |
23” |
Seat tube (mm) |
355 |
405 |
420 |
450 |
470 |
515 |
565 |
Seat tube centre to centre (mm) |
310 |
363 |
375 |
406 |
425 |
470 |
520 |
Top tube horizontal (mm) |
545 |
561 |
575 |
585 |
595 |
615 |
635 |
Seat tube angle (mm) |
74 |
73.5 |
73.5 |
73.5 |
73.5 |
73.5 |
73.5 |
Head tube angle (mm) |
69 |
69 |
69 |
69 |
69 |
69 |
69 |
Chainstay length (mm) |
427 |
427 |
450 |
427 |
450 |
450 |
450 |
Head tube length (mm) |
106 |
109 |
108.5 |
129 |
119.5 |
129.5 |
144.5 |
Wheelbase (mm) |
1052 |
1063 |
1105 |
1088 |
1126 |
1146 |
1168 |
BB height to hub (mm) |
-51.5 |
-51.5 |
-65 |
-51.5 |
-65 |
-65 |
-65 |
Standover (mm) |
712 |
746 |
772 |
788 |
805 |
847 |
871 |
Reach (mm) |
374 |
380 |
389 |
402 |
407 |
425 |
440 |
Stack (mm) |
595 |
608 |
627 |
617 |
637 |
643 |
660 |
Wheelsize |
27.5 |
27.5 |
29 |
27.5 |
29 |
29 |
29 |
Cube Reaction Reaction Race Geometry
|
15” |
17” |
19” |
21” |
23” |
Seat tube (mm) |
370 |
420 |
470 |
515 |
565 |
Seat tube centre to centre (mm) |
320 |
379 |
429 |
474 |
524 |
Top tube horizontal (mm) |
558 |
580 |
600 |
620 |
640 |
Seat tube angle (mm) |
73.5 |
73.5 |
73.5 |
73.5 |
73.5 |
Head tube angle (mm) |
69 |
69 |
69 |
69 |
69 |
Chainstay length (mm) |
410 |
423 |
423 |
423 |
423 |
Head tube length (mm) |
103 |
108.5 |
119.5 |
129.5 |
114.5 |
Wheelbase (mm) |
1047 |
1084 |
1105 |
1125 |
1146 |
BB height to hub (mm) |
-51.5 |
-65 |
-65 |
-65 |
-65 |
Standover (mm) |
718 |
766 |
802 |
833 |
869 |
Reach (mm) |
387 |
400 |
416 |
433 |
449 |
Stack (mm) |
610 |
617 |
627 |
636 |
650 |
Wheelsize |
27.5 |
29 |
29 |
29 |
29 |
Cube Reaction Reaction TM Geometry
|
16” |
18” |
20” |
22” |
Seat tube (mm) |
405 |
450 |
490 |
540 |
Seat tube centre to centre (mm) |
355 |
407 |
446 |
511 |
Top tube horizontal (mm) |
551 |
568 |
591 |
618 |
Seat tube angle (mm) |
73.5 |
73.5 |
73.5 |
73.5 |
Head tube angle (mm) |
67 |
67 |
67 |
67 |
Chainstay length (mm) |
427 |
427 |
427 |
427 |
Head tube length (mm) |
101.5 |
106.6 |
118.5 |
134.5 |
Wheelbase (mm) |
1115 |
1136 |
1161 |
1188 |
BB height to hub (mm) |
-60.5 |
-60.5 |
-60.5 |
-60.5 |
Standover (mm) |
755 |
785 |
814 |
850 |
Reach (mm) |
395 |
415 |
435 |
455 |
Stack (mm) |
622 |
627 |
638 |
653 |
Wheelsize |
27.5 |
27.5 |
27.5 |
27.5 |
