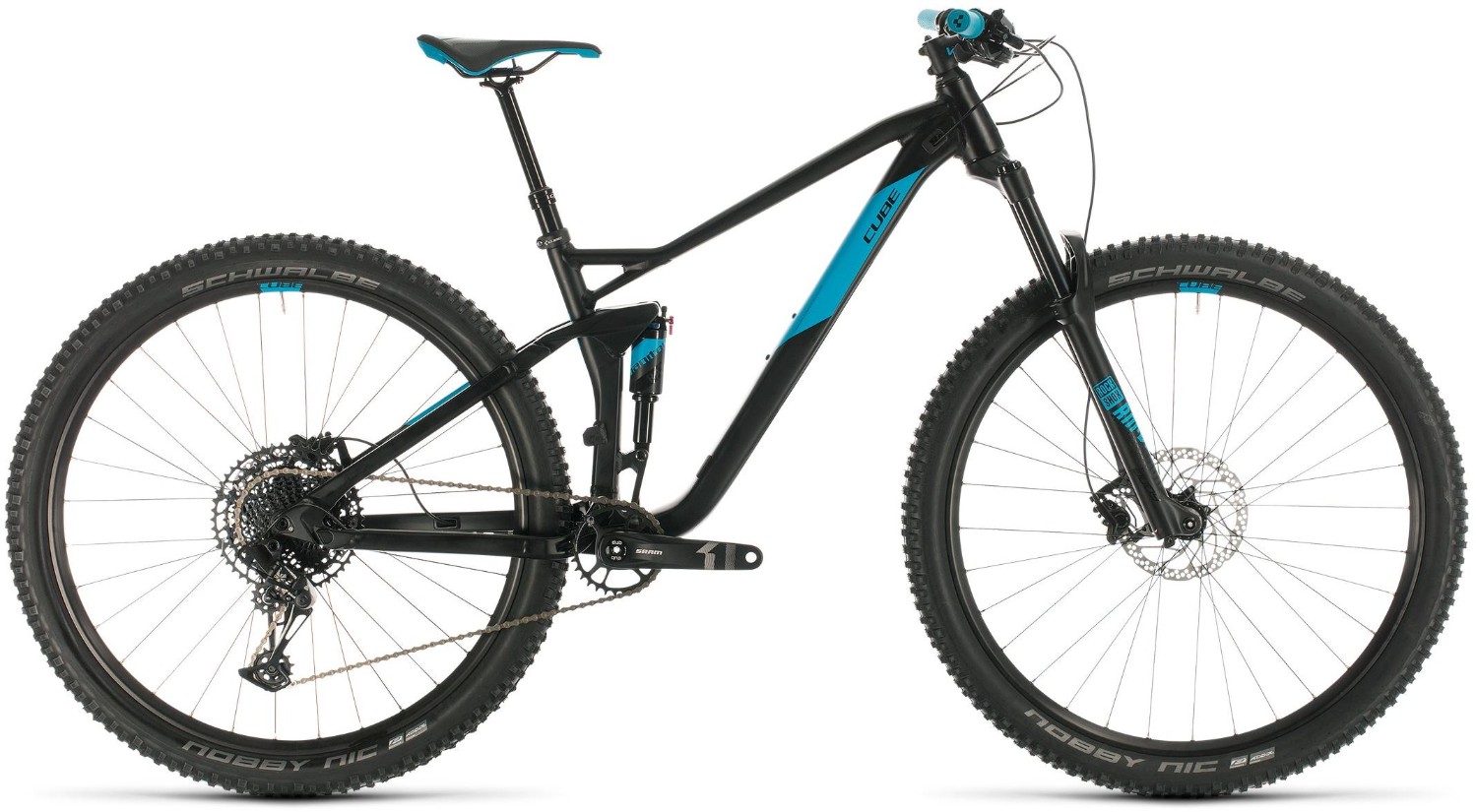

Cube Stereo 120 Pro 29" Mountain Bike 2020 - Trail Full Suspension MTB

The Stereo 120's clean, dynamic looks aren't an accident. Drawing on experience gained from building super-efficient long-travel bikes, we've been able to give this frame a performance boost without adding weight. For example, geometry based around a 130mm fork gives even greater comfort and control, while the hydroformed chassis boasts ultra-sleek looks, thanks to careful tube profiling and a new rocker linkage with hidden bearings. Triple butting and intelligent design puts extra material where it's needed and takes it away where it isn't. This doesn't just save precious grammes; it also improves steering precision and pedalling efficiency. And the whole lot is designed around our Efficient Trail Control kinematics and the stable but fun handling of our new Agile Trail Geometry. It's the complete, comfortable trail-taming package for long days out in the mountains.
The Stereo 120 Pro 29 sets a new standard for comfort, control and agility on the trail. Smooth-rolling 29er wheels, Agile Trail Geometry and a sleek frame design make taming any trail a pleasure, wherever your weekend adventures take you. Triple-butted aluminium tubes – carefully shaped to combine low weight with superb strength – are honed into a chassis that's as good to look at as it is to ride, and we've chosen reliable, durable components and incorporated features like internal cable routing, so that you can concentrate on the ride rather than worrying about maintenance and adjustments. The easily adjustable Manitou Radium Expert rear shock serves up 120mm of smooth, progressive rear wheel travel while the plush RockShox Judy Silver fork offers super-precise, confidence-inspiring steering and 130mm of rock- and root-swallowing performance. And, because each uses an air spring, it's incredibly simple to set up according to your weight and preferred stiffness. We've added Sram's Eagle 1x12 transmission with its easy gear selection and incredibly wide, mountain-swallowing range, and fitted Shimano MT500 hydraulic disc brakes to ensure you're always in full control. It all adds up to a package that's guaranteed to put a smile on your face, ride after ride.
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | HPA Advanced Hydroform, ATG, ETC 4-Link, AXH |
| Fork | RockShox Judy Silver TK Air, Tapered, 15x110mm, 130mm, Lockout |
| Rear Shock | Manitou Radium Expert RL, 190x45mm, Rebound Adjust, Lockout |
| Headset | FSA 1.5E ZS, Tapered, Top Zero-Stack 1 1/8" (OD 44mm), Bottom Zero-Stack 1 1/2" (OD 56mm) |
| Stem | Newmen Evolution 318.4, 31.8mm |
| Bars | Newmen Evolution 318.20, 760mm |
| Front Brake | Shimano BR-MT500, Hydr. Disc Brake (180mm) |
| Rear Brake | Shimano BR-MT500, Hydr. Disc Brake (180mm) |
| Rear Mech | Sram NX Eagle™, 12-Speed |
| Shifters | Sram SX Eagle™ Trigger |
| Speed | 12 |
| Rims | CUBE EX25, 32H, Disc |
| Front Hub | Shimano HB-MT400-B, 15mm, Boost, Centerlock |
| Rear Hub | Shimano FH-MT400-B, 12mm , Boost, Centerlock |
| Front Tyre | Schwalbe Nobby Nic, Addix Performance, Kevlar, 2.35 |
| Rear Tyre | Schwalbe Nobby Nic, Addix Performance, Kevlar, 2.35 |
| Seat Post | Cube Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm, 425x130mm (403x120mm for smallest frame size) |
| Saddle | Natural Fit Venec |
| Chainset | SRAM X1 1000 Eagle™ DUB 30T, Boost, 175mm |
| Chain | Sram SX Eagle™ |
| Cassette | Sram XG-1230, 11-50T |
| Pedals | Basic Resin Flat |
| Weight | 14.9kg |
![]()
Cube Stereo 120 Size Chart
|
Size |
Height (cm) |
Height (in) |
|
S - 16" |
160 - 170 |
5'5" - 5'7" |
|
M - 18" |
170 - 180 |
5'7" - 5'11" |
|
L - 20" |
180 - 188 |
5'11" - 6'2" |
|
XL - 22" |
187 - 196 |
6'2" - 6'5" |
Read our bike size guide for more information on sizing.
Cube Stereo 120 Geometry Chart
|
|
S |
M |
L |
XL |
|
Seat Tube |
370 |
420 |
470 |
520 |
|
Top Tube Horizontal |
570 |
591 |
614 |
640 |
|
Seat Tube Angle |
75.3° |
75.3° |
75.3° |
75.3° |
|
Head Tube Angle |
67° |
67° |
67° |
67° |
|
Wheel Base |
1148.2 |
1169.4 |
1193.3 |
1221.1 |
|
BB-Height |
-40 |
-40 |
-40 |
-40 |
|
Standover Height |
740 |
740 |
747 |
775 |
|
Reach |
420 |
440 |
460 |
480 |
|
Stack |
603.4 |
606.2 |
615.4 |
633.8 |
