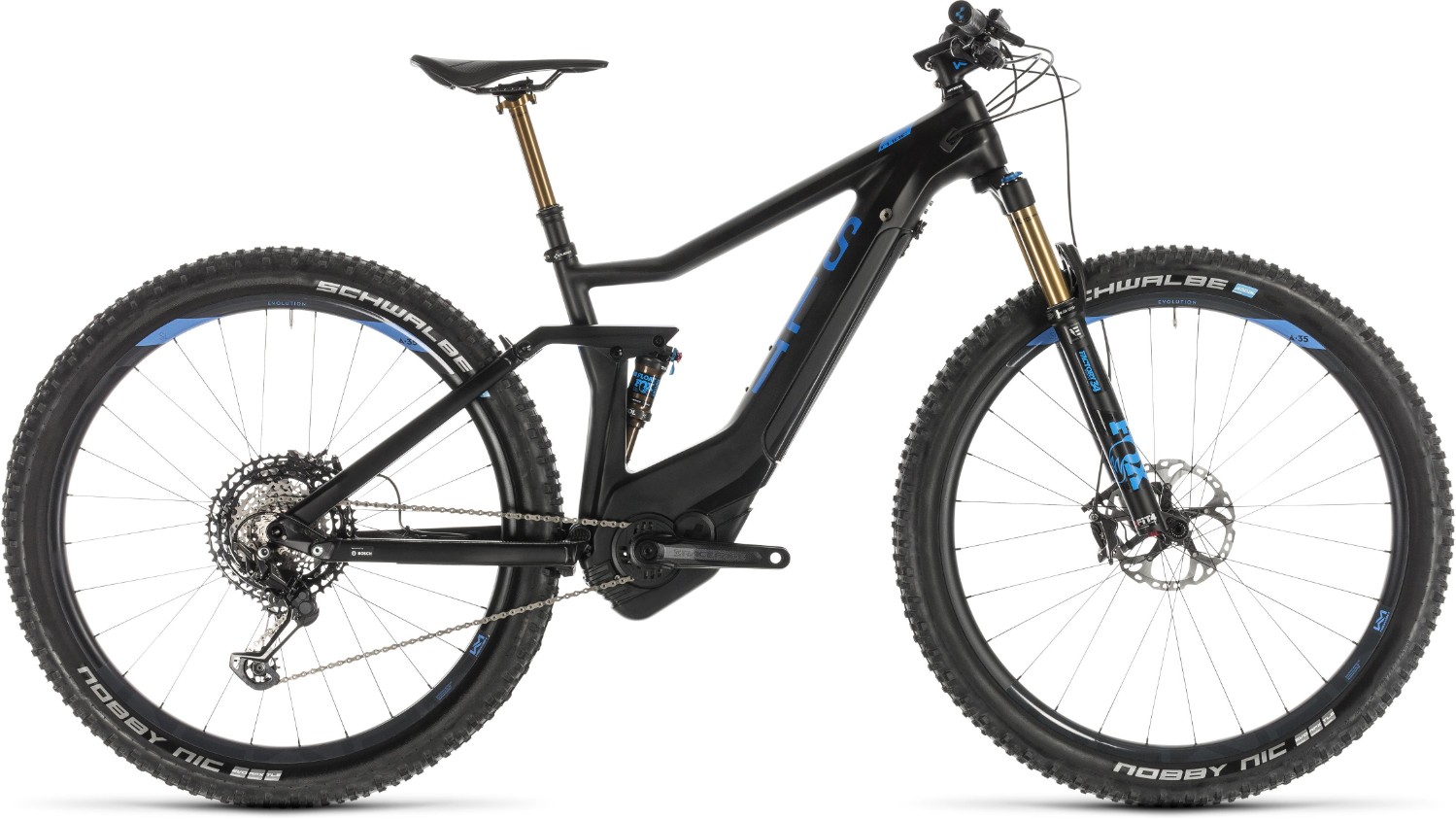

Cube Stereo Hybrid 120 Hpc SLT 500 27.5"/29er 2019 - Electric Mountain Bike

Now £5,099.00
Save £900.00 RRP: £5,999.00
Price Match
or £106.23 / month
Finance Options
Be the first to write a review
Sizing
Select a size
Colour
Select your size for Christmas Delivery availability
Add to Basket

Cycle to Work

Product Description

The best component spec for more e bike performance. The Cube Stereo Hybrid 120 HPC SLT 500 is a carbon framed electric mountain bike that combines 120mm of full suspension travel with a Powerful Bosch CX motor and Kiox onboard computer. You get a powerful boost to your natural pedalling power. With Fox Factory shocks and a Shimano XTR groupset, the 120 HPC SLT gives offers sublime ride.

Key Features:

  • C:62 carbon monocoque full sus frame with neatly integrated battery and motor
  • Fox Float DPS Factory shock controls the 120mm of active rear wheel suspension travel
  • Fox 34 Float FIT4 Factory E bike optimized fork for bump soaking suspension performance
  • Shimano XTR 11 speed drivetrain for slick gear shifting
  • Shimano XTR Hydraulic disc brakes for the best all-weather stopping power
  • Sizes: 16” (27.5” wheel), 18”, 20”, 22” (29” wheel)
  • Colours: Zeroblack
  • The Cube Stereo Hybrid 120 HPC SLT 500 is available with 0% APR finance

Drive Information:

  • Motor: Bosch Drive Unit Performance CX (75Nm) Cruise (250Watt)
  • Battery: Bosch PowerTube 500Wh, integrated
  • User interface/remote: Bosch Kiox
  • Charger: Bosch 2amp

When only the best will do, you're ready to step up to the Stereo Hybrid 120 HPC SLT. This trail-ready machine incorporates everything we've learned about building high performance Bosch e-bikes, all wrapped up in a light, rigid and durable carbon chassis kitted out with the very best components for comfort, performance and reliability. From the Newmen carbon cockpit components and wheels to the Fox Transfer dropper post, 34 Float Factory fork and Float DPS EVOL shock with Kashima coatings, our design team selected the components they'd put on their own bikes: no compromise. Shimano's peerless 1x12 XTR transmission with its 10-51 tooth cassette, combined with the smooth power delivery offered by Bosch's CX drive unit, puts an incredibly wide range of smooth-shifting gears at your fingertips, while powerful Shimano XTR hydraulic disc brakes with 4 piston calipers front and rear ensure you'll always be in control of your speed. There's no faster, more comfortable or more efficient way to pedal from A to B via a mountainous C.

At first glance you'd be forgiven for mistaking the Stereo Hybrid 120 HPC SLT for a regular full suspension bike. Its sleek looks are partly down to Bosch's PowerTube concept, which allowed our engineers to lower the frame's centre of gravity, protect the battery from dust and water and even offer the option of in-frame battery charging. We raised the bottom bracket a little for better ground clearance, and also increased the length of the head tube for a better, more comfortable ride position. The perfectly positioned drive unit also has its own bash plate, and the entire structure forms a super-rigid backbone that works in conjunction with a tapered head tube and Boost rear axle to deliver unmatched steering precision and power transfer efficiency. It's all designed around our Agile Ride Geometry for superb comfort and handling in all trail conditions. And, of course, finishing touches like internal cable routing for longer lasting clean gear shifts are the kind of attention to detail that you'd expect from CUBE.

All Tredz bikes are:

  • Fully built & ready to ride
  • Fully checked & tested by Cytech qualified mechanics
  • Available with 0% APR finance on baskets over £99
  • UK price match
  • 365 day no hassle returns
  • Free delivery in the UK Mainland on a date that suits you

In the box with every Tredz bike is:

  • Free Tredz 9 key trail tool
  • Free Tredz pedal spanner
  • Free basic pedals
  • Tredz drawstring kit bag
  • 16 point quality control check sheet
  • Basic bike setup instructions
  • Free Cycle Plan insurance voucher (8 weeks)

Occasionally, without notice, manufacturers change product design and/or specifications.

Specification

Frame:C:62 Monocoque Advanced Twin Mold Technology, Aluminium 6061 T6 Rear Triangle, Efficient Trail Control 4-Link, Agile Trail Geometry, Boost 148, Tuned Drive Position, AXH, Full Integrated Battery
Fork:Fox 34 Float FIT4 Factory, Open/Medium/Firm Mode, Open Mode Adjust, Tapered, 15x110mm, Kashima Coated, E-Bike Tune, 120mm
Rear Shock:Fox Float DPS Factory EVOL, 184x44mm, Open(Adjustable)/Medium/Firm Mode, Kashima Coated
Headset: FSA Orbit I-t, Integrated, Top 1 1/8", Bottom 1 1/2"
Stem:Newmen Evolution SL 318.4, 31.8mm
Bars:Newmen Advanced 318.20, Carbon, 750mm
Front Brake:Shimano XTR BR-M9120, Hydr. Disc Brake 180mm
Rear Brake:Shimano XTR BR-M9120, Hydr. Disc Brake 180mm
Rear Mech:Shimano XTR RD-M9100-SGS, ShadowPlus, 12-Speed
Shifters:Shimano XTR SL-M9100-I Direct Attach
Speed:12
Rims:Newmen Evolution SL A.35, 28H, Disc, Tubeless Ready
Front Hub:Shimano HB-MT900-BS, 15QR, Boost, Centerlock
Rear Hub:Shimano FH-MT900-BS, 12mm, Boost, Centerlock
Front Tyre:Schwalbe Nobby Nic 2.60, Addix Speedgrip, APEX, Tubeless Easy
Rear Tyre:Schwalbe Nobby Nic 2.60, Addix Speedgrip, APEX, Tubeless Easy
Seat Post:Fox Transfer Factory 31.6mm, Kashima Coated (16": 359x100mm, 18": 409x125mm, 20", 22": 456x150mm)
Saddle:Natural Fit Nuance SL
Chainset:Race Face Aeffect, 170mm, 16T
Chain:Shimano CN-M9100
Cassette:Shimano XT CS-M9100, 10-51T
Pedals:CUBE PP MTB
Battery (Wh):500 Wh
Motor:Bosch
User Interface:Bosch Kiox

There are currently no customer reviews

Write your own review

Stereo Hybrid 120 Sizing

Bike Size Calculator

Read our guide to bike sizing

Your mountain bike size is:

Frame (inches): 16/17
Frame (size): Small / Medium

Your road bike size is:

Frame (cm)
Frame (size)

Stereo Hybrid 120 Geometry

Size

16”

18”

20”

22”

Rear Travel

120

120

120

120

Seat Tube

380

420

460

500

Seat Tube Angle

73.7

73.2

73.2

73.2

Chain Stays

476.5

490

490

490

BB Height to Hub

-29.5

-30

-30

-30

Wheelbase

1152

1193

1212

1232

Head Tube Angle

68.5

68

68

68

Head Tube

105

110

120

140

Stack

595

603

612

631

Top Tube Horizontal

573.5

593

611

629

Reach

406

418

433

445

Wheel Size

27.5”

27.5”

27.5”

27.5”

Please note, all size information is provided as a guide - if you're unsure or need any further assistance you can call us on 01792 799508 ... we're happy to help!

Electric MTB Guide



Electric Mountain Bike Guide

Is an Electric Mountain Bike Right for Me?

If you’re new to the cycling world, we highly recommend taking a look at our bike buying guide overview or our electric bike buying guide to help you decide what type of e bike is right for you.

When you’re choosing an electric mountain bike, there are a few things to look out for, which can help you to work out the quality and performance to expect from a particular model.


Usage & Suspension travel

Just like a regular full suspension or hardtail mountain bike, the amount of available suspension travel on an eMTB varies with the intended use. Depending on the type of mountain bike riding you’ll be doing, you’ll want a bike with longer or shorter suspension travel as well as components suited to more or less technical terrain.

Type

Travel

Usage

Pros

Cons

Hardtail

Up to 130mm travel fork

Cross-country and trail

Nimble handling more affordable than a full suspension eMTB

Hardtails are less capable on rough and demanding trails with large jumps and drops

Full Suspension – short travel

120mm – 150mm

Trail and cross-country

Well balanced for both climbing and descending

Less capable on challenging descents than a longer travel bike

Full Suspension – long travel

150mm +

Enduro, trail and downhill

More capable on rough, steep and technical descents, including DH and enduro tracks

Heavier and less manoeuvrable on tight trails. More cumbersome on the climbs

Type / Travel / Usage

Pros

Cons

Hardtail

Up to 130mm travel fork

Cross-country and trail

Nimble handling more affordable than a full suspension eMTB

Hardtails are less capable on rough and demanding trails with large jumps and drops

Full Suspension – short travel

120mm – 150mm

Trail and cross-country

Well balanced for both climbing and descending

Less capable on challenging descents than a longer travel bike

Full Suspension – long travel

150mm +

Enduro, trail and downhill

More capable on rough, steep and technical descents, including DH and enduro tracks

Heavier and less manoeuvrable on tight trails. More cumbersome on the climbs


Frame Material

Most electric mountain bike frames are made from aluminium alloy, although some are made from carbon fibre composite.

Aluminium

Aluminium alloy is lightweight, stiff, strong. Manufacturers often develop their own aluminium alloys, such as ALUXX by Giant. Aluminium is found on a wide range of e bikes, from entry-level and enthusiast bikes, right the way up to top-spec eMTBs.

Carbon Fibre

Carbon fibre is lighter, stiffer, stronger, and more expensive than aluminium. The main benefit for electric mountain bikes is that carbon frames are stiffer for improved handling.


Drive Tech

Designed to enable you to have more fun on the trails, all of our electric mountain bikes feature powerful crank drive motors with long lasting lithium-ion battery packs and easily accessible control units.

Motor

Crank drive motors boost your natural pedalling power. The cranks are connected to the motor and the motor is connected to the chainring which then powers the bike forward. The bike senses the pressure that you put though the pedals and then adds an appropriate level of power to make pedalling easier. This additional power is delivered seamlessly, and you will feel like your legs have just become much more powerful. Motors all have a nominal 250w output and are usually provided by big component manufacturers like Bosch, Shimano, Yamaha and Brose.

Illustration showing a electric motor on a electric bike

Battery

Easily charged either on or off the bike the lithium-ion battery pack will offer you long lasting assistance. Where and how you ride will make a big difference to the range that you can expect to achieve from a single charge, but most e bikers find the capacity of these batteries to be more than sufficient. Some brands offer innovative ways to integrate the battery within the frame. 400Wh or 500Wh batteries are most common.

Illustration showing a battery mounted to a ebike frame

Control Units

All electric mountain bikes allow you to adjust the amount of power the motor delivers. This helps to help you manage the battery capacity. Control units have some kind of display that, at the very least, shows remaining battery capacity and the current power mode. Some control units feature a handlebar mounted display unit that displays additional information like estimated range and satellite navigation prompts. Many eMTBs offer Bluetooth and ANT+ connectivity with smartphone apps for fine tuning the motor output and accessing more advanced features.

Illustration showing a heads up display mounted to the handlebars

Groupset

An electric mountain bike’s groupset, is where the biggest difference in component quality is seen. A complete groupset comprises of the following parts:

  • Chainset (aka Crankset)
  • Bottom bracket
  • Brakes
  • Brake levers
  • Shifter
  • Derailleur
  • Chain
  • Cassette

Electric mountain bike groupset components are typically supplied by either Shimano or SRAM, sometimes with additional manufacturers like Magura, Tektro and TRP supplying brake systems. You will mostly find one-by drivetrains with a single front chainring and a wide range rear cassette.

Shimano and SRAM both produce a range of groupsets to suit different budgets. The hierarchy table here compares the different Shimano and SRAM groupsets to determine which bikes offer the best performance.

Groupset comparison - Shimano & SRAM

Wheel Size

Just like regular mountain bikes, e MTBs are available with different wheel sizes. 27.5” (650b) and 29” wheels are both available but the most common e MTB size is 27.5”+ (6fattie) that bridges the gap between the two.

MTB wheel sizes

27.5” (650b) wheels strike the ideal balance between fast rolling and nimble handling. They are lighter than 29” wheels so are faster to accelerate. On the other hand, the smaller wheel size rolls less efficiently than the larger size, making the bike more prone to losing speed over rough ground.

29” wheels roll fastest but are less nimble. These wheels are naturally smoother over rough ground but are heavier and slower to accelerate. Larger riders may find a better fit on a 29er, but smaller riders may find 29” wheels a little cumbersome.

27.5+ (6fattie) wheels feature wider 2.8” – 3.0” tyres and offer more cushioning (float) as well as more grip. With the extra size of the high-volume tyres, the overall wheel diameter is similar to a 29er, so these wheels carry speed very well on rough ground. Plus sized wheels are ideal for electric mountain bikes as they deal best with the extra weight of the motor and battery, and are great for riding more challenging terrain.


Suspension components

Electric mountain bike suspension components (i.e. the fork or rear shock absorber) are also a way to identify the quality of a bike. While Fox and RockShox are the most common manufacturers, there are a number of brands producing suspension components for mountain bikes.

Entry Level eMTBs

Entry level electric mountain bikes (up to approximately £2,500) may come supplied with a fork and rear shock supplied by SR Suntour, X-Fusion or RockShox. These components will allow a limited amount of adjustment, including:

  • Coil spring preload / air spring pressure adjustment.
  • Lockout switch.
  • Rebound damping adjustment on models towards the top of the price range.
Mid-range and enthusiast eMTBs

Mid-range and enthusiast eMTBs (up to approximately £5,000) use components from brands including Fox, RockShox and Manitou. At this level, suspension components have features like:

  • Preload adjustment / air spring pressure adjustment
  • Rebound damping adjustment
  • Lockout switch
  • Multi-position ‘mode’ switch
  • Compression damping adjustment
Top of the range eMTBs

Top of the range electric bikes (over £5,000) also use components from Fox, RockShox and Manitou, with a few select models using parts from high-end suspension brands like Ohlins. At this price, suspension components have features including:

  • Coil spring preload adjustment / air spring pressure adjustment
  • High and low speed rebound damping adjustment
  • High and low speed compression damping adjustment
  • Lockout switch
  • Multi-position ‘mode’ switch
  • Advanced low-friction coatings (e.g. Fox’s golden-coloured Kashima coating)
