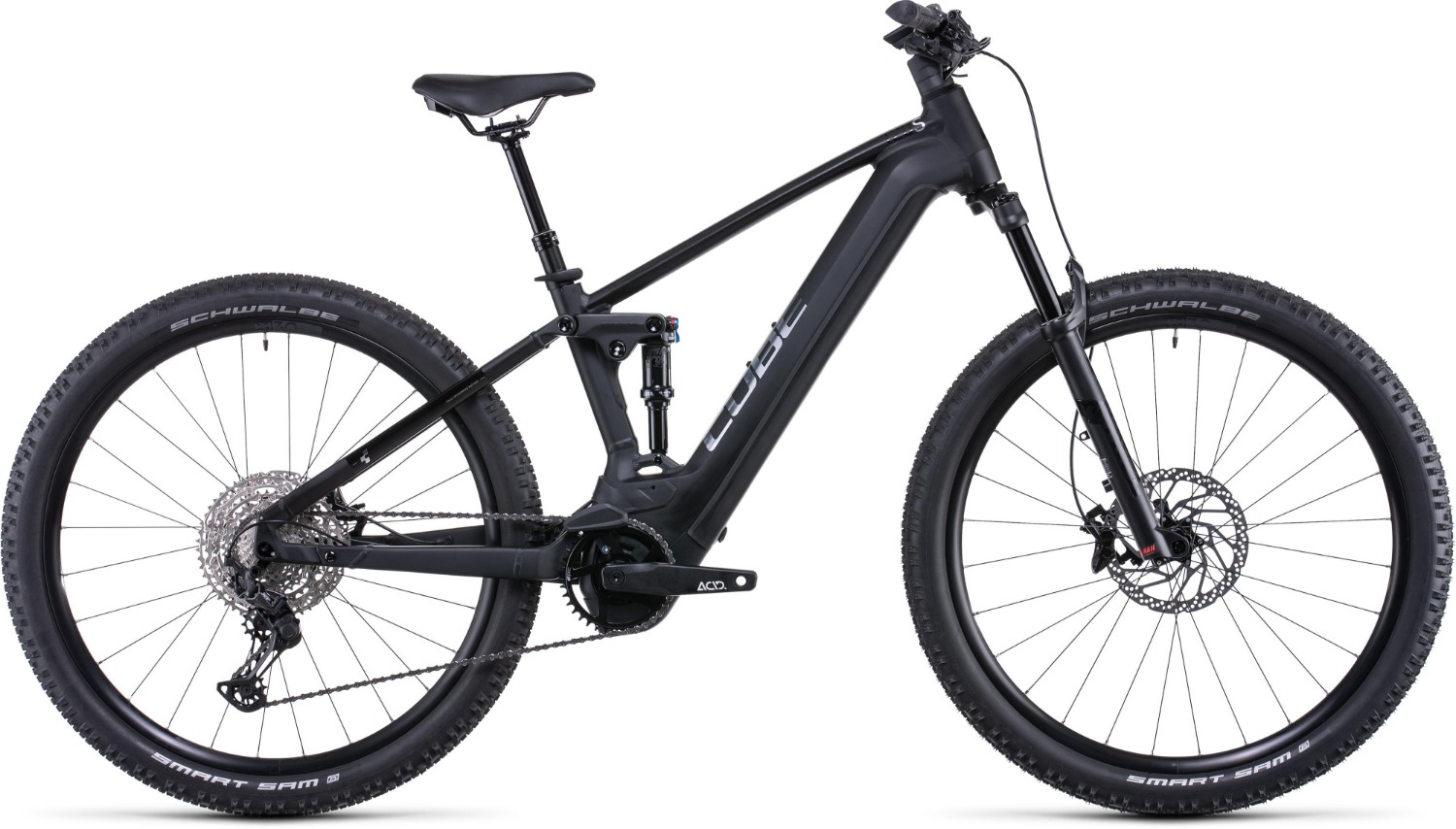

Cube Stereo Hybrid 120 SL 29 2022 - Electric Mountain Bike
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Aluminum Superlite, Gravity Casting Technology, Efficient Comfort Control, FSP 4-Link, Agile Comfort Geometry, Boost 148, Full Integrated Battery, Advanced Internal Cable Routing, Kickstand/Fender/Carrier Mounting Points |
| Fork | Fox 34 Float AWL, 2-Position Sweep-Adjust RAIL Damper, Tapered, 15x110mm, E-Bike Optimized, 130mm |
| Rear Shock | Fox Float DPS EVOL, 185x55mm, Open/Medium/Firm Mode, Trunnion Mount |
| Headset | ACROS AZF-1035, ICR (Integrated Cable Routing), BlockLock 120°, Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm) |
| Stem | CUBE Performance Stem E-MTB, 31.8mm |
| Bars | Newmen Evolution SL 318.25, 760mm |
| Front Brake | Shimano BR-MT520, Hydr. Disc Brake (203/203) |
| Rear Brake | Shimano BR-MT520, Hydr. Disc Brake (203/203) |
| Rear Mech | Shimano XT RD-M8100-SGS, ShadowPlus, 12-Speed |
| Shifters | Shimano Deore SL-M6100, Rapidfire-Plus |
| Speed | 12 |
| Rims | Newmen Performance 30, 28/28 Spokes, 15x110mm/12x148mm, Tubeless Ready |
| Front Tyre | Schwalbe Smart Sam, Active, 2.6 |
| Rear Tyre | Schwalbe Smart Sam, Active, 2.6 |
| Seat Post | CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 30.9mm (M: 120mm, L, XL: 130mm) |
| Saddle | Natural Fit Sequence |
| Chainset | ACID E-Crank, 170mm, 38T |
| Chain | Shimano CN-M6100 |
| Cassette | Shimano Deore CS-M6100, 10-51T |
| Pedals | CUBE PP MTB |
| Weight | 25.2kg |
| Battery Size (WH) | Bosch PowerTube 625 |
| Motor | Bosch Drive Unit Performance CX Generation 4 (85Nm) Cruise (250Watt) |
| User Interface | Bosch Kiox |
Cube Stereo Hybrid 120 Size Chart
|
Size |
Height (cm) | Height (in) |
|
S - 16" |
160 - 170 | 5'5" - 5'7" |
|
M - 18" |
170 - 180 | 5'7" - 5'11" |
| L - 20" | 180 - 190 | 5'11" - 6'3" |
| XL - 22" | 190 - 196 | 6'3" - 6'5" |
What size frame do I need if I am between sizes? - read here
Cube Stereo Hybrid 120 Geometry Chart
|
|
16” |
18” |
20” |
22” |
|
Seat tube (mm) |
390 |
420 |
465 |
515 |
|
Top tube horizontal (mm) |
582 |
590 |
611 |
636 |
|
Seat tube angle (mm) |
75.3 |
75.3 |
75.3 |
75.3 |
|
Head tube angle (mm) |
67 |
67 |
67 |
67 |
|
Chainstay length (mm) |
490 |
490 |
490 |
490 |
|
Head tube length (mm) |
117 |
127 |
137 |
152 |
|
Wheelbase (mm) |
1214 |
1223 |
1245 |
1272 |
|
BB height to hub (mm) |
-37.5 |
-37.5 |
-37.5 |
-37.5 |
|
Rear travel (mm) |
120 |
120 |
120 |
120 |
|
Standover (mm) |
779 |
781 |
783 |
821 |
|
Reach (mm) |
426 |
431 |
449 |
470 |
|
Stack (mm) |
613 |
622 |
632 |
645 |
|
Wheelsize |
29 |
29 |
29 |
29 |
