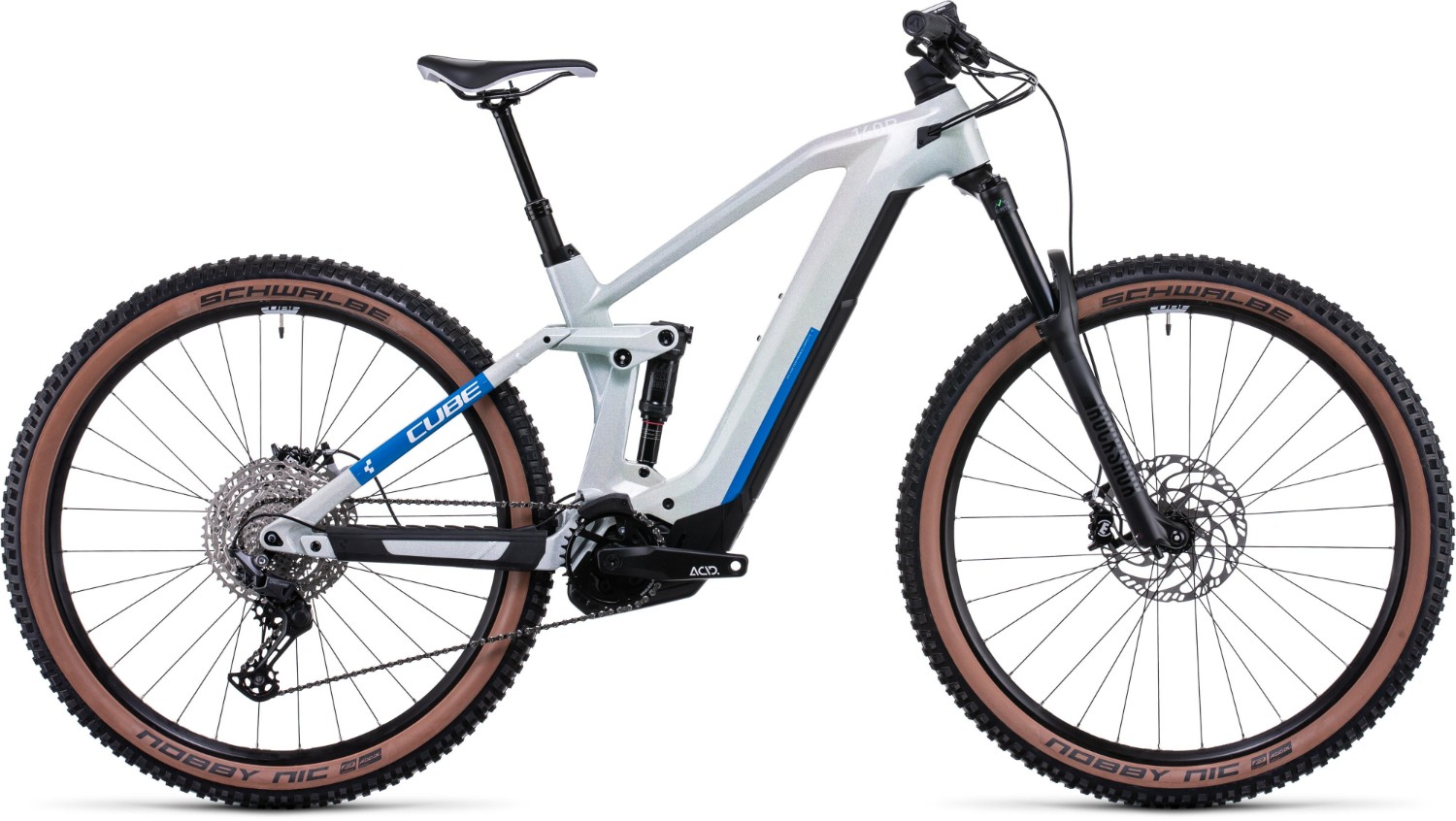

Cube Stereo Hybrid 140 HPC Pro 625 2022 - Electric Mountain Bike
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | C:62 Monocoque Advanced Twin Mold Technology, Aluminum 6061 T6 Rear Triangle, Efficient Trail Control, FSP 4-Link, Agile Trail Geometry, Boost 148, Full Integrated Battery |
| Fork | RockShox Recon Silver RL Air, Tapered, 15x110mm, eMTB Approved, 100mm, Lockout |
| Rear Shock | RockShox Deluxe Select, 185x55mm, Rebound Adjust, Trunnion Mount |
| Headset | 27.5: ACROS AZX-1032, BlockLock 120°, Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm) // 29: ACROS AZX-1030, Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm) |
| Stem | CUBE Performance Stem E-MTB, 31.8mm |
| Bars | Newmen Evolution SL 318.25, 760mm |
| Front Brake | Magura MT Thirty, Front 4-Piston/Rear 4-Piston, Hydr. Disc Brake (203/203) |
| Rear Brake | Magura MT Thirty, Front 4-Piston/Rear 4-Piston, Hydr. Disc Brake (203/203) |
| Rear Mech | Shimano Deore RD-M5100-SGS, 11-Speed |
| Shifters | Shimano Deore SL-M5100, Rapidfire-Plus |
| Speed | 11 |
| Rims | CUBE EX30, 32H, Disc, Tubeless Ready |
| Front Hub | Shimano HB-MT400-B, 15mm, Boost, Centerlock |
| Rear Hub | Shimano FH-MT400-B, 12mm, Boost, Centerlock |
| Front Tyre | Schwalbe Nobby Nic, PerfL, 2.6 |
| Rear Tyre | Schwalbe Nobby Nic, PerfL, 2.6 |
| Seat Post | CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm (XS, S: 100mm, M: 120mm, L, XL: 130mm) |
| Saddle | Natural Fit Venec |
| Chainset | ACID E-Crank, 165mm (27.5: 36T // 29: 34T) |
| Chain | KMC X11 |
| Cassette | Shimano Deore CS-M5100, 11-51T |
| Weight | 24.6kg |
| Battery Size (WH) | Bosch PowerTube 625 |
| Motor | Bosch Drive Unit Performance CX Generation 4 (85Nm) Cruise (250Watt) |
| User Interface | Bosch Purion |
Cube Stereo Hybrid 140 2022 Size Chart
|
Size |
Height (cm) |
Height (in) |
|
XS |
149 - 161 |
4’10” – 5’4” |
|
S |
159 - 167 |
5'3" - 5'6" |
|
M |
166- 178 |
5'5" - 5'10" |
|
L |
176 - 187 |
5'9" - 6'2" |
|
XL |
185 - 196 |
6'0" - 6'5" |
What size frame do I need if I am between sizes? - read here
Stereo Hybrid 140 HPC Pro / Race Geometry 2022
|
|
XS |
S |
M |
L |
XL |
|
Seat tube (mm) |
345 |
395 |
420 |
470 |
520 |
|
Top tube horizontal (mm) |
558 |
581 |
590 |
614 |
640 |
|
Seat tube angle (mm) |
75.3° |
75.3° |
75.3° |
75.3° |
75.3° |
|
Head tube angle (mm) |
66° |
66° |
66° |
66° |
66° |
|
Chainstay length (mm) |
448 |
448 |
457 |
457 |
457 |
|
Head tube length (mm) |
105 |
115 |
108 |
118 |
138 |
|
Wheelbase (mm) |
1157 |
1181 |
1206 |
1231 |
1258 |
|
BB height to hub (mm) |
15.5 |
15.5 |
36 |
36 |
36 |
|
Rear travel (mm) |
140 |
140 |
140 |
140 |
140 |
|
Standover (mm) |
731 |
731 |
772 |
772 |
807 |
|
Reach (mm) |
410 |
430 |
436 |
456 |
476 |
|
Stack (mm) |
579 |
588 |
616 |
625 |
643 |
|
Wheelsize |
27.5” |
27.5” |
29” |
29” |
29” |
Stereo Hybrid 140 HPC SL / TM / Action Team / SLT Geometry 2022
|
|
M |
L |
XL |
|
Seat tube (mm) |
420 |
460 |
490 |
|
Top tube horizontal (mm) |
600 |
630 |
660 |
|
Seat tube angle (mm) |
75.5° |
75.5° |
75.5° |
|
Head tube angle (mm) |
66° |
66° |
66° |
|
Chainstay length (mm) |
457 |
457 |
457 |
|
Head tube length (mm) |
108 |
118 |
138 |
|
Wheelbase (mm) |
1220 |
1251 |
1283 |
|
BB height to hub (mm) |
36 |
36 |
36 |
|
Rear travel (mm) |
140 |
140 |
140 |
|
Standover (mm) |
764 |
772 |
784 |
|
Reach (mm) |
447 |
473 |
497 |
|
Stack (mm) |
626 |
637 |
653 |
|
Wheelsize |
29” |
29” |
29” |
