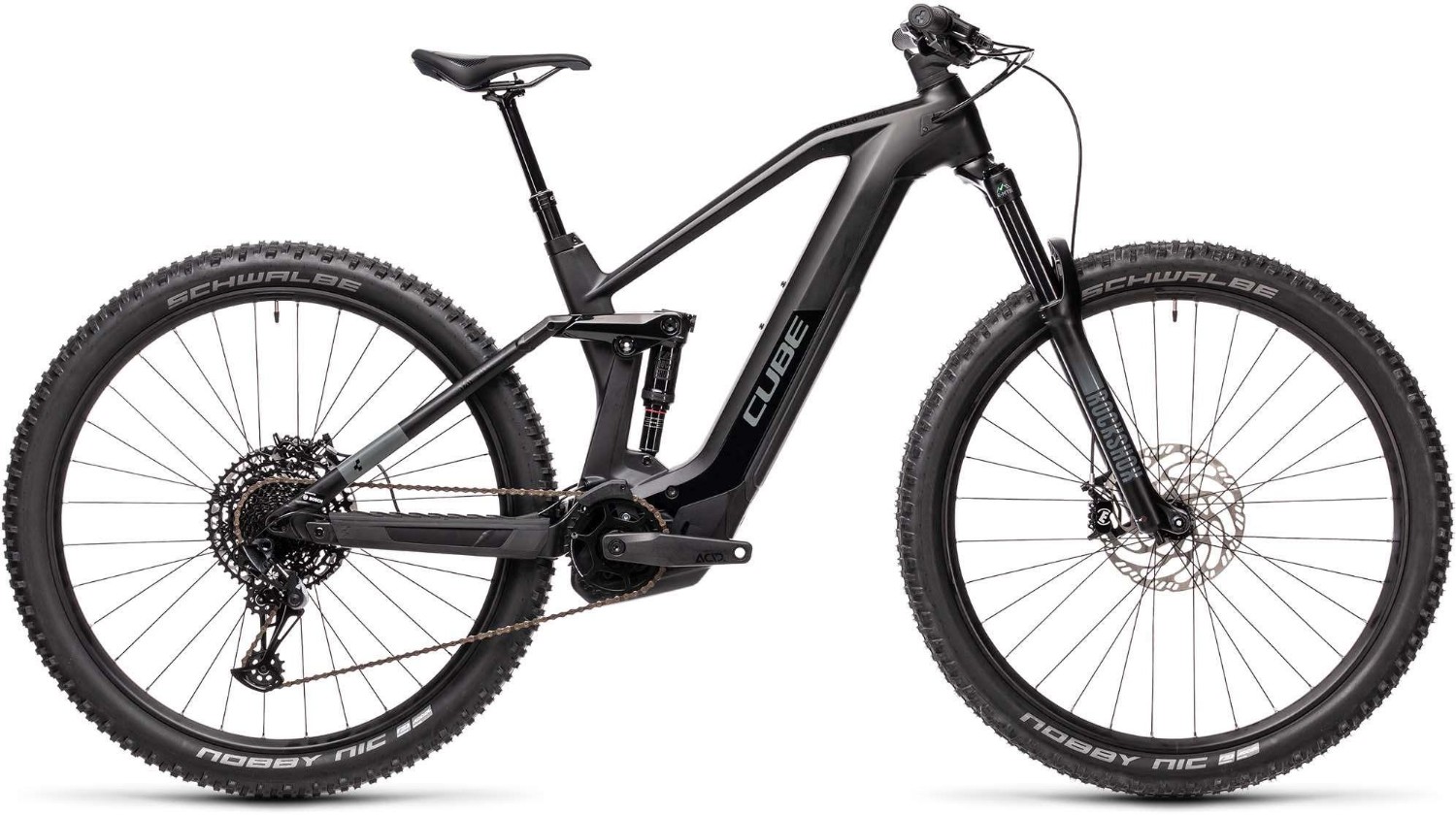

Cube Stereo Hybrid 140 HPC Race 625 2021 - Electric Mountain Bike
Big days out demand reliable components. That's why we've selected a RockShox 35 Silver air fork and matching RockShox Deluxe Select air shock. Combined with grippy Schwalbe Nobby Nic 2.6in tyres, Magura MT Thirty four-piston calipers front and rear and a CUBE dropper post, you'll be tackling anything the trail can throw at you in complete confidence. And Sram's iconic SX Eagle 1x12 components give you the gear range you need - combined with the seamless power delivery of Bosch's CX Generation 4 drive unit - to tackle any mountain trail.
Building more power and great handling into a 140mm carbon hybrid is no mean feat - and it all centres around the CUBE Modular Battery System and Bosch's fourth-generation CX drive unit. The fully enclosed battery looks great, is easy to recharge and is protected from the elements. With a Boost 148 rear axle, larger pivot bearings for longer life and internal cable routing, you're assured of great handling and lower maintenance, too. And our All Mountain Geometry is specifically designed to work with both the Stereo Hybrid 140 HPC's suspension kinematics and the Bosch drive system, so you end up with a bike that's stable, confidence-inspiring and fun.
Occasionally, without notice, manufacturers change product design and/or specifications.
Frame | C:62 Monocoque Advanced Twin Mold Technology, Aluminum 6061 T6 Rear Triangle, Efficient Trail Control, FSP 4-Link, Agile Trail Geometry, Boost 148, Full Integrated Battery |
Fork | RockShox 35 Silver, Tapered, 15x110mm, eMTB Approved, 140mm |
Rear Shock | RockShox Deluxe Select, 185x55mm, Rebound Adjust, Trunnion Mount |
Headset | 27.5: ACROS AZX-1032, BlockLock 120°, Top Zero-Stack 1 1/2" |
Stem | CUBE Performance Stem E-MTB, 31.8mm |
Bars | Newmen Evolution SL 318.25, 760mm |
Front Brake | Magura MT Thirty, Front 4-Piston/Rear 4-Piston, Hydr. Disc Brake (203/203) |
Rear Brake | Magura MT Thirty, Front 4-Piston/Rear 4-Piston, Hydr. Disc Brake (203/203) |
Rear Mech | Sram NX Eagle™, 12-Speed |
Shifters | Sram SX Eagle™ Trigger, Single Click |
Speed | 12 |
Rims | CUBE EX30, 32H, Disc, Tubeless Ready |
Front Hub | Shimano HB-MT400-B, 15mm, Boost, Centerlock |
Rear Hub | Shimano FH-MT400-B, 12mm, Boost, Centerlock |
Front Tyre | Schwalbe Nobby Nic, PerfL, 2.60 |
Rear Tyre | Schwalbe Nobby Nic, PerfL, 2.60 |
Seat Post | CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm (XS, S: 100mm, M: 120mm, L, XL: 130mm) |
Saddle | Natural Fit Venec |
Chainset | ACID E-Crank, 165mm (27.5: 36T // 29: 34T) |
Chain | Sram SX Eagle™ |
Cassette | Sram PG-1210 Eagle™, 11-50T |
Weight | 24.5 |
Battery Size (WH) | Bosch PowerTube 625 |
Motor | Bosch Performance CX |
User Interface | Bosch Purion |
Cube Stereo Hybrid 140 2021 Size Chart
Size |
Height (cm) | Height (in) |
S |
160 - 170 | 5'5" - 5'7" |
M |
170 - 180 | 5'7" - 5'11" |
L | 180 - 190 | 5'11" - 6'3" |
XL | 190 - 196 | 6'3" - 6'5" |
What size frame do I need if I am between sizes? - read here
Cube Stereo Hybrid 140 2021 Geometry Chart
|
16” |
18” |
20” |
22” |
Seat tube (mm) |
375 |
420 |
470 |
520 |
Top tube horizontal (mm) |
569 |
590 |
614 |
641 |
Seat tube angle (mm) |
75.2 |
75.2 |
75.2 |
75.2 |
Head tube angle (mm) |
66 |
66 |
66 |
66 |
Chainstay length (mm) |
457 |
457 |
457 |
457 |
Head tube length (mm) |
105 |
108 |
118 |
138 |
Wheelbase (mm) |
1185 |
1206 |
1231 |
1258 |
BB height to hub (mm) |
-36 |
-36 |
-36 |
-36 |
Rear travel (mm) |
140 |
140 |
140 |
140 |
Standover (mm) |
771 |
771 |
771 |
806 |
Reach (mm) |
416 |
436 |
457 |
476 |
Stack (mm) |
614 |
616 |
626 |
644 |
Wheelsize |
29 |
29 |
29 |
29 |
Cube Stereo Hybrid 140 ACTIONTEAM / TM Geometry Chart
|
16” |
18” |
20” |
22” |
Seat tube (mm) |
375 |
420 |
470 |
520 |
Top tube horizontal (mm) |
571 |
592 |
616 |
642 |
Seat tube angle (mm) |
74.8 |
74.8 |
74.8 |
74.8 |
Head tube angle (mm) |
65.6 |
65.6 |
65.6 |
65.6 |
Chainstay length (mm) |
457 |
457 |
457 |
457 |
Head tube length (mm) |
105 |
108 |
118 |
138 |
Wheelbase (mm) |
1189 |
1210 |
1235 |
1262 |
BB height to hub (mm) |
-32.6 |
-32.6 |
-32.6 |
-32.6 |
Rear travel (mm) |
140 |
140 |
140 |
140 |
Standover (mm) |
777 |
777 |
777 |
813 |
Reach (mm) |
411 |
431 |
452 |
471 |
Stack (mm) |
617 |
620 |
629 |
647 |
Wheelsize |
29 |
29 |
29 |
29 |
