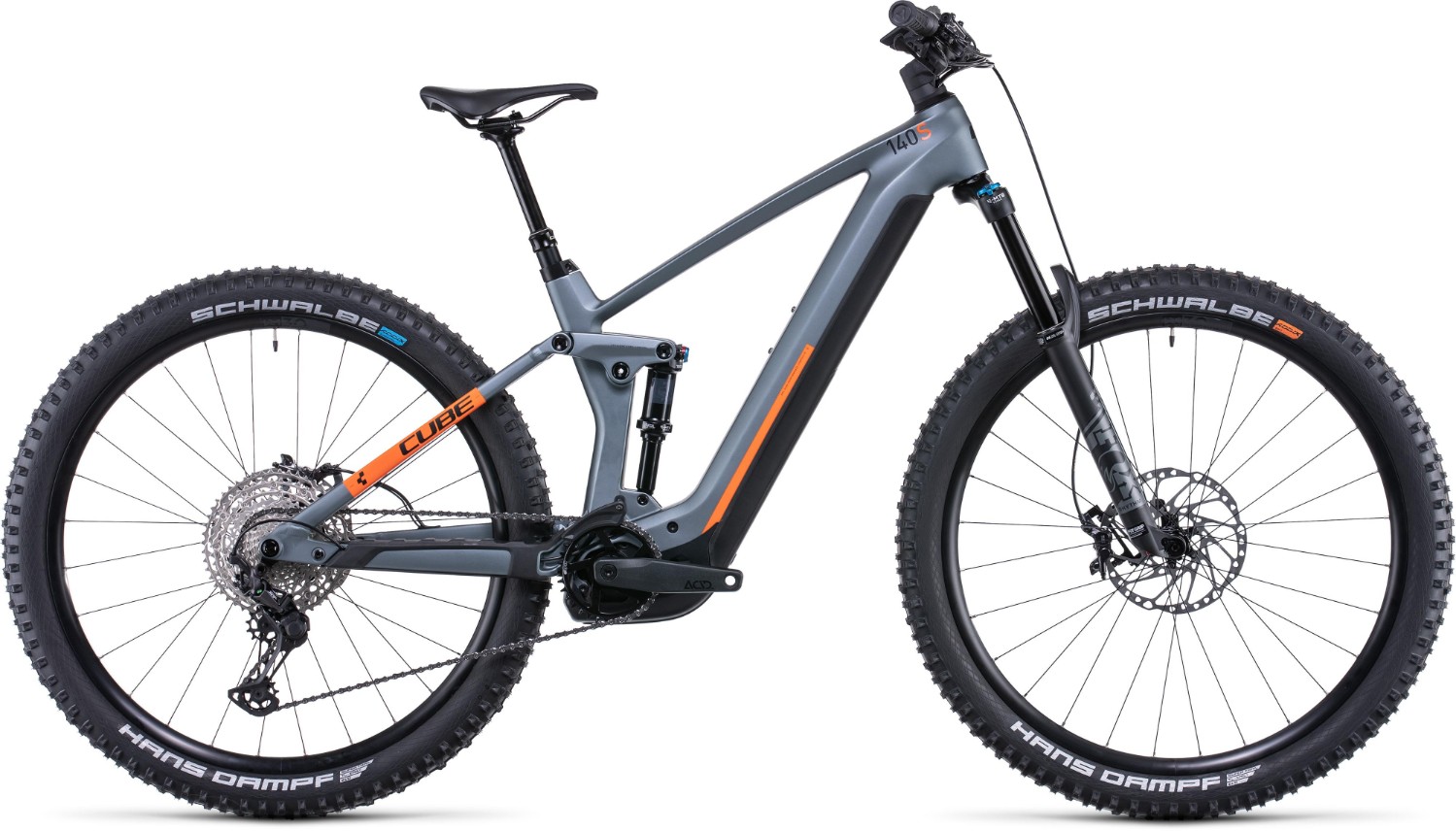

Cube Stereo Hybrid 140 HPC SL 29 2022 - Electric Mountain Bike
Ride all mountain, all the time. The completely revised Cube Stereo Hybrid 140 e-bike is a new all mountain benchmark, combining the go-anywhere potential of 140mm of smooth travel with 29er wheels, nimble handling and the power boost of Bosch's superb fourth generation drive system. Push your boundaries....
Key features:
- C:62 Monocoque Advanced Twin Mold Technology, aluminium 6061 T6 Rear Triangle frame
- Fox 34 Rhythm forks with 150mm of bump soaking travel
- Fox Float DPS shock takes care of the 140mm of rear travel
- Shimano XT 1x12 gears give the range to climb anything
- Shimano XT offer all weather stopping power
- Sizes: M, L, XL
- Colours: Green/Flashgreen, Flashgrey/Orange
- The Cube Stereo Hybrid 140 HPC SL is available with 0% APR finance
Drive information:
- Motor: Bosch Drive Unit Performance CX Generation 4 (85Nm) Cruise (250Watt)
- Battery: Bosch PowerTube 750
- Interface: Bosch Kiox 300
A really great bike should just get out of the way and let you enjoy the ride. It's the reason that, for the brand-new Stereo Hybrid 140 HPC SL 750, we began by choosing a 150mm Fox 34 Rhythm fork and matching Float DPS EVOL shock. Combined with the Newmen wheelset and Schwalbe 2.6in tyres, it's the closest thing to a magic carpet ride. Bosch's fourth-generation CX drive unit and new high-capacity 750Wh battery delivers your power to the trail via Shimano's slick-shifting, super-reliable XT 1x12 transmission. And strong, progressive Shimano XT four-piston hydraulic disc brakes with oversize rotors bring you safely to a stop, on demand. With a remote dropper post thrown into the mix, you'll be wondering how you ever managed without it. Simply add your spirit of adventure.
All Tredz bikes are:
- Fully built & ready to ride
- Fully checked & tested by Cytech qualified mechanics
- Available with 0% APR finance on any basket over £99
- UK price match guarantee
- 365 day no hassle returns
- Free delivery in the UK Mainland on a date that suits you
In the box with every Tredz bike is:
- Free Tredz 9 key trail tool
- Free Tredz pedal spanner
- Free basic pedals
- Tredz drawstring kit bag
- 16 point quality control check sheet
- Basic bike setup instructions
- Free Cycle Plan insurance voucher
Occasionally, without notice, manufacturers change product design and/or specifications.
Frame | C:62 Monocoque Advanced Twin Mold Technology, Aluminum 6061 T6 Rear Triangle, Efficient Trail Control, FSP 4-Link, Agile Trail Geometry, Boost 148, UDH™, Full Integrated Battery, Advanced Internal Cable Routing |
Fork | Fox 34 Rhythm, 2-Position Sweep-Adjust GRIP Damper, Tapered, 15x110mm, E-Bike Optimized, 150mm |
Rear Shock | Fox Float DPS EVOL, 205x60mm, Open/Medium/Firm Mode, Trunnion Mount |
Headset | ACROS AZF-1035, ICR (Integrated Cable Routing), BlockLock 120°, Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm) |
Stem | CUBE Performance Stem E-MTB, 31.8mm |
Bars | Newmen Evolution SL 318.25, 760mm |
Front Brake | Shimano XT BR-M8120, Hydr. Disc Brake (203/203) |
Rear Brake | Shimano XT BR-M8120, Hydr. Disc Brake (203/203) |
Rear Mech | Shimano XT RD-M8100-SGS, ShadowPlus, 12-Speed |
Shifters | Shimano Deore SL-M6100-IR, Direct Attach, Rapidfire-Plus |
Speed | 12 |
Rims | Newmen Performance 30, 28/28 Spokes, 15x110mm/12x148mm, Tubeless Ready |
Front Tyre | Schwalbe Hans Dampf, Addix Soft, Super Trail, Tubeless Easy, 2.6 |
Rear Tyre | Schwalbe Hans Dampf, Addix Speedgrip, Super Trail, Tubeless Easy, 2.6 |
Seat Post | CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm (M: 125mm, L,XL: 150mm) |
Saddle | Natural Fit Venec |
Chainset | ACID E-Crank, 165mm, 34T |
Chain | Shimano CN-M6100 |
Cassette | Shimano Deore CS-M6100, 10-51T |
Weight | 24.8kg |
Battery Size (WH) | Bosch PowerTube 750 |
Motor | Bosch Drive Unit Performance CX Generation 4 (85Nm) Cruise (250Watt) |
User Interface | Bosch Kiox 300 |
Cube Stereo Hybrid 140 2022 Size Chart
Size |
Height (cm) |
Height (in) |
XS |
149 - 161 |
4’10” – 5’4” |
S |
159 - 167 |
5'3" - 5'6" |
M |
166- 178 |
5'5" - 5'10" |
L |
176 - 187 |
5'9" - 6'2" |
XL |
185 - 196 |
6'0" - 6'5" |
What size frame do I need if I am between sizes? - read here
Stereo Hybrid 140 HPC Pro / Race Geometry 2022
|
XS |
S |
M |
L |
XL |
Seat tube (mm) |
345 |
395 |
420 |
470 |
520 |
Top tube horizontal (mm) |
558 |
581 |
590 |
614 |
640 |
Seat tube angle (mm) |
75.3° |
75.3° |
75.3° |
75.3° |
75.3° |
Head tube angle (mm) |
66° |
66° |
66° |
66° |
66° |
Chainstay length (mm) |
448 |
448 |
457 |
457 |
457 |
Head tube length (mm) |
105 |
115 |
108 |
118 |
138 |
Wheelbase (mm) |
1157 |
1181 |
1206 |
1231 |
1258 |
BB height to hub (mm) |
15.5 |
15.5 |
36 |
36 |
36 |
Rear travel (mm) |
140 |
140 |
140 |
140 |
140 |
Standover (mm) |
731 |
731 |
772 |
772 |
807 |
Reach (mm) |
410 |
430 |
436 |
456 |
476 |
Stack (mm) |
579 |
588 |
616 |
625 |
643 |
Wheelsize |
27.5” |
27.5” |
29” |
29” |
29” |
Stereo Hybrid 140 HPC SL / TM / Action Team / SLT Geometry 2022
|
M |
L |
XL |
Seat tube (mm) |
420 |
460 |
490 |
Top tube horizontal (mm) |
600 |
630 |
660 |
Seat tube angle (mm) |
75.5° |
75.5° |
75.5° |
Head tube angle (mm) |
66° |
66° |
66° |
Chainstay length (mm) |
457 |
457 |
457 |
Head tube length (mm) |
108 |
118 |
138 |
Wheelbase (mm) |
1220 |
1251 |
1283 |
BB height to hub (mm) |
36 |
36 |
36 |
Rear travel (mm) |
140 |
140 |
140 |
Standover (mm) |
764 |
772 |
784 |
Reach (mm) |
447 |
473 |
497 |
Stack (mm) |
626 |
637 |
653 |
Wheelsize |
29” |
29” |
29” |
