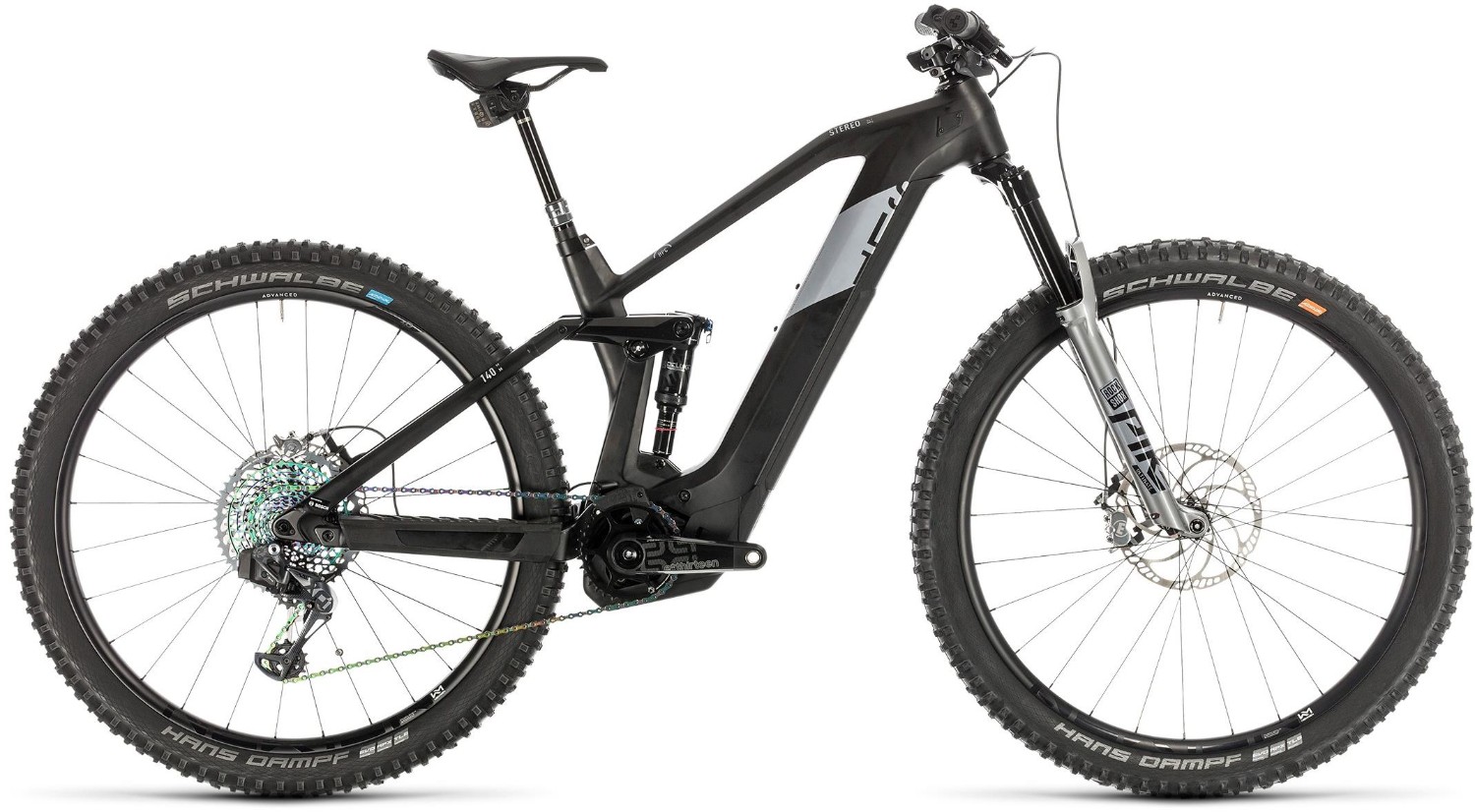

Cube Stereo Hybrid 140 HPC SLT 625 29" 2020 - Electric Mountain Bike

£7,499.00
Price Match
or £156.23 / month
Finance Options
Be the first to write a review
Sizing
Select a size
Colour
Add to Basket

Cycle to Work

Product Description

Mountain bike hybrid versatility has a new name, and that name is Stereo Hybrid 140 HPC. Built around Bosch's new, fourth-generation drive system and drawing on our extensive experience of hybrid power, carbon frame construction and efficient suspension kinematics, it represents a new breed of all-mountain e-MTBs. Our engineering team developed a brand-new concept for this frame, building the CUBE Modular Battery System to hide the Bosch power unit completely inside the sleek carbon down tube. A tough cover provides protection and shock absorption for the battery, whilst push-button access and a hidden lock make it both easy to use and secure from unwelcome attention. Even better, the new system frees up enough space for the option of a higher capacity battery than before, which translates to extended range and longer days out in the mountains. The fourth-generation Bosch CX drive unit sits in its own housing, while the aluminium rear triangle features a Boost 148 axle for efficient power transfer, larger bearings for longer life and a linkage designed to fit a trunnion shock. Our All Mountain Geometry is specifically designed to work with the suspension kinematics and Bosch drive system, offering handling that only our fully integrated design is capable of doing – stable, confidence-inspiring and fun. And of course it's chain guide compatible, there's a bottle cage mount for carrying tools or water, and integrated cable routing ensures that gears carry on shifting smoothly with minimal maintenance. Because who wants to spend time fiddling with their bike, when another day in the mountains beckons? All Mountain versatility, redefined: that's the Stereo Hybrid HPC 140.

There's absolutely nothing in the world that our design team likes more than to be let loose on a bike with a brief to simply build the best. And here, in the new Stereo Hybrid HPC SLT, we have one of the results: the ultimate expression of all-mountain performance in a 29er Bosch e-bike, with absolutely no expense spared. With 140mm of travel at the front from the superbly plush RockShox Pike Ultimate fork and 140mm at the rear, courtesy of the equally smooth and progressive RockShox Deluxe Ultimate trunnion-mount shock, there's barely a mountain trail that can't be ridden on this bike. The light, strong and rigid Newman Advanced SL carbon wheelset, shod with grippy and comfortable Schwalbe Hans Dampf 2.6in tyres, transfers the fourth-generation Bosch CX drive unit's power – and your pedalling input – to the ground via Sram's incredible X01 Eagle AXS wireless 12-speed gears. Whatever the climb, however steep the challenge, this is a bike that's up for it. And, coming back down, you've the reassurance of the RockShox Reverb AXS dropper post, RaceFace cockpit components and super-powerful Magura MT Trail Carbon hydraulic disc brakes with oversized 203mm rotors for better cooling. But it isn't just about the components, because the Stereo Hybrid 140 HPC SLT also features our completely redesigned all-mountain e-bike chassis with carbon main frame, revised kinematics and tweaked Agile Trail Geometry for rock-solid handling in any situation. We're particularly proud of the Modular Battery System and its shock-absorbing, dust- and moisture-resistant cover with push-button release and hidden lock. It doesn't just hide the Bosch power unit away inside the sleek down tube, it also enabled our designers to fit a larger capacity battery for extended range – and leave room for a bottle cage mount. It's this kind of attention to detail that makes the CUBE difference, and means you can rely on your Stereo Hybrid 140 HPC SLT in the mountains. However tough the trail, it'll be there for you. Will you accept the challenge?

Occasionally, without notice, manufacturers change product design and/or specifications.

Specification

Frame:C:62 Monocoque Advanced Twin Mold Technology, Aluminum 6061 T6 Rear Triangle, Efficient Trail Control, FSP 4-Link, Agile Trail Geometry, Boost 148, Full Integrated Battery
Fork:RockShox Pike Ultimate RC2, 15x110mm, Tapered, eMTB Approved, 140mm
Rear Shock:RockShox Deluxe Ultimate, 185x55mm, Trunnion Mount
Headset:FSA Orbit Z 1.5E ZS, Top Zero-Stack 1 1/2" (OD 56mm), Bottom Zero-Stack 1 1/2" (OD 56mm)
Stem:Race Face Turbine R 35
Bars:Race Face Next R 35 Carbon, 780mm
Front Brake:Magura MT Trail Carbon, Hydr. Disc Brake (203mm)
Rear Brake:Magura MT Trail Carbon, Hydr. Disc Brake (203mm)
Rear Mech:SRAM XO1 Eagle AXS™, 12-Speed
Shifters:Sram Eagle AXS™ Controller
Speed:12
Rims:Newmen Advanced SL E.30 Carbon, 28/28 Spokes, 15x110mm/12x148mm, Tubeless Ready
Front Tyre:Schwalbe Hans Dampf, Addix Soft, Apex, Tubeless Easy, 2.60
Rear Tyre:Schwalbe Hans Dampf, Addix Speedgrip, Apex, Tubeless Easy, 2.60
Seat Post:RockShox Reverb AXS™ 31.6mm (16": 340x100mm, 18": 390x125mm, 20", 22": 440x150mm)
Saddle:Natural Fit Nuance SLT
Chainset:e*thirteen TRSr Carbon Crank, 34T, 165mm
Chain:SRAM PC-XX1 Eagle™ Rainbow
Cassette:SRAM XG-1299 Rainbow, 10-50T
Pedals:Basic Resin Flat
Weight:22.1kg
Battery (Wh):625wh
Motor:Bosch Drive Unit Performance CX Generation 4 (75Nm) Cruise (250Watt)
User Interface:Bosch Kiox

There are currently no customer reviews

Write your own review

Stereo Hybrid 140 Sizing & Geometry

Cube Logo

Cube Stereo Hybrid 140 2021 Size Chart

Size

Height (cm) Height (in)

S - 16"

160 - 170 5'5" - 5'7"

M - 18"

170 - 180 5'7" - 5'11"
L - 20" 180 - 190 5'11" - 6'3"
XL - 22" 190 - 196 6'3" - 6'5"

What size frame do I need if I am between sizes? - read here



Cube Stereo Hybrid 140 SLT / SL / RACE Geometry Chart



16”

18”

20”

22”

Seat tube (mm)

375

420

470

520

Top tube horizontal (mm)

569

590

614

641

Seat tube angle (mm)

75.2

75.2

75.2

75.2

Head tube angle (mm)

66

66

66

66

Chainstay length (mm)

457

457

457

457

Head tube length (mm)

105

108

118

138

Wheelbase (mm)

1185

1206

1231

1258

BB height to hub (mm)

-36

-36

-36

-36

Rear travel (mm)

140

140

140

140

Standover (mm)

771

771

771

806

Reach (mm)

416

436

457

476

Stack (mm)

614

616

626

644

Wheelsize

29

29

29

29

Cube Stereo Hybrid 140 ACTIONTEAM / TM Geometry Chart



16”

18”

20”

22”

Seat tube (mm)

375

420

470

520

Top tube horizontal (mm)

571

592

616

642

Seat tube angle (mm)

74.8

74.8

74.8

74.8

Head tube angle (mm)

65.6

65.6

65.6

65.6

Chainstay length (mm)

457

457

457

457

Head tube length (mm)

105

108

118

138

Wheelbase (mm)

1189

1210

1235

1262

BB height to hub (mm)

-32.6

-32.6

-32.6

-32.6

Rear travel (mm)

140

140

140

140

Standover (mm)

777

777

777

813

Reach (mm)

411

431

452

471

Stack (mm)

617

620

629

647

Wheelsize

29

29

29

29

Please note, all size information is provided as a guide - if you're unsure or need any further assistance you can call us on 01792 799508 ... we're happy to help!

Electric MTB Guide



Electric Mountain Bike Guide

Is an Electric Mountain Bike Right for Me?

If you’re new to the cycling world, we highly recommend taking a look at our bike buying guide overview or our electric bike buying guide to help you decide what type of e bike is right for you.

When you’re choosing an electric mountain bike, there are a few things to look out for, which can help you to work out the quality and performance to expect from a particular model.


Usage & Suspension travel

Just like a regular full suspension or hardtail mountain bike, the amount of available suspension travel on an eMTB varies with the intended use. Depending on the type of mountain bike riding you’ll be doing, you’ll want a bike with longer or shorter suspension travel as well as components suited to more or less technical terrain.

Type

Travel

Usage

Pros

Cons

Hardtail

Up to 130mm travel fork

Cross-country and trail

Nimble handling more affordable than a full suspension eMTB

Hardtails are less capable on rough and demanding trails with large jumps and drops

Full Suspension – short travel

120mm – 150mm

Trail and cross-country

Well balanced for both climbing and descending

Less capable on challenging descents than a longer travel bike

Full Suspension – long travel

150mm +

Enduro, trail and downhill

More capable on rough, steep and technical descents, including DH and enduro tracks

Heavier and less manoeuvrable on tight trails. More cumbersome on the climbs





Type / Travel / Usage

Pros

Cons

Hardtail

Up to 130mm travel fork

Cross-country and trail

Nimble handling more affordable than a full suspension eMTB

Hardtails are less capable on rough and demanding trails with large jumps and drops

Full Suspension – short travel

120mm – 150mm

Trail and cross-country

Well balanced for both climbing and descending

Less capable on challenging descents than a longer travel bike

Full Suspension – long travel

150mm +

Enduro, trail and downhill

More capable on rough, steep and technical descents, including DH and enduro tracks

Heavier and less manoeuvrable on tight trails. More cumbersome on the climbs






Frame Material

Most electric mountain bike frames are made from aluminium alloy, although some are made from carbon fibre composite.

Aluminium

Aluminium alloy is lightweight, stiff, strong. Manufacturers often develop their own aluminium alloys, such as ALUXX by Giant. Aluminium is found on a wide range of e bikes, from entry-level and enthusiast bikes, right the way up to top-spec eMTBs.

Carbon Fibre

Carbon fibre is lighter, stiffer, stronger, and more expensive than aluminium. The main benefit for electric mountain bikes is that carbon frames are stiffer for improved handling.


Drive Tech

Designed to enable you to have more fun on the trails, all of our electric mountain bikes feature powerful crank drive motors with long lasting lithium-ion battery packs and easily accessible control units.

Motor

Crank drive motors boost your natural pedalling power. The cranks are connected to the motor and the motor is connected to the chainring which then powers the bike forward. The bike senses the pressure that you put though the pedals and then adds an appropriate level of power to make pedalling easier. This additional power is delivered seamlessly, and you will feel like your legs have just become much more powerful. Motors all have a nominal 250w output and are usually provided by big component manufacturers like Bosch, Shimano, Yamaha and Brose.

Illustration showing a electric motor on a electric bike

Battery

Easily charged either on or off the bike the lithium-ion battery pack will offer you long lasting assistance. Where and how you ride will make a big difference to the range that you can expect to achieve from a single charge, but most e bikers find the capacity of these batteries to be more than sufficient. Some brands offer innovative ways to integrate the battery within the frame. 400Wh or 500Wh batteries are most common.

Illustration showing a battery mounted to a ebike frame

Control Units

All electric mountain bikes allow you to adjust the amount of power the motor delivers. This helps to help you manage the battery capacity. Control units have some kind of display that, at the very least, shows remaining battery capacity and the current power mode. Some control units feature a handlebar mounted display unit that displays additional information like estimated range and satellite navigation prompts. Many eMTBs offer Bluetooth and ANT+ connectivity with smartphone apps for fine tuning the motor output and accessing more advanced features.

Illustration showing a heads up display mounted to the handlebars

Groupset

An electric mountain bike’s groupset, is where the biggest difference in component quality is seen. A complete groupset comprises of the following parts:

  • Chainset (aka Crankset)
  • Bottom bracket
  • Brakes
  • Brake levers
  • Shifter
  • Derailleur
  • Chain
  • Cassette
 Shimano LogoSRAM Logo
Professional
11
XTR Di2
12
XX1 AXS Eagle
AXS Eagle

12
X01 AXS Eagle
AXS Eagle

12
XTR
11
XX1

11
X01

11
XT Di2

Enthusiast
12
XT

11
SLX
10
GX

10
Deore
11
NX
Entry
9
Alivio
12
SX Eagle
Eagle

9
Acera
9-10
X9

9
Altus
9-10
X7

7
Tourney
7-10
X5





Electric mountain bike groupset components are typically supplied by either Shimano or SRAM, sometimes with additional manufacturers like Magura, Tektro and TRP supplying brake systems. You will mostly find one-by drivetrains with a single front chainring and a wide range rear cassette.

Shimano and SRAM both produce a range of groupsets to suit different budgets. The hierarchy table here compares the different Shimano and SRAM groupsets to determine which bikes offer the best performance.


Wheel Size

Just like regular mountain bikes, e MTBs are available with different wheel sizes. 27.5” (650b) and 29” wheels are both available but the most common e MTB size is 27.5”+ (6fattie) that bridges the gap between the two.

MTB wheel sizes

27.5” (650b) wheels strike the ideal balance between fast rolling and nimble handling. They are lighter than 29” wheels so are faster to accelerate. On the other hand, the smaller wheel size rolls less efficiently than the larger size, making the bike more prone to losing speed over rough ground.

29” wheels roll fastest but are less nimble. These wheels are naturally smoother over rough ground but are heavier and slower to accelerate. Larger riders may find a better fit on a 29er, but smaller riders may find 29” wheels a little cumbersome.

27.5+ (6fattie) wheels feature wider 2.8” – 3.0” tyres and offer more cushioning (float) as well as more grip. With the extra size of the high-volume tyres, the overall wheel diameter is similar to a 29er, so these wheels carry speed very well on rough ground. Plus sized wheels are ideal for electric mountain bikes as they deal best with the extra weight of the motor and battery, and are great for riding more challenging terrain.


Suspension components

Electric mountain bike suspension components (i.e. the fork or rear shock absorber) are also a way to identify the quality of a bike. While Fox and RockShox are the most common manufacturers, there are a number of brands producing suspension components for mountain bikes.

Entry Level eMTBs

Entry level electric mountain bikes (up to approximately £2,500) may come supplied with a fork and rear shock supplied by SR Suntour, X-Fusion or RockShox. These components will allow a limited amount of adjustment, including:

  • Coil spring preload / air spring pressure adjustment.
  • Lockout switch.
  • Rebound damping adjustment on models towards the top of the price range.
Mid-range and enthusiast eMTBs

Mid-range and enthusiast eMTBs (up to approximately £5,000) use components from brands including Fox, RockShox and Manitou. At this level, suspension components have features like:

  • Preload adjustment / air spring pressure adjustment
  • Rebound damping adjustment
  • Lockout switch
  • Multi-position ‘mode’ switch
  • Compression damping adjustment
Top of the range eMTBs

Top of the range electric bikes (over £5,000) also use components from Fox, RockShox and Manitou, with a few select models using parts from high-end suspension brands like Ohlins. At this price, suspension components have features including:

  • Coil spring preload adjustment / air spring pressure adjustment
  • High and low speed rebound damping adjustment
  • High and low speed compression damping adjustment
  • Lockout switch
  • Multi-position ‘mode’ switch
  • Advanced low-friction coatings (e.g. Fox’s golden-coloured Kashima coating)
