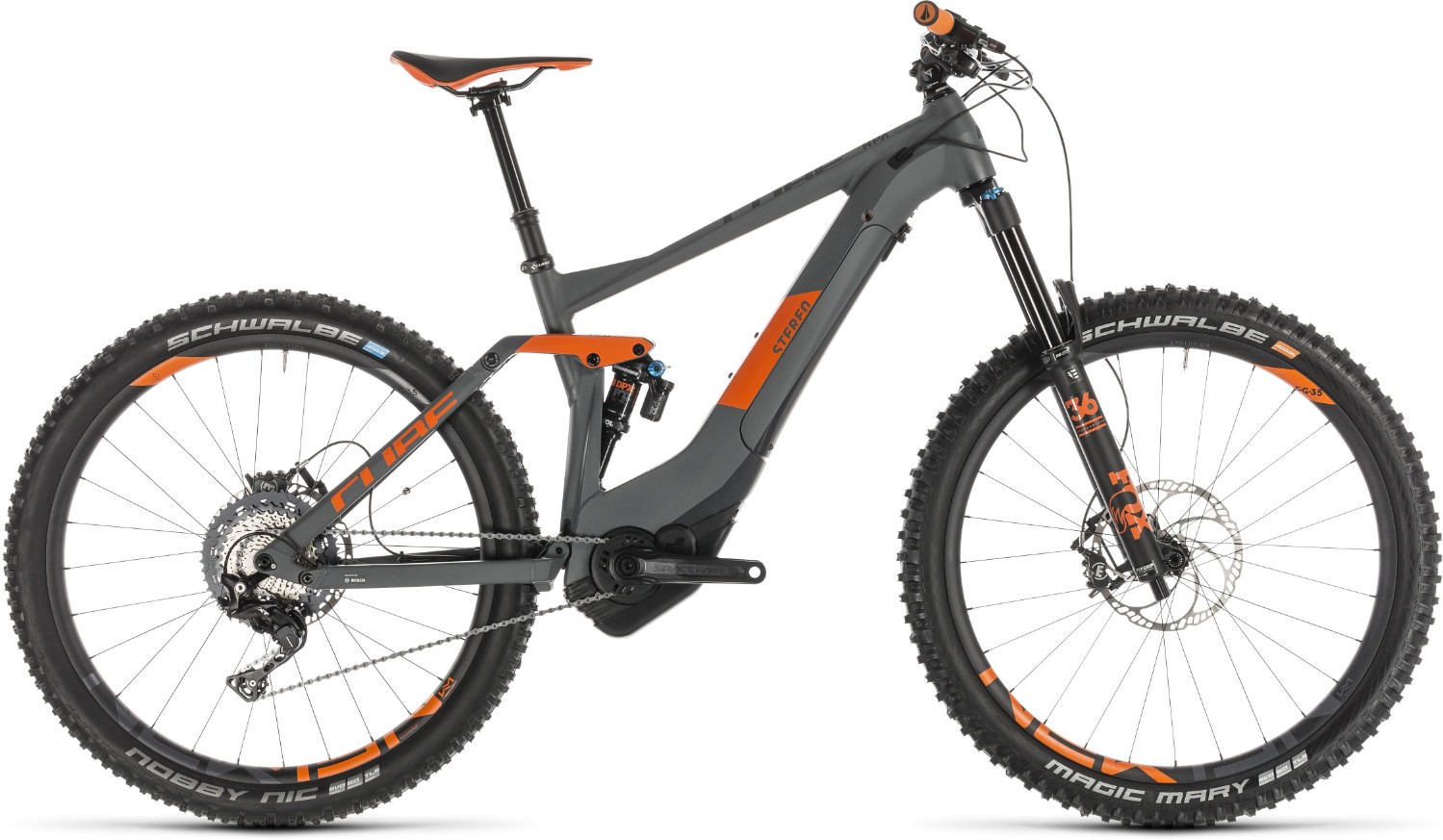

Cube Stereo Hybrid 140 TM 500 27.5" 2019 - Electric Mountain Bike

£4,499.00
Price Match Promise
or £93.73 / month
Finance Options
Be the first to write a review
Sizing
Select a size
Colour
Add to Basket

Free insurance Includes 8 weeks Free Bike Insurance. Find out more.

Product Description

Ride any trail with a boost for your leg power. The Cube Stereo Hybrid 140 Race 500 is an electric mountain bike that combines the power of Bosch with 140mm of dialled full suspension travel. With its neatly integrated drive unit and Shimano groupset this e bike was built for having more trail centre adventures with less effort.

Key Features:

  • Aluminium Superlite full sus frame with neatly integrated battery and motor
  • Fox Float DPX2 EVOL shock controls the 140mm of active rear wheel suspension travel
  • Fox 36 Float GRIP suspension fork for 140mm of bump soaking suspension performance
  • Shimano XT 1x11 speed drivetrain for reliable gear shifting
  • Magura MT7 hydraulic disc brakes for confident all-weather stopping power
  • Sizes: 16”, 18”, 20”, 22”
  • Colours: Grey/Orange
  • The Cube Stereo Hybrid 140 TM 500 is available with 0% APR finance

Drive Information:

  • Motor: Bosch Drive Unit Performance CX (75Nm) Cruise (250Watt)
  • Battery: Bosch PowerTube 500Wh, integrated
  • User interface/remote: Bosch Purion
  • Charger: Bosch 4amp

How do you build the ultimate mountain-taming e-MTB? Simple. Give the CUBE design team a black sheet of paper and tell them not to compromise. And here's the result: the Stereo Hybrid 140 TM, a Bosch e-bike to redefine your expectations. Power comes from Bosch's CX PowerTube drive system coupled to Shimano's peerless 11 speed XT transmission, for practically seamless shifts and a gear range wide enough to tackle any climb. Braking is handled by Magura's MT7 hydraulic discs with oversized 203mm rotors front and rear. Combined with a 150mm travel Fox 36 Float GRIP fork, Float DPX2 EVOL shock and 2.6in Schwalbe Nobby Nic tyres - Magic Mary at the front and Nobby Nic at the rear, both with Supergravity sidewalls - it's a potent setup to put you in full control of any trail situation you encounter. The Fox dropper post gives you more scope to check out steep lines in perfect control, and we topped the whole lot off with a light, strong and stiff Newmen wheelset and Race Face cockpit components. If you've been searching for the best all-mountain e-MTB... you just found it.

All Tredz bikes are:

  • Fully built & ready to ride
  • Fully checked & tested by Cytech qualified mechanics
  • Available with 0% APR finance (up to 48 months) on any basket over £99
  • UK price match guarantee
  • 365 day no hassle returns
  • Free delivery in the UK Mainland on a date that suits you

In the box with every Tredz bike is:

  • Free Tredz 9 key trail tool
  • Free Tredz pedal spanner
  • Free basic pedals
  • Tredz drawstring kit bag
  • 16 point quality control check sheet
  • Basic bike setup instructions
  • Free Cycle Plan insurance voucher (8 weeks)

Specification

Frame:Aluminium Superlite, Gravity Casting, Tripple Butted, Efficient Trail Control 4-Link, Agile Trail Geometry, Boost 148, Tuned Drive Position, AXH, Full Integrated Battery
Fork:Fox 36 Float GRIP, 3-Position w/Micro Adjust, Tapered, 15x110mm, E-Bike Optimized, 150mm
Rear Shock:Fox Float DPX2 EVOL, 190x50mm, Open(Adjustable)/Medium/Firm Mode
Headset:FSA 1.5E ZS, Top Zero-Stack 1 1/8" (OD 44mm), Bottom Zero-Stack 1 1/2" (OD 56mm)
Stem:Race Face Turbine, 35mm
Bars:Race Face Turbine 35, 780mm
Front Brake:Magura MT7, Hydr. Disc Brake (203/203)
Rear Brake:Magura MT7, Hydr. Disc Brake (203/203)
Rear Mech:Shimano XT RD-M8000-DGS, ShadowPlus, 11-Speed
Shifters:Shimano XT SL-M8000-I, Direct Attach
Speed:11
Rims:Newmen Evolution SL E.35, 28/28 Spokes, 15x110mm/12x148mm, Tubeless Ready
Front Tyre:Schwalbe Magic Mary 2.60, Addix Soft, Tubeless Easy, Super Gravity
Rear Tyre:Schwalbe Nobby Nic 2.60, Addix Speedgrip, Tubeless Easy, Super Gravity
Seat Post:Fox Transfer Performance Elite 31.6mm (16": 359x100mm, 18": 409x125mm, 20", 22": 456x150mm)
Saddle:Natural Fit Active Race
Chainset:Race Face Aeffect, 165mm, 15T
Chain:KMC X11e, EcoProTeQ
Cassette:Shimano SLX CS-M7000, 11-46T
Pedals:CUBE PP MTB

Occasionally without notice, manufacturers sometimes change product specifications.

There are currently no customer reviews

Write your own review

Sizing

Bike Size Calculator

Read our guide to bike sizing

Your mountain bike size is:

Frame (inches): 16/17
Frame (size): Small / Medium

Your road bike size is:

Frame (cm)
Frame (size)

Please note, all size information is provided as a guide - if you're unsure or need any further assistance you can call us on 01792 799508 ... we're happy to help!

Electric Mountain Bike Guide



Is an Electric Mountain Bike Right for Me?

If you’re new to the cycling world, we highly recommend taking a look at our bike buying guide overview or our electric bike buying guide to help you decide what type of e bike is right for you.

When you’re choosing an electric mountain bike, there are a few things to look out for, which can help you to work out the quality and performance to expect from a particular model.


Usage & Suspension travel

Just like a regular full suspension or hardtail mountain bike, the amount of available suspension travel on an eMTB varies with the intended use. Depending on the type of mountain bike riding you’ll be doing, you’ll want a bike with longer or shorter suspension travel as well as components suited to more or less technical terrain.

Type

Travel

Usage

Pros

Cons

Hardtail

Up to 130mm travel fork

Cross-country and trail

Nimble handling more affordable than a full suspension eMTB

Hardtails are less capable on rough and demanding trails with large jumps and drops

Full Suspension – short travel

120mm – 150mm

Trail and cross-country

Well balanced for both climbing and descending

Less capable on challenging descents than a longer travel bike

Full Suspension – long travel

150mm +

Enduro, trail and downhill

More capable on rough, steep and technical descents, including DH and enduro tracks

Heavier and less manoeuvrable on tight trails. More cumbersome on the climbs

Type / Travel / Usage

Pros

Cons

Hardtail

Up to 130mm travel fork

Cross-country and trail

Nimble handling more affordable than a full suspension eMTB

Hardtails are less capable on rough and demanding trails with large jumps and drops

Full Suspension – short travel

120mm – 150mm

Trail and cross-country

Well balanced for both climbing and descending

Less capable on challenging descents than a longer travel bike

Full Suspension – long travel

150mm +

Enduro, trail and downhill

More capable on rough, steep and technical descents, including DH and enduro tracks

Heavier and less manoeuvrable on tight trails. More cumbersome on the climbs


Frame Material

Most electric mountain bike frames are made from aluminium alloy, although some are made from carbon fibre composite.

Aluminium

Aluminium alloy is lightweight, stiff, strong. Manufacturers often develop their own aluminium alloys, such as ALUXX by Giant. Aluminium is found on a wide range of e bikes, from entry-level and enthusiast bikes, right the way up to top-spec eMTBs.

Carbon Fibre

Carbon fibre is lighter, stiffer, stronger, and more expensive than aluminium. The main benefit for electric mountain bikes is that carbon frames are stiffer for improved handling.


Drive Tech

Designed to enable you to have more fun on the trails, all of our electric mountain bikes feature powerful crank drive motors with long lasting lithium-ion battery packs and easily accessible control units.

Motor

Crank drive motors boost your natural pedalling power. The cranks are connected to the motor and the motor is connected to the chainring which then powers the bike forward. The bike senses the pressure that you put though the pedals and then adds an appropriate level of power to make pedalling easier. This additional power is delivered seamlessly, and you will feel like your legs have just become much more powerful. Motors all have a nominal 250w output and are usually provided by big component manufacturers like Bosch, Shimano, Yamaha and Brose.

Illustration showing a electric motor on a electric bike

Battery

Easily charged either on or off the bike the lithium-ion battery pack will offer you long lasting assistance. Where and how you ride will make a big difference to the range that you can expect to achieve from a single charge, but most e bikers find the capacity of these batteries to be more than sufficient. Some brands offer innovative ways to integrate the battery within the frame. 400Wh or 500Wh batteries are most common.

Illustration showing a battery mounted to a ebike frame

Control Units

All electric mountain bikes allow you to adjust the amount of power the motor delivers. This helps to help you manage the battery capacity. Control units have some kind of display that, at the very least, shows remaining battery capacity and the current power mode. Some control units feature a handlebar mounted display unit that displays additional information like estimated range and satellite navigation prompts. Many eMTBs offer Bluetooth and ANT+ connectivity with smartphone apps for fine tuning the motor output and accessing more advanced features.

Illustration showing a heads up display mounted to the handlebars

Groupset

An electric mountain bike’s groupset, is where the biggest difference in component quality is seen. A complete groupset comprises of the following parts:

  • Chainset (aka Crankset)
  • Bottom bracket
  • Brakes
  • Brake levers
  • Shifter
  • Derailleur
  • Chain
  • Cassette

Electric mountain bike groupset components are typically supplied by either Shimano or SRAM, sometimes with additional manufacturers like Magura, Tektro and TRP supplying brake systems. You will mostly find one-by drivetrains with a single front chainring and a wide range rear cassette.

Shimano and SRAM both produce a range of groupsets to suit different budgets. The hierarchy table here compares the different Shimano and SRAM groupsets to determine which bikes offer the best performance.

Groupset comparison - Shimano & SRAM

Wheel Size

Just like regular mountain bikes, e MTBs are available with different wheel sizes. 27.5” (650b) and 29” wheels are both available but the most common e MTB size is 27.5”+ (6fattie) that bridges the gap between the two.

MTB wheel sizes

27.5” (650b) wheels strike the ideal balance between fast rolling and nimble handling. They are lighter than 29” wheels so are faster to accelerate. On the other hand, the smaller wheel size rolls less efficiently than the larger size, making the bike more prone to losing speed over rough ground.

29” wheels roll fastest but are less nimble. These wheels are naturally smoother over rough ground but are heavier and slower to accelerate. Larger riders may find a better fit on a 29er, but smaller riders may find 29” wheels a little cumbersome.

27.5+ (6fattie) wheels feature wider 2.8” – 3.0” tyres and offer more cushioning (float) as well as more grip. With the extra size of the high-volume tyres, the overall wheel diameter is similar to a 29er, so these wheels carry speed very well on rough ground. Plus sized wheels are ideal for electric mountain bikes as they deal best with the extra weight of the motor and battery, and are great for riding more challenging terrain.


Suspension components

Electric mountain bike suspension components (i.e. the fork or rear shock absorber) are also a way to identify the quality of a bike. While Fox and RockShox are the most common manufacturers, there are a number of brands producing suspension components for mountain bikes.

Entry Level eMTBs

Entry level electric mountain bikes (up to approximately £2,500) may come supplied with a fork and rear shock supplied by SR Suntour, X-Fusion or RockShox. These components will allow a limited amount of adjustment, including:

  • Coil spring preload / air spring pressure adjustment.
  • Lockout switch.
  • Rebound damping adjustment on models towards the top of the price range.
Mid-range and enthusiast eMTBs

Mid-range and enthusiast eMTBs (up to approximately £5,000) use components from brands including Fox, RockShox and Manitou. At this level, suspension components have features like:

  • Preload adjustment / air spring pressure adjustment
  • Rebound damping adjustment
  • Lockout switch
  • Multi-position ‘mode’ switch
  • Compression damping adjustment
Top of the range eMTBs

Top of the range electric bikes (over £5,000) also use components from Fox, RockShox and Manitou, with a few select models using parts from high-end suspension brands like Ohlins. At this price, suspension components have features including:

  • Coil spring preload adjustment / air spring pressure adjustment
  • High and low speed rebound damping adjustment
  • High and low speed compression damping adjustment
  • Lockout switch
  • Multi-position ‘mode’ switch
  • Advanced low-friction coatings (e.g. Fox’s golden-coloured Kashima coating)
