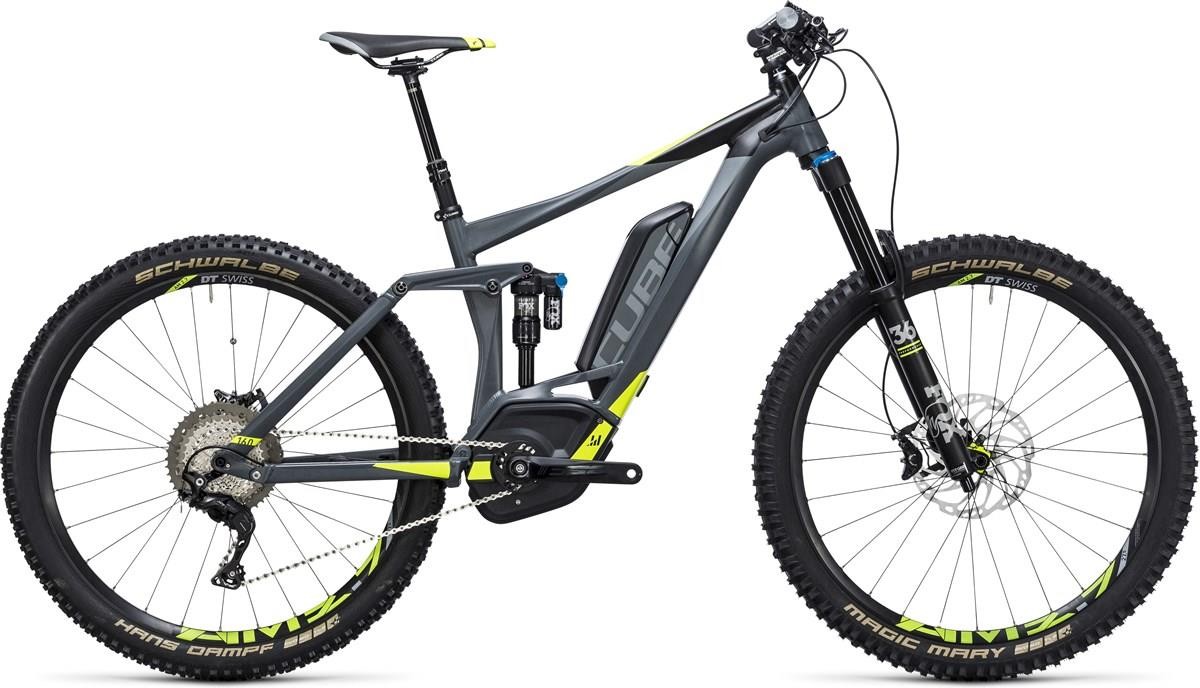

Cube Stereo Hybrid 160 HPA SL 500 27.5" - Nearly New - 20" 2017 - Electric Mountain Bike

This Cube Reaction Race mountain bike is in excellent condition. Having never been ridden, it is showing no signs of mechanical wear. However, it has some cosmetic imperfections on the both rear stays and down tube.
To ensure this bike meets our high standards for quality, it has undergone a thorough inspection by our professional mechanics. As with all our bikes, it comes with a 12 month Tredz warranty, plus any additional manufacturer warranty which may apply.
This is the most advanced Enduro Hybrid ever developed. The incredible High Performance Aluminium chassis was developed from the ground up and is chock full of innovation and cutting-edge technology. That's why we can proudly say that the Stereo Hybrid HPA 160 - developed especially for tough enduro use - stands out above every other full suspension e-MTB. Its performance is exemplary, despite the challenges for man and machine that enduro throws up.
Frame: With this frame we've shown that it's possible to develop a genuine enduro bike with an e-drive built in - and without compromising on performance. The CUBE Performance Cover - developed especially for aggressive trail riding - sets new benchmarks for integration and function. The integrated impact protection absorbs the initial energy of any unwanted impact on making contact with the ground, and the shock absorber takes on and neutralises the rest. Drive unit and frame are optimally protected against impacts. The integrated chain guide also keeps the chain stays free from gouges even on rougher trails. The Tuned Drive Position allowed us to keep the chainstays as short as possible, creating exemplary handling and suspension performance in combination with our Efficient Trail Control (ETC) suspension system and 27.5-specific Agile Trail Geometry (ATG).
Features: As you'd expect, the SL version of the Hybrid Enduro uses only the best high-tech components worthy of its premium frameset. Fox suspension components ensure almost limitless descending performance: the Float 36 suspension fork up front has easy-to-use 3-way adjustment and boasts superb steering precision and low weight, while the Float X Performance EVOL shock at the rear smoothes out anything that the trail happens to throw under your wheels. Shimano's XT brake system - with 203mm rotor at the front - has the power and reliability you need, while the wide ratio XT transmission with its 11-46 tooth cassette is a perfect match for enduro use. The advanced Bosch CX drive - with up to 75Nm torque and drawing its power from a 500Wh battery - makes even the longest, toughest climb easy. Grippy Schwalbe tyres - in Super Gravity trim - roll on light, robust DT Swiss CSW AM 2.7 Boost wheels, while the Rock Shox Reverb Stealth dropper post is the finishing touch that helps ready this e-bike for the most technical of singletrack challenges.
Key Features :
- HPA Ultralight, Advanced Hydroform Frame
- Fox 36 Float Fork
- Fox Float X Performance 3-Position Rearshock
- DT CSW EM 2.7 Straightpull Wheelset
- Engine Bosch Drive Unit Performance CX (75Nm) Cruise (250Watt)
- Battery Bosch PowerPack 500
- Display Bosch Purion
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | HPA Ultralight, Advanced Hydroform, Triple Butted, ETC 4-Link, ATG, Boost 148mm, Tuned Drive Position, AXH |
| Fork | Fox 36 Float 3-Position FIT4, Open/Medium/Firm Mode, 15QR, Tapered, 160mm |
| Rear Shock | Fox Float X Performance 3-Position, 200x57mm, Open/Medium/Firm Mode, EVOL Air Sleeve |
| Headset | FSA Orbit Z-t, Top Zero-Stack 1 1/8" (OD44mm), Bottom Integrated 1 1/2" |
| Stem | Race Face Ride 35 |
| Bars | Race Face Ride 35 Riser, 760mmCUBE Fritzz Grip, 2-Clamp |
| Front Brake | Shimano XT BR-M8000, Hydr. Disc Brake 203mm |
| Rear Brake | Shimano XT BR-M8000, Hydr. Disc Brake 180mm |
| Rear Mech | Shimano XT RD-M8000-DGS, ShadowPlus, 11-Speed, Direct Mount |
| Shifters | Shimano XT SL-M8000-I, Direct Attach |
| Speed | 11 |
| Rims | DT CSW EM 2.7 Straightpull Wheelset, 28/28 Spokes, 15QR/X12 Boost, 584x25C Tubeless-Ready |
| Front Hub | 15QR |
| Rear Hub | X12 Boost |
| Front Tyre | Schwalbe Magic Mary Kevlar 2.35, TrailStar, Tubeless Easy, Super Gravity |
| Rear Tyre | Schwalbe Hans Dampf Kevlar 2.35, TrailStar, Tubeless Easy, Super Gravity |
| Seat Post | Rock Shox Reverb Stealth 31.6mm, 440x150mm (390x125mm for smallest frame size) |
| Chainset | FSA CK-745, 16T |
| Chain | KMC X11e, EcoProTeQ |
| Pedals | Basic Resin Flats |
Typical Bike Size Chart
|
Height
|
Bike Size
|
Road Bike Size
|
Mountain Bike Size *
|
|
4’8” – 5’1”
143 – 155 cm
|
XXS
|
44 cm
|
13” (33 cm)
|
|
5’1” – 5’4”
155 – 163 cm
|
XS
|
48 cm
|
15” (38 cm)
|
|
5’4” – 5’7”
163 – 170 cm
|
S
|
51 cm
|
16” (41 cm)
|
|
5’7” – 5’10”
170 – 178 cm
|
M
|
54 cm
|
18” (46cm)
|
|
5’10” – 6’0”
178 – 183 cm
|
L
|
56 cm
|
19” (48cm)
|
|
6’0” – 6’3”
183 – 191 cm
|
XL
|
58 cm
|
20” (51 cm)
|
|
6’3” – 6’5”
191 – 196 cm
|
XXL
|
60 cm
|
21” (53 cm)
|
|
6’5” – 6’9”
196 – 205 cm
|
XXXL
|
62 cm
|
22” (56 cm)
|
* Mountain bikes are sized differently to road bikes. Typically, they are sized in inches as the first MTBs were produced in the USA. European brands like Lapierre and Haibike like to use centimetres for all their bikes. The measurements of their mountain bikes doesn’t match their road bikes but are like a simple conversion from the inches measurement. This is why we have included cm measurements in brackets for the Mountain bike column.
Read our bike size guide for more information on sizing.
