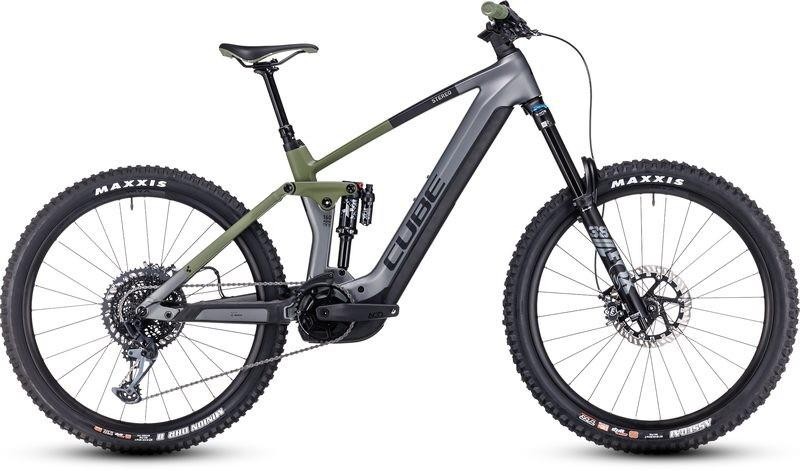

Cube Stereo Hybrid 160 HPC TM 750 2023 - Electric Mountain Bike
Ride further, faster and steeper than ever with the Stereo Hybrid 160 HPC TM 750. Rock-solid handling from Fox's 38 Float Performance fork and Float X Performance piggyback shock is matched by the smooth power delivery of Bosch's fourth-generation drive system, backed by a high-capacity 750Wh battery. Magura's MT7 hydraulic disc brake system – featuring two-piece discs – works with the Newmen Performance wheelset and Maxxis Assegai 2.5in and DHR II 2.4in tyres to help you keep the rubber side down, always. And the remote dropper post and precise-shifting Sram GX Eagle 1x12 gears put even the toughest of trails within reach.
Frame description
An enduro-capable bike with Bosch power? You'd better believe it. The Stereo Hybrid 160 HPC's carbon main frame is built to house the Modular Battery System – including a battery up to 750Wh – and fourth-generation Bosch drive unit, in a full range of sizes to suit almost every rider. Practicality is key so, for example, there's room for a bottle cage, and the battery cover has push-button access. On the handling front we've incorporated race-inspired geometry, a Boost 148 rear end and 1.5in head tube for on-demand cut-and-paste line choices, no matter how rowdy the trail. With a trunnion shock mount, oversize linkage bearings and internal cable routing, you can be assured of minimal maintenance downtime and maximum trail funtime.
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | C:62 Monocoque Advanced Twin Mold Technology, Aluminium 6061 T6 Rear Triangle, Efficient Trail Control, FSP 4-Link, Agile Trail Geometry, Boost 148, UDH™, Full Integrated Battery, Advanced Internal Cable Routing |
| Fork | Fox 38 Float Performance GRIP, 3-Position w/ Micro Adjust, Tapered, 15x110mm, E-Bike Tune, 170mm |
| Rear Shock | Fox Float X Performance, 205x65mm, Trunnion Mount, Adjustable LSR w/ 2-Pos. Lever |
| Headset | ACROS AZF-1035, ICR (Integrated Cable Routing), BlockLock 120°, Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm) |
| Stem | CUBE Performance Stem E-MTB, 31.8mm |
| Bars | Newmen Evolution SL 318.25, 800mm |
| Front Brake | Magura MT7, Hydr. Disc Brake (203/203) |
| Rear Brake | Magura MT7, Hydr. Disc Brake (203/203) |
| Rear Mech | Sram GX Eagle™, 12-Speed |
| Shifters | Sram GX Eagle™ Trigger, Single Click |
| Speed | 12 |
| Rims | Newmen Performance 30, 28/28 Spokes, 15x110mm/12x148mm, Tubeless Ready |
| Front Tyre | Maxxis Assegai, MaxxGrip/EXO+, Tubeless Ready, 2.5 WT |
| Rear Tyre | Maxxis Minion DHR II, MaxxGrip/DoubleDown, Tubeless Ready, 2.4 WT |
| Seat Post | CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm |
| Saddle | Natural Fit Venec |
| Chainset | ACID E-Crank, 165mm, 36T |
| Chain | Sram NX Eagle™ |
| Cassette | Sram XG-1275 Eagle™, 10-52T |
| Pedals | Not Included |
| Weight | 24.4 |
| Battery Size (WH) | Bosch PowerTube 750 |
| Motor | Bosch Drive Unit Performance CX Generation 4 (85Nm) Cruise (250Watt), Smart System |
| User Interface | Bosch Kiox 300 |
Cube Stereo Hybrid 160 Size Chart
|
Size |
Height (cm) | Height (in) |
|
S - 16" |
160 - 170 | 5'5" - 5'7" |
|
M - 18" |
170 - 180 | 5'7" - 5'11" |
| L - 20" | 180 - 190 | 5'11" - 6'3" |
| XL - 22" | 190 - 196 | 6'3" - 6'5" |
What size frame do I need if I am between sizes? - read here
Customer reviews and Q&A's are disabled because you declined functional cookies.
To enable reviews and Q&A's click the 'Cookie Settings' button below and enable functional cookies.
No longer available
Sorry you missed the Cube Stereo Hybrid 160 HPC TM 750 2023 - Electric Mountain Bike.
This product is no longer available.
