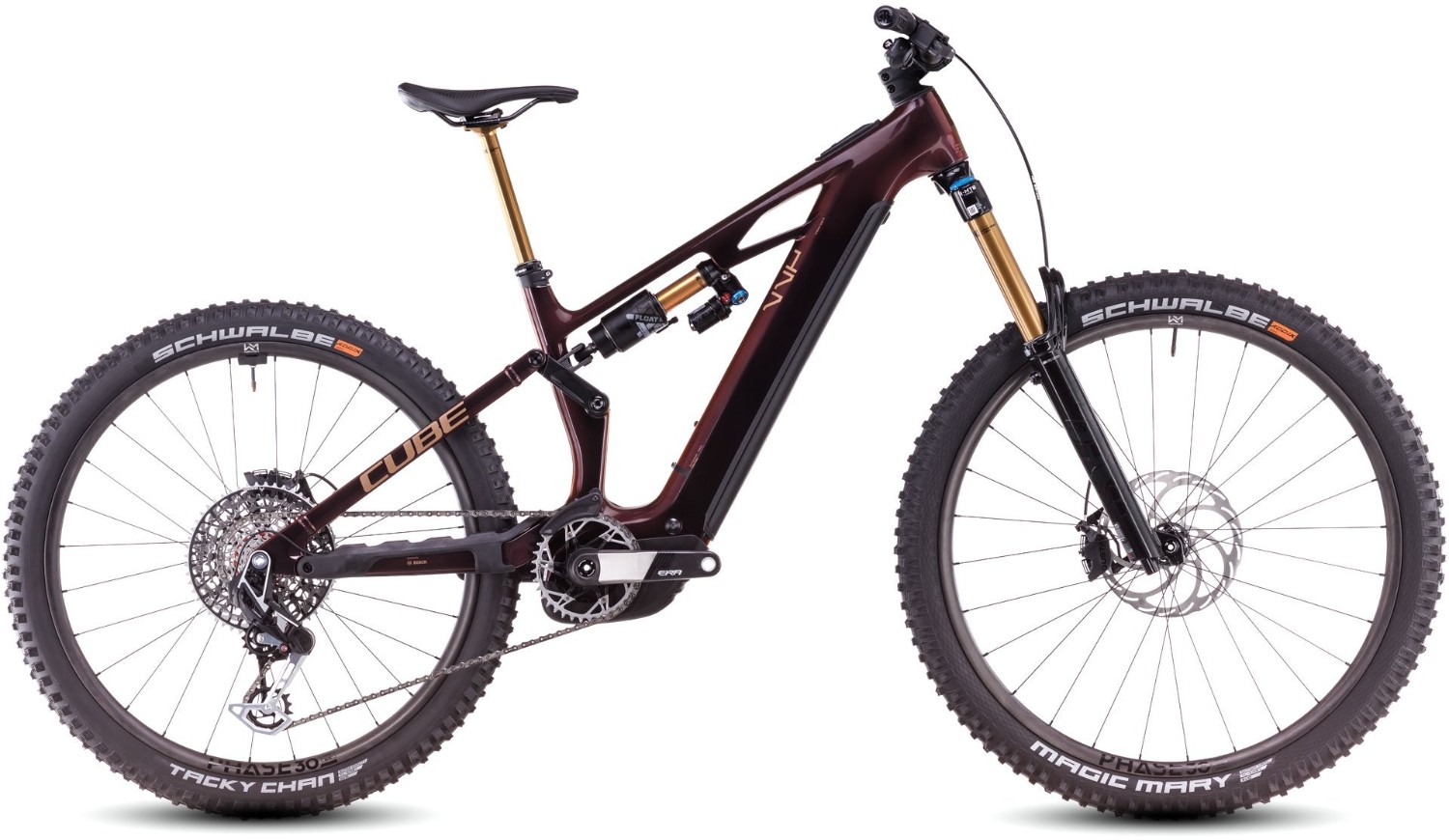

Cube Stereo Hybrid One77 HPC SLT 800 2025 - Electric Mountain Bike
The Cube Stereo Hybrid One77 HPC SLT 800 is built for riders who want maximum capability and confidence in the mountains. Its C:62® High Performance Carbon main frame keeps weight low and stiffness high, while the aluminium rear triangle adds durability. Agile Trail Geometry is matched with Cube’s Efficient Trail Control kinematics for balanced handling and predictable suspension feel. The integrated cable routing keeps the lines clean and reduces maintenance, and an angle-adjustable headset lets you fine-tune the steering response to suit your style.
Key Features:
- C:62® carbon frame with aluminium rear triangle and Agile Trail Geometry
- Fox 38 Float Factory GRIPX2 fork, 170mm travel
- Fox Float X2 Factory rear shock, 170mm travel
- SRAM XX Eagle AXS 12-speed wireless drivetrain
- Magura Gustav PRO 4-piston hydraulic disc brakes
- Mullet setup: 29" front / 27.5" rear with Schwalbe tyres
- Angle-adjustable headset for customised handling
- Available with 0% APR finance
Drive Information:
- Motor: Bosch Performance Line CX Smart System, 85Nm* torque
- Battery: Bosch PowerTube 800Wh
- User Interface: Bosch display with handlebar remote
With 170mm of travel front and rear, this e-MTB is ready for the roughest terrain. The Fox 38 Float Factory GRIPX2 fork and Fox Float X2 Factory rear shock (both Kashima-coated) deliver exceptional small-bump sensitivity, support through big hits, and the adjustability to dial in your perfect setup. The mullet wheel configuration, with a 29” front wheel for rollover smoothness and a 27.5” rear wheel for agility, strikes the ideal balance for aggressive all-mountain riding.
Bosch’s Performance Line CX Smart System motor delivers 85Nm of torque, providing powerful yet natural-feeling assistance even on steep, technical climbs. The fully integrated 800Wh PowerTube battery offers the range for epic all-day rides, and the Bosch display keeps ride data and assist levels easy to monitor.
The SRAM XX Eagle AXS Transmission gives instant, wireless shifting under load, while Magura Gustav PRO 4-piston brakes with massive 203mm rotors front and rear supply unmatched stopping power. Newmen Phase 30 tubeless-ready wheels are shod with Schwalbe Magic Mary and Tacky Chan tyres for maximum grip in demanding conditions. A Fox Transfer Factory dropper post, Race Face ERA cockpit, and ACID finishing kit complete this no-compromise build.
*Performance upgrades to 100Nm torque, 750W power and 400% support are available via the Bosch eBike Flow app. A free firmware update, delivered through the app, may be required.
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | C:62® Monocoque Advanced Twin Mold Technology, Aluminium 6061 T6 Rear Triangle, Efficient Trail Control, FSP 4-Link, Agile Trail Geometry, Boost 148, UDH™, Full Integrated Battery, Advanced Internal Cable Routing |
| Fork | Fox 38 Float Factory GRIPX2, Tapered, 15x110mm, E-Bike Optimized, 170mm, Kashima Coated |
| Rear Shock | Fox Float X2 Factory, 230x65mm, High/Low Speed Rebound & Compression w/ 2-Position Lever, Kashima Coated |
| Headset | ACROS AZF-675, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm), Fiber Inserts for Angle Adjustment, X-Connect Interface |
| Stem | CUBE Performance Stem E-MTB 35, FPI-Link |
| Bars | Race Face ERA 35 |
| Front Brake | Magura Gustav PRO, Front 4-Piston/Rear 4-Piston, Hydr. Disc Brake (203/203) |
| Rear Brake | Magura Gustav PRO, Front 4-Piston/Rear 4-Piston, Hydr. Disc Brake (203/203) |
| Rear Mech | Sram XX Eagle AXS™ Transmission, 12-Speed |
| Shifters | Sram AXS™ Pod Ultimate Controller |
| Speed | 12 |
| Rims | Newmen Phase 30, 28/28 Spokes (Base/Strong), 15x110mm / 12x148mm, Tubeless Ready |
| Front Tyre | Schwalbe Magic Mary, Addix Soft, Super Trail, Kevlar, 2.4 |
| Rear Tyre | Schwalbe Tacky Chan, Addix Soft, Super Gravity, Kevlar, 2.4 |
| Seat Post | Fox Transfer Factory 31.6mm, Kashima Coated |
| Saddle | ACID Venec EMTB Trail 140 |
| Chainset | Race Face ERA E-MTB, 36T |
| Chain | Sram XX Eagle™ Transmission |
| Cassette | Sram XS-1297, 10-52T |
| Battery Size (WH) | Bosch PowerTube 800 |
| Motor | Bosch Drive Unit Performance Line CX, Smart System |
| User Interface | Bosch Display |
Cube Stereo Hybrid One77 2025 Size Chart
|
Size |
Height (cm) | Height (in) |
|
S |
160 - 170 | 5'5" - 5'7" |
|
M |
170 - 180 | 5'7" - 5'11" |
| L | 180 - 190 | 5'11" - 6'3" |
| XL | 190 - 196 | 6'3" - 6'5" |
What size frame do I need if I am between sizes? - read here
Cube Stereo Hybrid One77 2025 Geometry Chart
| Size | S | M | L | XL |
|---|---|---|---|---|
| Stack | 635 / 637 | 635 / 637 | 645 / 648 | 659 / 661 |
| Reach | 427 / 425 | 452 / 450 | 477 / 475 | 506 / 505 |
| Head Tube Length | 103 | 103 | 115 | 130 |
| Head Tube Angle | 63.8° / 64.4° | 63.8° / 64.4° | 63.8° / 64.4° | 63.8° / 64.4° |
| Bottom Bracket Height | 13 | 13 | 13 | 13 |
| Chainstay Length | 443 | 443 | 443 | 443 |
| Wheelbase | 1213 / 1206 | 1238 / 1231 | 1269 / 1261 | 1305 / 1297 |
| Top Tube Length (horizontal) | 572 / 573 | 597 / 598 | 625 / 626 | 659 / 661 |
| Standover Height | 758 | 754 | 753 | 752 |
| Seat Tube Length | 370 | 405 | 420 | 480 |
| Seat Tube Angle | 76.7° / 76.5° | 76.7° / 76.5° | 76.7° / 76.5° | 76.7° / 76.5° |
| Crank Length | 165 | 165 | 165 | 165 |
| Handlebar Width | 780 | 780 | 780 | 780 |
| Seatpost Length | 411 | 476 | 476 | 541 |
| Rear Travel | 172 | 172 | 172 | 172 |
| Tyre Size | 721 | 721 | 721 | 721 |
All measurements are in mm unless otherwise stated.
The above table shows the standard geometry for the bicycle as shipped, other geometry configurations may be available with certain bikes. Please contact us via Live Chat to find out more.
