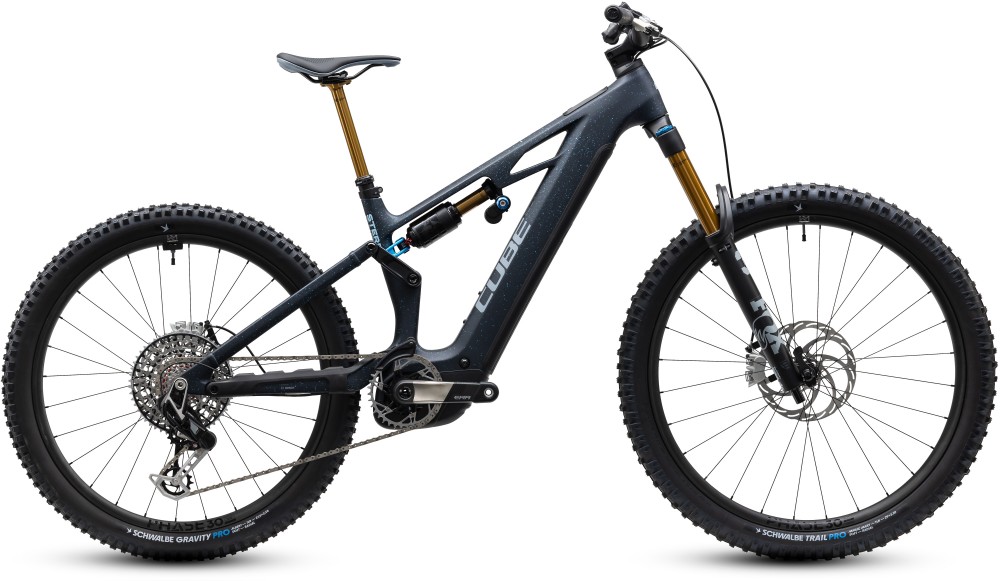

Cube Stereo Hybrid One77 HPC SLT 800 2027 - Electric Mountain Bike

Built for challenging enduro riding, the Cube Stereo Hybrid ONE77 HPC SLT 800 combines a carbon frame with premium Fox Factory suspension and Bosch CX-R assistance. SRAM XX Eagle AXS electronic shifting, Magura four-piston brakes and Schwalbe tyres provide control on technical terrain.
Key Features:
- Frame: C:62 carbon front triangle, aluminium rear triangle and Agile Trail Geometry.
- Fork: Fox 38 Float Factory GRIP X2 suspension fork with 170mm travel.
- Rear Shock: Fox Float X2 Factory with adjustable high/low-speed compression and rebound.
- Drivetrain: SRAM XX Eagle AXS Transmission 1x12-speed electronic gearing.
- Brakes: Magura Race PRO four-piston hydraulic disc brakes with 203mm rotors.
- Wheels: Newmen Phase 30 wheels with 2.5" Schwalbe Magic Mary and Albert tyres.
- Extras: Fox Transfer Factory dropper post, adjustable headset and UDH compatibility.
- Available with 0% APR finance.
Drive Information:
- Motor: Bosch Performance Line CX-R motor with up to 120Nm torque.
- Battery: Bosch PowerTube 800Wh integrated battery.
- User Interface: Bosch Kiox 400C integrated display; remote model not specified.
C:62 Carbon Frame
The Cube Stereo Hybrid ONE77 HPC SLT 800 features a C:62 carbon front triangle manufactured using Cube's Advanced Twin Mold Technology, paired with an Aluminium 6061 T6 rear triangle.
Its Agile Trail Geometry is designed to provide stability on steep descents while maintaining responsive handling through technical sections.
Cube's Efficient Trail Control suspension design uses an FSP four-link system to manage rear suspension movement, helping maintain traction over rough terrain.
The frame features Boost 148 rear axle spacing, advanced internal cable routing and a fully integrated Bosch PowerTube battery.
An adjustable headset allows riders to fine-tune the steering angle to suit their riding preferences, while Universal Derailleur Hanger compatibility supports the SRAM Transmission drivetrain.
Cube quotes a complete bike weight of approximately 23.5kg.
Fox 38 Float Factory Suspension Fork
The Stereo Hybrid ONE77 HPC SLT features a Fox 38 Float Factory suspension fork with 170mm of travel, designed for demanding enduro riding.
Its robust 38mm chassis provides steering support when navigating rough terrain, while the GRIP X2 damper offers extensive adjustment of compression and rebound damping.
This allows riders to fine-tune suspension performance for different trail conditions, from rocky descents to faster, flowing sections.
The fork features Kashima-coated stanchions and an e-bike-optimised construction, with a 15x110mm Boost thru-axle.
Fox Float X2 Factory Rear Shock
The Fox Float X2 Factory rear shock provides adjustable suspension performance for challenging terrain.
Its high- and low-speed compression and rebound adjustments allow riders to fine-tune how the suspension responds to impacts, weight shifts and changes in trail conditions.
A two-position lever provides an additional adjustment for different riding situations, while the Kashima coating helps reduce friction.
The shock's 230x65mm dimensions are specified, although the rear wheel travel is not confirmed in the supplied specifications.
Bosch Performance Line CX-R Motor
The Bosch Performance Line CX-R motor delivers up to 120Nm of torque, providing powerful pedal assistance for steep climbs and demanding technical terrain.
Designed with performance-focused eMTB riding in mind, the CX-R offers responsive assistance when accelerating out of corners or tackling challenging uphill sections.
Its power delivery is particularly useful on technical climbs where maintaining momentum and managing traction are important.
As part of Bosch's Smart System, the motor supports connected functionality and compatible customisation through the eBike Flow app.
Bosch PowerTube 800Wh Battery
The Stereo Hybrid ONE77 HPC SLT features a fully integrated Bosch PowerTube 800Wh battery.
Its substantial energy capacity is designed to support longer rides and demanding terrain, particularly when using higher assistance levels.
The battery is integrated into the frame to maintain a clean appearance and keep its weight positioned centrally.
Actual riding range will depend on terrain, rider weight, assistance level, weather conditions and riding style.
Bosch Kiox 400C Display
The Bosch Kiox 400C is integrated into the bike's top tube, providing access to essential riding information without requiring a separate handlebar-mounted display.
Its colour screen displays information including speed, battery charge and assistance level, allowing riders to monitor their ride at a glance.
The display is part of Bosch's Smart System and supports compatible connected features through the eBike Flow app.
SRAM XX Eagle AXS Transmission
The Stereo Hybrid ONE77 HPC SLT features SRAM XX Eagle AXS Transmission 1x12-speed electronic gearing.
The wireless system provides precise gear changes and is designed to maintain shifting performance under pedalling load, particularly useful when climbing technical trails with motor assistance.
A 36T Race Face ERA E-MTB chainring is paired with a SRAM XS-1297 10-52T cassette, providing a wide range of gears for steep climbs and faster descents.
The SRAM AXS Pod Ultimate controller provides easy access to shifting functions, while the direct-mount Transmission derailleur attaches to the frame's UDH interface.
Magura Race PRO Hydraulic Disc Brakes
The bike features Magura Race PRO four-piston hydraulic disc brakes with 203mm rotors front and rear.
The four-piston design provides strong braking performance, helping riders manage speed on steep and technical descents.
Large rotors provide additional braking leverage and heat management, particularly useful on longer downhill sections.
Hydraulic operation offers controlled modulation, allowing riders to adjust braking force as trail conditions change.
Newmen Phase 30 Wheels
The Stereo Hybrid ONE77 HPC SLT rolls on Newmen Phase 30 base/strong wheels, designed for demanding mountain bike riding.
The wheels feature 28 spokes front and rear, with Boost axle spacing of 15x110mm at the front and 12x148mm at the rear.
Their tubeless-ready construction allows riders to use a compatible tubeless setup, helping improve puncture resistance and allowing lower tyre pressures.
Schwalbe Magic Mary and Albert Tyres
The bike features a 2.5" Schwalbe Magic Mary Trail Pro front tyre and a 2.5" Schwalbe Albert Gravity Pro rear tyre.
The Magic Mary's aggressive tread pattern provides cornering grip and braking control on loose, rocky and technical terrain.
At the rear, the Albert is designed to maintain traction and control over challenging surfaces, complementing the front tyre's grip-focused design.
Both tyres use Schwalbe's Addix Soft compound, providing additional traction when riding over roots, rocks and loose ground.
Fox Transfer Factory Dropper Post
The Stereo Hybrid ONE77 HPC SLT features a Fox Transfer Factory dropper seatpost with Kashima coating.
The dropper allows riders to lower the saddle when descending, providing additional room to move around the bike and adjust body position.
This is particularly useful on steep trails, technical features and challenging corners where freedom of movement helps maintain control.
Performance-Focused Components
The bike features a Race Face ERA 35 handlebar and Cube Performance E-MTB stem, creating a cockpit designed for technical trail riding.
An ACID Venec EMTB Trail 140 saddle provides support for climbing and seated riding, while the included ACID PP Rookie large pedals offer a practical platform.
The adjustable headset provides an additional opportunity to personalise the bike's handling characteristics.
Built for Demanding Enduro Riding
The Cube Stereo Hybrid ONE77 HPC SLT 800 combines long-travel Fox Factory suspension, Bosch CX-R assistance and SRAM XX Eagle electronic shifting in a performance-focused electric mountain bike.
Its progressive geometry, powerful brakes and aggressive Schwalbe tyres make it particularly suitable for riders tackling steep descents, technical climbs and challenging enduro trails.
For experienced riders looking for an eMTB that can handle demanding terrain while providing assistance on the climbs, the Stereo Hybrid ONE77 HPC SLT offers a capable and carefully specified package.
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | C:62® Monocoque Advanced Twin Mold Technology, Aluminium 6061 T6 Rear Triangle, Efficient Trail Control, FSP 4-Link, Agile Trail Geometry, Boost 148, UDH™, Full Integrated Battery, Advanced Internal Cable Routing |
| Fork | Fox 38 Float Factory GRIPX2, Tapered, 15x110mm, E-Bike Optimized, 170mm |
| Rear Shock | Fox Float X2 Factory, 230x65mm, High/Low Speed Rebound & Compression w/ 2-Position Lever, Kashima Coated |
| Headset | ACROS AZF-675, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm), Fiber Inserts for Angle Adjustment, X-Connect Interface |
| Stem | CUBE Performance Stem E-MTB 35, FPI-Link |
| Bars | Race Face ERA 35 |
| Front Brake | Magura Race PRO, Front 4-Piston/Rear 4-Piston, Hydr. Disc Brake (203/203) |
| Rear Brake | Magura Race PRO, Front 4-Piston/Rear 4-Piston, Hydr. Disc Brake (203/203) |
| Rear Mech | Sram XX Eagle AXS™ Transmission, 12-Speed |
| Shifters | Sram AXS™ Pod Ultimate Controller |
| Speed | 12 |
| Rims | Newmen Phase 30 base/strong, 28/28 Spokes, 15x110mm / 12x148mm, Tubeless Ready |
| Front Hub | Newmen Phase 30 base/strong, 28/28 Spokes, 15x110mm / 12x148mm, Tubeless Ready |
| Rear Hub | Newmen Phase 30 base/strong, 28/28 Spokes, 15x110mm / 12x148mm, Tubeless Ready |
| Spokes | 28/28 Spokes |
| Front Tyre | Schwalbe Magic Mary Trail Pro, Addix Soft, Kevlar, 2.5 |
| Rear Tyre | Schwalbe Albert Gravity Pro, Addix Soft, Kevlar, 2.5 |
| Seat Post | Fox Transfer Factory 31.6mm, Kashima Coated |
| Saddle | ACID Venec EMTB Trail 140 |
| Chainset | Race Face ERA E-MTB, 36T |
| Chain | Sram XX Eagle Transmission |
| Cassette | Sram XS-1297, 10-52T |
| Pedals | ACID PP Rookie large |
| Weight | 23,5 kg |
| Battery Size (WH) | Bosch PowerTube 800 |
| Motor | Bosch Drive Unit Performance Line CX-R max. 120Nm (BDU38) |
| User Interface | Bosch Kiox 400C |
Cube Stereo Hybrid Size Chart
|
Size |
Height (cm) | Height (in) |
|
S |
160 - 170 | 5'5" - 5'7" |
|
M |
170 - 180 | 5'7" - 5'11" |
| L | 180 - 190 | 5'11" - 6'3" |
| XL | 190 - 196 | 6'3" - 6'5" |
What size frame do I need if I am between sizes? - read here
