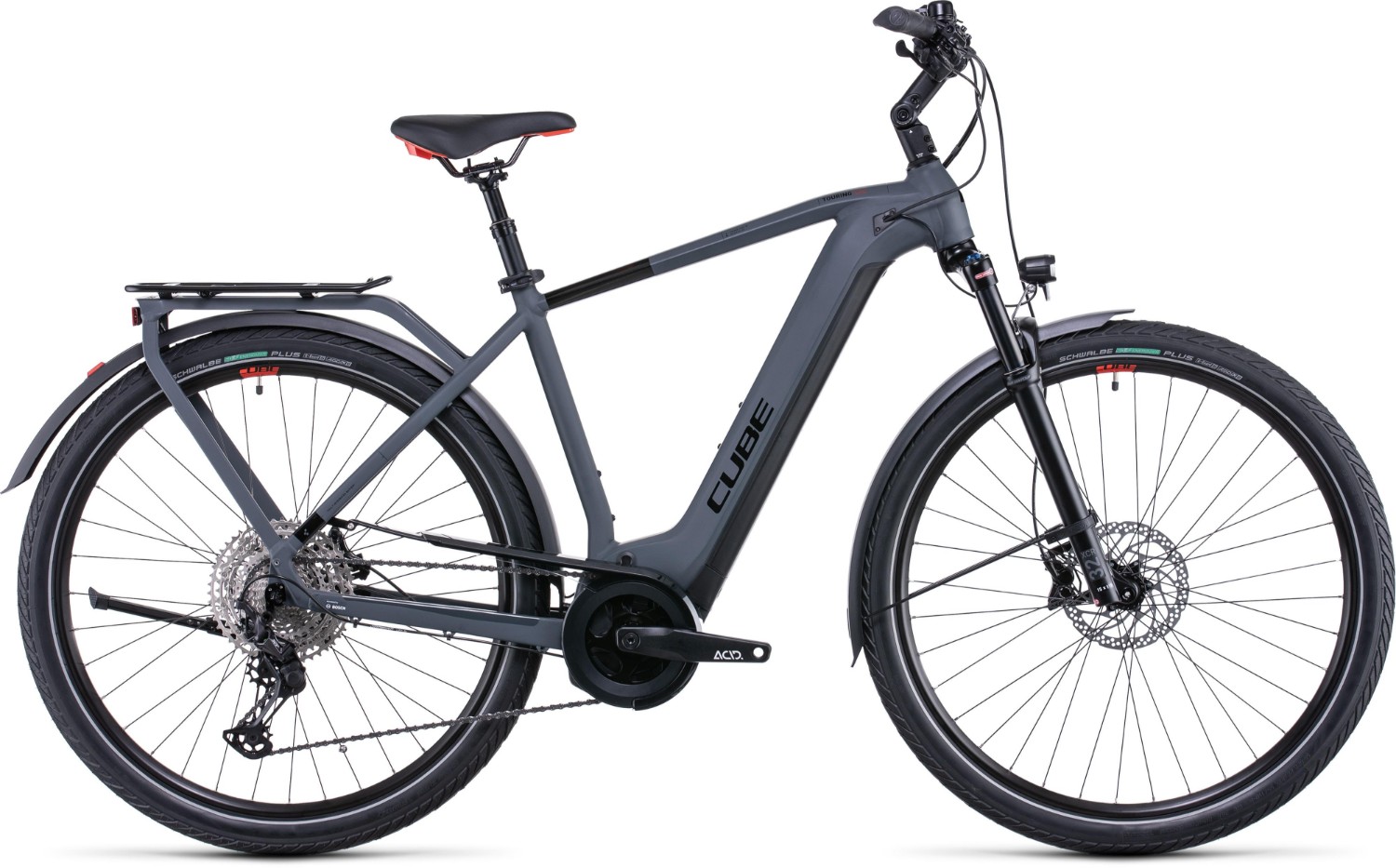

Cube Touring Hybrid EXC 500 2022 - Electric Hybrid Bike
Whatever you do, wherever you go, the Touring Hybrid will be there with you. Beautifully integrated into its sleek frame, the third generation Bosch drive system and super smooth, neutral handling mean you're all set to tackle life's challenges and adventures head on. Ride adventurously, travel often.
The Touring Hybrid EXC is the versatile, easy-to-live-with and reliable e-bike tourer you've been looking for. With an easily adjustable, smooth and comfortable air-sprung Suntour suspension fork - with adjustable stem and suspension seatpost, too - it'll deliver miles of smiles. Shimano's legendarily reliable and wide-ranging XT 1x12 transmission works in tandem with third-generation Bosch power and our PowerTube frame design to deliver you to your destination in style. Powerful four-piston Shimano hydraulic disc brakes stop you safely, whatever the conditions. And wide, comfortable tyres - plus a full complement of accessories including Integrated Carrier, mudguards, kickstand and lighting system - ensure you have everything you need, wherever you're headed.
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Aluminium Superlite, Gravity Casting Technology, Efficient Comfort Geometry, Tapered Headtube, Full Integrated Battery, Integrated Carrier 2.0 |
| Fork | X-Fusion MIG32 Air, Tapered, 15x110mm, 100mm, Lockout |
| Headset | M/Z: ACROS AZF-1038, Top Zero-Stack 1 1/8" (ZS 44mm), Bottom Zero-Stack 1 1/2" (ZS 56mm) // EE: ACROS AZX-1040, BlockLock 135°, Top Zero-Stack 1 1/8" (ZS 44mm), Bottom Zero-Stack 1 1/2" (ZS 56mm) |
| Stem | CUBE Comfort Stem Pro, 31.8mm, Adjustable |
| Bars | CUBE Comfort Trail Bar, 700mm |
| Front Brake | Shimano BR-MT420, Hydr. Disc Brake (180/180) |
| Rear Brake | Shimano BR-MT420, Hydr. Disc Brake (180/180) |
| Rear Mech | Shimano XT RD-M8100-SGS, ShadowPlus, 12-Speed |
| Shifters | Shimano Deore SL-M6100-IR, Direct Attach, Rapidfire-Plus |
| Speed | 12 |
| Rims | CUBE EX23, 36H, Disc, Tubeless Ready |
| Front Hub | Shimano HB-MT400-B, 15mm, Boost, Centerlock |
| Rear Hub | Shimano FH-MT401, QR, Centerlock |
| Front Tyre | Schwalbe Energizer Plus, Performance, Green Guard, 55-622 |
| Rear Tyre | Schwalbe Energizer Plus, Performance, Green Guard, 55-622 |
| Seat Post | CUBE Suspension Seatpost HD, 30.9mm |
| Saddle | Natural Fit Sequence Comfort |
| Chainset | ACID E-Crank, 40T, 175mm (EE: 170mm) |
| Chain | Shimano CN-M6100 |
| Cassette | Shimano Deore CS-M6100, 10-51T |
| Pedals | ACID PP Trekking |
| Weight | 26.5kg |
| Battery Size (WH) | Bosch PowerTube 500 |
| Motor | Bosch Drive Unit Performance Generation 3 (65Nm) Cruise (250Watt) |
| User Interface | Bosch Intuvia |
Cube Touring Hybrid 2023 Size Chart
|
Frame Size |
Height (cm) |
Height (feet) |
|
XS |
165 - 170 |
5’5” – 5’7” |
|
S |
170 - 175 |
5’7” – 5’9” |
|
M |
175 – 180 |
5’9” – 5’11” |
|
L |
180 - 190 |
5’11” – 6’3” |
|
XL |
190 - 195 |
6’3” – 6’5” |
What size frame do I need if I am between sizes? - read here
