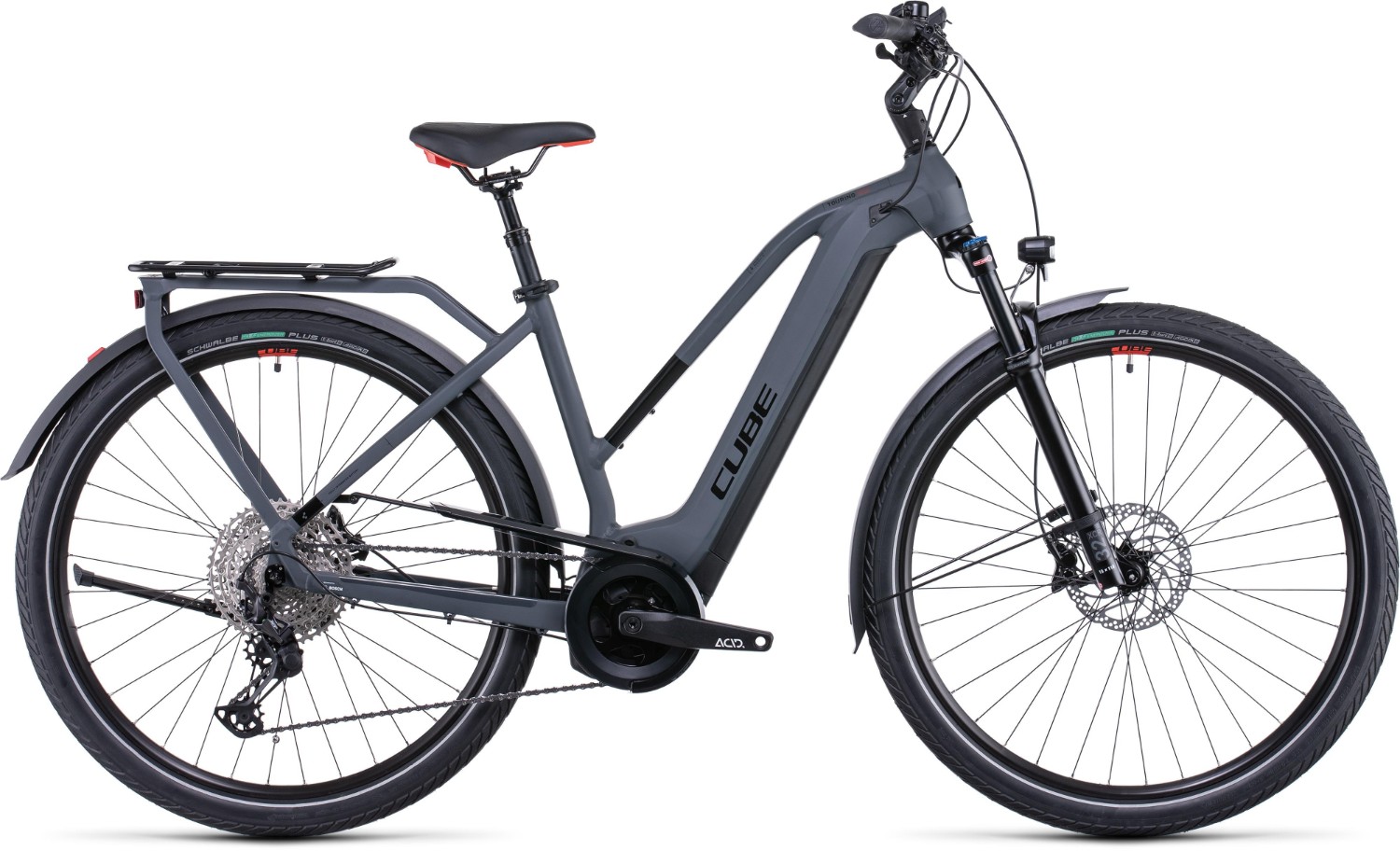

Cube Touring Hybrid EXC 500 Trapeze 2022 - Electric Hybrid Bike
Whatever you do, wherever you go, the Touring Hybrid will be there with you. Beautifully integrated into its sleek frame, the third generation Bosch drive system and super smooth, neutral handling mean you're all set to tackle life's challenges and adventures head on. Ride adventurously, travel often.
The beauty of a great bicycle is its versatility - and few bikes are more versatile than the Touring Hybrid Pro. Shimano's wide-ranging 11-speed Deore gears work seamlessly with Bosch's powerful Generation 3 motor and PowerTube battery to get you where you need to be. There's our strong, rigid Integrated Carrier for your essential bits and pieces, powerful Shimano hydraulic disc brakes for all-weather stopping, and full-length mudguards to help keep you dry. We even fitted an integrated lighting system and a kickstand. And an adjustable stem, suspension seatpost and 100mm suspension fork with big-volume, grippy tyres all help deliver you to your destination in comfort.
Occasionally, without notice, manufacturers change product design and/or specifications.
Frame | Aluminium Superlite, Gravity Casting Technology, Efficient Comfort Geometry, Tapered Headtube, Full Integrated Battery, Integrated Carrier 2.0 |
Fork | X-Fusion MIG32 Air, Tapered, 15x110mm, 100mm, Lockout |
Headset | M/Z: ACROS AZF-1038, Top Zero-Stack 1 1/8" (ZS 44mm), Bottom Zero-Stack 1 1/2" (ZS 56mm) // EE: ACROS AZX-1040, BlockLock 135°, Top Zero-Stack 1 1/8" (ZS 44mm), Bottom Zero-Stack 1 1/2" (ZS 56mm) |
Stem | CUBE Comfort Stem Pro, 31.8mm, Adjustable |
Bars | CUBE Comfort Trail Bar, 700mm |
Front Brake | Shimano BR-MT420, Hydr. Disc Brake (180/180) |
Rear Brake | Shimano BR-MT420, Hydr. Disc Brake (180/180) |
Rear Mech | Shimano XT RD-M8100-SGS, ShadowPlus, 12-Speed |
Shifters | Shimano Deore SL-M6100-IR, Direct Attach, Rapidfire-Plus |
Speed | 12 |
Rims | CUBE EX23, 36H, Disc, Tubeless Ready |
Front Hub | Shimano HB-MT400-B, 15mm, Boost, Centerlock |
Rear Hub | Shimano FH-MT401, QR, Centerlock |
Front Tyre | Schwalbe Energizer Plus, Performance, Green Guard, 55-622 |
Rear Tyre | Schwalbe Energizer Plus, Performance, Green Guard, 55-622 |
Seat Post | CUBE Suspension Seatpost HD, 30.9mm |
Saddle | Natural Fit Sequence Comfort |
Chainset | ACID E-Crank, 40T, 175mm (EE: 170mm) |
Chain | Shimano CN-M6100 |
Cassette | Shimano Deore CS-M6100, 10-51T |
Pedals | ACID PP Trekking |
Weight | 26.5kg |
Battery Size (WH) | Bosch PowerTube 500 |
Motor | Bosch Drive Unit Performance Generation 3 (65Nm) Cruise (250Watt) |
User Interface | Bosch Intuvia |
Cube Touring Hybrid 2023 Size Chart
Frame Size |
Height (cm) |
Height (feet) |
XS |
165 - 170 |
5’5” – 5’7” |
S |
170 - 175 |
5’7” – 5’9” |
M |
175 – 180 |
5’9” – 5’11” |
L |
180 - 190 |
5’11” – 6’3” |
XL |
190 - 195 |
6’3” – 6’5” |
What size frame do I need if I am between sizes? - read here
