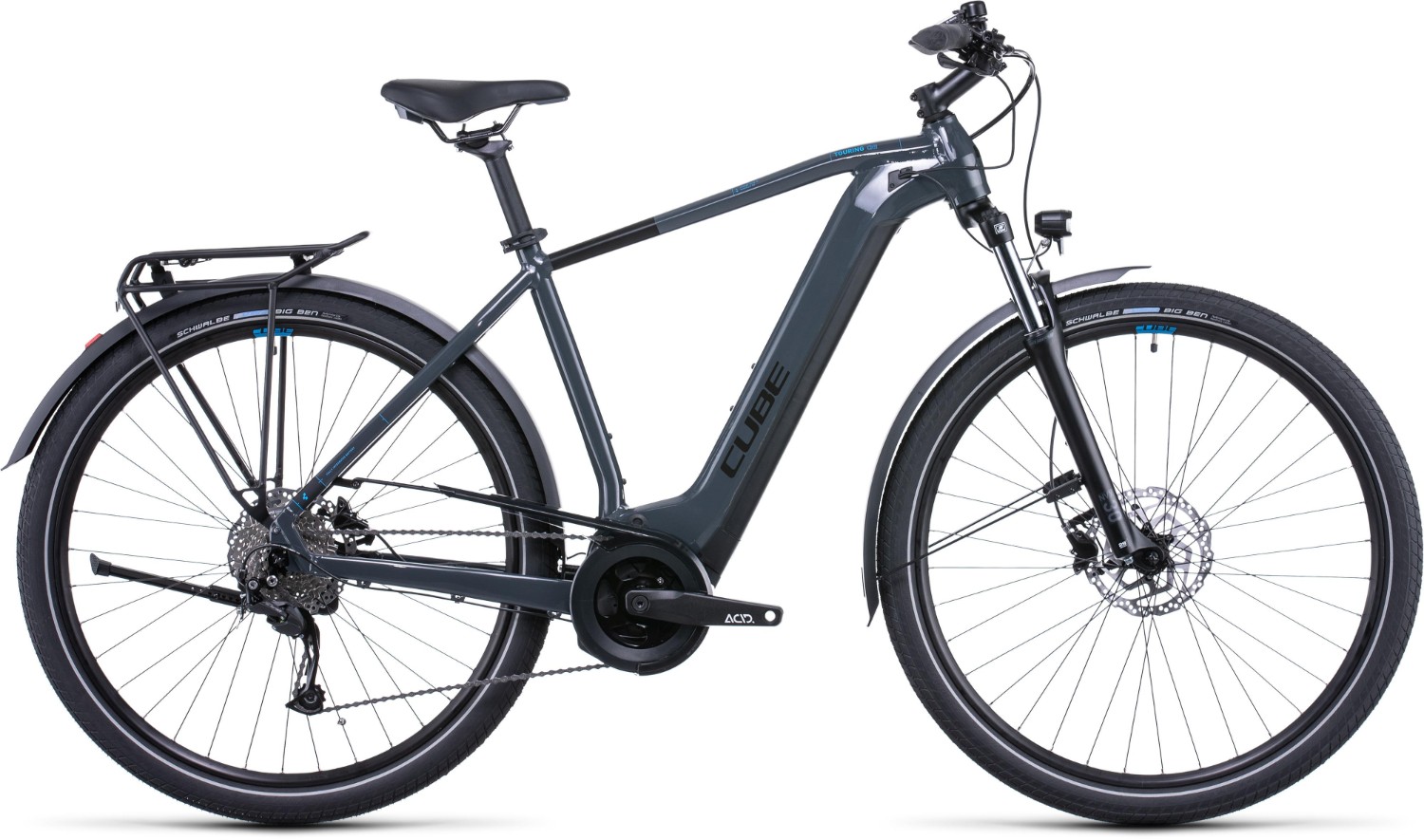

Cube Touring Hybrid One 500 2022 - Electric Hybrid Bike
Occasionally, without notice, manufacturers change product design and/or specifications.
Frame | Aluminium Superlite, Gravity Casting Technology, Efficient Comfort Geometry, Tapered Headtube, Full Integrated Battery, Semi-Integrated Carrier |
Fork | SR Suntour NVX30 Coil, 100mm |
Headset | M/Z: ACROS AZF-1039, 1 1/8" straight, Top Zero-Stack 1 1/8" (ZS 44mm), Bottom Zero-Stack 1 1/2" (ZS 56mm) // EE: ACROS AZX-1041, BlockLock 135°, 1 1/8" straight, Top Zero-Stack 1 1/8" (ZS 44mm), Bottom Zero-Stack 1 1/2" (ZS 56mm) |
Stem | CUBE Performance Stem Pro, 31.8mm |
Bars | CUBE Comfort Trail Bar, 700mm |
Front Brake | Shimano BR-MT200, Hydr. Disc Brake (180/180) |
Rear Brake | Shimano BR-MT200, Hydr. Disc Brake (180/180) |
Rear Mech | Shimano RD-M3100-SGS, 9-Speed |
Shifters | Shimano SL-M3100-R, Rapidfire-Plus |
Speed | 9 |
Rims | CUBE EX23, 36H, Disc, Tubeless Ready |
Front Hub | Shimano HB-TX505, QR, Centerlock |
Rear Hub | Shimano FH-TX505, QR, Centerlock |
Front Tyre | Schwalbe Big Ben, Active, 55-622 |
Rear Tyre | Schwalbe Big Ben, Active, 55-622 |
Seat Post | CUBE Performance Post, 30.9mm |
Saddle | Natural Fit Sequence Comfort |
Chainset | ACID E-Crank, 40T, 175mm (EE: 170mm) |
Chain | KMC X9 |
Cassette | Shimano CS-HG201, 11-36T |
Pedals | ACID PP Trekking |
Weight | 27kg |
Battery Size (WH) | Bosch PowerTube 500 |
Motor | Bosch Drive Unit Performance Generation 3 (65Nm) Cruise (250Watt) |
User Interface | Bosch Purion |
Electric Bike Bike Size Chart
Height |
e Bike Size |
e Road Bike Size |
e Mountain Bike Size* |
4’8” – 5’1” 143 – 155 cm |
XXS |
44 cm |
13” (33 cm) |
5’1” – 5’4” 155 – 163 cm |
XS |
48 cm |
15” (38 cm) |
5’4” – 5’7” 163 – 170 cm |
S |
51 cm |
16” (41 cm) |
5’7” – 5’10” 170 – 178 cm |
M |
54 cm |
18” (46cm) |
5’10” – 6’0” 178 – 183 cm |
L |
56 cm |
19” (48cm) |
6’0” – 6’3” 183 – 191 cm |
XL |
58 cm |
20” (51 cm) |
6’3” – 6’5” 191 – 196 cm |
XXL |
60 cm |
21” (53 cm) |
6’5” – 6’9” 196 – 205 cm |
XXXL |
62 cm |
22” (56 cm) |
* Mountain bikes are sized differently to road bikes. Typically, they are sized in inches as the first MTBs were produced in the USA. European brands like Lapierre and Haibike like to use centimeters for all their bikes. The measurements of their mountain bikes doesn’t match their road bikes but is like a simple conversion from the inches measurement. This is why we have included cm measurements in brackets for the e mountain bike column.
