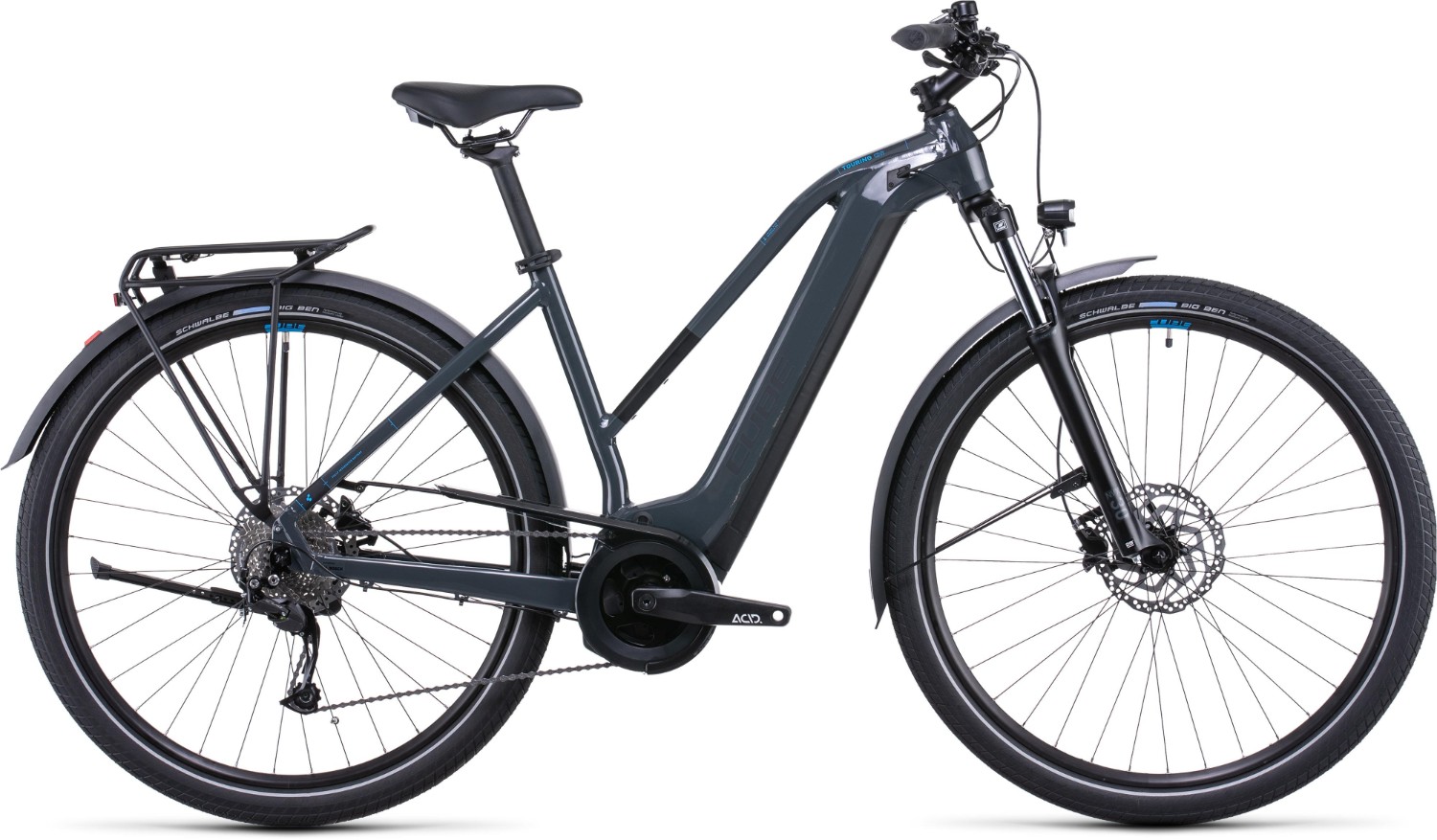

Cube Touring Hybrid One 500 Trapeze 2022 - Electric Hybrid Bike
Whatever you do, wherever you go, the Touring Hybrid will be there with you. Beautifully integrated into its sleek frame, the third generation Bosch drive system and super smooth, neutral handling mean you're all set to tackle life's challenges and adventures head on. Ride adventurously, travel often.
Occasionally, without notice, manufacturers change product design and/or specifications.
Frame | Aluminium Superlite, Gravity Casting Technology, Efficient Comfort Geometry, Tapered Headtube, Full Integrated Battery, Semi-Integrated Carrier |
Fork | SR Suntour NVX30 Coil, 100mm |
Headset | M/Z: ACROS AZF-1039, 1 1/8" straight, Top Zero-Stack 1 1/8" (ZS 44mm), Bottom Zero-Stack 1 1/2" (ZS 56mm) // EE: ACROS AZX-1041, BlockLock 135°, 1 1/8" straight, Top Zero-Stack 1 1/8" (ZS 44mm), Bottom Zero-Stack 1 1/2" (ZS 56mm) |
Stem | CUBE Performance Stem Pro, 31.8mm |
Bars | CUBE Comfort Trail Bar, 700mm |
Front Brake | Shimano BR-MT200, Hydr. Disc Brake (180/180) |
Rear Brake | Shimano BR-MT200, Hydr. Disc Brake (180/180) |
Rear Mech | Shimano RD-M3100-SGS, 9-Speed |
Shifters | Shimano SL-M3100-R, Rapidfire-Plus |
Speed | 9 |
Rims | CUBE EX23, 36H, Disc, Tubeless Ready |
Front Hub | Shimano HB-TX505, QR, Centerlock |
Rear Hub | Shimano FH-TX505, QR, Centerlock |
Front Tyre | Schwalbe Big Ben, Active, 55-622 |
Rear Tyre | Schwalbe Big Ben, Active, 55-622 |
Seat Post | CUBE Performance Post, 30.9mm |
Saddle | Natural Fit Sequence Comfort |
Chainset | ACID E-Crank, 40T, 175mm (EE: 170mm) |
Chain | KMC X9 |
Cassette | Shimano CS-HG201, 11-36T |
Pedals | ACID PP Trekking |
Weight | 27kg |
Battery Size (WH) | Bosch PowerTube 500 |
Motor | Bosch Drive Unit Performance Generation 3 (65Nm) Cruise (250Watt) |
User Interface | Bosch Purion |
Cube Touring Hybrid 2023 Size Chart
Frame Size |
Height (cm) |
Height (feet) |
XS |
165 - 170 |
5’5” – 5’7” |
S |
170 - 175 |
5’7” – 5’9” |
M |
175 – 180 |
5’9” – 5’11” |
L |
180 - 190 |
5’11” – 6’3” |
XL |
190 - 195 |
6’3” – 6’5” |
What size frame do I need if I am between sizes? - read here
