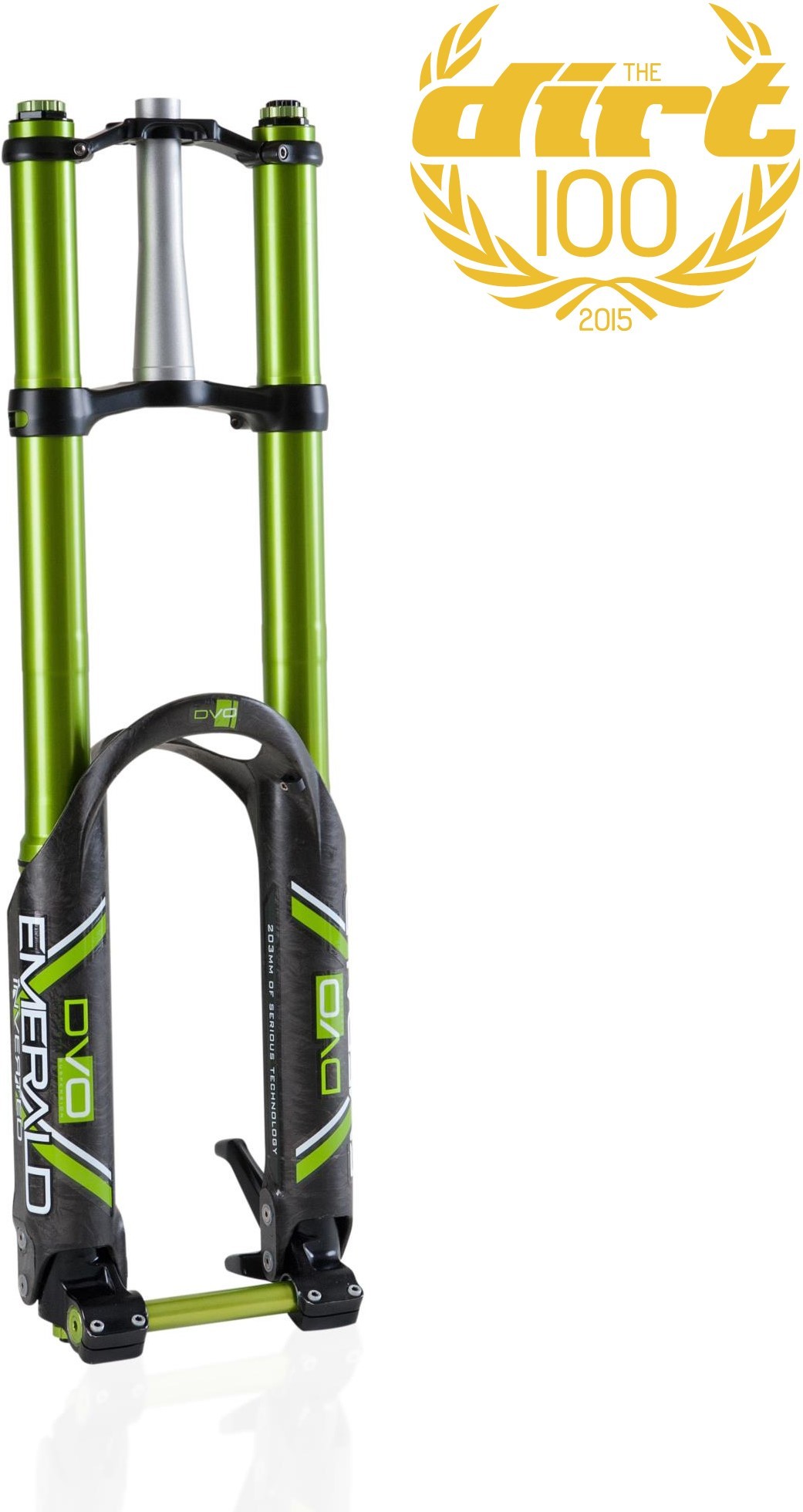

Name: DVO Suspension Emerald 26" MTB Forks 2015
Brand: DVO

The DVO Emerald Fork is the result of decades worth of experience in suspension building & tuning. There's a lot to be said about starting with a clean sheet of paper & a wish list of features when executed correctly, produce the ultimate suspension fork. Our goal wasn't to reinvent the wheel, just take a different approach to making it & applying existing knowledge to the unique requirements of high performance mountain bike suspension. For example, our damping requirements are inspired by motocross & dynamic valving but applied to mountain bikes where chassis are lighter & humans are the motor. Another example is the Carbon Torsion Arch....Pure Stroke of Genius never been done before kinda stuff.

SPECS:

Upper Legs: 43-41mm taper/7000 series Aluminium/hard anodised
Stanchions: 36mm/7000 series Aluminium/hard anodised Molybdenum disulfide coated
Drop Outs: Forged magnesium/extra large contact area between drop-outs & 20mm axle eliminates slippage
Bottom Loader Compression System:
Easy to remove compression assembly
Quick access to shim stack for unlimited tunability
High and low speed compression adjust
CTA: Patent pending Carbon torsion arch/Hex core carbon features proprietary lay-up and increases torsional stiffness at the wheel by 50%
Steerer: Tapered Aluminium
Direct Mount Stem: Fits all after market direct mount stem applications
Twin Tube Open Bath Cartridge
High-low speed compression damping through advanced dynamic Emerald valving
Main Air Spring Adjust: Linear optimised air chamber
Adjustable Negative Springs: Negative coil springs with adjustable preload allows fine tuning for different main spring air pressures
Air Spring: 2900-3000 grammes
Travel: 203mm (both wheel sizes)
Wheel Options: 26

Occasionally, without notice, manufacturers change product design and/or specifications.
