Dawes ARC II Folding - Nearly New - 20" 2022 - Electric Folding Bike

Name: Dawes ARC II Folding - Nearly New - 20" 2022 - Electric Folding Bike
Brand: Dawes

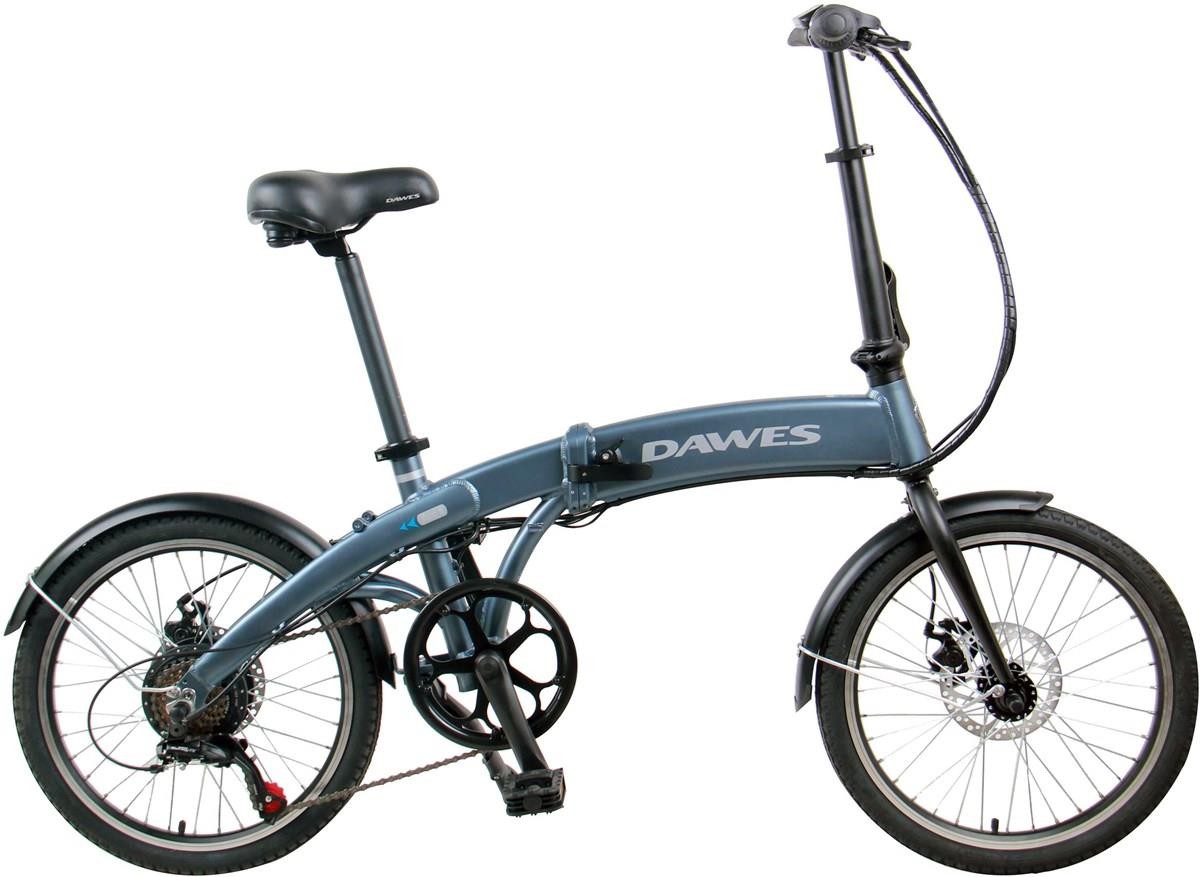

Dawes ARC II Folding - Nearly New - 20" 2022 - Electric Folding Bike product image

This ARC II Folding - Nearly New - 20" electric bike is in excellent condition. Having never been ridden, it is showing no signs of mechanical wear. However, it has some cosmetic imperfections on the cross bar.

To ensure this bike meets our high standards for quality, it has undergone a thorough inspection by our professional mechanics. As with all our bikes, it comes with a 12-month Tredz warranty, plus any additional manufacturer warranty which may apply.

You may have guessed from the name, but our new ARC II is an improved version of our previously very popular ARC folding electric bike. Not only does an electric bike offer the convenience of allowing you to get further, quicker…but this model also neatly folds away to be stored at home, at the office or on public transport. The frame has received the greatest improvement with its more sleek looking design, and the battery is discretely hidden away inside the tubing. Not only does it power the 250W rear motor, but it also has a port for charging mobile devices on the move too! On a full charge, you’ll have no issues riding approximately 30-35km which should be more than enough for most commuters and leisure cyclists alike. And, as with all our e-bikes, you can charge the battery on or off the bike.

We find the 20″ wheel size offers the perfect blend of comfort, stability and speed whilst also being small enough to fold down to an easy to manage size.

All of this, coupled with a fully adjustable, telescopic handlebar stem, 550mm seat post, powerful mechanical disc brakes and a Shimano 6 speed drivetrain we think any Arc to follow this is going to have a lot to live up to!

Occasionally, without notice, manufacturers change product design and/or specifications.

Frame	Dawes 6061 Unisex Folding Frame with integrated 6.6Ah battery
Fork	Rigid fork with disc mount
Headset	1.1,8” Threaded, Semi Integrated
Stem	Alloy Quick Release Telescopic Stem
Bars	Dawes Flat bar, 3 degree backsweep, 600mm wide
Front Brake	Mechanical Disc Brakes, 160mm Rotor
Rear Brake	Mechanical Disc Brakes, 160mm Rotor
Brake Lever	Alloy lever
Rear Mech	Shimano Altus RD-TZ500 6spd
Shifters	Shimano Revoshift SL-RS35 6 speed
Speed	6
Rims	Double Wall Alloy, 20″
Front Hub	36H, Alloy Disc Hub
Rear Hub	36H, Alloy Disc Hub
Spokes	13G
Front Tyre	20 x 1.75″ City Tyres
Rear Tyre	20 x 1.75″ City Tyres
Seat Post	34mm x 550mm
Saddle	Dawes Comfort Saddle
Chainset	Prowheel 170mm cranks, 52T chainring
Bottom Bracket	68 x 122.5mm unit
Chain	KMC
Cassette	Shimano 14-28T
Pedals	9/16” axle, Folding Pedals
Battery Size (WH)	250
Motor	68 x 122.5mm Unit
User Interface	Handlebar mounted LED Display

Typical Bike Size Chart

Height	Bike Size	Road Bike Size	Mountain Bike Size *
4’8” – 5’1” 143 – 155 cm	XXS	44 cm	13” (33 cm)
5’1” – 5’4” 155 – 163 cm	XS	48 cm	15” (38 cm)
5’4” – 5’7” 163 – 170 cm	S	51 cm	16” (41 cm)
5’7” – 5’10” 170 – 178 cm	M	54 cm	18” (46cm)
5’10” – 6’0” 178 – 183 cm	L	56 cm	19” (48cm)
6’0” – 6’3” 183 – 191 cm	XL	58 cm	20” (51 cm)
6’3” – 6’5” 191 – 196 cm	XXL	60 cm	21” (53 cm)
6’5” – 6’9” 196 – 205 cm	XXXL	62 cm	22” (56 cm)

* Mountain bikes are sized differently to road bikes. Typically, they are sized in inches as the first MTBs were produced in the USA. European brands like Lapierre and Haibike like to use centimetres for all their bikes. The measurements of their mountain bikes doesn’t match their road bikes but are like a simple conversion from the inches measurement. This is why we have included cm measurements in brackets for the Mountain bike column.

Read our bike size guide for more information on sizing.
