Dawes Discover-E 2023 - Electric Hybrid Bike

Name: Dawes Discover-E 2023 - Electric Hybrid Bike
Brand: Dawes

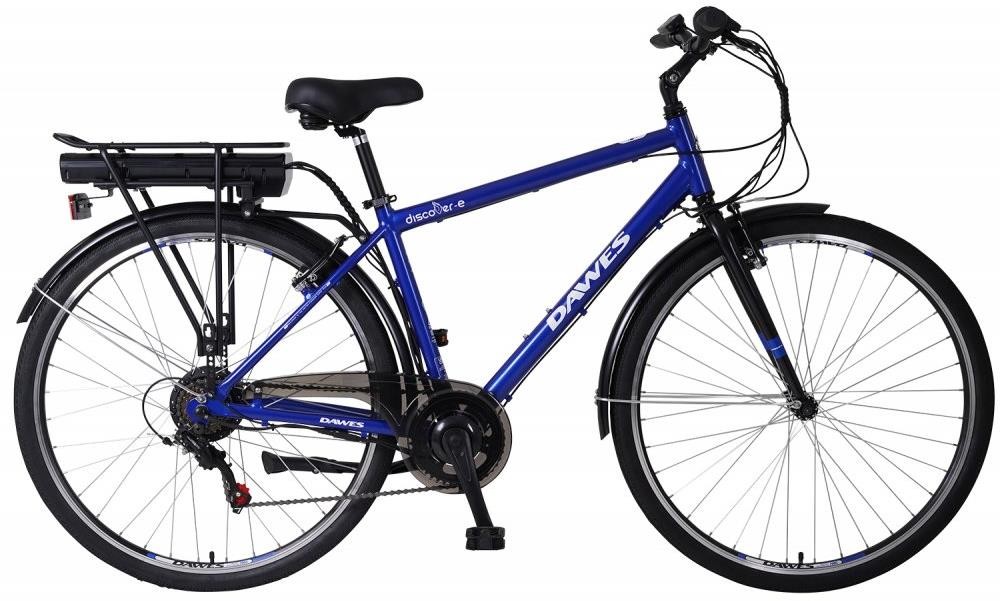

Dawes Discover-E 2023 - Electric Hybrid Bike product image

Wanting to discover e-bikes for the first time, or use a new ebike for discovery...our all new Dawes Discover-E fits the bill perfectly. With it's utilitarian appearance it comes supplied with everything you need for the daily commute or weekend ramble. Front and rear mudguards take care of keeping you clean whilst the rear rack takes care of luggage upto 20kg. Also giving you a helping hand is the smooth yet powerful 250W Bafang rear hub motor, controlled via pedal sensor you can simply set the level of assistance you want from 3 varying levels and as you pedal the motor will activate, it couldn't be simpler.

When it comes to charging, the lockable 36V 10Ah lithium-ion battery can easily be removed from the rear carrier using the key supplied, and carried indoors for charging at your convenience. Alternatively, leave the battery in place on the bike and simply plug it into any mains 3-pin socket if you have one nearby. The LED on the charger will turn green when fully charged and you'll be set for another 40-45km.

Whilst the electric motor is there to help, we've also fitted reliable 6spd Shimano gears to give you enough variety of gear ratios for most UK roads and quality Promax v-brakes to help bring you to a stop.

Occasionally, without notice, manufacturers change product design and/or specifications.

Frame	Alloy, Cross bar hybrid frame
Fork	Rigid steel fork
Headset	1" threaded
Stem	Alloy adjustable stem, 90mm extension
Bars	600mm Lo-Rise comfort handlebars
Front Brake	Promax alloy V-Brakes
Rear Brake	Promax alloy V-Brakes
Brake Lever	Alloy lever with motor cut-off switch
Rear Mech	Shimano RD-TZ500, 6 speed
Shifters	Shimano SL-RS35 Thumbshifter, 6 speed
Speed	6
Rims	700c double wall alloy rims
Front Hub	36 hole, Nutted
Rear Hub	Bafang 250W motor
Front Tyre	700 x 38C trekking tyres
Rear Tyre	700 x 38C trekking tyres
Seat Post	Micro Adjust
Saddle	Ergonomic comfort saddle, Black
Chainset	170mm crank arms with 42T chainring
Chain	KMC Z7
Cassette	Shimano MF-TZ500 freewheel, 6 speed
Pedals	Plastic hybrid, 9/16" axle
Weight	22kg
Battery Size (WH)	360Wh (36V 10Ah)
Motor	Bafang 250W motor
User Interface	Handlebar mounted LED Display

Electric Bike Bike Size Chart

Height	e Bike Size	e Road Bike Size	e Mountain Bike Size*
4’8” – 5’1” 143 – 155 cm	XXS	44 cm	13” (33 cm)
5’1” – 5’4” 155 – 163 cm	XS	48 cm	15” (38 cm)
5’4” – 5’7” 163 – 170 cm	S	51 cm	16” (41 cm)
5’7” – 5’10” 170 – 178 cm	M	54 cm	18” (46cm)
5’10” – 6’0” 178 – 183 cm	L	56 cm	19” (48cm)
6’0” – 6’3” 183 – 191 cm	XL	58 cm	20” (51 cm)
6’3” – 6’5” 191 – 196 cm	XXL	60 cm	21” (53 cm)
6’5” – 6’9” 196 – 205 cm	XXXL	62 cm	22” (56 cm)

* Mountain bikes are sized differently to road bikes. Typically, they are sized in inches as the first MTBs were produced in the USA. European brands like Lapierre and Haibike like to use centimeters for all their bikes. The measurements of their mountain bikes doesn’t match their road bikes but is like a simple conversion from the inches measurement. This is why we have included cm measurements in brackets for the e mountain bike column.
