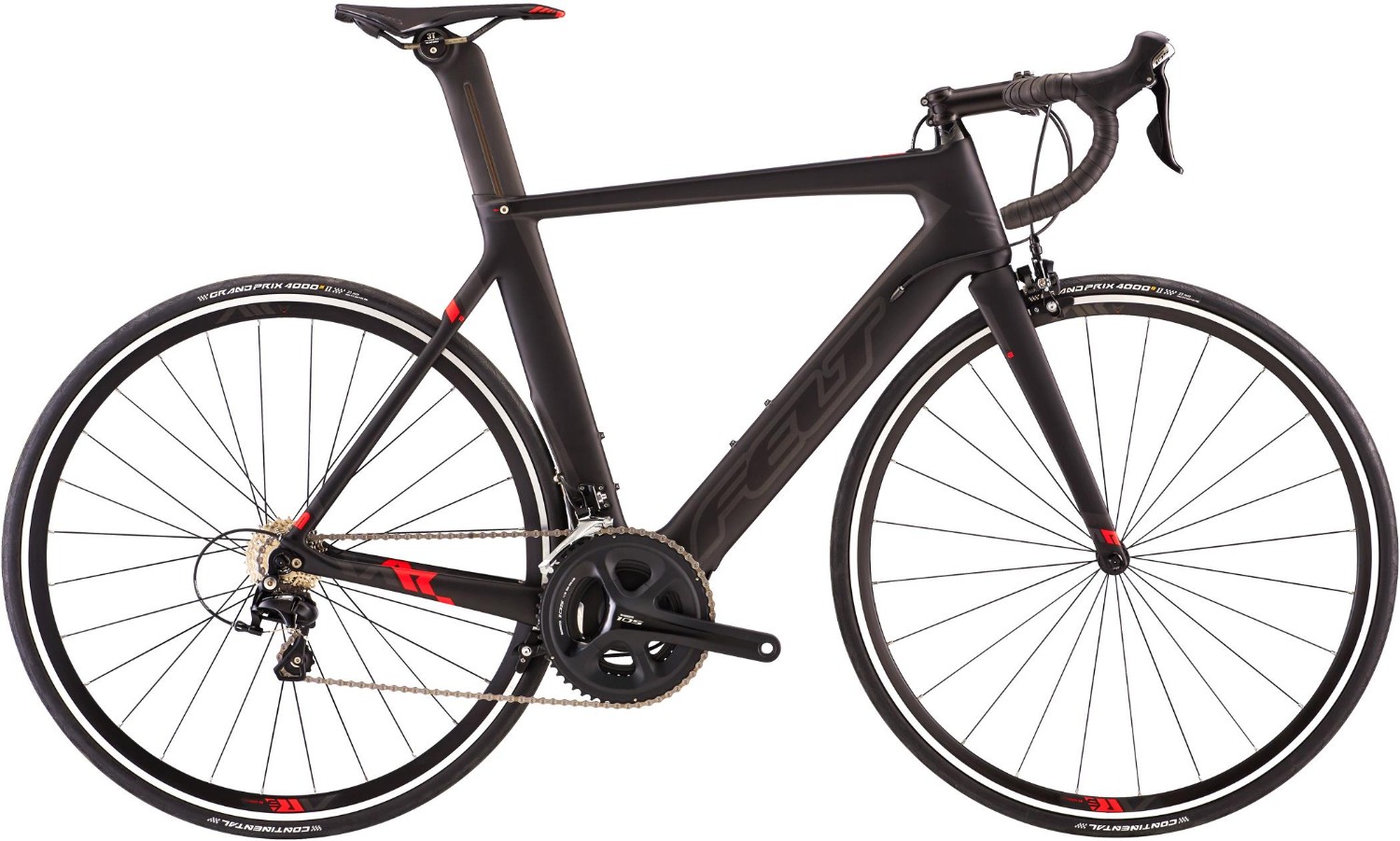

Felt AR5 2017 - Road Bike

Out of Stock Sorry, you missed it. But you still have options...

New Product There's a newer version of this product now available...

Felt AR5 2018 - Road Bike

From £0.00
See more details

Recommended alternatives We've found some more items that may interest you...

Top Rated

Best Deals

New in Road bikes

Archive Product Details Comparing? Here's the info from the out of stock item

Product Description

Aero performance with no compromises. The Felt AR5 is an aero road race bike that follows in a long line of performance cycles so that you can ride faster and more efficiently.

 Stiff and lightweight the UHC performance carbon fibre frame and full carbon monocoque fork are built using Felts InsideOut construction techniques which allows the carbon fibres to be precisely laid out for a lightweight yet supremely strong frame. The internal cable routing is suitable for both mechanical and electronic shifting.

Key to the ARs performance are the tube shapes of the frame which have been extensively tested in the wind tunnel. This reduces drag by up to 31% when compared to a round tubed frame. The UHC carbon seatpost combines aero shaping with Comfort Module vibration damping for a smoother ride.

The full Shimano 105 11 speed drivetrain features a sub-compact chainset so you can really put the power down. Aero wheels and finishing kit all help you to slice through the air more efficiently.

Gain speed and save energy on the Felt AR5 aero road bike.

Key Features:

  • UHC Performance carbon fibre frame is lightweight and reduces drag
  • Full carbon monocoque fork for a more refined ride
  • Shimano 105 drivetrain with sub-compact chainset
  • Aero bars, wheels and seatpost all reduce drag
  • Sizes: 48cm, 51cm, 54cm, 56cm, 58cm, 61cm
  • Colour: Satin Carbon/Silver/Red
  • The Felt AR5 is available with 0% APR finance


Frame: Felt Aero Road UHC Performance carbon fiber, MMC w/ InsideOut construction, BB30, carbon fiber dropouts, replaceable rear derailleur hanger, internal cable routing (mechanical & electronic compatible)internal cable routing (electronic compatible)
Fork: Felt Aero Road UHC Performance carbon fiber monocoque construction, AeroTaper 1.125" - 1.25" carbon fiber steer tube w/ integrated crown race, crown, blades & dropouts
Headset: "FSA No. 382/DJ integrated, 1.125"" - 1.25"" sealed cartridge bearing w/ Felt VariableHeight Cone Spacers (20mm PC, 4.5mm aluminum), 2 x 10mm + 1 x 5mm PC headset spacers, Felt compression device, carbon fiber top cap & aluminum bolt"w/ Felt VariableHeight Cone Spacers (20mm PC, 4.5mm aluminum), 1x 10mm + 2 x 5mm PC headset spacers, Felt compression device, top cap & aluminum bolt
Stem: Felt SuperLite, +/-7° rise, Ø31.8mm
Bars: Felt Aero Road VariableShape AERO, 80mm reach, 130mm drop, Ø31.8mm
Front Brake: Shimano 105 dual pivot caliper
Rear Brake: Shimano 105 direct mount
Brake Lever: Shimano 105
Front Mech: Shimano 105 braze-on
Rear Mech: Shimano 105 short cage
Shifters: Shimano 105
Speed: 22
Rims: Felt Aero R3
Front Hub: Felt Aero R2, sealed cartridge bearing, 24H
Rear Hub: Felt Aero R2, sealed cartridge bearing, 28H, 11-speed
Spokes: 2.0 / 1.5 / 2.0mm butted aero stainless steel w/ aluminum nipples
Front Tyre: Continental Grand Prix 4000 S II, 700c x 23c
Rear Tyre: Continental Grand Prix 4000 S II, 700c x 23c
Seat Post: Felt Vibration Reducing Aero Road flip position UHC carbon fiber w/ 3T DiffLock™ Comfort Module internals, 350mm length
Chainset: Shimano 105 52-36T
Bottom Bracket: FSA BB30 w/ 24mm spindle reducers
Chain: Shimano 11-speed
Cassette: Shimano 11-speed, 12-25T

Occasionally without notice, manufacturers sometimes change product specifications.
