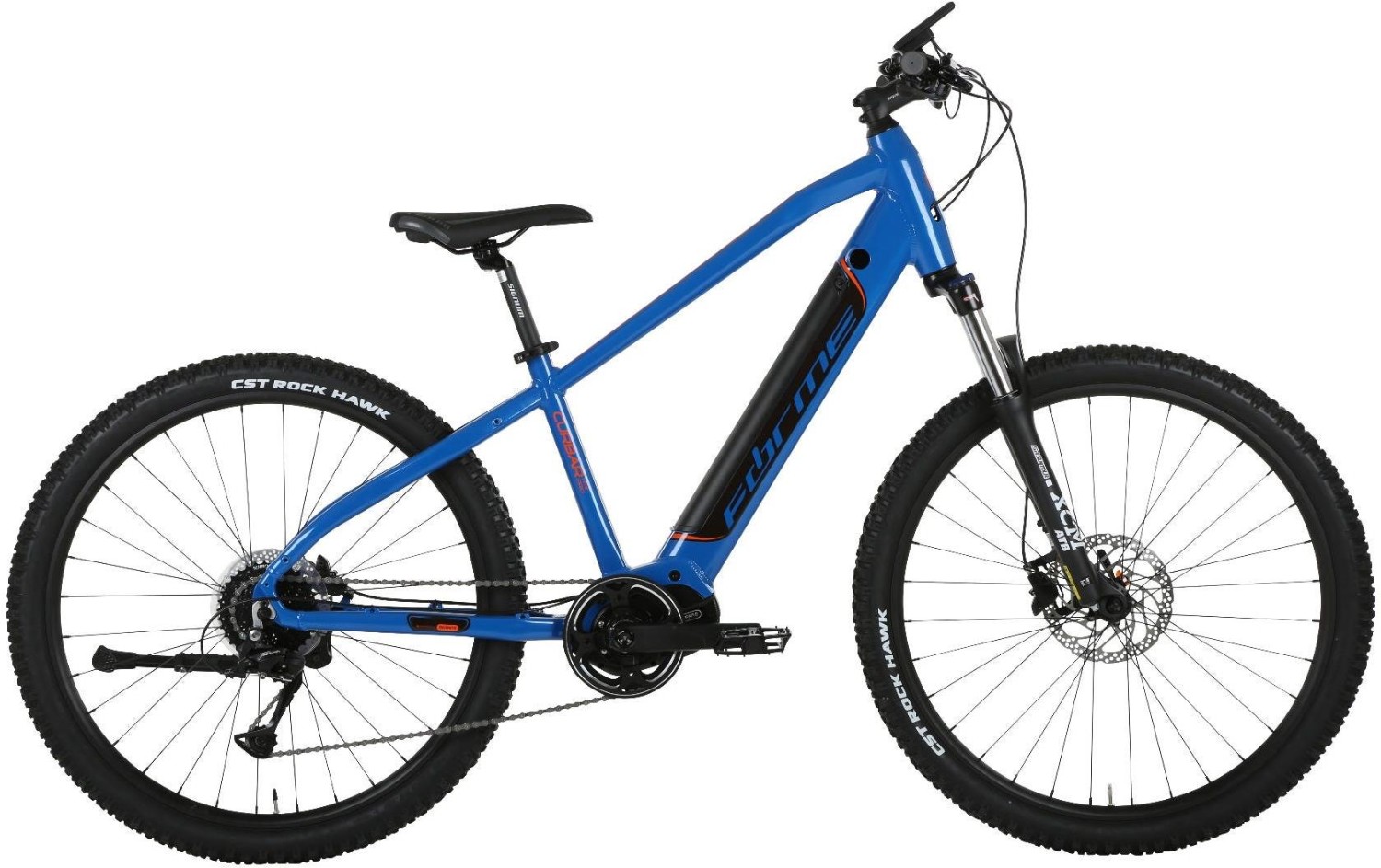

Forme Curbar HT-E Pro 2022 - Electric Mountain Bike
The Forme Curbar Pro E hardtail e-MTB is the perfect choice if your riding is primarily on gravel tracks, forest paths and easier trails. Due to the lack of rear suspension, they are generally lighter and transfer the power directly from your legs to the drive-system, making them faster than full suspension bikes on the flat.
Key features:
- 6061 Alloy In tube Battery frame
- SR Suntour XCM forks with 100mm of bump soaking travel
- Shimano 1x9 gears give smooth and consistent shifting
- Shimano brakes offer all-weather stopping power
- Sizes: S (41cm) , M (46cm) , L (50cm)
- Colours: Blue/Blue
- The Forme Curbar HT-E Pro is available with 0% APR finance
Drive Information:
- Motor: Bafang M420 Mid Motor
- Battery: Bafang Integrated 500WH
- User Interface: Bafang LCD
Forme’s Curbar range has always been your entry into mountain biking and now with the assistance of Bafang motors, the Curbar Pro E will encourage you to branch into new types of cycling that previously may have felt intimidating.
All Tredz bikes are:
- Fully built & ready to ride
- Fully checked & tested by Cytech qualified mechanics
- Available with 0% APR finance on any basket over £99
- UK price match guarantee
- 365 day no hassle returns
- Free delivery in the UK Mainland on a date that suits you
In the box with every Tredz bike is:
- Free Tredz 9 key trail tool
- Free Tredz pedal spanner
- Free basic pedals
- Tredz drawstring kit bag
- 16 point quality control check sheet
- Basic bike setup instructions
- Free Cycle Plan insurance voucher
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | 6061 Alloy In tube Battery |
| Fork | SR Suntour XCM HLO 100mm |
| Headset | FSA Integrated Sealed Bearing |
| Stem | Signum 31.8mm x 75mm |
| Bars | Signum Alloy 31.8mm x 700mm |
| Front Brake | Shimano MT200 180mm Rotors |
| Rear Brake | Shimano MT200 180mm Rotors |
| Rear Mech | Acera M3000 9 Speed |
| Shifters | Shimano SL-M2010 9 Speed |
| Speed | 9 |
| Rims | Alloy Disc 32H Shimano hubs |
| Front Tyre | CST Rock Hawk 27.5 x 2.25 |
| Rear Tyre | CST Rock Hawk 27.5 x 2.25 |
| Seat Post | Signum Alloy 30.9mm |
| Saddle | Selle Royal Vivo |
| Chainset | Bafang Alloy 170mm 38T |
| Bottom Bracket | FSA ISIS |
| Chain | 9 Speed |
| Cassette | Shimano HG200 11-34T 9 Speed |
| Pedals | Silver Alloy/ Nylon Platform |
| Weight | 23.5kg |
| Battery Size (WH) | Bafang Integrated 500WH |
| Motor | Bafang M420 Mid Motor |
| User Interface | Bafang LCD |
Forme Curbar Size Chart
|
Size |
Height (cm) |
Height (inches) |
|
Small |
158 – 168 |
5’2” – 5’6” |
|
Medium |
168 – 178 |
5’6” – 5’10” |
|
Large |
178 – 185 |
5’10” – 6’1” |
What size frame do I need if I am between sizes? - read here
