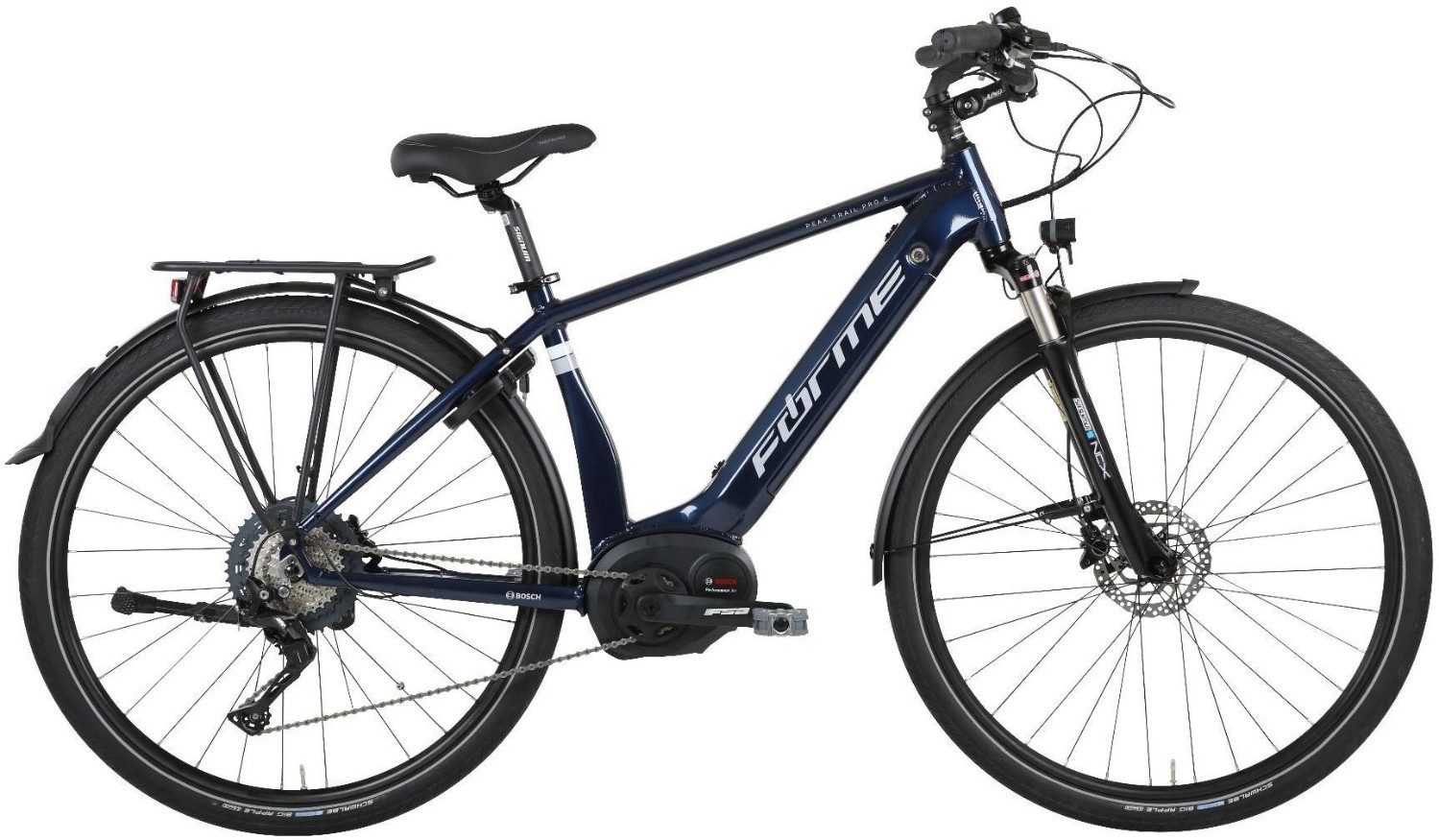

Forme Peak Trail Pro E 2019 - Electric Hybrid Bike
British designed and tested on the popular High Peak Trail in Derbyshire, our most advanced Peak Trail model, the Pro-E, benefits from a new, lightweight aluminium frame to bring you a smooth and nimble ride. The well-integrated Bosch Performance Line motor and hidden in-tube battery make the ride truly exceptional capable of supporting you over 100 miles on a single full charge.
With a maximum torque of 63nm, equivalent to 275% of your pedalling power you can tackle hills and head wind with ease. There are also 3 sensors specifically built into the sophisticated Bosch system which take over 1000 readings per second to ensure your e-bike is working in tune with your requirements.
The relaxed frame geometry partners a 63mm Suntour NCX lock out suspension fork, fully adjustable, strain reducing handlebars and one of the comfiest saddles we could possibly provide, promoting good posture and dispersing road vibrations.
The range topping Pro-E model comes with full-length mudguards and robust pannier racks to ensure you are prepared for all situations. Also loaded with features to equip you well in all conditions; built in front and rear lights for best visibility and safety, rear wheel lock for security and a kickstand.
Key Features:
- Up to 135 mile range
- Recharge time – 3.5 hours
- 15mph Maximum speed
- 500wh Battery capacity
- In tube battery
- Mid mounted motor
- Lock-out forks
- Rack & mudguards
- Built in lights
- Built in lock
Occasionally, without notice, manufacturers change product design and/or specifications.
Frame | Alloy In Tube 6061 Alloy Integrated Battery |
Fork | SR Suntour NCX 63mm Travel |
Stem | Promax Alloy 150mm Adjustable |
Bars | Signum Alloy 31.8mm |
Front Brake | Shimano 315 Hydraulic Disc |
Rear Brake | Shimano 315 Hydraulic Disc |
Rear Mech | Shimano XT 11 Speed |
Shifters | Shimano SLX M700 11 Speed Rapid Fire |
Speed | 11 |
Rims | Alloy Disc 32H |
Front Hub | Shimano Centre Lock Front Hub |
Rear Hub | Shimano Centre Lock Rear Hub |
Front Tyre | Schwalbe Big Apple 28" x 2.00 |
Rear Tyre | Schwalbe Big Apple 28" x 2.00 |
Seat Post | Signum Alloy 27.2mm |
Saddle | Signum Comfort Ergo Comfort |
Chainset | FSA Bosch 18T 170mm |
Bottom Bracket | Bosch/FSA ISIS |
Chain | KMC Z11 11 Speed |
Cassette | Shimano SLX 11 Speed 11-46T |
Pedals | Forme Alloy |
Battery Size (WH) | 500 |
Motor | Bosch Performance Line 36V 250W 63Nm Torque |
User Interface | Bosch Kiox |
Electric Bike Bike Size Chart
Height |
e Bike Size |
e Road Bike Size |
e Mountain Bike Size* |
4’8” – 5’1” 143 – 155 cm |
XXS |
44 cm |
13” (33 cm) |
5’1” – 5’4” 155 – 163 cm |
XS |
48 cm |
15” (38 cm) |
5’4” – 5’7” 163 – 170 cm |
S |
51 cm |
16” (41 cm) |
5’7” – 5’10” 170 – 178 cm |
M |
54 cm |
18” (46cm) |
5’10” – 6’0” 178 – 183 cm |
L |
56 cm |
19” (48cm) |
6’0” – 6’3” 183 – 191 cm |
XL |
58 cm |
20” (51 cm) |
6’3” – 6’5” 191 – 196 cm |
XXL |
60 cm |
21” (53 cm) |
6’5” – 6’9” 196 – 205 cm |
XXXL |
62 cm |
22” (56 cm) |
* Mountain bikes are sized differently to road bikes. Typically, they are sized in inches as the first MTBs were produced in the USA. European brands like Lapierre and Haibike like to use centimeters for all their bikes. The measurements of their mountain bikes doesn’t match their road bikes but is like a simple conversion from the inches measurement. This is why we have included cm measurements in brackets for the e mountain bike column.
See our bike size guide for more on bike sizing
