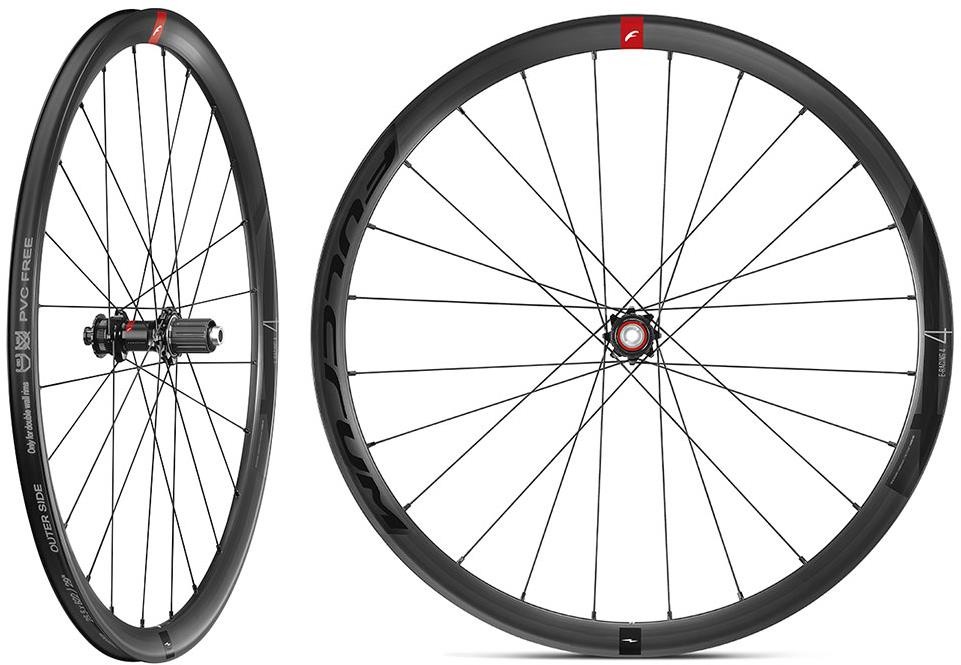

Fulcrum E-Racing 4 Disc Brake Wheelset

Fulcrum began by developing a specific rim profile, with an inner rim width of 22 mm (ideal for tyres between 30 and 45 mm), special self-locking long head nipples and project-specific spokes. As Fulcrum discovered when they developed the E-MTB wheels, the motor increases the load on the freewheel, which has to support greater torsional loads for longer periods too. This is where Fulcrum focused their attention. Seeing as the freewheel body is the contact point where the drive force is transferred from the cassette to the wheel body, it is subject to higher stresses due to the increased power and jerks caused by the activation of the motor. This led Fulcrum to use a tempered steel freewheel body, with specific internals, able to support a tensile strength greater than 30%. The results of lab analysis on the behaviour of the single pawls on cycles higher than a billion are clear: the life of cemented steel is estimated to be 2 times higher than Ergal models used for traditional road models.

KEY FEATURES

TYRE TYPE: 2-Way Fit Ready (for clincher and tubeless)

TYRE SIZE: 700c

DISCIPLINE: E-Road / E-Gravel

ASTM CATEGOR 2

WEIGHT: 1870 g

RIM MATERIAL: Aluminium

RIM MATERIAL DETAILS: Aluminium

PROFILE HEIGHT: Medium

RIM HEIGHT: Front and rear: 34 mm

RIM WIDTH: 27.1 mm

INNER RIM WIDTH (CHANNEL): 22 mm

TYRE WIDTH: From 30 mm to 45 mm

BRAKING SYSTEM: Disc brake

BRAKING SURFACE/BRAKES OPTIONS: AFS

 FRONT AXLE COMPATIBILITY: HH12-100

REAR AXLE COMPATIBILITY: HH12-142

FRONT WHEEL SPOKES: 24 (16 left - 8 right)

REAR WHEEL SPOKES: 24 (8 left - 16 right)

SPOKES: MATERIAL: Stainless steel, double butted

SPOKES: PROFILE: Rounded, straight pull

NIPPLES: Aluminium, long head

FRONT HUB: Aluminium, aluminium flange

REAR HUB: Aluminium, aluminium flange

BEARINGS: Sealed cartridge bearings

OTHERS DRP WEIGHT LIMIT: 135 kg (bike, rider, equipment and luggage)
