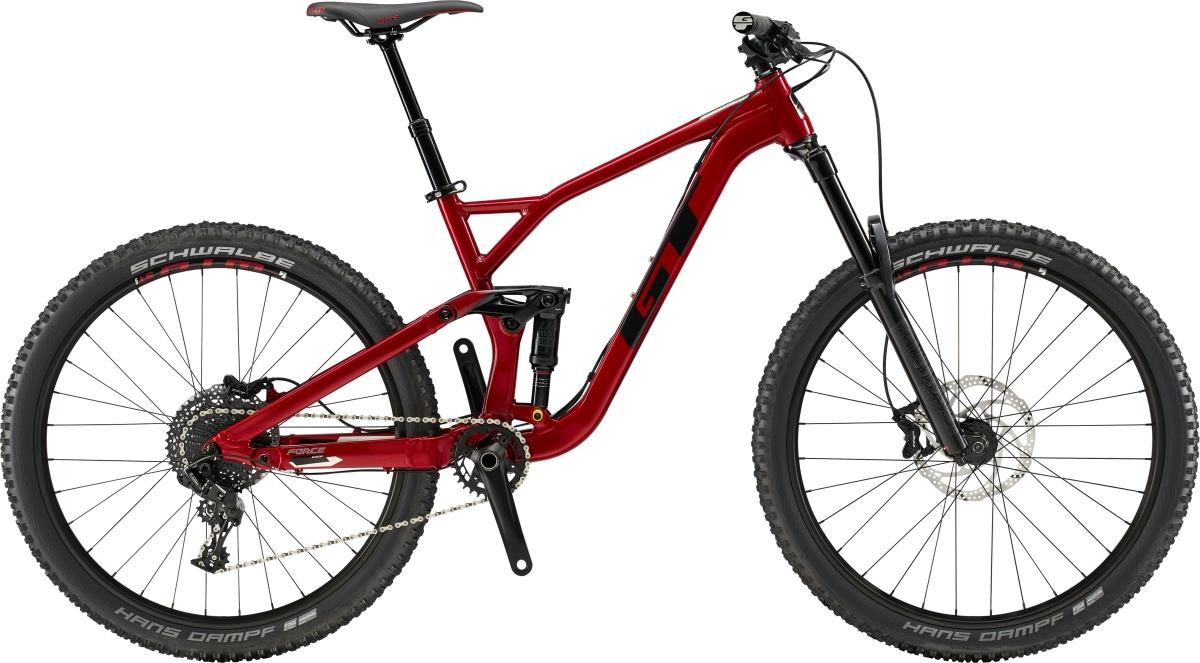

GT Force Comp 27.5" Mountain Bike 2019 - Enduro Full Suspension MTB
- LTS provides improved breaking performance, bump absorption and increased traction.
- Groove Tube routes the cables externally for easy upkeep, and out of the way of rock strikes and shuttle pads, while preserving a fast looking, sleek profile on your bike.
- Flip chip tunability allows the rider to adjust their raditude based on terrain and riding style.
- Industry standard Boost 148 rear spacing
- Coil or air shock compatible
- LockR Pivots
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | All New Force Alloy, 150mm rear wheel travel, alloy front and rear frame, Boost 148 rear spacing, ISCG05 mounts, LockR pivots, Metric Trunnion shock mounts, coil shock compatible |
| Fork | RockShox Revalation RC, 160mm, Charger Damper, DebonAir, 15x110, tapered steerer |
| Rear Shock | RockShox Deluxe R, 185x55mm, DebonAir, Metric Trunnion |
| Headset | Fsa Orbit C-40-ACB |
| Stem | All Terra, 1-1/8" Threadless, 3D Forged, 31.8mm, 7° Rise, 60mm |
| Bars | All Terra Alloy Riser, Double-butted 6061, 15mm rise, 780mm |
| Front Brake | Tektro Slate T4 hydro disc, 203mm |
| Rear Brake | Tektro Slate T4 hydro disc, 180mm |
| Brake Lever | Tektro Slate 4 hydro disc |
| Rear Mech | SRAM NX |
| Shifters | SRAM NX, 1x11 |
| Speed | 11 |
| Rims | WTB ST i29 TCS 2.0, 32h, Tubeless Ready |
| Front Hub | All Terra Alloy Disc 15x110 |
| Rear Hub | All Terra Alloy Disc 12x148 |
| Spokes | Stainless Steel, 14g |
| Front Tyre | Schwalbe Hans Dampf Performance 27.5 x 2.35" Addix Speed Grip compound, tubeless ready |
| Rear Tyre | Schwalbe Hans Dampf Performance 27.5 x 2.35" Addix Speed Grip compound, tubeless ready |
| Seat Post | All Terra dropper, internal routing, 31.6mm, 80mm (XS) 100mm (S) 130mm (M-XL) |
| Chainset | All Terra Charm, 30T |
| Bottom Bracket | Sealed BSA |
| Chain | KMC X11, 11-speed |
| Cassette | Sunrace, 11-42, 11-speed |
| Pedals | Basic Resin Flat |
Force 27.5 Sizing
|
Frame Size |
Recommended Height |
|
|
Size |
Feet and Inches |
Centimetres |
|
Small |
5’ 2 - 5’ 6” |
158 – 168cm |
|
Medium |
5’ 6 - 5’ 10” |
168 – 178cm |
|
Large |
5’ 10” - 6’ 2” |
178 – 188cm |
|
X Large |
6’ 2” - 6’ 5” |
188 – 196cm |
Read our bike size guide for more information on sizing.
Force 27.5 Geometry
|
Size |
XS (Low) |
XS (High) |
S (Low) |
S (High) |
M (Low) |
M (High) |
L (Low) |
L (High) |
XL (Low) |
XL (High) |
|
Seat Tube Length |
392 |
392 |
400 |
400 |
430 |
430 |
480 |
480 |
520 |
520 |
|
Horizontal Top Tube Length |
543 |
541.46 |
568 |
566.46 |
595 |
593.27 |
621 |
620.09 |
648 |
646.9 |
|
Stand over height |
733 |
733 |
740.4 |
740.4 |
75.3 |
750.3 |
760.2 |
760.2 |
795.1 |
795.1 |
|
Head Angle |
65 |
65.5 |
65 |
65.5 |
65 |
65.5 |
65 |
65.5 |
65 |
65.5 |
|
Seat Angle |
75.5 |
76 |
75.5 |
76 |
75.5 |
76 |
75.5 |
76 |
75.5 |
76 |
|
Chain Stay Length |
435 |
432.4 |
435 |
432.4 |
435 |
434.4 |
435 |
434.4 |
435 |
434.4 |
|
Head Tube Length |
102 |
102 |
102 |
102 |
110 |
110 |
118 |
118 |
126 |
126 |
|
Bottom Bracket Height |
339 |
345.3 |
339 |
345.3 |
339 |
345.3 |
339 |
345.3 |
339 |
345.3 |
|
Fork Offset (Rake) |
44 |
44 |
44 |
44 |
44 |
44 |
44 |
44 |
44 |
44 |
|
Wheel Base |
1139 |
1137.28 |
1164 |
1162.28 |
1192 |
1190.60 |
1221 |
1218.91 |
1249 |
1247.23 |
|
BB Drop |
20 |
13.7 |
20 |
13.7 |
20 |
13.7 |
20 |
13.7 |
20 |
13.7 |
|
FC |
705 |
705 |
730 |
730 |
758 |
758 |
787 |
787 |
815 |
815 |
|
Stack to HT |
591 |
587.41 |
591 |
587.41 |
599 |
594.68 |
606 |
601.97 |
613 |
609.25 |
|
Reach to HT |
390 |
395 |
415 |
420 |
440 |
445 |
465 |
470 |
490 |
495 |
Read our Mountain Bike Geometry Explained guide for more information on MTB geometry.
