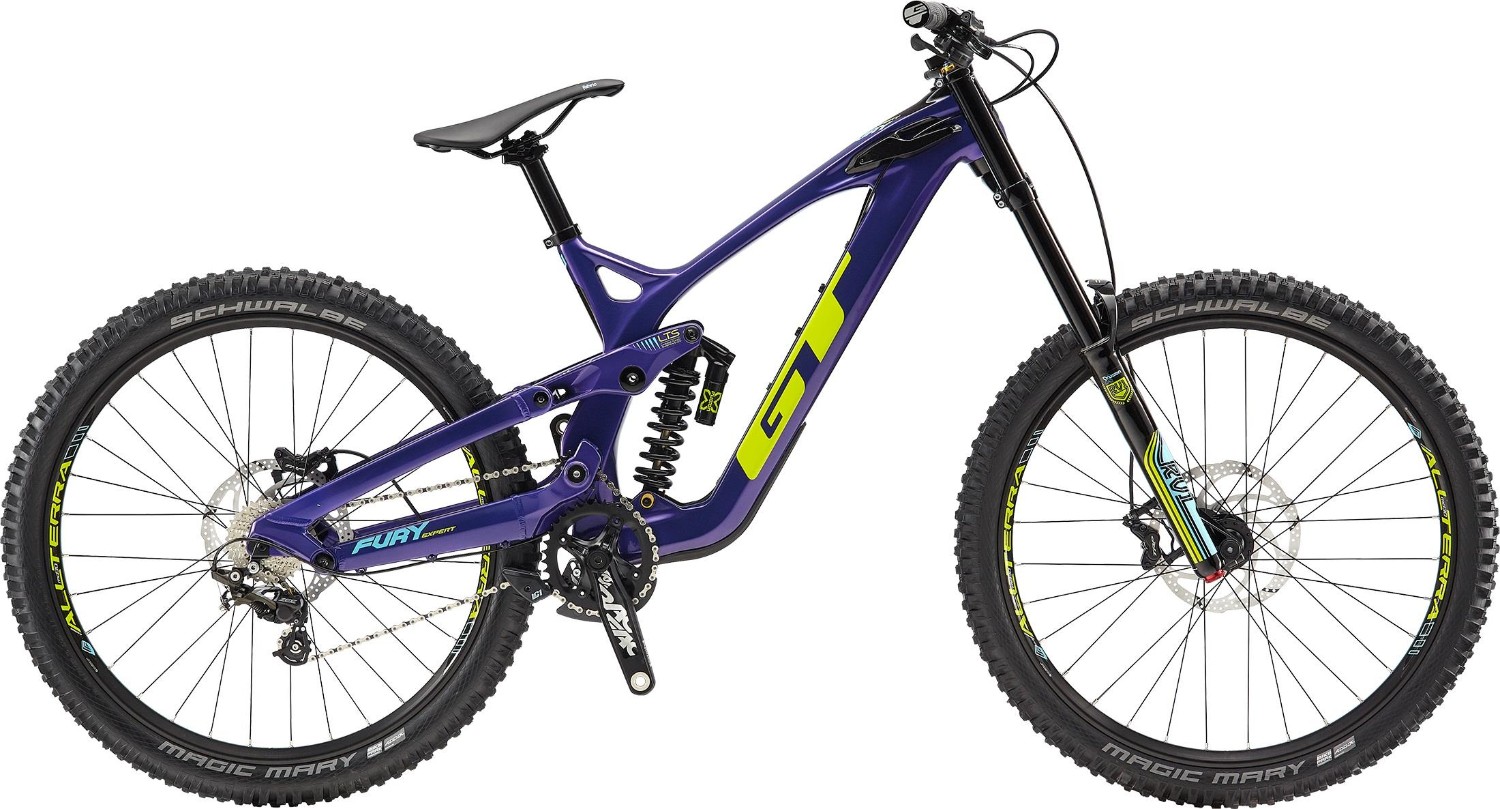

GT Fury Expert 27.5" Mountain Bike 2019 - Downhill Full Suspension MTB
Led by World Cup racing, and fed by world-class freeride athletes, the Fury is loaded with features that make this our most adjustable, tunable, and seriously fun downhill bike yet. With a carbon front triangle that uses F.O.C Ultra2 Technology, 200mm travel, our newly updated LTS suspension platform, plus modern geometry, the Fury is destined to become everybody’s new favorite ‘F’ word!
Key Features:
- X-Fusion RV1 fork with Adjustable Rebound and Compression
- X-Fusion Vector Coil shock
- Shimano Zee 10-speed drivetrain
- TRP Slate T4 brakes w/ 203mm rotors
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | LTS Downhill Design, FOC Carbon 27.5" Frame, 200mm Travel w/Forged Linkage, Pivots, 1.5" Head Tube, and 12 x 148mm Thru Axle Dropouts |
| Fork | X-Fusion LV1, 200mm, 20x110mm Thru Axle, Adjustable Rebound & Compression |
| Rear Shock | X-Fusion Vector Coil R, 200mm, 225x75 Metric Trunnion, w/ Adjustable Rebound |
| Headset | GT Fury External Headset, 1.5" to 1-1/8" Reducer, Alloy Cups w/ Sealed Bearings |
| Stem | Direct Mount, AL6061-T6 CNC, 35mm Length |
| Bars | SPANK Spoon 785, 20mm Rise, 31.8mm Clamp |
| Front Brake | TRP Slate T4 Hydro Disc, 203mm Rotors |
| Rear Brake | TRP Slate T4 Hydro Disc, 203mm Rotors |
| Brake Lever | TRP Slate T4 hydro disc |
| Rear Mech | Shimano Zee Shadow Plus, RD-M640, Direct Mount |
| Shifters | Shimano Zee, SL-M640, Rapid Fire, Right Side Only |
| Speed | 10 |
| Rims | Alex MD-30, Double Wall, 32H |
| Front Hub | All Terra Alloy Sealed Bearing 6-bolt Disc, 20x110mm Thru Axle |
| Rear Hub | All Terra Alloy Sealed Bearing 6-bolt Disc, 20x110mm Thru Axle |
| Spokes | Stainless, 14g |
| Front Tyre | Schwalbe Magic Mary Bikepark 27.5" x 2.35" |
| Rear Tyre | Schwalbe Magic Mary Bikepark 27.5" x 2.35" |
| Seat Post | All Terra 2-bolt, 31.6mm |
| Saddle | Fabric Scoop Shallow Sport |
| Chainset | Race Face Chester, 165mm, 36T Ring |
| Bottom Bracket | Race Face, 83mm |
| Chain | KMC X10, 10-speed |
| Cassette | Sunrace, 11-28, 10-Speed |
| Pedals | Basic Resin Flat |
Fury Sizing
See the table below to find the right size GT Fury.
|
Frame Size |
Recommended Height |
|
|
Size |
Feet and inches |
Centimeters |
|
Small |
5’ 2” – 5’ 6” |
158 – 168cm |
|
Medium |
5’ 6” – 5’ 10” |
168 – 178cm |
|
Large |
5’ 10” – 6’ 2” |
178 – 188cm |
|
X Large |
6’ 2” – 6’ 5” |
188 – 196cm |
Read our bike size guide for more information on sizing.
Fury Geometry
|
Size |
S / H |
S/L |
M/H |
M/L |
L/H |
L/L |
|
Seat Tube Length |
420 |
420 |
420 |
420 |
440 |
440 |
|
Top Tube Horizontal |
557 |
557 |
595 |
595 |
620 |
620 |
|
Head Tube Angle |
62.5 |
62 |
62.5 |
62 |
62.5 |
62 |
|
Seat Tube Angle |
75 |
74.5 |
75 |
74.5 |
75 |
74.5 |
|
Standover |
700 |
700 |
720 |
720 |
740 |
740 |
|
Head Tube Length |
105 |
105 |
105 |
105 |
105 |
105 |
|
Wheelbase |
1219 |
1222.4 |
1257 |
1260.4 |
1282 |
1285.4 |
|
Front Center |
788 |
788 |
826 |
826 |
851 |
851 |
|
Chainstay Length |
431 |
434.5 |
431 |
434.5 |
431 |
434.5 |
|
Bottom Bracket Drop |
3.3 |
10 |
3.2 |
10 |
3.1 |
10 |
|
Bottom Bracket Height |
354.7 |
448 |
354.8 |
448 |
354.9 |
448 |
|
Fork Rake |
52 |
52 |
52 |
52 |
52 |
52 |
|
Stack |
612.2 |
615.7 |
612 |
615.7 |
611.9 |
615.7 |
|
Reach |
412.2 |
407 |
450 |
445 |
475 |
470 |
Read our Mountain Bike Geometry Explained guide for more information on MTB geometry.
