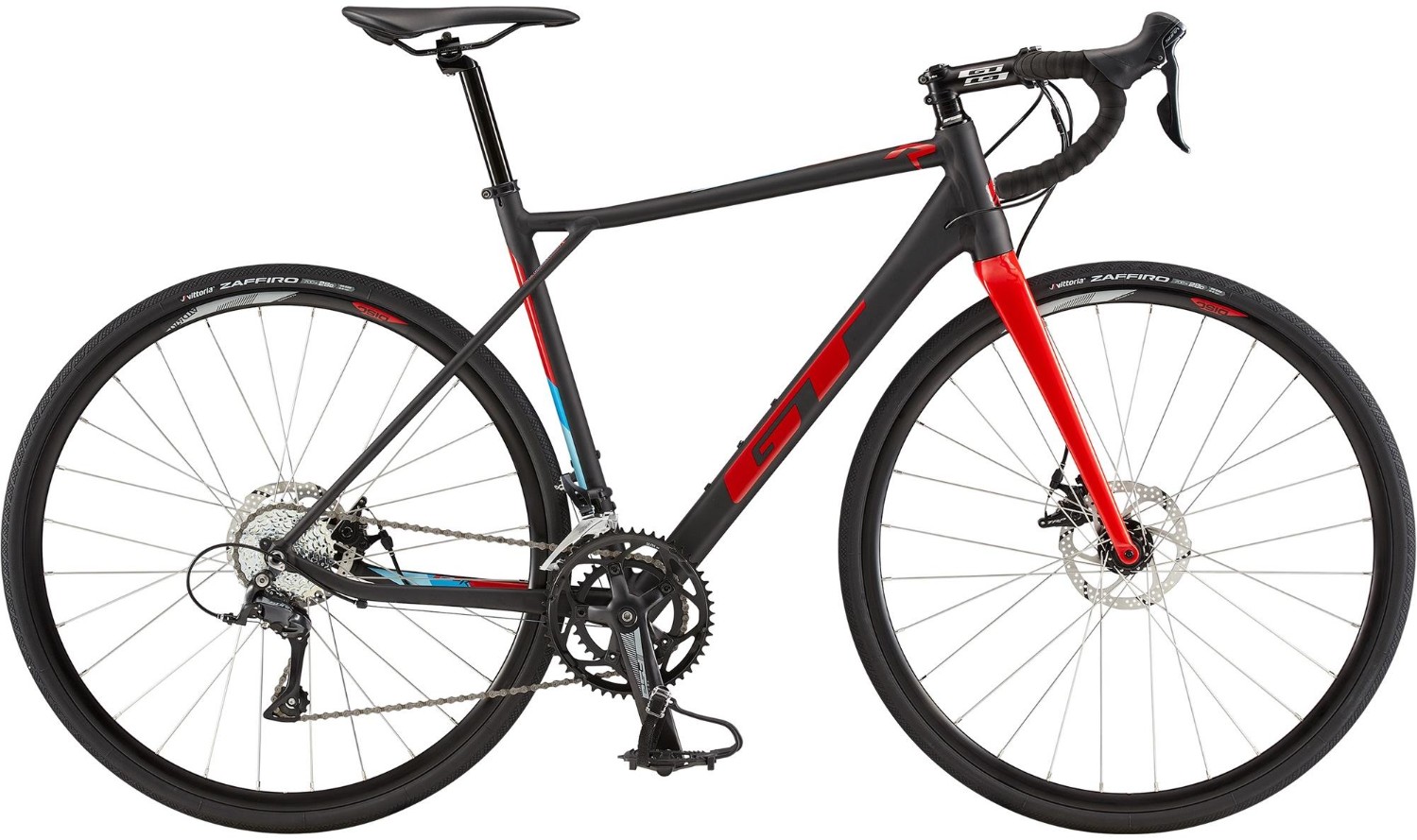

GT GTR Comp 2020 - Road Bike
Shake out the legs or bust your lungs on a burner, the all-new GTR is a road bike that's built with a 'go out and get it' rad-itude. A lightweight alloy frame, decoupled stays, a tapered head tube, and full carbon fork make this bike ready to go out on whatever ride you have planned for the day.
The GTR Sport features an all-new GTR Alloy frame, Tapered head tube, Threaded BB, flat mount disc, and a Shimano Sora drivetrain.
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | GTR Alloy frame, Tapered head tube, Threaded BB, Flat mount disc |
| Fork | GTR Full Carbon fork, 1 1/8 to 1 1/4" tapered, flat mount disc, 12x142 thru axle |
| Headset | Integrated, Sealed Bearing |
| Stem | GT Design, 3D forged 6061 Alloy, 4 bolt face plate, 31.8, 7° |
| Bars | GT DropTune RS, alloy, 0° flare |
| Front Brake | TRP Spyre-C cable actuated mechanical disc, 160mm rotors |
| Rear Brake | TRP Spyre-C cable actuated mechanical disc, 160mm rotors |
| Brake Lever | Shimano Sora |
| Front Mech | Shimano Sora, 31.8 clamp |
| Rear Mech | Shimano Sora GS |
| Shifters | Shimano Sora, 2x9 |
| Speed | 18 |
| Rims | Alex ATD470, 28h front, 32h rear, tubeless ready |
| Front Hub | Formula, 12x100 |
| Rear Hub | Formula, 12x142 |
| Spokes | 14g, Stainless steel |
| Front Tyre | Vittoria Zaffiro, 700 x 28c |
| Rear Tyre | Vittoria Zaffiro, 700 x 28c |
| Seat Post | 6061 Alloy Micro Adjust, 15mm offset, 27.2 x 300mm |
| Saddle | GT road, steel rails |
| Chainset | FSA Tempo, 50/34 |
| Bottom Bracket | Cartridge, square taper |
| Chain | KMC HG53, 9-speed |
| Cassette | Sunrace, 11-32, 9-speed |
| Pedals | GT Plastic OPC Body |
GTR Sizing
See the table below to find the right size GT GTR.
|
Height |
Size |
|||||||
|
4’8” / 143cm |
44 |
|
|
|
|
|
|
|
|
4’9” / 145cm |
44 |
|
|
|
|
|
|
|
|
4’10” / 148cm |
44 |
|
|
|
|
|
|
|
|
4’11” / 150cm |
44 |
|
|
|
|
|
|
|
|
5’0” / 152cm |
44 |
|
|
|
|
|
|
|
|
5’1” / 155cm |
44 |
49 |
|
|
|
|
|
|
|
5’2” / 158cm |
|
49 |
|
|
|
|
|
|
|
5’3” / 160cm |
|
49 |
|
|
|
|
|
|
|
5’4” / 163cm |
|
49 |
52 |
|
|
|
|
|
|
5’5” / 165cm |
|
|
52 |
|
|
|
|
|
|
5’6” / 168cm |
|
|
52 |
|
|
|
|
|
|
5’7” / 170cm |
|
|
52 |
54 |
|
|
|
|
|
5’8” / 173cm |
|
|
|
54 |
|
|
|
|
|
5’9” / 175cm |
|
|
|
54 |
|
|
|
|
|
5’10” / 178cm |
|
|
|
54 |
56 |
|
|
|
|
5’11” / 180cm |
|
|
|
|
56 |
|
|
|
|
6’0” / 183cm |
|
|
|
|
56 |
58 |
|
|
|
6’1” / 185cm |
|
|
|
|
|
58 |
|
|
|
6’2” / 188cm |
|
|
|
|
|
58 |
|
|
|
6’3” / 191cm |
|
|
|
|
|
58 |
61 |
|
|
6’4” / 193cm |
|
|
|
|
|
|
61 |
|
|
6’5” / 196cm |
|
|
|
|
|
|
61 |
64 |
|
6’6” / 198cm |
|
|
|
|
|
|
|
64 |
|
6’7” / 201cm |
|
|
|
|
|
|
|
64 |
|
6’8” / 203cm |
|
|
|
|
|
|
|
64 |
|
6’9” / 205cm |
|
|
|
|
|
|
|
64 |
Read our bike size guide for more information on sizing.
GTR Geometry
|
Size |
50 (XS) |
52 (S) |
54 (M) |
56 (L) |
58 (XL) |
60 (XXL) |
|
Seat Tube Length |
470 |
490 |
510 |
530 |
550 |
570 |
|
Horizontal Top Tube Length |
522 |
533 |
544 |
559 |
575 |
591 |
|
Stack |
525 |
536 |
555 |
572 |
593 |
612 |
|
Reach |
376 |
379 |
379 |
389 |
394 |
398 |
|
Stand Over Height |
710 |
728 |
748 |
769 |
788 |
808 |
|
Seat Angle |
72 |
72.5 |
72.5 |
72.5 |
73 |
73 |
|
Head Tube Length |
71 |
71 |
73.5 |
73.5 |
73 |
72.5 |
|
Bottom Bracket Height |
120 |
120 |
120 |
120 |
120 |
120 |
|
Fork Offset (Rake) |
45 |
45 |
45 |
45 |
45 |
45 |
|
Wheelbase |
985 |
987 |
993 |
1009 |
1015 |
1025 |
|
BB Drop |
72 |
72 |
72 |
70 |
70 |
70 |
|
FC |
575 |
577 |
584 |
599 |
603 |
615 |
Read our Road Bike Geometry Explained guide for more information on Road geometry.
