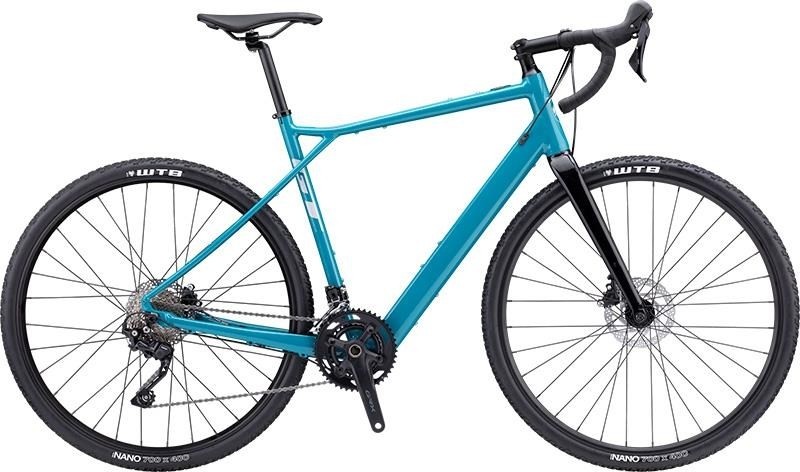

GT eGrade Bolt - Nearly New - L 2023 - Electric Road Bike
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | All New Grade Alloy 700c Frame, EnduRoad Triple Triangle Design feat. Floating Seatstays, Mahle Ebikemotion specific design, Internal Battery, Tapered Head Tube |
| Fork | GT Grade E-Carbon, 1.5" Tapered Carbon Steerer, Flat Mount Disc, 12x100 Thru-Axle |
| Headset | 1.5" Lower to 1-1/8" Upper w/ Reducer, 25mm Alloy Top Cap |
| Stem | GT 3D Forged Alloy, 31.8 |
| Bars | GT Butted 6061 Alloy, 16° Flare Drop |
| Front Brake | Shimano GRX 400 Hydro Disc, 160/160mm RT56 Rotors |
| Rear Brake | Shimano GRX 400 Hydro Disc, 160/160mm RT56 Rotors |
| Front Mech | Shimano RX400 |
| Rear Mech | Shimano GRX RX400 |
| Shifters | Shimano GRX400, 10-speed |
| Speed | 20 |
| Rims | Alloy Double Wall, 32h |
| Front Hub | Formula CRX-512, 12x100mm |
| Rear Hub | EbikeMotion X35+ |
| Spokes | Stainless Steel, 13g |
| Front Tyre | WTB Nano Comp, 700 x 40, Tubeless Ready |
| Rear Tyre | WTB Nano Comp, 700 x 40, Tubeless Ready |
| Seat Post | Alloy Micro Adjust 27.2 x 350mm |
| Saddle | Fabric Scoop Shallow Sport |
| Chainset | Shimano GRX, 46/30 |
| Bottom Bracket | Shimano BSA RS500 |
| Chain | KMC X10, 10-speed |
| Cassette | Shimano HG500, 11-34T |
| Battery Size (WH) | MAHLE ebikemotion X35 250Wh |
| Motor | MAHLE ebikemotion X35+ 250W |
| User Interface | IWOC One |
Typical Bike Size Chart
|
Height
|
Bike Size
|
Road Bike Size
|
Mountain Bike Size *
|
|
4’8” – 5’1”
143 – 155 cm
|
XXS
|
44 cm
|
13” (33 cm)
|
|
5’1” – 5’4”
155 – 163 cm
|
XS
|
48 cm
|
15” (38 cm)
|
|
5’4” – 5’7”
163 – 170 cm
|
S
|
51 cm
|
16” (41 cm)
|
|
5’7” – 5’10”
170 – 178 cm
|
M
|
54 cm
|
18” (46cm)
|
|
5’10” – 6’0”
178 – 183 cm
|
L
|
56 cm
|
19” (48cm)
|
|
6’0” – 6’3”
183 – 191 cm
|
XL
|
58 cm
|
20” (51 cm)
|
|
6’3” – 6’5”
191 – 196 cm
|
XXL
|
60 cm
|
21” (53 cm)
|
|
6’5” – 6’9”
196 – 205 cm
|
XXXL
|
62 cm
|
22” (56 cm)
|
* Mountain bikes are sized differently to road bikes. Typically, they are sized in inches as the first MTBs were produced in the USA. European brands like Lapierre and Haibike like to use centimetres for all their bikes. The measurements of their mountain bikes doesn’t match their road bikes but are like a simple conversion from the inches measurement. This is why we have included cm measurements in brackets for the Mountain bike column.
Read our bike size guide for more information on sizing.
Customer reviews and Q&A's are disabled because you declined functional cookies.
To enable reviews and Q&A's click the 'Cookie Settings' button below and enable functional cookies.
No longer available
Sorry you missed the GT eGrade Bolt - Nearly New - L 2023 - Electric Road Bike.
This product is no longer available.
