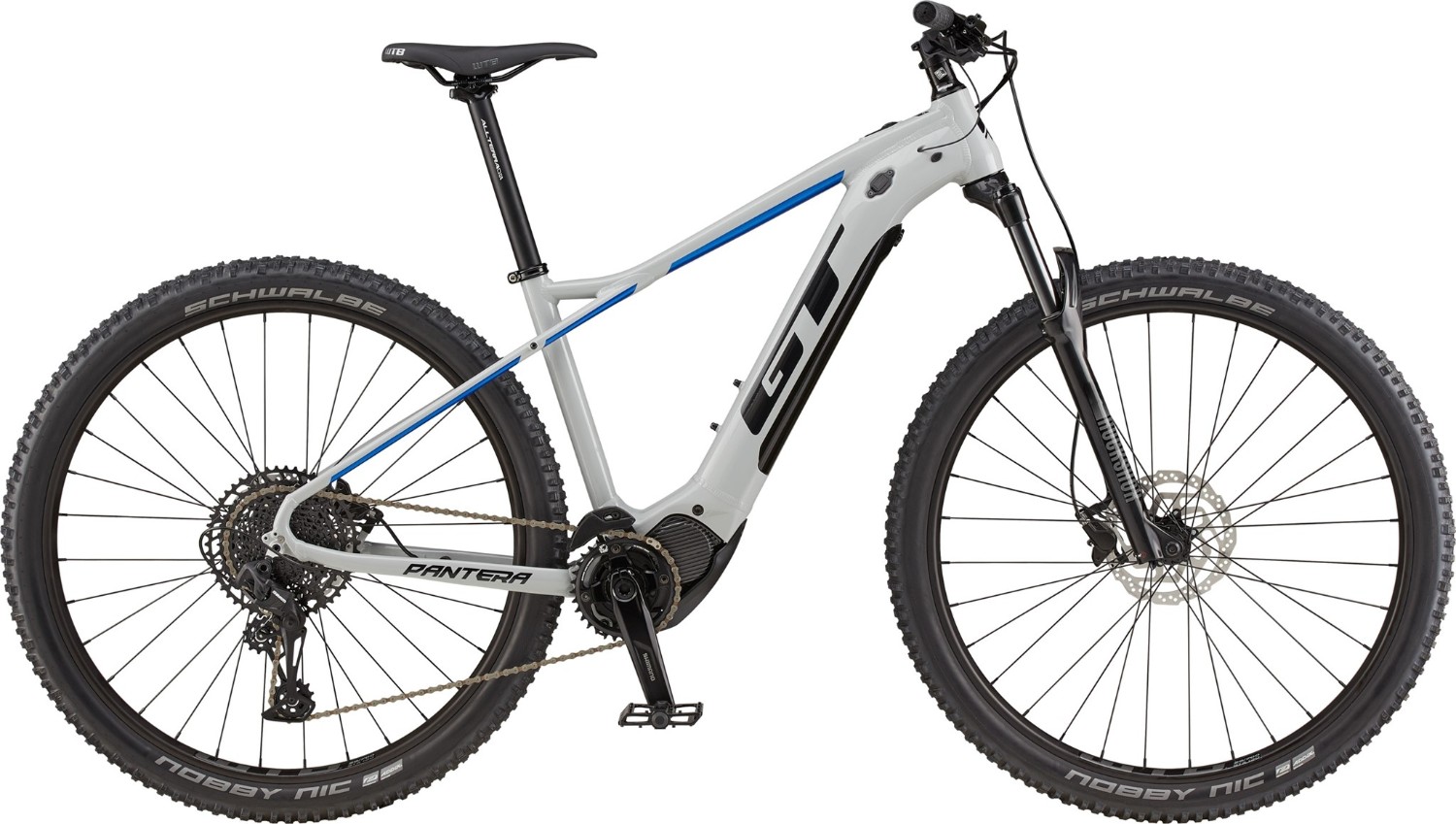

GT ePantera Bolt 2023 - Electric Mountain Bike
Unleash the potential of eMTB trail riding with the GT ePantera Bolt. Crafted around a 29""-specific geometry 6061 aluminium frame, this pedal-assist electric bike boasts a Shimano Steps EP800 motor and 12-speed transmission for an enhanced trail experience. The Rock Shox Judy Silver TK fork with 120mm of travel ensures a smooth and controlled ride, while the Shimano MT200 hydraulic disc brakes provide reliable stopping power on any terrain.
Key Features:
- Frame: Trail frame with 29""-specific geometry, 6061 aluminium, triple triangle design
- Front Suspension: Rock Shox Judy Silver TK, Solo Air spring system, 120mm travel, adjustable rebound
- Drivetrain: SRAM SX Eagle 1 x 12-speed for a wide gear range
- Brakes: Shimano MT200 hydraulic disc brakes for confident speed control
- Wheels: WTB STX i30 TCS 29” tubeless ready wheels with Schwalbe Nobby Nic Performance, Addix compound, tubeless-ready tyres
- Available with 0% APR Finance
Drive Information:
- Motor: Shimano Steps EP800, 250W, max torque information not provided
- Battery: Shimano Steps E8035, 504Wh capacity
- User Interface: Shimano EM8 display and remote switch for intuitive control.
GT's ePantera Bolt redefines trail biking with the integration of the Shimano Steps EP800 motor and a 12-speed transmission, offering a seamless blend of power and precision. The 29""-specific geometry, coupled with the Rock Shox Judy Silver TK fork, ensures optimal handling on diverse terrains. The SRAM SX Eagle drivetrain provides smooth and precise shifting, while the Shimano MT200 hydraulic disc brakes guarantee reliable stopping power.
The GT ePantera Bolt is not just an e-bike; it's a gateway to exploring trails with a newfound electrifying boost. Whether it's climbing steep ascents or conquering challenging descents, this eMTB invites riders to redefine their trail adventures with the perfect fusion of technology and cycling prowess.
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Trail frame with 29"-specific geometry, 6061 aluminum, Triple Triangle design with floating seat stays, integrated tapered head tube, 12 x 148mm thru axle, internal battery |
| Fork | Rock Shox Judy Silver TK, Solo air spring system (adjustable), 120mm travel, 15 x 110mm thru axle, adjustable rebound |
| Headset | FSA No. 57E, sealed bearings |
| Stem | All Terra (GT), 6061 aluminum, 31,8mm clamp |
| Bars | All Terra (GT) aluminum riser, 15mm rise, 780mm width, 31,8mm clamp |
| Front Brake | Shimano MT200, hydraulic disc brakes, 180/180mm |
| Rear Brake | Shimano MT200, hydraulic disc brakes, 180/180mm |
| Brake Lever | SHIMANO MT200 |
| Rear Mech | SRAM SX Eagle |
| Shifters | SRAM SX Eagle, 1 x 12-speed |
| Speed | 12 |
| Rims | WTB STX i30 TCS, 32 hole, tubeless ready |
| Front Hub | Shimano MT400, 15 x 110mm thru axle |
| Rear Hub | Shimano MT400, 12 x 148mm thru axle |
| Front Tyre | Schwalbe Nobby Nic Performance, Addix compound, tubeless ready, 29 x 2.35" |
| Rear Tyre | Schwalbe Nobby Nic Performance, Addix compound, tubeless ready, 29 x 2.35" |
| Seat Post | All Terra (GT), 6061 aluminum, 30,9 x 350mm (S - M)/400mm (L - XL) |
| Saddle | WTB Silverado Sport, Steel rails |
| Chainset | Shimano FC-EM600, 165mm length |
| Bottom Bracket | Integrated |
| Chain | SRAM SX Eagle, 12-speed |
| Cassette | SRAM SX Eagle, 12-speed, 11-50 teeth |
| Pedals | Resin Platform |
| Battery Size (WH) | Shimano Steps BT-E8035, 504 Wh |
| Motor | Shimano Steps DU-EP800, 250 W |
| User Interface | Shimano EM8 |
Electric Bike Bike Size Chart
|
Height |
e Bike Size |
e Road Bike Size |
e Mountain Bike Size* |
|
4’8” – 5’1” 143 – 155 cm |
XXS |
44 cm |
13” (33 cm) |
|
5’1” – 5’4” 155 – 163 cm |
XS |
48 cm |
15” (38 cm) |
|
5’4” – 5’7” 163 – 170 cm |
S |
51 cm |
16” (41 cm) |
|
5’7” – 5’10” 170 – 178 cm |
M |
54 cm |
18” (46cm) |
|
5’10” – 6’0” 178 – 183 cm |
L |
56 cm |
19” (48cm) |
|
6’0” – 6’3” 183 – 191 cm |
XL |
58 cm |
20” (51 cm) |
|
6’3” – 6’5” 191 – 196 cm |
XXL |
60 cm |
21” (53 cm) |
|
6’5” – 6’9” 196 – 205 cm |
XXXL |
62 cm |
22” (56 cm) |
* Mountain bikes are sized differently to road bikes. Typically, they are sized in inches as the first MTBs were produced in the USA. European brands like Lapierre and Haibike like to use centimeters for all their bikes. The measurements of their mountain bikes doesn’t match their road bikes but is like a simple conversion from the inches measurement. This is why we have included cm measurements in brackets for the e mountain bike column.
See our bike size guide for more on bike sizing
