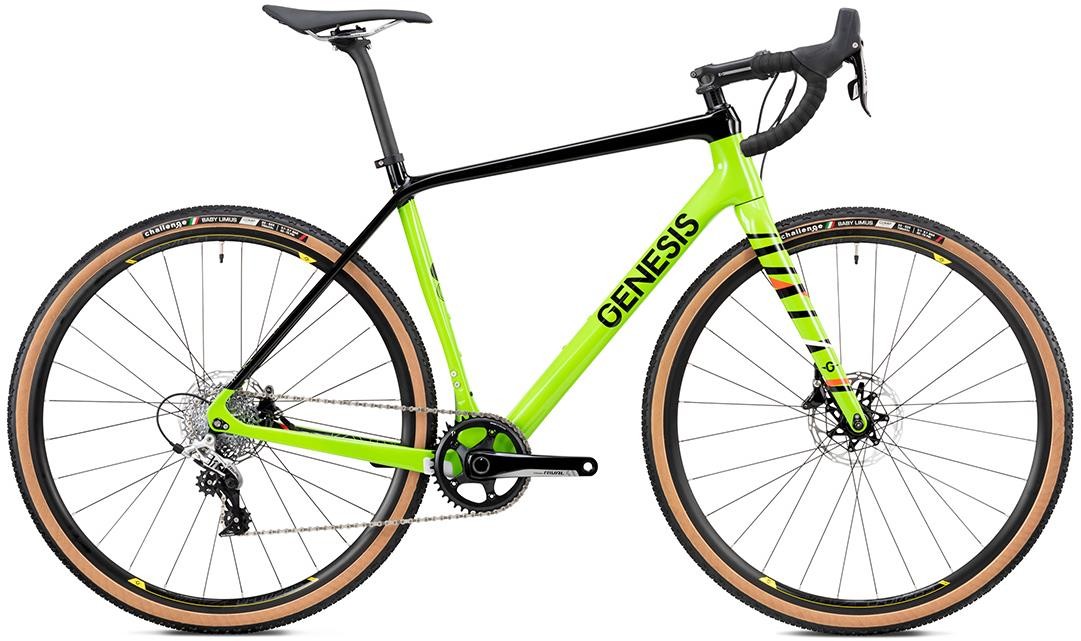

Genesis Vapour 30 2020 - Road Bike
Our One True Off-road Race Bike, The Vapour Is A Rare Specialism In An Era When Bikes Blur Boundaries. Sure, You Can Fit Some Slicks And Ride The Vapour On The Road But That Would Be Missing The Point.
This skinny tyre’d fast mover is built to play in the dust or the mud, down the woods or at your local ‘cross league for an hour of pain that will open your mind. We've sweated the details and changed the way we look at CX geometry to create the flagship Vapour Carbon CX30. Big clearances are even bigger thanks to the Sram Rival 1x drivetrain, stiffness is maximised with 12mm thru axles front and rear, and Rival hydraulic disc brakes stop you urgently. An Asymmetric Power Transfer BB (30% wider non drive side) and boxed chain stays all increase stiffness and power transfer for optimum performance when you need it.
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | 30/40T Modulus Carbon CX w/ Tapered Headtube & Fully Internal Cable Routing |
| Fork | Genesis Carbon CX w/ 1-1/2" - 1-1/8" Tapered Steerer w/ 12mm TA |
| Headset | Prestine PT-1860A sealed 1-1/8 ACB Top, 1-1/2" industrial sealed |
| Stem | Genesis AS-007 / + - 7deg / XS, 90mm / S-XL, 100mm |
| Bars | Genesis X-Race Pro / 8deg Flare / XS, 400mm / S-M, 420mm / L-XL, 440mm |
| Front Brake | Sram Rival hydraulic brakes w/160mm Sram Centerline rotors |
| Rear Brake | Sram Rival hydraulic brakes w/160mm Sram Centerline rotors |
| Brake Lever | Sram Rival 1X Hydraulic |
| Rear Mech | Sram Rival 1x / Medium cage |
| Shifters | Sram Rival / 1x11 speed |
| Speed | 11 |
| Rims | Jalco SR240D / 28h |
| Front Hub | Formula CL-712/RXC-142A 28h / front 12mm TA / rear 12mm TA / centre lock |
| Rear Hub | Formula CL-712/RXC-142A 28h / front 12mm TA / rear 12mm TA / centre lock |
| Spokes | Stainless steel 14g |
| Front Tyre | Challenge Baby Limus 700x33c w/skinwall |
| Rear Tyre | Challenge Baby Limus 700x33c w/skinwall |
| Seat Post | Genesis Alloy / 27.2x350mm |
| Saddle | Genesis Road Comfort |
| Chainset | Sram Rival 1 XSYNC / 40T / XS, 170mm / S-M, 172.5mm / L-XL, 175mm |
| Bottom Bracket | SRAM PF-GXP |
| Chain | SRAM PC-1130 |
| Cassette | Sram PG1130 / 11-32T |
| Pedals | Basic Resin Flat |
See the table below to find the right size.
Road Bike Sizing
XXS (44)
4'8"
5'1"
XS (48)
5'1"
5'4"
S (51)
5'4"
5'7"
M (54)
5'7"
5'10"
L (56)
5'10"
6'0"
XL (58)
6'0"
6'3"
XXL (60)
6'3"
6'5"
XXXL (62)
6'5"
6'9"
Read our bike size guide for more information on sizing.
|
Height |
Size |
|||||||
|
4’8” / 143cm |
44 (XXS) |
|
|
|
|
|
|
|
|
4’9” / 145cm |
44 (XXS) |
|
|
|
|
|
|
|
|
4’10” / 148cm |
44 (XXS) |
|
|
|
|
|
|
|
|
4’11” / 150cm |
44 (XXS) |
|
|
|
|
|
|
|
|
5’0” / 152cm |
44 (XXS) |
|
|
|
|
|
|
|
|
5’1” / 155cm |
44 (XXS) |
48 (XS) |
|
|
|
|
|
|
|
5’2” / 158cm |
|
48 (XS) |
|
|
|
|
|
|
|
5’3” / 160cm |
|
48 (XS) |
|
|
|
|
|
|
|
5’4” / 163cm |
|
48 (XS) |
51 (S) |
|
|
|
|
|
|
5’5” / 165cm |
|
|
51 (S) |
|
|
|
|
|
|
5’6” / 168cm |
|
|
51 (S) |
|
|
|
|
|
|
5’7” / 170cm |
|
|
51 (S) |
54 (M) |
|
|
|
|
|
5’8” / 173cm |
|
|
|
54 (M) |
|
|
|
|
|
5’9” / 175cm |
|
|
|
54 (M) |
|
|
|
|
|
5’10” / 178cm |
|
|
|
54 (M) |
56 (L) |
|
|
|
|
5’11” / 180cm |
|
|
|
|
56 (L) |
|
|
|
|
6’0” / 183cm |
|
|
|
|
56 (L) |
58 (XL) |
|
|
|
6’1” / 185cm |
|
|
|
|
|
58 (XL) |
|
|
|
6’2” / 188cm |
|
|
|
|
|
58 (XL) |
|
|
|
6’3” / 191cm |
|
|
|
|
|
58 (XL) |
60 (XXL) |
|
|
6’4” / 193cm |
|
|
|
|
|
|
60 (XXL) |
|
|
6’5” / 196cm |
|
|
|
|
|
|
60 (XXL) |
62 (XXXL) |
|
6’6” / 198cm |
|
|
|
|
|
|
|
62 (XXXL) |
|
6’7” / 201cm |
|
|
|
|
|
|
|
62 (XXXL) |
|
6’8” / 203cm |
|
|
|
|
|
|
|
62 (XXXL) |
|
6’9” / 205cm |
|
|
|
|
|
|
|
62 (XXXL) |
Read our bike size guide for more information on sizing.
