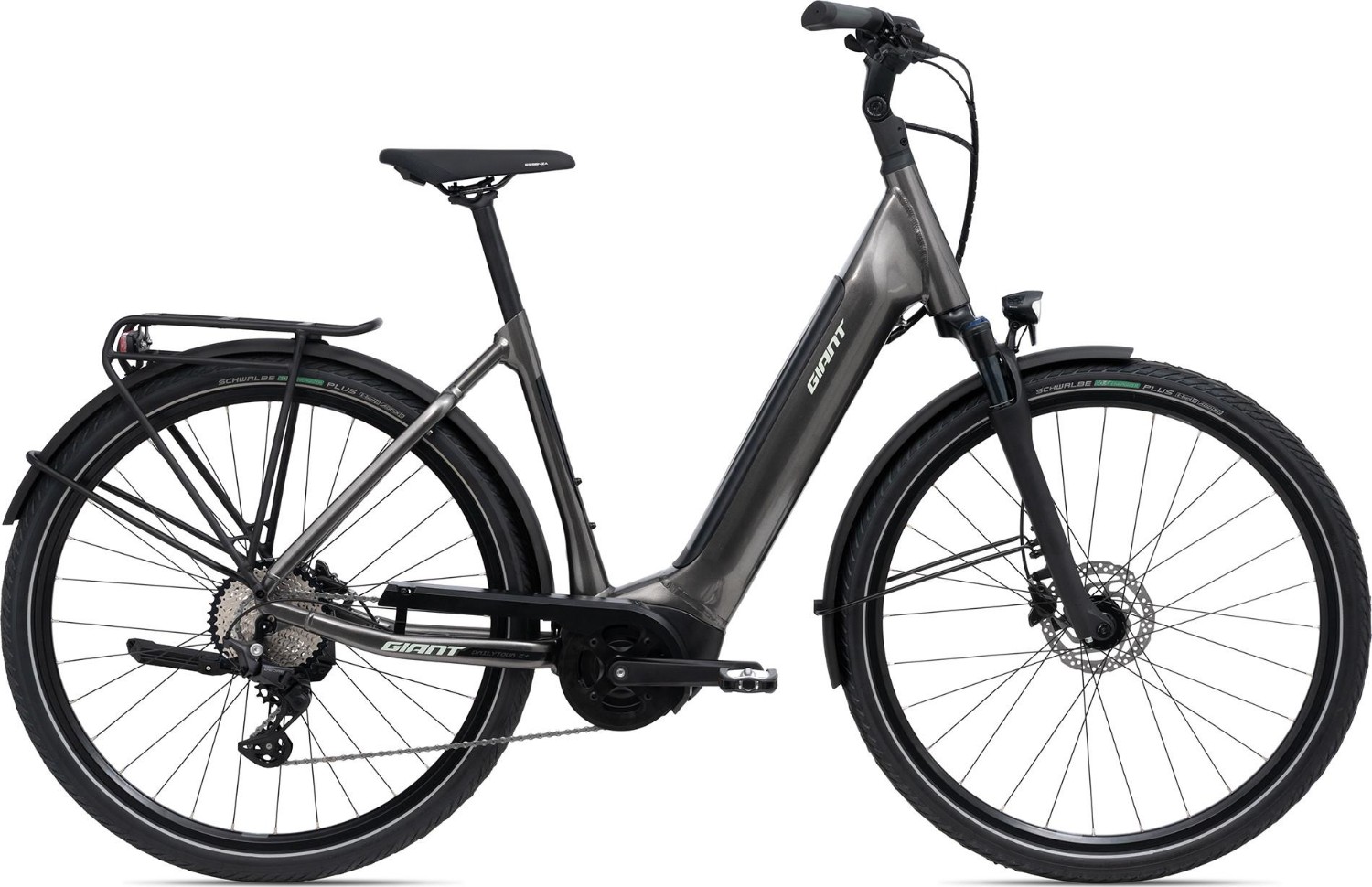

Giant DailyTour E+ 2 Dash Disc Easy Entry 2023 - Electric Hybrid Bike
This versatile and practical e-bike is ideal for daily commuting and other adventures. It has automatic pedaling support and all the built-in features you can think of, including a kickstand, lights, fenders and racks.
Smart support
The SyncDrive motor has a Smart Assist mode, which determines the support you need and automatically adjusts power output.
Navigation
The RideDash Evo with on-board navigation helps riders find their way, and smartphone connectivity makes it easy to keep the battery charged.
Added visibility
Integrated lights run in all light conditions, day and night, to increase visibility on the road.
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | ALUXX aluminum |
| Fork | SR Suntour NEX E25, lockout, 63mm , 15AQ |
| Stem | Giant Contour, EVO display integrated, adjustable |
| Bars | Giant Contour GT, cable integrated, 30° back sweep 31.8mm |
| Front Brake | Tektro HD-M285 hydraulic disc |
| Rear Brake | Tektro HD-M285 hydraulic disc |
| Brake Lever | Tektro HD-M285 |
| Rear Mech | -Shimano Deore |
| Shifters | Shimano Deore LinkGlide |
| Speed | 10 |
| Rims | Giant eX25, Tubeless Ready, 700c Aluminium |
| Front Hub | Giant Tracker Sport 15x100mm Boost |
| Rear Hub | Giant Tracker Sport 135mm QR |
| Spokes | Sapim Race [F], Sapim Strong [R] |
| Front Tyre | Schwalbe Energizer Plus, 622x50mm, Green Guard |
| Rear Tyre | Schwalbe Energizer Plus, 622x50mm, Green Guard |
| Seat Post | Giant 30.9mm, 2-bolt Micro Adjustable, Forged Aluminium |
| Saddle | Selle Royal Essenza gel |
| Chainset | Giant aluminum, 38T |
| Bottom Bracket | N/A |
| Chain | KMC e.10 Sport, e-bike optimized |
| Cassette | Shimano Deore LinkGlide CS M4100-10, 11-42T, 10-Speed |
| Pedals | Not Included |
| Battery Size (WH) | EnergyPak Smart 625 |
| Motor | SyncDrive Sport, 70Nm, Powered by Yamaha |
| User Interface | RideControl Dash, full colour LCD screen |
Giant DailyTour Sizing & Geometry
|
Inside Leg (Inches) Vs Rider Height (Feet & Inches) |
26” |
27” |
28” |
29” |
30” |
31” |
32” |
33” |
34” |
35” |
36” |
37” |
|
5’ 3” |
|
|
S |
S |
S |
|
|
|
|
|
|
|
|
5’ 4” |
S |
S |
S |
S |
S |
|
|
|
|
|
|
|
|
5’ 5” |
S |
S |
S |
S |
S |
|
|
|
|
|
|
|
|
5’ 6” |
|
S |
S |
S |
S |
S |
|
|
|
|
|
|
|
5’ 7” |
|
|
S |
S |
S |
M |
M |
|
|
|
|
|
|
5’ 8” |
|
|
|
M |
M |
M |
M |
M |
|
|
|
|
|
5’ 9” |
|
|
|
M |
M |
M |
M |
M |
|
|
|
|
|
5’ 10” |
|
|
|
|
M |
M |
M |
M |
M |
|
|
|
|
5’ 11” |
|
|
|
|
M |
M |
M |
M |
M |
|
|
|
|
6’ 0” |
|
|
|
|
|
M |
M |
L |
L |
L |
|
|
|
6’ 1” |
|
|
|
|
|
L |
L |
L |
L |
L |
|
|
|
6’ 2” |
|
|
|
|
|
|
L |
L |
L |
L |
L |
|
|
6’ 3” |
|
|
|
|
|
|
L |
L |
L |
L |
L |
|
|
6’ 4” |
|
|
|
|
|
|
|
L |
L |
|
|
|
Giant DailyTour Step through Geometry
| XS | S | M | L | |
|---|---|---|---|---|
| SEAT TUBE LENGTH (mm) | 400 | 450 | 500 | 550 |
| SEAT TUBE ANGLE | 72.5° | 72.5° | 72.0° | 72.0° |
| TOP TUBE LENGTH (mm) | 570 | 580 | 595 | 610 |
| HEAD TUBE LENGTH (mm) | 160 | 160 | 170 | 185 |
| HEAD TUBE ANGLE | 69.5° | 69.5° | 69.5° | 69.5° |
| FORK RAKE (mm) | 44 | 44 | 44 | 44 |
| TRAIL (mm) | 87 | 87 | 87 | 87 |
| WHEELBASE (mm) | 1098 | 1108 | 1117 | 1133 |
| CHAIN STAY LENGTH (mm) | 470 | 470 | 470 | 470 |
| BOTTOM BRACKET DROP (mm) | 60 | 60 | 60 | 60 |
| STACK (mm) | 634 | 634 | 643 | 657 |
| REACH (mm) | 370 | 380 | 386 | 396 |
| HANDLEBAR WIDTH (mm) | 670 | 670 | 670 | 670 |
| STEM LENGTH (mm) | 90 | 90 | 90 | 90 |
| CRANK LENGTH (mm) | 170 | 170 | 170 | 170 |
| WHEEL SIZE | 700c | 700c | 700c | 700c |
Giant DailyTour Geometry
| S | M | L | XL | |
|---|---|---|---|---|
| SEAT TUBE LENGTH (mm) | 450 | 500 | 550 | 600 |
| SEAT TUBE ANGLE | 72.5° | 72.0° | 72.0° | 72.0° |
| TOP TUBE LENGTH (mm) | 580 | 590 | 610 | 630 |
| HEAD TUBE LENGTH (mm) | 145 | 160 | 170 | 185 |
| HEAD TUBE ANGLE | 69.5° | 69.5° | 69.5° | 69.5° |
| FORK RAKE (mm) | 44 | 44 | 44 | 44 |
| TRAIL (mm) | 87 | 87 | 87 | 87 |
| WHEELBASE (mm) | 1107 | 1112 | 1132 | 1153 |
| CHAIN STAY LENGTH (mm) | 470 | 470 | 470 | 470 |
| BOTTOM BRACKET DROP (mm) | 60 | 60 | 60 | 60 |
| STACK (mm) | 620 | 634 | 643 | 657 |
| REACH (mm) | 384 | 384 | 401 | 416 |
| HANDLEBAR WIDTH (mm) | 670 | 670 | 670 | 670 |
| STEM LENGTH (mm) | 90 | 90 | 90 | 90 |
| CRANK LENGTH (mm) | 170 | 170 | 170 | 170 |
| WHEEL SIZE | 700c | 700c | 700c | 700c |
