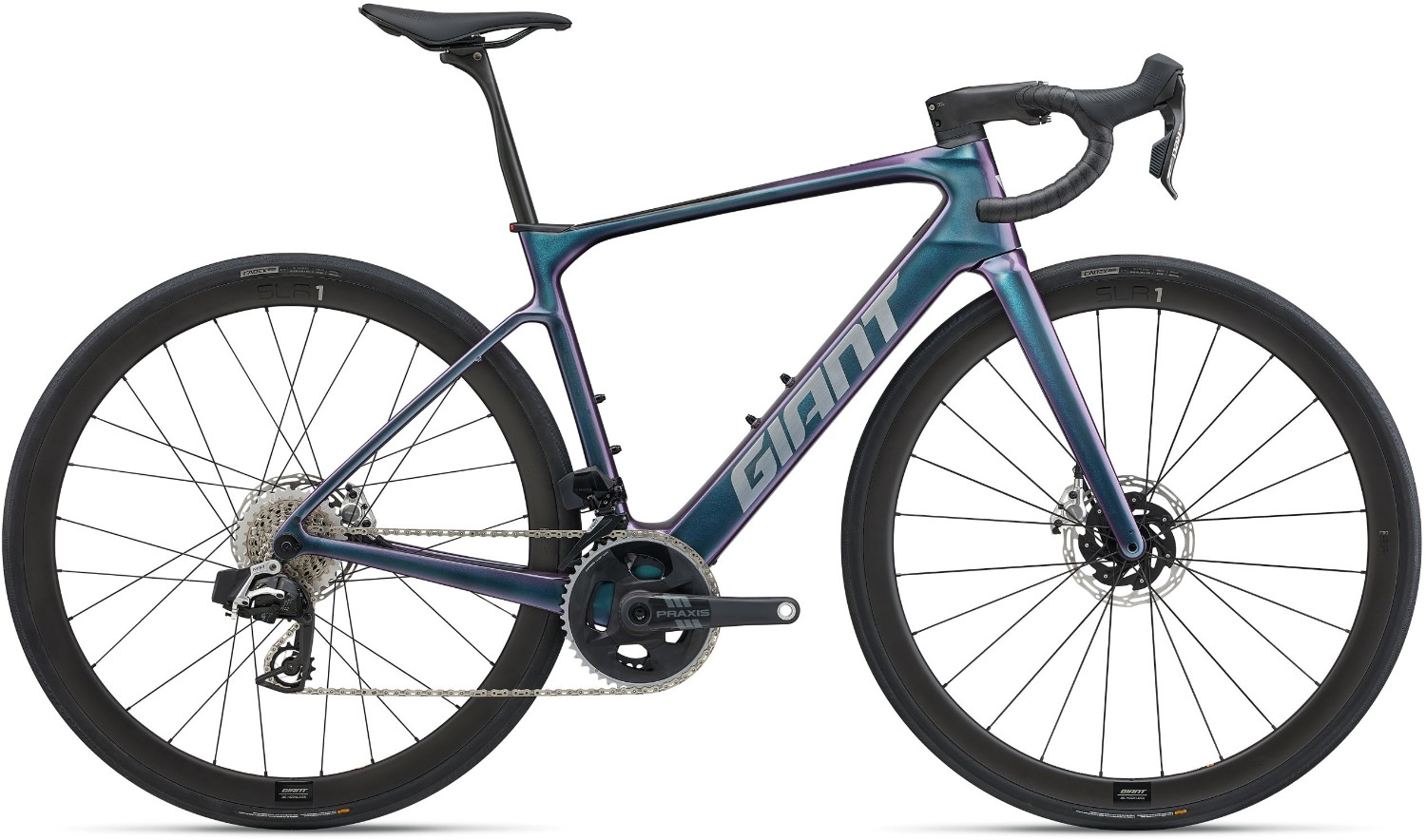

Giant Defy Advanced E+ Elite 0 2025 - Electric Road Bike
With its smooth-riding composite frame, lightweight battery, and new SyncDrive Move Plus integrated rear hub motor, the Defy Advanced E+ is the ideal choice for performance-minded road riders who want to tackle steep hills, maintain higher speeds, and experience road riding with no limitations.
Key Performance Factors
Key Performance Factors
SEAMLESS POWER
The SyncDrive Move Plus motor is integrated into the rear hub and delivers 30Nm of power (equivalent to 75Nm with a mid-drive motor) directly to the rear wheel. Weighing just 1.7kg, it’s specially tuned for the pedalling pattern of performance road riding, with minimal energy loss and more torque at higher speeds. The result is a natural feel when accelerating or maintaining steady power at speed, and no motor drag while freewheeling or coasting.
SYSTEM INTEGRATION
The down tube integrated EnergyPak 400 battery system weighs just 2.3kg and is purpose-built for the specific needs of E-bikes. A top tube mounted RideControl Go button makes it quick and easy to turn the E-bike on or off and change power modes. Smart Assist technology uses three sensors to precisely measure the power being applied to the pedals and produce just the right amount of support for a smooth, natural ride experience. All models feature SRAM wireless electronic shifters and an integrat
PURE ROAD PERFORMANCE
A lightweight composite frameset and high-performance components including a D-Fuse seatpost and handlebars for compliance, integrated WheelSystems with tubeless tyres, and a wireless electronic drivetrain all add up to a smooth, efficient ride quality that mirrors the award-winning performance of the Defy endurance road bike range.
Highlights
The new SyncDrive Move Plus motor, which delivers up to 30Nm of support (equivalent to 75Nm with a mid-drive motor) in a lightweight, quiet system, is cleanly integrated into the rear hub and offers five support levels plus Smart Assist technology to determine optimal pedalling support for a smooth, natural riding experience. The system is powered by the EnergyPak 400 battery, which provides powerful support in an integrated, lightweight package.
Highlights
The new SyncDrive Move Plus motor, which delivers up to 30Nm of support (equivalent to 75Nm with a mid-drive motor) in a lightweight, quiet system, is cleanly integrated into the rear hub and offers five support levels plus Smart Assist technology to determine optimal pedalling support for a smooth, natural riding experience. The system is powered by the EnergyPak 400 battery, which provides powerful support in an integrated, lightweight package.
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Advanced-grade composite,12x145 thru-axle |
| Fork | Advanced SL-Grade Composite, Full-Composite OverDrive Aero Steerer, 12x100mm thru-axle, Disc |
| Stem | Contact SLR Aerolight 31.8 carbon |
| Bars | Giant Contact SLR D-Fuse 31.8 carbon |
| Front Brake | Sram RED AXS HRD, Centerline 160mm center-lock [F] 160mm 6-bolt [R] |
| Rear Brake | Sram RED AXS HRD, Centerline 160mm center-lock [F] 160mm 6-bolt [R] |
| Brake Lever | Sram RED AXS HRD |
| Front Mech | Sram Red AXS |
| Rear Mech | Sram Red AXS |
| Shifters | SRAM RED eTap AXS 2x12 |
| Speed | 24 |
| Rims | Giant SLR 1 E+ 36 Carbon Disc Wheel System, Hookless, Tubeless Ready, 12mm thru-axle, w/ Sapim spoke E-Light [R] CX-Ray [F], e-bike optimised |
| Spokes | Sapim spoke E-Light [R] CX-Ray [F], e-bike optimised |
| Front Tyre | Cadex Classic 95PSI 700x28C 170TPI Tubeless Foldable |
| Rear Tyre | Cadex Classic 95PSI 700x28C 170TPI Tubeless Foldable |
| Seat Post | Giant D-Fuse SLR, composite, -5/+15mm offset |
| Saddle | Giant Fleet SL |
| Chainset | Sram Force X-SYNC 33/46T BCD107 chain ring Praxis E crank Carbon ISIS |
| Bottom Bracket | Giant E+ System BBSS |
| Chain | SRAM RED 12-speed |
| Cassette | SRAM RED XG-1290 10x33T 12-speed |
| Battery Size (WH) | EnergyPak Smart 400Wh by Panasonic, Aluminium casing with highest safety standard (UL2271, EN50604), CO2 Neutral production, 2300 charging cycles. EnergyPak Plus 200 range extender compatible |
| Motor | SyncDriveMove Plus Hub drive 75Nm max |
| User Interface | Giant RideControl GO, frame-integrated LED console Optional wireless ANT+ display |
Giant Road E Sizing & Geometry
|
Inside Leg (Inches) Vs Rider Height (Feet & Inches) |
27” |
28” |
29” |
30” |
31” |
32” |
33” |
34” |
35” |
36” |
37” |
|
5’ 5” |
|
S |
S |
S |
|
|
|
|
|
|
|
|
5’ 6” |
S |
S |
S |
S |
S |
|
|
|
|
|
|
|
5’ 7” |
|
S |
S |
S |
S |
S |
|
|
|
|
|
|
5’ 8” |
|
S |
S |
M |
M |
M |
|
|
|
|
|
|
5’ 9” |
|
|
M |
M |
M |
M |
M |
|
|
|
|
|
5’ 10” |
|
|
M |
M |
M |
M |
M |
|
|
|
|
|
5’ 11” |
|
|
|
M |
M |
M/L |
M/L |
M/L |
|
|
|
|
6’ 0” |
|
|
|
M/L |
M/L |
M/L |
M/L |
M/L |
|
|
|
|
6’ 1” |
|
|
|
|
M/L |
M/L |
M/L |
L |
L |
|
|
|
6’ 2” |
|
|
|
|
L |
L |
L |
L |
L |
|
|
|
6’ 3” |
|
|
|
|
L |
L |
L |
L |
L |
L |
|
|
6’ 4” |
|
|
|
|
|
|
L |
L |
XL |
XL |
XL |
|
6’ 5” |
|
|
|
|
|
|
XL |
XL |
XL |
XL |
XL |
Giant Road E Geometry
| S | M | ML | L | XL | |
|---|---|---|---|---|---|
| SEAT TUBE LENGTH (mm) | 450 | 475 | 500 | 525 | 550 |
| SEAT TUBE ANGLE | 74.0° | 73.5° | 73.0° | 73.0° | 72.5° |
| TOP TUBE LENGTH (mm) | 545 | 550 | 560 | 575 | 595 |
| HEAD TUBE LENGTH (mm) | 110 | 130 | 150 | 170 | 190 |
| HEAD TUBE ANGLE | 72.0° | 72.0° | 72.0° | 72.0° | 72.0° |
| FORK RAKE (mm) | 50 | 50 | 50 | 50 | 50 |
| TRAIL (mm) | 62.9 | 62.9 | 62.9 | 62.9 | 62.9 |
| WHEELBASE (mm) | 1045 | 1046 | 1051 | 1066 | 1080 |
| CHAIN STAY LENGTH (mm) | 455 | 455 | 455 | 455 | 455 |
| BOTTOM BRACKET DROP (mm) | 70 | 70 | 70 | 70 | 70 |
| STACK (mm) | 549 | 568 | 587 | 606 | 625 |
| REACH (mm) | 387 | 381 | 380 | 389 | 398 |
| HANDLEBAR WIDTH (mm) | 400 | 420 | 420 | 420 | 440 |
| STEM LENGTH (mm) | 90 | 100 | 100 | 110 | 110 |
| CRANK LENGTH (mm) | 170 | 170 | 170 | 170 | 170 |
| WHEEL SIZE | 700c | 700c | 700c | 700c | 700c |
