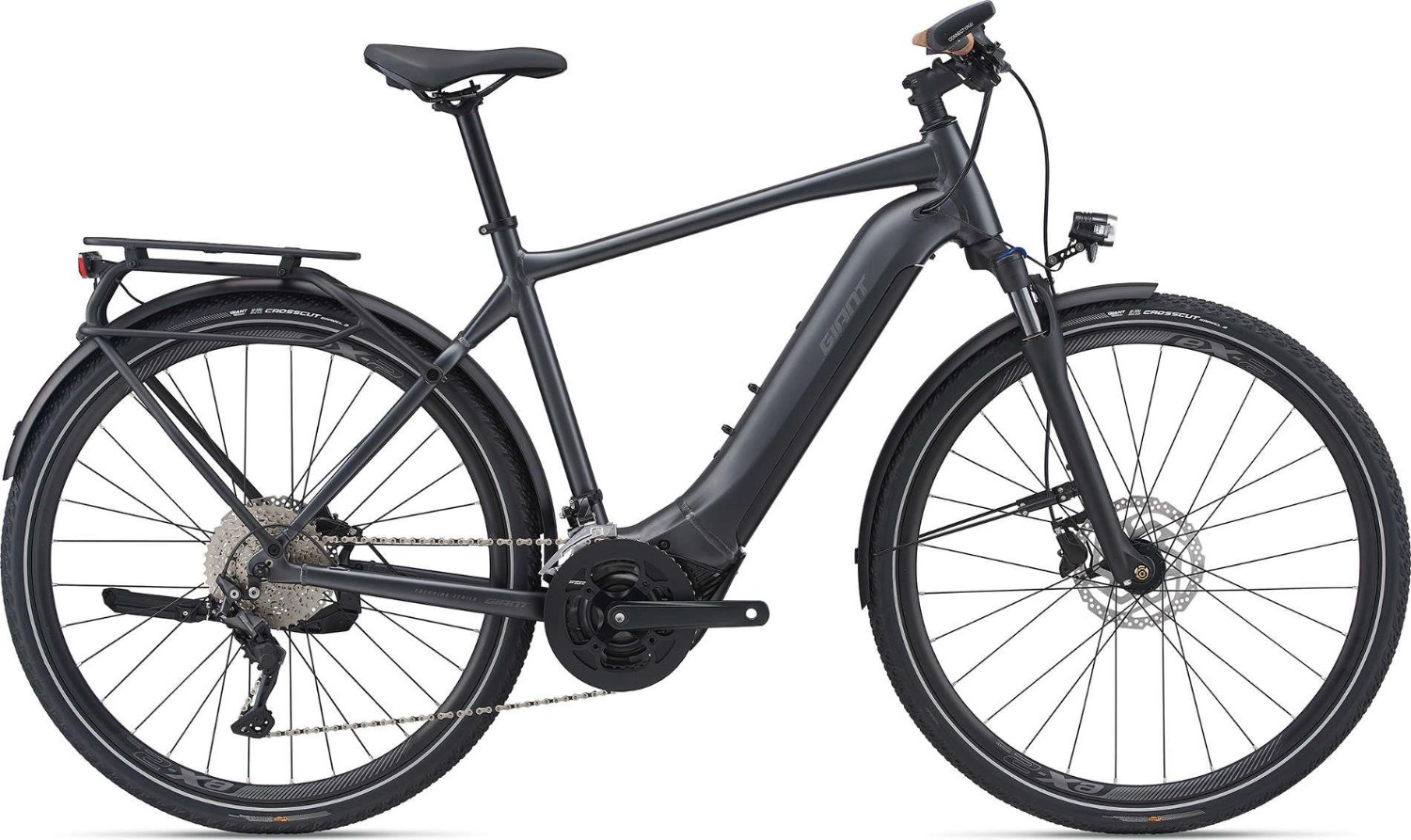

Giant Explore E+ 1 2021 - Electric Hybrid Bike
Pick your destination and find joy in the journey. This new E-bike is ideal for trekking, giving you the power to ride farther with a boost that’s pure fun.
The new Explore E+ is engineered to help you make the most of every journey. The ALUXX SL aluminium frame features a step-through design, making it easier to mount and dismount while carrying bags or panniers. Its powerful and tunable SyncDrive Sport motor and integrated EnergyPak provide a smooth, seamless boost of power so you can cover greater distances and conquer steep climbs. Its integrated rack mounts allow you to customise your cargo capacity, making it easier to carry the essentials for journeys near and far.
Overall stability
The ALUXX aluminium frameset and SyncDrive Sport motor combine for smooth handling and acceleration on all types of roads from hills to flats.
Explore new routes
The RideControl EVO with on-board navigation helps riders find their way, and smartphone connectivity makes it easy to keep the battery charged.
Longer range
Explore E+ gives riders the freedom to ride farther with its EnergyPak Smart 500 battery that delivers 500Wh of power.
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | ALUXX SL aluminium, Overdrive 1½ - 1⅛" head tube, integrated KS18 kickstand mount, compatible with fenders |
| Fork | SR Suntour NEX E25 NLO 63mm travel 15AH |
| Stem | Giant Contact |
| Bars | Giant Connect XC Riser 31.8x690mm |
| Front Brake | Shimano BR-MT200, hydraulic disc, 180mm |
| Rear Brake | Shimano BR-MT200, hydraulic disc, 180mm |
| Brake Lever | Shimano BL-MT200 |
| Front Mech | Shimano Deore |
| Rear Mech | Shimano Deore, 10-Speed, Shadow+ |
| Shifters | Shimano Deore |
| Speed | 20 |
| Rims | Giant eX 2, Tubeless Ready, 700c Aluminium |
| Front Hub | Giant eTracker, [F] 15mm Axle [R] 135mm QR |
| Rear Hub | Giant eTracker, [F] 15mm Axle [R] 135mm QR |
| Spokes | Stainless steel |
| Front Tyre | Giant Crosscut Gravel 2, 700x45c (622x45), Tubeless Ready, Reflex |
| Rear Tyre | Giant Crosscut Gravel 2, 700x45c (622x45), Tubeless Ready, Reflex |
| Seat Post | Giant 30.9mm, 2-bolt Micro Adjustable, Forged Aluminium |
| Saddle | Selle Royal Vivo Ergo Moderate |
| Chainset | Forged Alloy minimal Q-factor, 36/48T |
| Chain | KMC e.10 Sport, e-bike optimized |
| Cassette | Shimano CS-M4100, 11-42T, 10-Speed |
| Pedals | Aluminium Platform |
| Weight | 22.4kg |
| Battery Size (WH) | Giant EnergyPak Smart 500, 36V Integrated Lithium-Ion |
| Motor | Giant SyncDrive Sport |
| User Interface | Giant RideControl EVO |
Giant Explore E+ 2021 Size Chart
|
Size |
Height (cm) |
Inseam (cm) |
Height (in) |
Inseam (in) |
|
XS |
152 - 160 |
66 - 71 |
5' 0" - 5'3" |
26" - 28" |
|
S |
160 - 170 |
66 - 76 |
5' 3" - 5' 7" |
26" - 30" |
|
M |
170 - 183 |
74 - 84 |
5' 7" - 6' 0" |
29" - 33" |
|
L |
183 - 193 |
79 - 91 |
6' 0" - 6' 4" |
31" - 36" |
|
XL |
193 - 196 |
84 - 94 |
6' 4" - 6' 5" |
33" - 37" |
What size frame do I need if I am between sizes? - read here
Giant Explore E+ 2021 Geometry Chart
|
|
S |
M |
L |
XL |
|
Seat Tube Length (mm) |
435 |
485 |
535 |
585 |
|
Seat Tube Angle |
74.0° |
73.0° |
73.0° |
73.0° |
|
Top Tube Length (mm) |
570 |
590 |
610 |
630 |
|
Head Tube Length (mm) |
130 |
140 |
155 |
170 |
|
Head Tube Angle |
69.5° |
69.5° |
69.5° |
69.5° |
|
Fork Angle (mm) |
42 |
42 |
42 |
42 |
|
Trail (mm) |
91.3 |
91.3 |
91.3 |
91.3 |
|
Wheelbase (mm) |
1112 |
1121 |
1142 |
1163 |
|
Chain Stay Length (mm) |
455 |
455 |
455 |
455 |
|
Bottom Bracket Drop (mm) |
60 |
60 |
60 |
60 |
|
Stack (mm) |
610 |
619 |
633 |
648 |
|
Reach (mm) |
395 |
400 |
416 |
432 |
|
Stand Over Height (mm) |
745 |
775 |
808 |
844 |
|
Handlebar Width (mm) |
690 |
690 |
690 |
690 |
|
Stem Length (mm) |
60 |
70 |
80 |
90 |
|
Crank Length (mm) |
170 |
170 |
170 |
170 |
|
Wheel Size |
700c |
700c |
700c |
700c |
