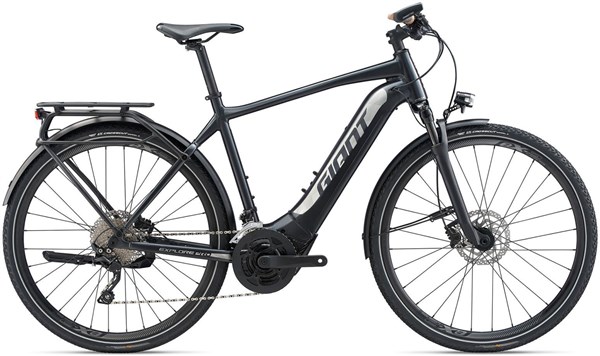

Giant Explore E+ 1 Pro 2020 - Electric Hybrid Bike
Uptown city streets or bumpy backroads, this versatile E-bike helps you enjoy every journey. The Giant Explore E+ 1 Pro combines urban riding style with versatile all-rounder performance.
Key Features:
- ALUXX alloy frame with neatly integrated battery pack
- Suspension fork offers 60mm of bump soaking suspension travel
- Shimano Deore 2x10-speed drivetrain for a wide gear range
- Shimano Hydraulic disc brakes for powerful speed control
- 700c wheels with wide 45c tyres
- Sizes: Small, Medium, Large
- Colour: Matt Black
- The Giant Explore E+ 1 pro is available with 0% APR finance
Drive Information:
- Motor: Giant SyncDrive Pro, 80Nm powered by YAMAHA, 360% tuneable support
- Battery: Giant EnergyPak 500, 36V 11.3Ah Lithium-Ion Panasonic
- User interface/remote: Giant RideControl EVO, remote button
- Connectivity: Bluetooth & ANT+ connectable
The Explore E+ Pro features an ALUXX aluminium frameset and SyncDrive Pro motor that’s powered by Yamaha. Together, they deliver great handling and smooth acceleration on a variety of road surfaces. It is now possible to tune it the way you want with the tuneable support modes that provide up to 360 percent of a rider’s power. Wider tubeless tyres add comfort and stability, making Explore E+ Pro the perfect bike to explore new routes.
Highlights:
-
Comfort and stability
Wider tubeless tyres add comfort and stability, making Explore E+ Pro a great choice to explore new routes. - Navigation possibilities
The RideControl EVO with on-board navigation helps riders find their way, and smartphone connectivity makes it easy to keep the battery charged. - Tuneable support
You can tune the motor to exactly the level of support you desire, with tuneable support modes that provide up to 360 percent of a rider’s power.
All Tredz bikes are:
- Fully built & ready to ride
- Fully checked & tested by Cytech qualified mechanics
- Available with 0% APR finance on any basket over £99
- 365 day no hassle returns
- Free delivery in the UK Mainland on a date that suits you
In the box with every Tredz bike is:
- Free Tredz 9 key trail tool
- Free Tredz pedal spanner
- Free basic pedals
- Tredz drawstring kit bag
- 16 point quality control check sheet
- Basic bike setup instructions
- Free Cycle Plan insurance voucher (8 weeks)
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | ALUXX SL aluminum, Overdrive 1½ - 1⅛" head tube, integrated KS18 kickstand mount |
| Fork | RST VIVAir E, 700c x15, 60mm travel, tappered steerer, hydraulic lockout, 15x100 axle |
| Stem | Giant Contact |
| Bars | Giant Connect XC Riser 31.8x690mm |
| Front Brake | Shimano BR-MT500, hydraulic disc, 180mm |
| Rear Brake | Shimano BR-MT500, hydraulic disc, 180mm |
| Brake Lever | Shimano BL-MT500, i-spec II |
| Front Mech | Shimano Deore |
| Rear Mech | Shimano Deore, 10-Speed, Shadow+ |
| Shifters | Shimano Deore |
| Speed | 20 |
| Rims | Giant eX 2, Tubeless Ready, 700c aluminium, e-bike optimized |
| Front Hub | Giant eTracker, sealed cartridge bearings 15mm Thru-Axle |
| Rear Hub | Giant eTracker, sealed cartridge bearings 142x12 Thru-axle, e-bike optimized |
| Spokes | Sapim E-Lite [r] Race [f], e-bike optimized |
| Front Tyre | Giant Crosscut Gravel 2, 700x45c (622x45), Tubeless Ready, Reflex |
| Rear Tyre | Giant Crosscut Gravel 2, 700x45c (622x45), Tubeless Ready, Reflex |
| Seat Post | Giant 30.9mm, 2-bolt Micro Adjustable, Forged Aluminium |
| Saddle | Selle Royal Vivo GTS/WMN |
| Chainset | Forged Alloy minimal Q-factor, 36/48T |
| Chain | KMC e.10 Sport, e-bike optimized |
| Cassette | Shimano HG50-10, 11-36T, 10-Speed |
| Pedals | Aluminum Platform |
| Battery Size (WH) | 500wh |
| Motor | Giant |
| User Interface | Giant RideControl EVO |
Giant Explore E+ 2021 Size Chart
|
Size |
Height (cm) |
Inseam (cm) |
Height (in) |
Inseam (in) |
|
XS |
152 - 160 |
66 - 71 |
5' 0" - 5'3" |
26" - 28" |
|
S |
160 - 170 |
66 - 76 |
5' 3" - 5' 7" |
26" - 30" |
|
M |
170 - 183 |
74 - 84 |
5' 7" - 6' 0" |
29" - 33" |
|
L |
183 - 193 |
79 - 91 |
6' 0" - 6' 4" |
31" - 36" |
|
XL |
193 - 196 |
84 - 94 |
6' 4" - 6' 5" |
33" - 37" |
What size frame do I need if I am between sizes? - read here
Giant Explore E+ 2021 Geometry Chart
|
|
S |
M |
L |
XL |
|
Seat Tube Length (mm) |
435 |
485 |
535 |
585 |
|
Seat Tube Angle |
74.0° |
73.0° |
73.0° |
73.0° |
|
Top Tube Length (mm) |
570 |
590 |
610 |
630 |
|
Head Tube Length (mm) |
130 |
140 |
155 |
170 |
|
Head Tube Angle |
69.5° |
69.5° |
69.5° |
69.5° |
|
Fork Angle (mm) |
42 |
42 |
42 |
42 |
|
Trail (mm) |
91.3 |
91.3 |
91.3 |
91.3 |
|
Wheelbase (mm) |
1112 |
1121 |
1142 |
1163 |
|
Chain Stay Length (mm) |
455 |
455 |
455 |
455 |
|
Bottom Bracket Drop (mm) |
60 |
60 |
60 |
60 |
|
Stack (mm) |
610 |
619 |
633 |
648 |
|
Reach (mm) |
395 |
400 |
416 |
432 |
|
Stand Over Height (mm) |
745 |
775 |
808 |
844 |
|
Handlebar Width (mm) |
690 |
690 |
690 |
690 |
|
Stem Length (mm) |
60 |
70 |
80 |
90 |
|
Crank Length (mm) |
170 |
170 |
170 |
170 |
|
Wheel Size |
700c |
700c |
700c |
700c |
