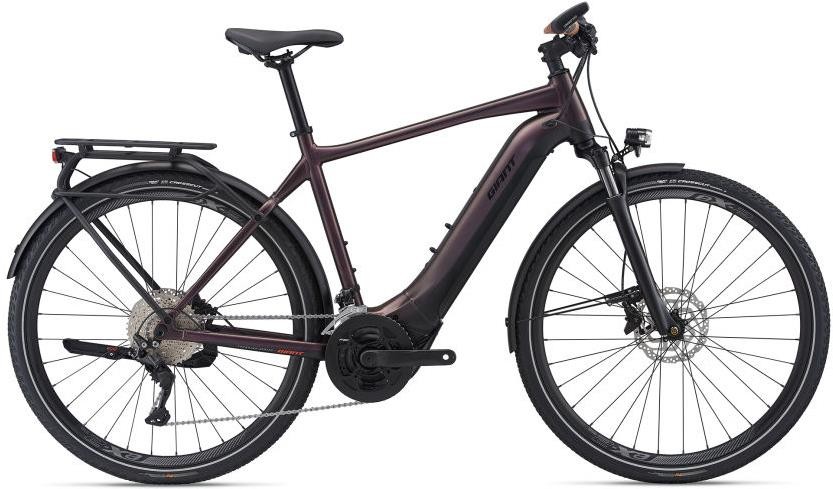

Giant Explore E+ 1 Pro 2021 - Electric Hybrid Bike
Uptown city streets or bumpy backroads, this versatile E-bike helps you enjoy every journey. The Explore E+ Pro combines urban riding style with versatile all-rounder performance.
The Explore E+ Pro features an ALUXX SL aluminium frameset and SyncDrive Pro motor that’s powered by Yamaha. Together, they deliver great handling and smooth acceleration on a variety of road conditions. You can tune it just the way you want with the tunable support modes that provide up to 360 percent of a rider’s power. Wider tubeless tyres add comfort and stability, making Explore E+ Pro the perfect bike to explore new routes. The new RideControl Ergo with on-board navigation helps riders find their way, and smartphone connectivity allows you to access emails, messaging and other apps. With its focus on adaptability, Explore E+ Pro gives riders the freedom to ride wherever they want.
KEY PERFORMANCE FACTORS
Smooth, Powerful Support
SyncDrive Pro motor delivers 80Nm of torque and tunable support ratios up to 360 percent. Smart Assist technology creates smooth pedal assistance that engages instantly when human power is applied, giving you reliable performance and smooth acceleration.
Comfortable Ride
Lightweight ALUXX SL aluminium frame is available with standard toptube or step-through design. All models feature front suspension to smooth out rough roads and dirt. High-volume tyres and disc brakes deliver a smooth ride with added control on roads, gravel or dirt.
Integrated Accessories
From the RideDash EVO display to fenders, racks, lights and a trekking kickstand (which can support the bike when it’s loaded with heavy bags or cargo), Explore E+ Pro includes everything you need for daily trips or weekend adventures.
Occasionally, without notice, manufacturers change product design and/or specifications.
Frame | ALUXX SL aluminium, Overdrive 1½ - 1⅛" head tube, integrated KS18 kickstand mount, compatible with fenders |
Fork | SR Suntour NCX D AIR LO 63mm travel 15AH |
Stem | Giant Contact |
Bars | Giant Connect XC Riser 31.8x690mm |
Front Brake | Shimano BR-MT410, hydraulic disc, 180mm |
Rear Brake | Shimano BR-MT410, hydraulic disc, 180mm |
Brake Lever | Shimano BL-M4100, I-spec EV) |
Front Mech | Shimano Deore |
Rear Mech | Shimano Deore, 11-Speed, Shadow+ |
Shifters | Shimano Deore |
Speed | 22 |
Rims | Giant eX 2, Tubeless Ready, 700c Aluminium |
Front Hub | Giant eTracker, sealed cartridge bearings |
Rear Hub | 15mm Thru-Axle [R] 142x12 Thru-axle |
Spokes | Sapim E-Lite [r] Race [f], e-bike optimized |
Front Tyre | Giant Crosscut Gravel 2, 700x45c (622x45), Tubeless Ready, Reflex |
Rear Tyre | Giant Crosscut Gravel 2, 700x45c (622x45), Tubeless Ready, Reflex |
Seat Post | Giant 30.9mm, 2-bolt Micro Adjustable, Forged Aluminium |
Saddle | Selle Royal Vivo Ergo Moderate Unisex |
Chainset | Forged Alloy minimal Q-factor, 36/48T |
Chain | KMC e.11 Sport, e-bike optimized |
Cassette | Shimano CS-M5100, 11-42T, 11-Speed |
Pedals | Aluminium Platform |
Weight | 21.3kg |
Battery Size (WH) | Giant EnergyPak Smart 625, 36V Integrated Lithium-Ion |
Motor | Giant SyncDrive Pro |
User Interface | Giant RideDash EVO |
Giant Explore E+ 2021 Size Chart
Size |
Height (cm) |
Inseam (cm) |
Height (in) |
Inseam (in) |
XS |
152 - 160 |
66 - 71 |
5' 0" - 5'3" |
26" - 28" |
S |
160 - 170 |
66 - 76 |
5' 3" - 5' 7" |
26" - 30" |
M |
170 - 183 |
74 - 84 |
5' 7" - 6' 0" |
29" - 33" |
L |
183 - 193 |
79 - 91 |
6' 0" - 6' 4" |
31" - 36" |
XL |
193 - 196 |
84 - 94 |
6' 4" - 6' 5" |
33" - 37" |
What size frame do I need if I am between sizes? - read here
Giant Explore E+ 2021 Geometry Chart
|
S |
M |
L |
XL |
Seat Tube Length (mm) |
435 |
485 |
535 |
585 |
Seat Tube Angle |
74.0° |
73.0° |
73.0° |
73.0° |
Top Tube Length (mm) |
570 |
590 |
610 |
630 |
Head Tube Length (mm) |
130 |
140 |
155 |
170 |
Head Tube Angle |
69.5° |
69.5° |
69.5° |
69.5° |
Fork Angle (mm) |
42 |
42 |
42 |
42 |
Trail (mm) |
91.3 |
91.3 |
91.3 |
91.3 |
Wheelbase (mm) |
1112 |
1121 |
1142 |
1163 |
Chain Stay Length (mm) |
455 |
455 |
455 |
455 |
Bottom Bracket Drop (mm) |
60 |
60 |
60 |
60 |
Stack (mm) |
610 |
619 |
633 |
648 |
Reach (mm) |
395 |
400 |
416 |
432 |
Stand Over Height (mm) |
745 |
775 |
808 |
844 |
Handlebar Width (mm) |
690 |
690 |
690 |
690 |
Stem Length (mm) |
60 |
70 |
80 |
90 |
Crank Length (mm) |
170 |
170 |
170 |
170 |
Wheel Size |
700c |
700c |
700c |
700c |
