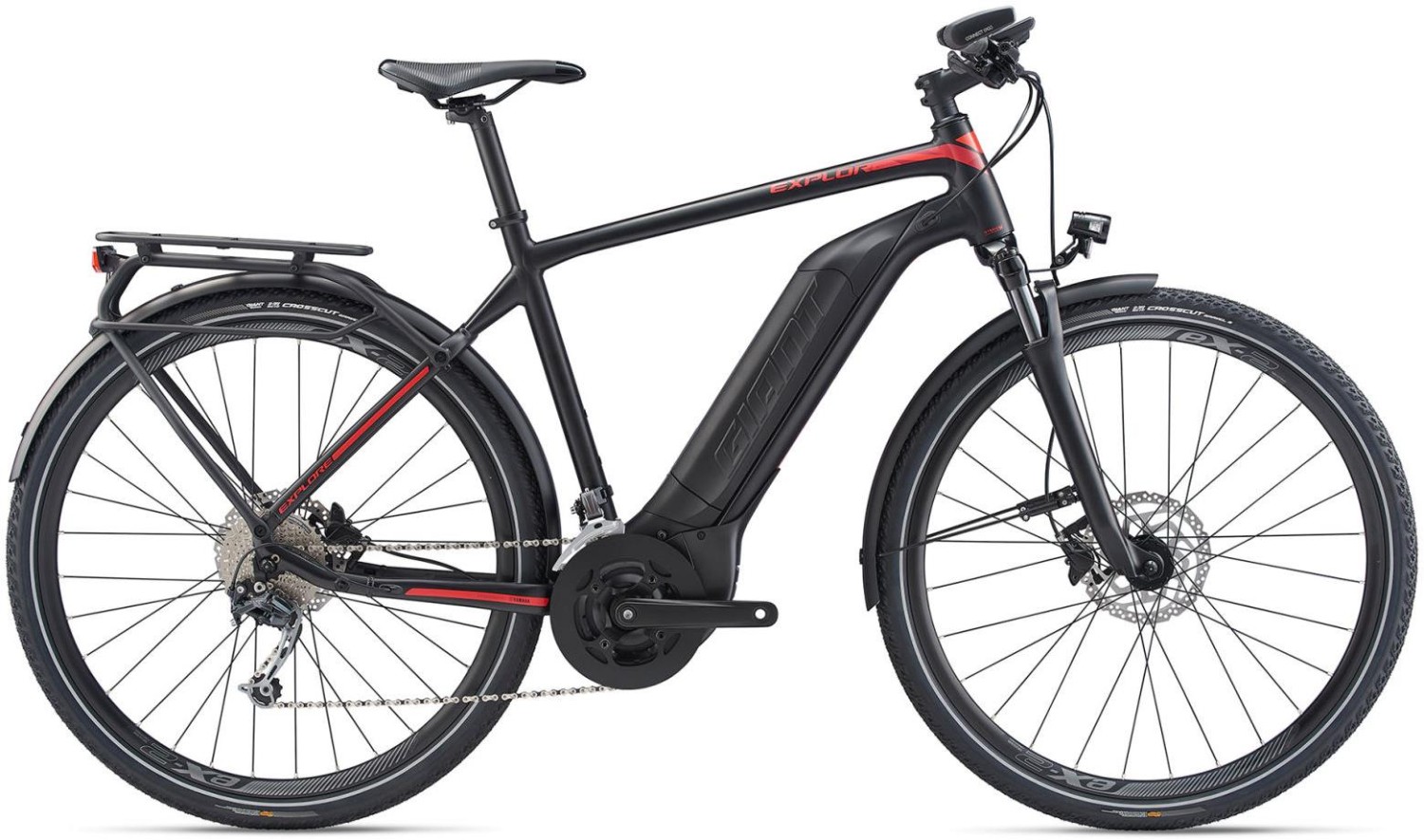

Giant Explore E+ 2 2020 - Electric Hybrid Bike
Pick your destination and discover joy in the journey. This E-bike is ideal for trekking, giving you the power to ride further with a boost that’s pure fun.
The Explore E+ is engineered to help you make the most of every journey. The ALUXX aluminium frame is designed such that it's a breeze to fit panniers with all your travel essentials. Its powerful and tuneable SyncDrive Sport motor and integrated EnergyPak provide a smooth, seamless boost of power so you can cover greater distances and conquer steep climbs. Rack mounts allow you to customise your cargo capacity, making it easier to carry the necessities for journeys near and far.
Key Features:
- Overall stability
The ALUXX aluminium frameset and SyncDrive Sport motor combine for smooth handling and acceleration on all types of roads and inclines. - Explore new routes
The RideControl EVO with on-board navigation helps riders find their way, and smartphone connectivity makes it easy to keep the battery charged. - Longer range
Explore E+ gives riders the freedom to ride further with either an EnergyPak Smart 400 or 500 battery that delivers 400Wh / 500Wh of power respectively.
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | ALUXX SL aluminum, Overdrive 1½ - 1⅛" head tube, integrated KS18 kickstand mount |
| Fork | RST Volante TNL coil, 60mm travel, tappered steerer, hydraulic lockout |
| Stem | Giant Contact |
| Bars | Giant Connect XC Riser 31.8x690mm |
| Front Brake | Shimano BR-MT200, hydraulic disc, 180mm |
| Rear Brake | Shimano BR-MT200, hydraulic disc, 180mm |
| Brake Lever | Shimano BL-MT200 |
| Front Mech | Shimano FD-M371 |
| Rear Mech | Shimano Deore |
| Shifters | Shimano SL-M2000 |
| Speed | 18 |
| Rims | Giant eX 2, Tubeless Ready, 700c aluminium, e-bike optimized |
| Front Hub | Giant eTracker 100x9mm QR |
| Rear Hub | Giant eTracker 135mm QR, e-bike optimized |
| Spokes | Stainless steel |
| Front Tyre | Giant Crosscut Gravel 2, 700x45c (622x45), Tubeless Ready, Reflex |
| Rear Tyre | Giant Crosscut Gravel 2, 700x45c (622x45), Tubeless Ready, Reflex |
| Seat Post | Giant 30.9mm, 2-bolt Micro Adjustable, Forged Aluminium |
| Saddle | Selle Royal Vivo GTS/WMN |
| Chainset | Forged Alloy minimal Q-factor, 36/48T |
| Chain | KMC e.9 Sport, e-bike optimized |
| Cassette | Shimano CS-HG200, 11-36T, 9-speed |
| Pedals | Aluminum Platform |
| Battery Size (WH) | 500wh |
| Motor | Giant |
| User Interface | Giant RideControl Charge display |
Giant Explore E+ 2021 Size Chart
|
Size |
Height (cm) |
Inseam (cm) |
Height (in) |
Inseam (in) |
|
XS |
152 - 160 |
66 - 71 |
5' 0" - 5'3" |
26" - 28" |
|
S |
160 - 170 |
66 - 76 |
5' 3" - 5' 7" |
26" - 30" |
|
M |
170 - 183 |
74 - 84 |
5' 7" - 6' 0" |
29" - 33" |
|
L |
183 - 193 |
79 - 91 |
6' 0" - 6' 4" |
31" - 36" |
|
XL |
193 - 196 |
84 - 94 |
6' 4" - 6' 5" |
33" - 37" |
What size frame do I need if I am between sizes? - read here
Giant Explore E+ 2021 Geometry Chart
|
|
S |
M |
L |
XL |
|
Seat Tube Length (mm) |
435 |
485 |
535 |
585 |
|
Seat Tube Angle |
74.0° |
73.0° |
73.0° |
73.0° |
|
Top Tube Length (mm) |
570 |
590 |
610 |
630 |
|
Head Tube Length (mm) |
130 |
140 |
155 |
170 |
|
Head Tube Angle |
69.5° |
69.5° |
69.5° |
69.5° |
|
Fork Angle (mm) |
42 |
42 |
42 |
42 |
|
Trail (mm) |
91.3 |
91.3 |
91.3 |
91.3 |
|
Wheelbase (mm) |
1112 |
1121 |
1142 |
1163 |
|
Chain Stay Length (mm) |
455 |
455 |
455 |
455 |
|
Bottom Bracket Drop (mm) |
60 |
60 |
60 |
60 |
|
Stack (mm) |
610 |
619 |
633 |
648 |
|
Reach (mm) |
395 |
400 |
416 |
432 |
|
Stand Over Height (mm) |
745 |
775 |
808 |
844 |
|
Handlebar Width (mm) |
690 |
690 |
690 |
690 |
|
Stem Length (mm) |
60 |
70 |
80 |
90 |
|
Crank Length (mm) |
170 |
170 |
170 |
170 |
|
Wheel Size |
700c |
700c |
700c |
700c |
