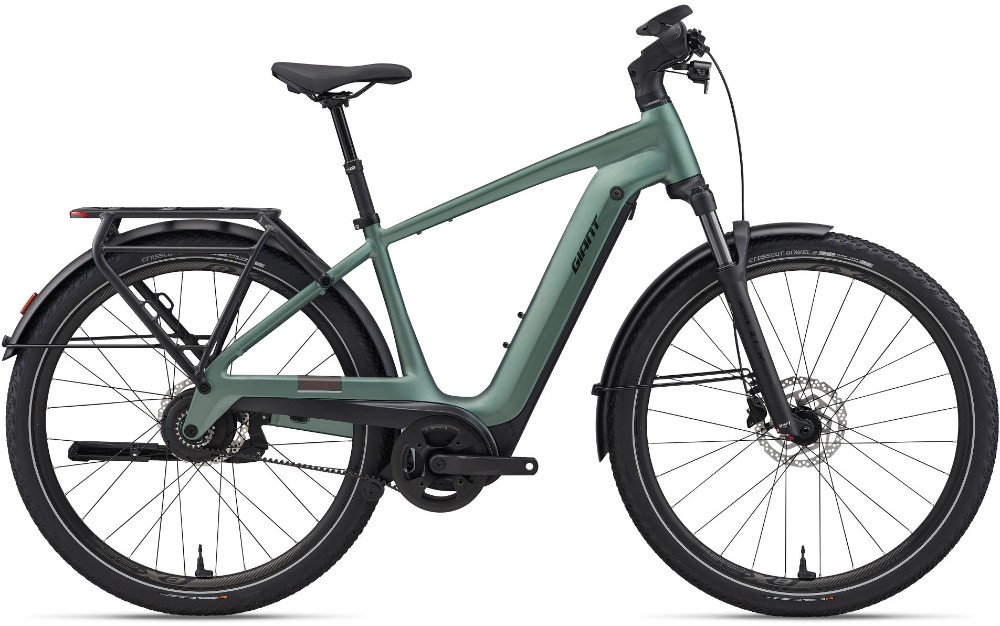

Giant Explore E+ 2 Double Diamond 2026 - Electric Hybrid Bike
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Gen 4 ALUXX aluminum, Overdrive 1.8" - 1.5" head tube, integrated battery, integrated KSA40 kickstand mount |
| Fork | SR Suntour XCR34 2CR coil boost 100mm travel 15x110mm AH axle |
| Stem | Giant Contour EVO integrated 16⁰ NEW, (S/M:80mm L/XL/XXL 100mm) |
| Bars | Giant Contour Comfort Riser 31.8x720mm |
| Front Brake | Shimano MT200, hydraulic disc, 180mm [F/R] |
| Rear Brake | Shimano MT200, hydraulic disc, 180mm [F/R] |
| Brake Lever | Shimano BL-MT200 |

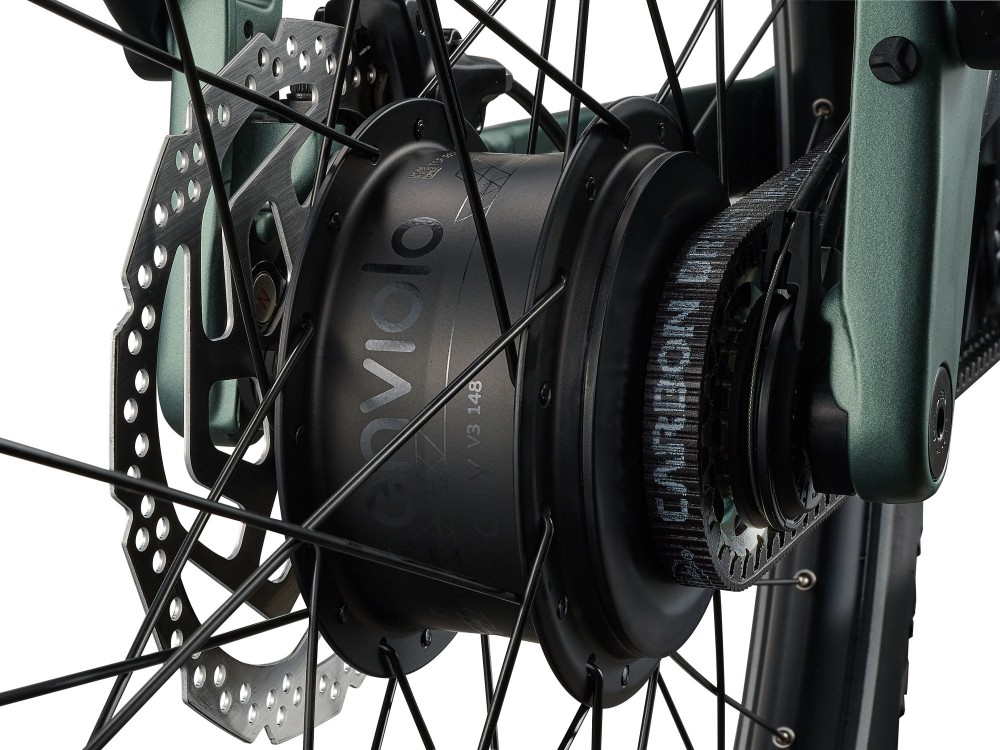

| Rear Mech | Enviolo Manual Modular 40T Spline |
| Shifters | Enviolo Pure |
| Speed | 1 |
| Rims | Giant eX25, Tubeless Ready, 622x25 Aluminium |
| Front Hub | Giant eTracker 6-bolt disc 15x110mm [F] Enviolo Manual Modular 40T spline 6-bolt disc [R] |
| Rear Hub | Giant eTracker 6-bolt disc 15x110mm [F] Enviolo Manual Modular 40T spline 6-bolt disc [R] |
| Spokes | Stainless steel, e-bike optimized |
| Front Tyre | Crosscut Gravel 2, 700x57c, Wire Bead, Tubeless Ready, w/ Reflection Strip |
| Rear Tyre | Crosscut Gravel 2, 700x57c, Wire Bead, Tubeless Ready, w/ Reflection Strip |
| Seat Post | Giant Contact Switch |
| Saddle | Selle Royal Vivo Ergo Moderate Unisex |
| Chainset | Forged alloy spider w/chainguard BCD 104, Gates CDC front sprocket 46T Forged alumium crank arms |
| Chain | Gates CDC Carbon Drive 120T CenterTrack belt |
| Cassette | Gates CDC stainless steel 22T rear sprocket |
| Pedals | Anti-slip Platform |
| Battery Size (WH) | Giant EnergyPak Smart 625Wh, Aluminium casing with highest safety standard (EN50604), CO2 Neutral production, Giant EnergyPak Plus 250 range extender compatible (exclude STA frame) |
| Motor | Giant SyncDrive Sport2, 75Nm PedalPlus 6-sensor technology |
| User Interface | Giant RideDash EVO 2.0, high-angle visibility, 3" full color LCD display, on-board navigation |
Electric Bike Bike Size Chart
|
Height |
e Bike Size |
e Road Bike Size |
e Mountain Bike Size* |
|
4’8” – 5’1” 143 – 155 cm |
XXS |
44 cm |
13” (33 cm) |
|
5’1” – 5’4” 155 – 163 cm |
XS |
48 cm |
15” (38 cm) |
|
5’4” – 5’7” 163 – 170 cm |
S |
51 cm |
16” (41 cm) |
|
5’7” – 5’10” 170 – 178 cm |
M |
54 cm |
18” (46cm) |
|
5’10” – 6’0” 178 – 183 cm |
L |
56 cm |
19” (48cm) |
|
6’0” – 6’3” 183 – 191 cm |
XL |
58 cm |
20” (51 cm) |
|
6’3” – 6’5” 191 – 196 cm |
XXL |
60 cm |
21” (53 cm) |
|
6’5” – 6’9” 196 – 205 cm |
XXXL |
62 cm |
22” (56 cm) |
* Mountain bikes are sized differently to road bikes. Typically, they are sized in inches as the first MTBs were produced in the USA. European brands like Lapierre and Haibike like to use centimeters for all their bikes. The measurements of their mountain bikes doesn’t match their road bikes but is like a simple conversion from the inches measurement. This is why we have included cm measurements in brackets for the e mountain bike column.
