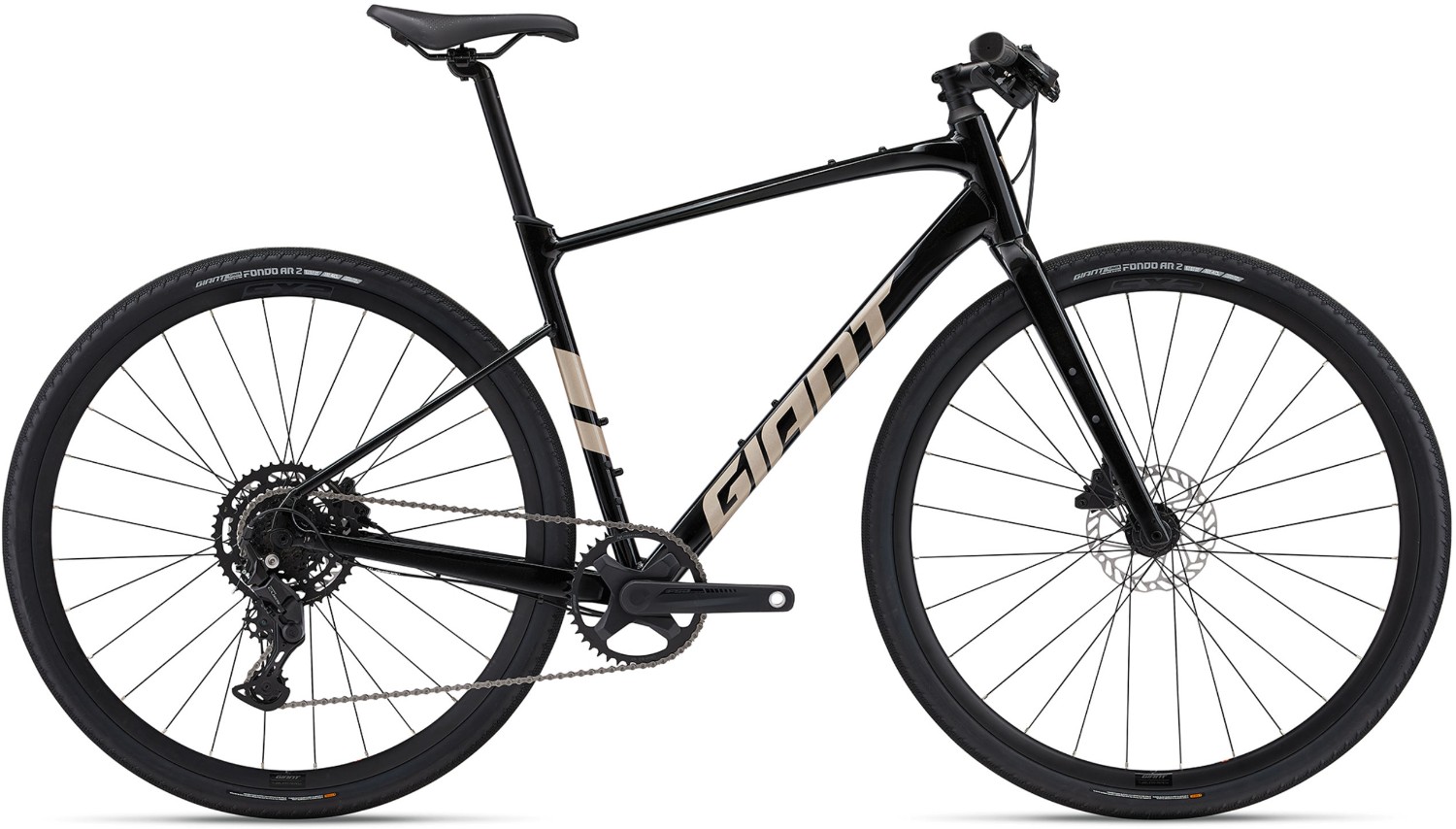

Giant FastRoad AR 2 2025 - Road Bike
The AR 2 is built to take on everyday miles in comfort and confidence. The ALUXX-grade aluminium frame is both lightweight and tough, making it an ideal partner for fitness training, commuting or weekend adventures.
Key Features:
- ALUXX-grade aluminium frame with endurance geometry and clean, efficient design
- Advanced-grade composite fork with OverDrive steerer for precise front-end control
- Shimano CUES U4000 9-speed drivetrain with wide-range 11–45T cassette
- Tektro HD-R280 hydraulic disc brakes with Giant MPH 160mm rotors
- Giant SR-2 wheels with Gavia Fondo AR 700x40c tubeless tyres
- D-Fuse alloy seatpost and ErgoContact saddle for added comfort
- Available with 0% APR finance
The geometry is tuned for a more upright, flat-bar position, which enhances visibility and bike control especially useful when riding through urban areas or navigating unfamiliar terrain. The Advanced-grade composite fork with Giant’s OverDrive tapered steerer boosts handling precision while helping to soak up vibrations from the road.
This model is equipped with the Shimano CUES U4000 9-speed drivetrain, a reliable and intuitive setup that includes a wide-range 11–45T cassette, making light work of hilly commutes and uneven routes. Paired with a durable FSA Omega 42T chainset, you’ll have the gears you need for both speed and climbing.
Stopping duties are handled by Tektro hydraulic disc brakes, offering consistent, confident braking power in all weather conditions. The bike rolls on Giant’s SR-2 wheelset, wrapped in Gavia Fondo AR 700x40c tubeless tyres providing great grip, lower rolling resistance, and the freedom to ride across a mix of surfaces, from tarmac to gravel.
Comfort is key on longer rides, so Giant have fitted their D-Fuse alloy seatpost, which flexes slightly to reduce shocks from rough ground, and an ErgoContact saddle to support you in a more relaxed riding position.
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | ALUXX-Grade Aluminium |
| Fork | Advanced-Grade Composite, composite OverDrive steerer |
| Stem | Giant Sports S:90mm, M:100mm, M/L:100mm, L:110mm, XL:110mm |
| Bars | Giant Sport, mini-rise, 31.8 S:64cm, M:68cm, M/, L:68cm, XL:68cm |
| Front Brake | Tektro HD-R280, Giant MPH rotors 160mm |
| Rear Brake | Tektro HD-R280, Giant MPH rotors 160mm |
| Brake Lever | Tektro HD-R280 |
| Rear Mech | Shimano Cues U4000 9 speed |
| Shifters | Shimano Cues U4000 9 speed - SLU40009 |
| Speed | 9 |
| Rims | Giant SR-2 Wheel Set |
| Front Hub | Giant alloy, 12mm thru-axle |
| Rear Hub | Giant alloy, 12mm thru-axle |
| Spokes | Sapim |
| Front Tyre | Giant Gavia Fondo AR, tubeless, 700x40c |
| Rear Tyre | Giant Gavia Fondo AR, tubeless, 700x40c |
| Seat Post | Giant D-Fuse, alloy, 350mm |
| Saddle | Giant ErgoContact |
| Chainset | FSA Omega AGX+, 42 S:170mm, M:170mm, M/L:172.5mm, L:172.5mm, XL: 172.5mm |
| Bottom Bracket | threaded |
| Chain | KMC Xglinde w/ Missing Link |
| Cassette | Shimano CS-LG3009, 11x45 |
| Pedals | platform pedal |
Giant FastRoad AR 2025 Size Chart
|
Frame Size |
Rider Height (cm) |
Rider Height (ft/in) |
|
XS |
150 – 160 |
4'11" – 5'3" |
|
S |
160 – 170 |
5'3" – 5'7" |
|
M |
170 – 180 |
5'7" – 5'11" |
|
M/L |
175 – 185 |
5'9" – 6'1" |
|
L |
180 – 190 |
5'11" – 6'3" |
|
XL |
190 – 200 |
6'3" – 6'7" |
What size frame do I need if I am between sizes? - read here
Giant FastRoad AR 2025 Geometry Chart
| Size | S | M | ML | L | XL |
|---|---|---|---|---|---|
| Stack | 552 | 578 | 597 | 623 | 646 |
| Reach | 396 | 404 | 407 | 419 | 432 |
| Head Tube Length | 130 | 155 | 175 | 200 | 225 |
| Head Tube Angle | 70.5° | 71.0° | 71.0° | 71.5° | 71.5° |
| Bottom Bracket Drop | 75 | 75 | 75 | 75 | 75 |
| Trail | 73.7 | 70.4 | 70.4 | 67.1 | 67.1 |
| Fork Rake/Offset | 50 | 50 | 50 | 50 | 50 |
| Chainstay Length | 435 | 435 | 435 | 435 | 435 |
| Wheelbase | 1047 | 1058 | 1069 | 1084 | 1105 |
| Top Tube Length (horizontal) | 560 | 575 | 590 | 610 | 630 |
| Standover Height | 736 | 756 | 773 | 800 | 826 |
| Seat Tube Length | 455 | 475 | 495 | 525 | 555 |
| Seat Tube Angle | 73.5° | 73.5° | 73.0° | 73.0° | 73.0° |
| Crank Length | 170 | 170 | 172.5 | 172.5 | 172.5 |
| Handlebar Width | 640 | 680 | 680 | 680 | 680 |
| Stem Length | 80 | 90 | 90 | 100 | 110 |
| Wheel Size | 700C | 700C | 700C | 700C | 700C |
All measurements are in mm unless otherwise stated.
The above table shows the standard geometry for the bicycle as shipped, other geometry configurations may be available with certain bikes. Please contact us via Live Chat to find out more.
