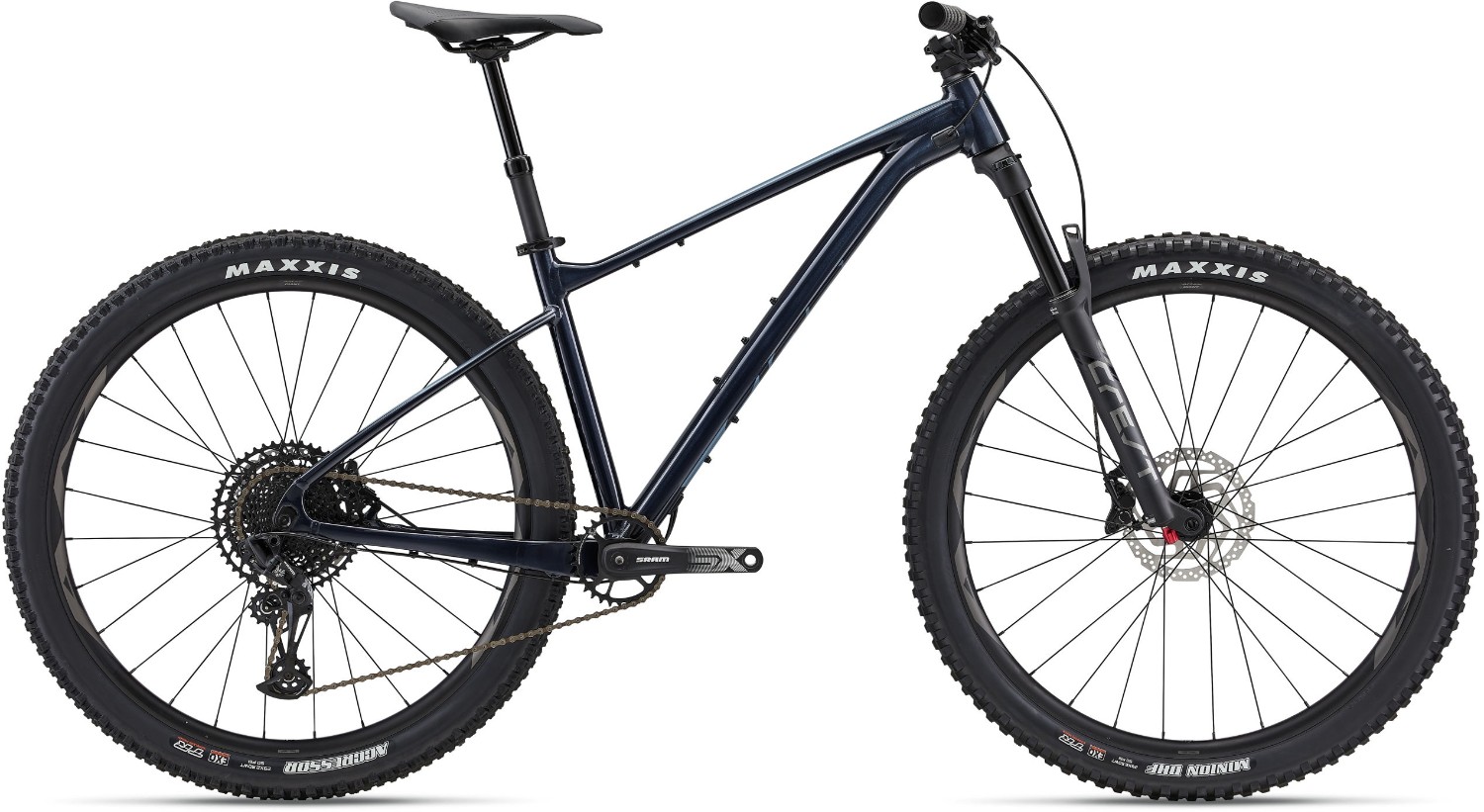

Giant Fathom 29 1 Mountain Bike 2024 - Hardtail MTB
The Giant Fathom 29 1 is for riders who crave confidence on rugged trails. Its ALUXX SL aluminium frame and balanced geometry deliver a powerful pedalling position and agile handling, making it ideal for both climbs and descents.
Key Features:
- Frame: ALUXX SL-grade aluminium, 12x148mm thru-axle
- Fork: Giant Crest 34 SL RCL, 130mm travel, boost 15x110
- Drivetrain: SRAM SX Eagle, 1x12-speed
- Brakes: Shimano BR-MT420/410 hydraulic disc, 180mm rotors
- Wheels: Giant AM 29, tubeless ready, 30mm inner width
- Tyres: Maxxis Minion DHF 29x2.5 WT (front), Maxxis Aggressor 29x2.5 WT (rear)
- Other Standout Feature: Dropper seatpost with remote
- Finance Option: Available with 0% APR finance
The Giant Fathom 29 1 boasts a trail-tuned design with a 75-degree seat tube angle for efficient climbing and a slacker 66-degree head angle for enhanced control on technical descents. This hardtail's lightweight ALUXX SL aluminium frame provides responsive handling, allowing riders to climb, corner, and sprint with agility and speed.
The Giant Crest 34 suspension fork, with 130mm of travel, smooths out roots, rocks, and ruts, ensuring a comfortable ride on rough terrain. High-volume Maxxis tyres boost traction, while the dropper seatpost with a handlebar remote lets you quickly adjust your saddle height for optimal positioning on varying trails.
Equipped with a SRAM SX Eagle 1x12 drivetrain, the Fathom 29 1 delivers reliable shifting and a wide gear range for tackling steep climbs and fast descents. Shimano hydraulic disc brakes provide consistent stopping power, ensuring control in all conditions. The tubeless-ready Giant AM 29 wheels offer durability and performance, ready for any adventure.
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | ALUXX SL-Grade Aluminium, 12x148mm thru-axle |
| Fork | Giant Crest 34 SL RCL, 130mm, 44mm offset, Boost 15x110 |
| Rear Shock | N/A |
| Stem | Giant Contact SL 35 |
| Bars | Giant Contact SL TR35, 780x35mm |
| Front Brake | Shimano BR-MT420/410, hydraulic, Shimano RT-26 rotors [F]180mm, [R]180mm |
| Rear Brake | Shimano BR-MT420/410, hydraulic, Shimano RT-26 rotors [F]180mm, [R]180mm |
| Brake Lever | Shimano BR-MT401 |
| Front Mech | N/A |
| Rear Mech | SRAM NX Eagle |
| Shifters | SRAM SX Eagle, 1x12 |
| Speed | 12 |
| Rims | Giant AM 29, tubeless ready sleeve-joint rim, 30mm inner width |
| Front Hub | Alloy, sealed |
| Rear Hub | alloy, sealed |
| Spokes | Stainless steel |
| Front Tyre | [F] Maxxis Minion DHF, 29x2.5 WT, EXO/TR[R] Maxxis Aggressor, 29x2.5 WT, foldable, EXO/T |
| Rear Tyre | [F] Maxxis Minion DHF, 29x2.5 WT, EXO/TR[R] Maxxis Aggressor, 29x2.5 WT, foldable, EXO/T |
| Seat Post | Giant Contact Switch dropper, remote S: 125mm travel / 30.9 x 395mm M: 125mm travel / 30.9 x 395mm L: 150mm travel / 30.9 x 440mm XL: 170mm travel / 30.9 x 450mm |
| Saddle | Giant Romero |
| Chainset | SRAM SX Eagle, 30T |
| Bottom Bracket | SRAM SX PowerSpline, threaded |
| Chain | SRAM SX Eagle |
| Cassette | SRAM SX Eagle, 11x50 |
| Pedals | Resin Platform |
Giant Fathom Size Chart
| Size | Height (cm) | Height (feet & inches) |
|---|---|---|
| S | 163-172 | 5'4"-5'8" |
| M | 171-180 | 5'7"-5'11" |
| L | 179-188 | 5'10"-6'2" |
| XL | 187-198 | 6'1"-6'6" |
