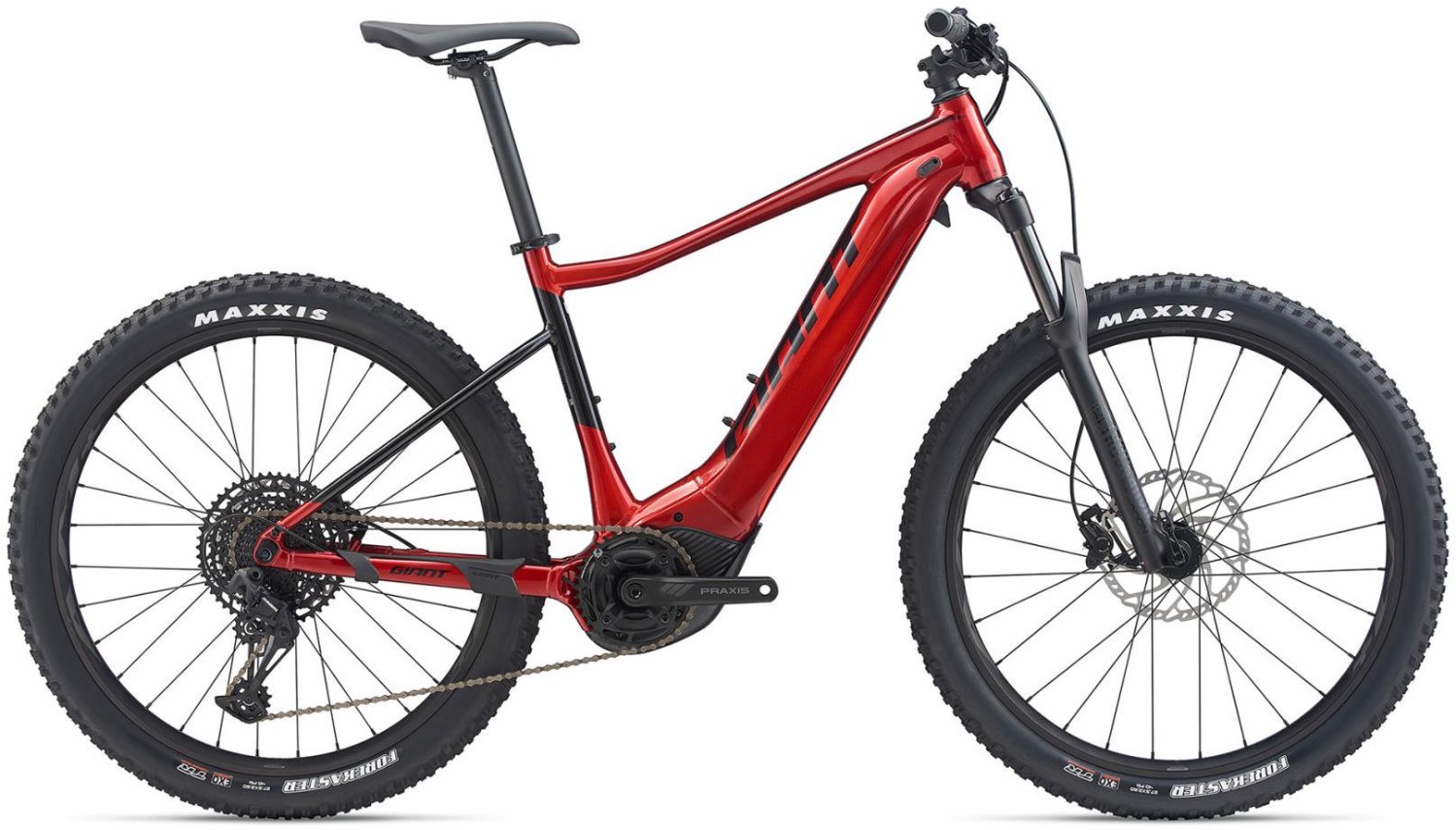

Giant Fathom E+ 1 Pro 27.5" 2020 - Electric Mountain Bike
Ride rough trails or singletrack with power and control. The Giant Fathom E+ Pro hardtail electric mountain bike helps you conquer hills and challenging terrain in a whole new way.
Key Features:
- ALUXX alloy frame with neatly integrated battery pack
- RockShox Recon RL fork offers 120mm of bump soaking suspension travel
- SRAM SX Eagle 1x12 speed drivetrain for a very wide gear range
- Shimano MT400 hydraulic disc brakes for powerful speed control
- Wheels: 27.5” with wide 2.6” Maxxis tubeless tyres
- Sizes: Small, Medium, Large, X Large
- Colour: Red
- The Giant Fathom E+ 1 Pro is available with 0% APR finance
Drive Information:
- Motor: Giant SyncDrive Pro, 80Nm powered by YAMAHA, 360% tuneable support
- Battery: Giant EnergyPak 500, 36V 11.3Ah Lithium-Ion Panasonic
- User interface/remote: Giant RideControl ONE, remote button
- Connectivity: Bluetooth & ANT+ connectable
The all-new Fathom E+ Pro e bike is built on a lightweight ALUXX SL aluminium frame with trail-friendly geometry and 120mm fork. It has a 500Wh EnergyPak that’s integrated into the downtube and the new and improved RideControl ONE handlebar control buttons. Designed to ride on a variety of terrain, from mild XC to more challenging technical trails, it delivers responsive hardtail handling. The SyncDrive Pro motor technology gives you 360 percent tuneable power. This can be adjusted exactly the way you want via the Ride Control app where you can also record health, fitness and navigation data.
Highlights:
- Integrated design
500Wh EnergyPak is integrated into the downtube, and RideControl ONE handlebar control buttons connect with an E-bike-specific Ride Control app for health, fitness and navigation functions. - Total control
SyncDrive Pro motor technology gives you 360 percent tuneable power so you can adjust your E-bike to ride just the way you like. - Responsive hardtail handling
Aluminium frame is designed for and fitted with a 120mm suspension fork for smooth off-road control.
All Tredz bikes are:
- Fully built & ready to ride
- Fully checked & tested by Cytech qualified mechanics
- Available with 0% APR finance on any basket over £99
- 365 day no hassle returns
- Free delivery in the UK Mainland on a date that suits you
In the box with every Tredz bike is:
- Free Tredz 9 key trail tool
- Free Tredz pedal spanner
- Free basic pedals
- Tredz drawstring kit bag
- 16 point quality control check sheet
- Basic bike setup instructions
- Free Cycle Plan insurance voucher (8 weeks)
Occasionally, without notice, manufacturers change product design and/or specifications.
Giant Fathom E Sizing & Geometry
|
Inside Leg (Inches) Vs Rider Height (Feet & Inches) |
26” |
27” |
28” |
29” |
30” |
31” |
32” |
33” |
34” |
35” |
36” |
37” |
|
5’ 3” |
|
|
S |
S |
S |
|
|
|
|
|
|
|
|
5’ 4” |
S |
S |
S |
S |
S |
|
|
|
|
|
|
|
|
5’ 5” |
S |
S |
S |
S |
S |
|
|
|
|
|
|
|
|
5’ 6” |
|
S |
S |
S |
S |
S |
|
|
|
|
|
|
|
5’ 7” |
|
|
S |
S |
S |
M |
M |
|
|
|
|
|
|
5’ 8” |
|
|
|
M |
M |
M |
M |
M |
|
|
|
|
|
5’ 9” |
|
|
|
M |
M |
M |
M |
M |
|
|
|
|
|
5’ 10” |
|
|
|
|
M |
M |
M |
M |
M |
|
|
|
|
5’ 11” |
|
|
|
|
M |
M |
M |
M |
M |
|
|
|
|
6’ 0” |
|
|
|
|
|
M |
M |
L |
L |
L |
|
|
|
6’ 1” |
|
|
|
|
|
L |
L |
L |
L |
L |
|
|
|
6’ 2” |
|
|
|
|
|
|
L |
L |
L |
L |
L |
|
|
6’ 3” |
|
|
|
|
|
|
L |
L |
L |
L |
L |
|
|
6’ 4” |
|
|
|
|
|
|
|
L |
L |
XL |
XL |
XL |
Giant Fathom E 27.5 Geometry
| S | M | L | XL | |
|---|---|---|---|---|
| SEAT TUBE LENGTH (mm) | 405 | 465 | 505 | 535 |
| SEAT TUBE ANGLE | 73.0° | 73.0° | 73.0° | 73.0° |
| TOP TUBE LENGTH (mm) | 575 | 600 | 625 | 650 |
| HEAD TUBE LENGTH (mm) | 105 | 115 | 125 | 140 |
| HEAD TUBE ANGLE | 68.0° | 68.0° | 68.0° | 68.0° |
| FORK RAKE (mm) | 46 | 46 | 46 | 46 |
| TRAIL (mm) | 101.1 | 101.1 | 101.1 | 101.1 |
| WHEELBASE (mm) | 1140 | 1166 | 1192 | 1218 |
| CHAIN STAY LENGTH (mm) | 475 | 475 | 475 | 475 |
| BOTTOM BRACKET DROP (mm) | 45 | 45 | 45 | 45 |
| STACK (mm) | 617 | 626 | 635 | 649 |
| REACH (mm) | 386 | 408 | 430 | 451 |
| STAND OVER HEIGHT (mm) | 753 | 760 | 787 | 791 |
| HANDLEBAR WIDTH (mm) | 780 | 780 | 780 | 780 |
| STEM LENGTH (mm) | 50 | 60 | 60 | 70 |
| CRANK LENGTH (mm) | 165 | 170 | 170 | 170 |
| WHEEL SIZE | 27.5+ | 27.5+ | 27.5+ | 27.5+ |
Giant Fathom E 29 Geometry
| M | L | XL | |
|---|---|---|---|
| SEAT TUBE LENGTH (mm) | 465 | 505 | 535 |
| SEAT TUBE ANGLE | 73.0° | 73.0° | 73.0° |
| TOP TUBE LENGTH (mm) | 600 | 625 | 650 |
| HEAD TUBE LENGTH (mm) | 115 | 125 | 140 |
| HEAD TUBE ANGLE | 68.0° | 68.0° | 68.0° |
| FORK RAKE (mm) | 51 | 51 | 51 |
| TRAIL (mm) | 95.7 | 95.7 | 95.7 |
| WHEELBASE (mm) | 1171 | 1197 | 1223 |
| CHAIN STAY LENGTH (mm) | 475 | 475 | 475 |
| BOTTOM BRACKET DROP (mm) | 45 | 45 | 45 |
| STACK (mm) | 626 | 635 | 649 |
| REACH (mm) | 408 | 430 | 451 |
| STAND OVER HEIGHT (mm) | 760 | 787 | 791 |
| HANDLEBAR WIDTH (mm) | 780 | 780 | 780 |
| STEM LENGTH (mm) | 60 | 60 | 70 |
| CRANK LENGTH (mm) | 170 | 170 | 170 |
| WHEEL SIZE | 29 | 29 | 29 |
