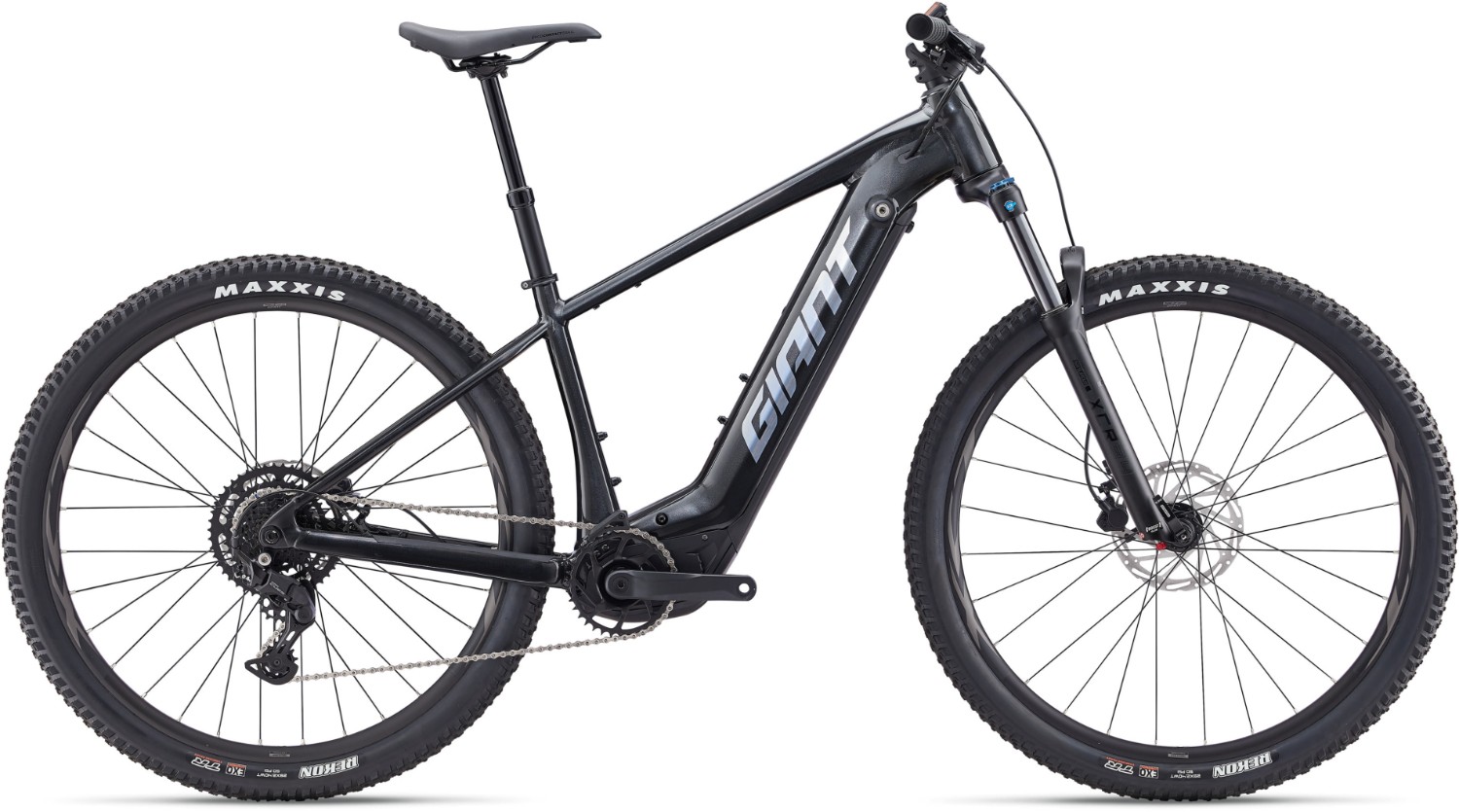

Giant Fathom E+ 2 2024 - Electric Mountain Bike

The Giant Fathom E+ 2 features an ALUXX SL aluminum frame and trail-friendly geometry, offering performance and control. With a SyncDrive Sport motor delivering 75Nm of torque, you'll conquer steep hills effortlessly.
Key Features:
- Frame: ALUXX SL aluminum frame with trail-friendly geometry and integrated KSA40 kickstand mount for enhanced versatility.
- Front Suspension: SR Suntour XCR 34 Boost 2-CR Coil fork with 130mm travel ensures smooth and responsive handling on rough terrain.
- Drivetrain: Shimano Cues Linkglide 1x9 drivetrain offers reliable and precise shifting performance.
- Brakes: Tektro HD-M285 hydraulic disc brakes provide reliable stopping power in all conditions for enhanced safety.
- Wheels: Giant XCT 29 tubeless-ready rims with Maxxis Rekon 29x2.4" wire bead tyres offer stability and traction on varied terrain.
- Stand Out Feature: EnergyPak Smart battery with 625Wh capacity, compatible with EnergyPak Plus 250 range extender for extended riding range.
- 0% APR Finance Available: Make your dream of owning the Giant Fathom E+ 2 a reality with flexible financing options.
- Motor: Giant SyncDrive Sport2 motor with 75Nm of torque and PedalPlus 6-sensor technology ensures smooth and instantaneous power delivery, perfect for tackling challenging trails.
- Battery: Integrated EnergyPak Smart battery with 625Wh capacity offers long-lasting power and can be easily charged up to 80% in just 2.5 hours with the 6A Fast Charger.
- User Interface: Giant RideControl Dash with full-color LCD display and high-angle visibility allows for easy control and customization of settings for an optimized riding experience.
Push your limits of trail riding like never before with the Giant Fathom E+ 2. With its powerful motor, it's the perfect companion for exploring new trails and pushing your limits on challenging terrain.
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | ALUXX SL aluminium, Overdrive 1.5" - 1.8" head tube, 148x12mm thru-axle, integrated KSA40 kickstand mount, EnergyPak Plus range extender compatible |
| Fork | SR Suntour XCR 34 Boost 2-CR Coil 29, 130mm travel, Tapered 1.125"-1.5" steerer, 15AH2-110 thru-axle |
| Stem | Giant Contact |
| Bars | Giant Connect TR Riser 31.8mm |
| Front Brake | Tektro HD-M285, hydraulic disc, 180mm |
| Rear Brake | Tektro HD-M285, hydraulic disc, 180mm |
| Brake Lever | Tektro HD-M285 |
| Rear Mech | Shimano Cues LinkGlide |
| Shifters | Shimano Cues LinkGlide 1x9 |
| Speed | 9 |
| Rims | Giant XCT 29 Tubeless Ready 25mm e-bike optimised |
| Front Hub | Giant eTracker Boost 15x110 |
| Rear Hub | Giant eTracker Boost 12x148 |
| Spokes | Stainless steel |
| Front Tyre | Maxxis Rekon 29x2.4" Wire Bead 60TPI |
| Rear Tyre | Maxxis Rekon 29x2.4" Wire Bead 60TPI |
| Seat Post | Giant Contact Switch Adj, adjustable dropper, 30,9mm |
| Saddle | Giant Ergo Contact Trail |
| Chainset | FSA MegaTooth direct-mount 1X steel 36T FSA Comet E-Bike crank arm |
| Bottom Bracket | Integrated |
| Chain | KMC eGlide NP/BK, e-bike optimised |
| Cassette | Shimano Cues, LinkGlide, CS-LG300-9, 11-46T, 9-speed |
| Pedals | Aluminium Platform |
| Battery Size (WH) | Giant EnergyPak 625Wh, Aluminium casing with highest safety standard (EN50604), CO2 Neutral production, Giant EnergyPak Plus 250 range extender compatible |
| Motor | Giant SyncDrive Sport2, 75Nm, PedalPlus 6-sensor technology |
| User Interface | Giant RideControl Dash, high-angle visibility, full color LCD display |
![]()
Giant Fathom E+ Size Chart
| Size | Height (cm) | Height (feet & inches) |
|---|---|---|
| S | 162-172 | 5'4"-5'8" |
| M | 169-179 | 5'7"-5'10" |
| L | 176-186 | 5'9"-6'1" |
| XL | 183-193 | 6'0"-6'4" |
| XXL | 190-200 | 6'3"-6'7" |
What size frame do I need if I am between sizes? - read here
